Serie: 116G

With Polyamide 6

for Industry

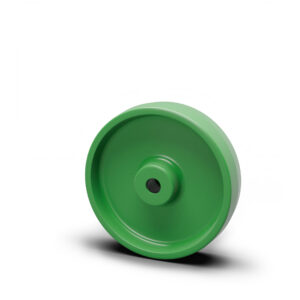

Monolithic Polyamide 6 wheel. Hub on plain bore, roller bearings or shielded ball bearings assembled whit central spacer.

90 | 550

-25 | +85

Wheels: avo_series_archives_brickle_listing_ruota

116G - Wheel with Polyamide 6

Catalogue Ref.: 116G

Catalogue Ref.: 116g
Hub version: ball bearing

Code	Catalogue Ref.	EAN	Materials
05116G00800CN	116G	***	Polyamide 6	80	30	30	15	35X11	150
05116G01000CN	116G	***	Polyamide 6	100	30	30	15	35X11	175
05116G01250CN	116G	***	Polyamide 6	125	40	45	15	35X11	300
05116G01500CN	116G	***	Polyamide 6	150	40	35	17	42X12	400
05116G01750CN	116G	***	Polyamide 6	175	45	40	20	47X14	475
05116G02000CN	116G	***	Polyamide 6	200	50	45	25	47X14	550

Catalogue Ref.: 116g
Hub version: plain bore

Code	Catalogue Ref.	EAN	Materials
G5116G00600FP	116G	***	Polyamide 6	60	35	39	12	150
G5116G00800FP	116G	***	Polyamide 6	80	30	40	12	150
G5116G01000FP	116G	***	Polyamide 6	100	30	40	12	175
G5116G01250FP	116G	***	Polyamide 6	125	40	50	15	300
G5116G01500FP	116G	***	Polyamide 6	150	40	50	15	400
G5116G21500FP	116G	22286	Polyamide 6	150	40	50	20	400
G5116G01600FP	116G	***	Polyamide 6	160	40	58	20	550
G5116G01750FP	116G	***	Polyamide 6	175	50	58	20	475
G5116G02000FP	116G	***	Polyamide 6	200	50	58	20	550

Catalogue Ref.: 116g
Hub version: roller bearing

Code	Catalogue Ref.	EAN	Materials
05116G00800RN	116G	***	Polyamide 6	80	30	40	12	150
05116G01000RN	116G	***	Polyamide 6	100	30	40	12	175
05116G01250RN	116G	***	Polyamide 6	125	40	50	15	300
05116G01500RN	116G	***	Polyamide 6	150	40	50	15	400
05116G01600RN	116G	***	Polyamide 6	160	40	58	20	420
05116G01750RN	116G	***	Polyamide 6	175	50	58	20	475
05116G02000RN	116G	***	Polyamide 6	200	50	58	20	550

Medium duty castors no stainless steel: avo_series_archives_brickle_listing_ruotasupporto_medio_noinox

116G - Medium Duty Castors

Catalogue Ref.: 118BISAG

Catalogue Ref.: 118BISANTBG

Catalogue Ref.: 118BISANTFG

Catalogue Ref.: 118BISANTG

Catalogue Ref.: 118BISBG

Catalogue Ref.: 118BISCG

Catalogue Ref.: 118BISG

Catalogue Ref.: 118bisag
Hub version: plain bore

Code	Catalogue Ref.	EAN
05118SA0800FG	118BISAG	***	80	30	100X085	080X060	8,5X12	108	90	120
05118SA1000FG	118BISAG	17265	100	30	100X085	080X060	8,5X12	128	120	150
05118SA1250FG	118BISAG	22205	125	40	100X085	080X060	8,5X12	155	170	220
05118SA1500FG	118BISAG	28148	150	40	100X085	080X060	8,5X12	181	200	250
05118SA1600FG	118BISAG	28149	160	40	140X110	105X080	11X16	197	300	380
05118SA2000FG	118BISAG	28150	200	50	140X110	105X080	11X16	235	300	380

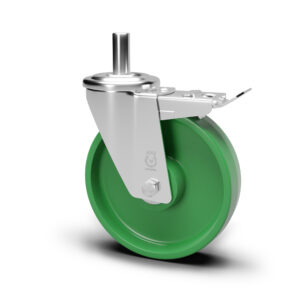

Catalogue Ref.: 118bisantbg
Hub version: plain bore

Code	Catalogue Ref.	EAN
05118SBA080FG	118BISANTBG	28171	80	30	106	37	Plain axle	20X50	120	150
05118SBA100FG	118BISANTBG	28172	100	30	126	37	Plain axle	20X50	120	150
05118SBA125FG	118BISANTBG	28173	125	40	150	42	Plain axle	22X50	170	220
05118SBA150FG	118BISANTBG	28174	150	40	178	45	Plain axle	22X50	200	250
05118SBA160FG	118BISANTBG	28175	160	40	194	55	Plain axle	22X50	300	380
05118SBA200FG	118BISANTBG	28176	200	50	232	55	Plain axle	22X50	300	380

Catalogue Ref.: 118bisantfg
Hub version: plain bore

Code	Catalogue Ref.	EAN
05118SFA080FG	118BISANTFG	18380	80	30	106	37	12	120	150
05118SFA100FG	118BISANTFG	28160	100	30	126	37	12	120	150
05118SFA125FG	118BISANTFG	28161	125	40	150	42	12	170	220
05118SFA150FG	118BISANTFG	28163	150	40	178	45	12	200	250
05118SFA160FG	118BISANTFG	28162	160	40	194	55	16	300	380
05118SFA200FG	118BISANTFG	28164	200	50	232	55	16	300	380

Catalogue Ref.: 118bisantg
Hub version: plain bore

Code	Catalogue Ref.	EAN
05118S0A080FG	118BISANTG	23842	80	30	100X085	080X060	8,5X12	108	37	120	150
05118S0A100FG	118BISANTG	23843	100	30	100X085	080X060	8,5X12	128	37	120	150
05118S0A125FG	118BISANTG	28152	125	40	100X085	080X060	8,5X12	155	42	170	220
05118S0A150FG	118BISANTG	28153	150	40	100X085	080X060	8,5X12	181	45	200	250
05118S0A160FG	118BISANTG	19734	160	40	140X110	105X080	11X16	194	55	300	380
05118S0A200FG	118BISANTG	28154	200	50	140X110	105X080	11X16	235	55	300	380

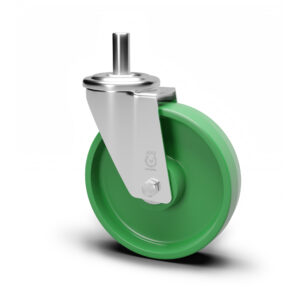

Catalogue Ref.: 118bisbg
Hub version: plain bore

Code	Catalogue Ref.	EAN
05118SB0800FG	118BISBG	28165	80	30	106	37	Plain axle	20X50	120	150
05118SB0100FG	118BISBG	28166	100	30	126	37	Plain axle	20X50	120	150
05118SB0125FG	118BISBG	28167	125	40	150	42	Plain axle	22X50	170	220
05118SB0150FG	118BISBG	28168	150	40	178	45	Plain axle	22X50	200	250
05118SB0160FG	118BISBG	28169	160	40	194	45	Plain axle	22X50	300	380
05118SB0200FG	118BISBG	28170	160	40	232	55	Plain axle	22X50	300	380

Catalogue Ref.: 118biscg
Hub version: plain bore

Code	Catalogue Ref.	EAN
05118SP0800FG	118BISCG	18379	80	30	106	37	12	120	150
05118SP1000FG	118BISCG	28155	100	30	126	37	12	120	150
05118SP1250FG	118BISCG	28156	125	40	150	42	12	170	220
05118SP1500FG	118BISCG	28157	150	40	178	45	12	200	250
05118SP1600FG	118BISCG	28158	160	40	194	55	16	300	380
05118SP2000FG	118BISCG	28159	200	50	232	55	16	300	380

Catalogue Ref.: 118bisg
Hub version: plain bore

Code	Catalogue Ref.	EAN
05118S00600FG	118BISG	***	60	35	100X085	080X060	8,5X12	89	37	120	150
05118S00800FG	118BISG	***	80	30	100X085	080X060	8,5X12	108	37	120	150
05118S01000FG	118BISG	***	100	30	100X085	080X060	8,5X12	128	37	120	150
05118S01250FG	118BISG	22204	125	40	100X085	080X060	8,5X12	155	42	170	220
05118S01500FG	118BISG	***	150	40	100X085	080X060	8,5X12	181	45	200	250
05118S01600FG	118BISG	19733	160	40	140X110	105X080	11X16	197	55	300	380
05118S02000FG	118BISG	28151	200	50	140X110	105X080	11X16	235	55	300	380

Medium stainless steel castors 304: avo_series_archives_brickle_listing_ruotasupporto_medioinox304

116G - Medium Duty Castors aisi 304 stainless steel

Catalogue Ref.: 119AG

Catalogue Ref.: 119ANTBG

Catalogue Ref.: 119ANTFG

Catalogue Ref.: 119ANTG

Catalogue Ref.: 119BG

Catalogue Ref.: 119FG

Catalogue Ref.: 119G

Catalogue Ref.: 119ag
Hub version: plain bore

Code	Catalogue Ref.	EAN
06119A00800FG	119AG	28177	80	30	100X085	080X060	8,5X12	108	150	190
06119A01000FG	119AG	23739	100	30	100X085	080X060	8,5X12	128	150	190
06119A01250FG	119AG	28178	125	40	100X085	080X060	8,5X12	155	200	250
06119A01500FG	119AG	23741	150	40	100X085	080X060	8,5X12	155	200	250

Catalogue Ref.: 119antbg
Hub version: plain bore

Code	Catalogue Ref.	EAN
06119BA0800FG	119ANTBG	28199	80	30	105	37	Plain axle	20X50	150	190

Catalogue Ref.: 119antfg
Hub version: plain bore

Code	Catalogue Ref.	EAN
06119FA0800FG	119ANTFG	18269	80	30	105	37	12	150	190

Catalogue Ref.: 119antg
Hub version: plain bore

Code	Catalogue Ref.	EAN
061190A0600FG	119ANTG	24163	60	35	100X085	080X060	8,5X12	89	42	150	190
061190A0800FG	119ANTG	28197	80	30	100X085	080X060	8,5X12	108	37	150	190
061190A1000FG	119ANTG	17756	100	30	100X085	080X060	8,5X12	128	37	150	190
061190A1500FG	119ANTG	23740	150	40	100X085	080X060	8,5X12	181	45	200	250

Catalogue Ref.: 119bg
Hub version: plain bore

Code	Catalogue Ref.	EAN
06119B00800FG	119BG	28198	80	30	105	37	Plain axle	20X50	150	190

Catalogue Ref.: 119fg
Hub version: plain bore

Code	Catalogue Ref.	EAN
06119F00800FG	119FG	18268	80	30	105	37	12	150	190

Catalogue Ref.: 119g
Hub version: plain bore

Code	Catalogue Ref.	EAN
06119000600FG	119G	24162	60	35	100X085	080X060	8,5X12	89	42	150	190
06119000800FG	119G	18283	80	30	100X085	080X060	8,5X12	107	37	150	190
06119001000FG	119G	17755	100	30	100X085	105X080	11X16	128	37	150	190
06119001250FG	119G	28195	125	40	100X085	105X080	11X16	155	42	200	250
06119001500FG	119G	28196	150	40	100X085	105X080	11X16	181	45	200	250

Medium stainless steel castors 316: avo_series_archives_brickle_listing_ruotasupporto_medio_inox316

Heavy duty castors no stainless steel: avo_series_archives_brickle_listing_ruotasupporto_pesante_noinox

Stainless steel heavy duty castors: avo_series_archives_brickle_listing_ruotasupporto_pesante_inox304

Stainless steel heavy duty castors 316: avo_series_archives_brickle_listing_ruotasupporto_pesante_inox316

Extra heavy duty castors: avo_series_archives_brickle_listing_ruotasupporto_extrapesante

Twin extra heavy duty castors: avo_series_archives_brickle_listing_ruotasupporto_extrapesantegemellato

Wheels with furniture support: avo_series_archives_brickle_listing_ruotasupporto_mobilio

Ruote con supporto mobilio inox 304: avo_series_archives_brickle_listing_ruotasupporto_mobilio_inox304

Ruote con supporto mobilio inox 316: avo_series_archives_brickle_listing_ruotasupporto_mobilio_inox316

Can't find the desired variant? Contact us
