Serie 14

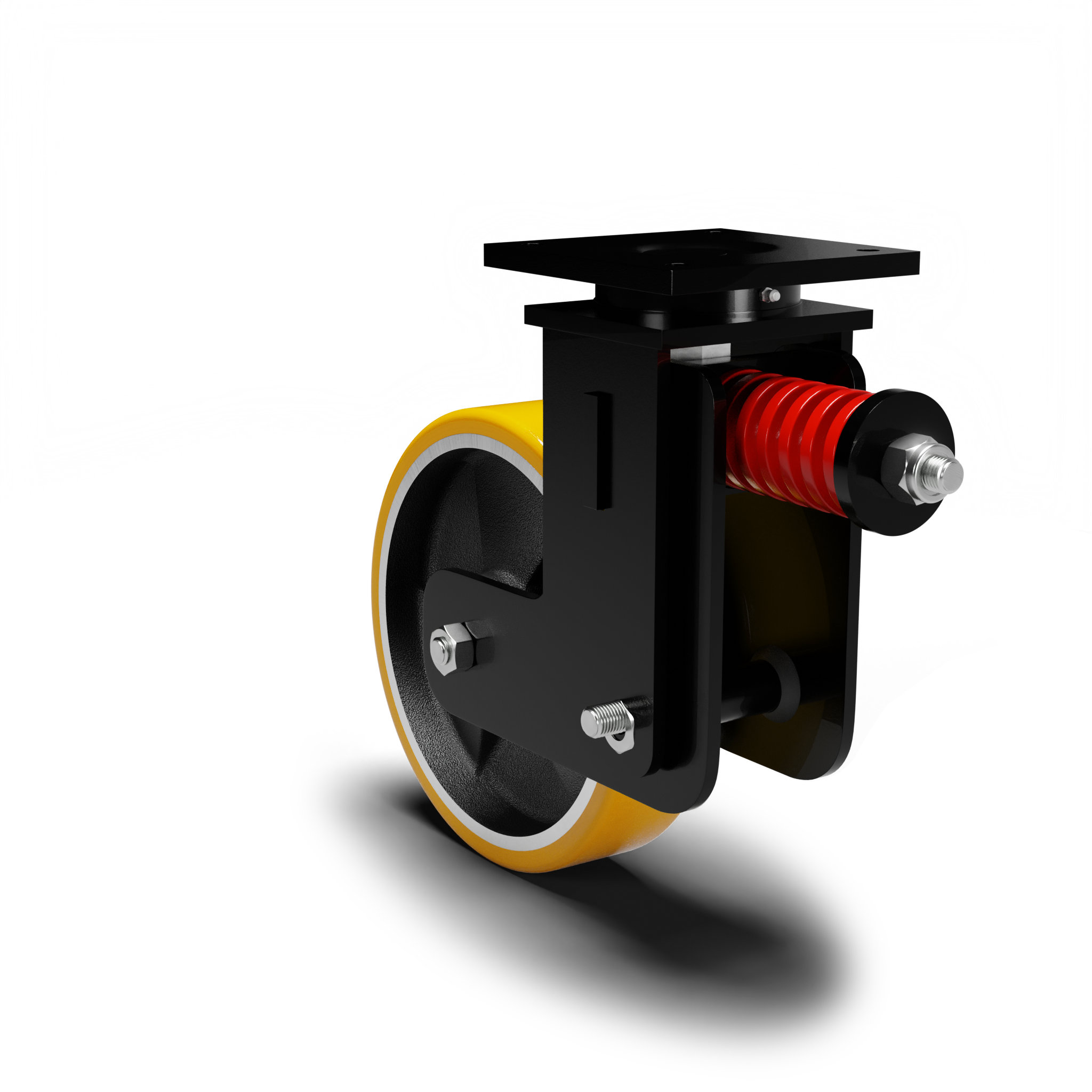

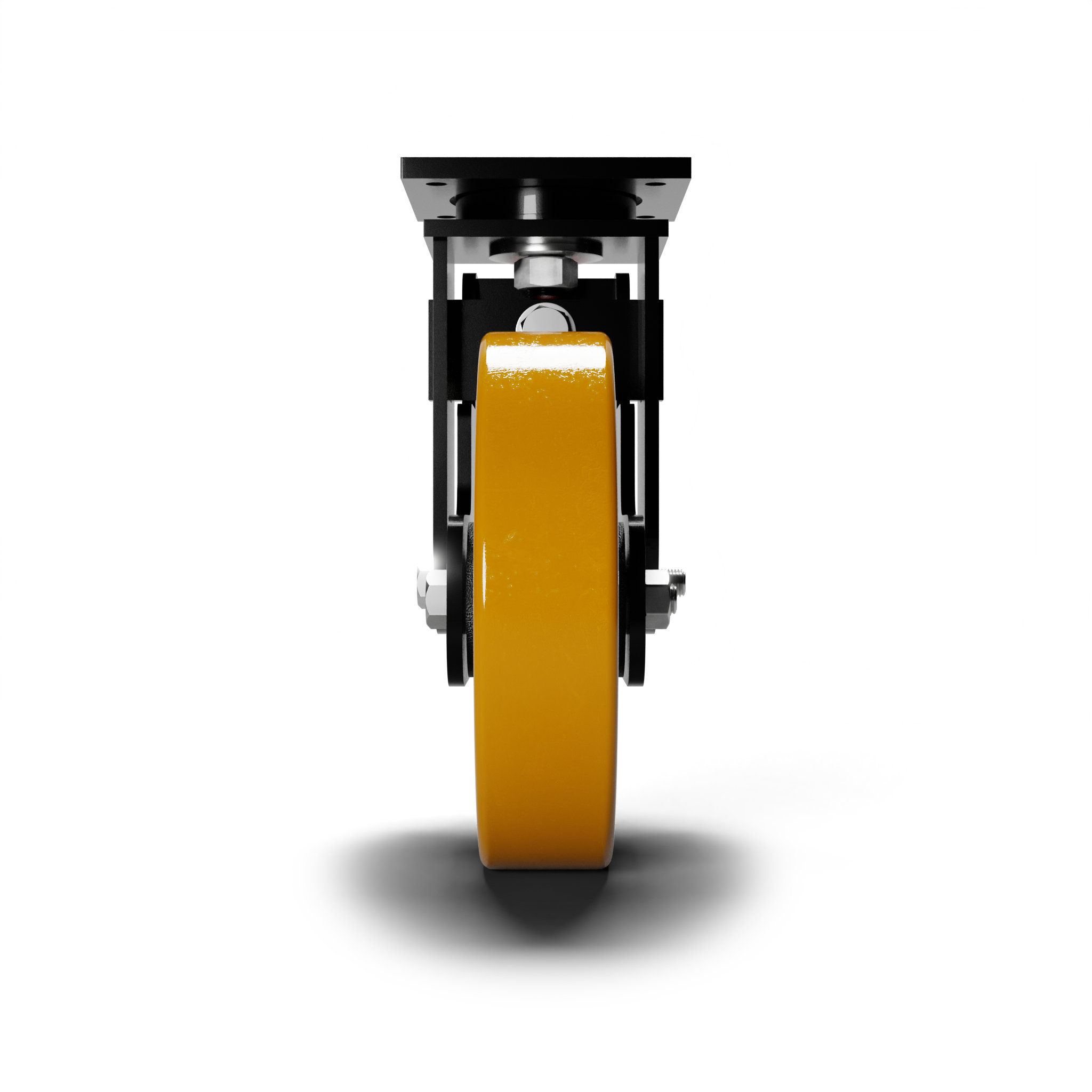

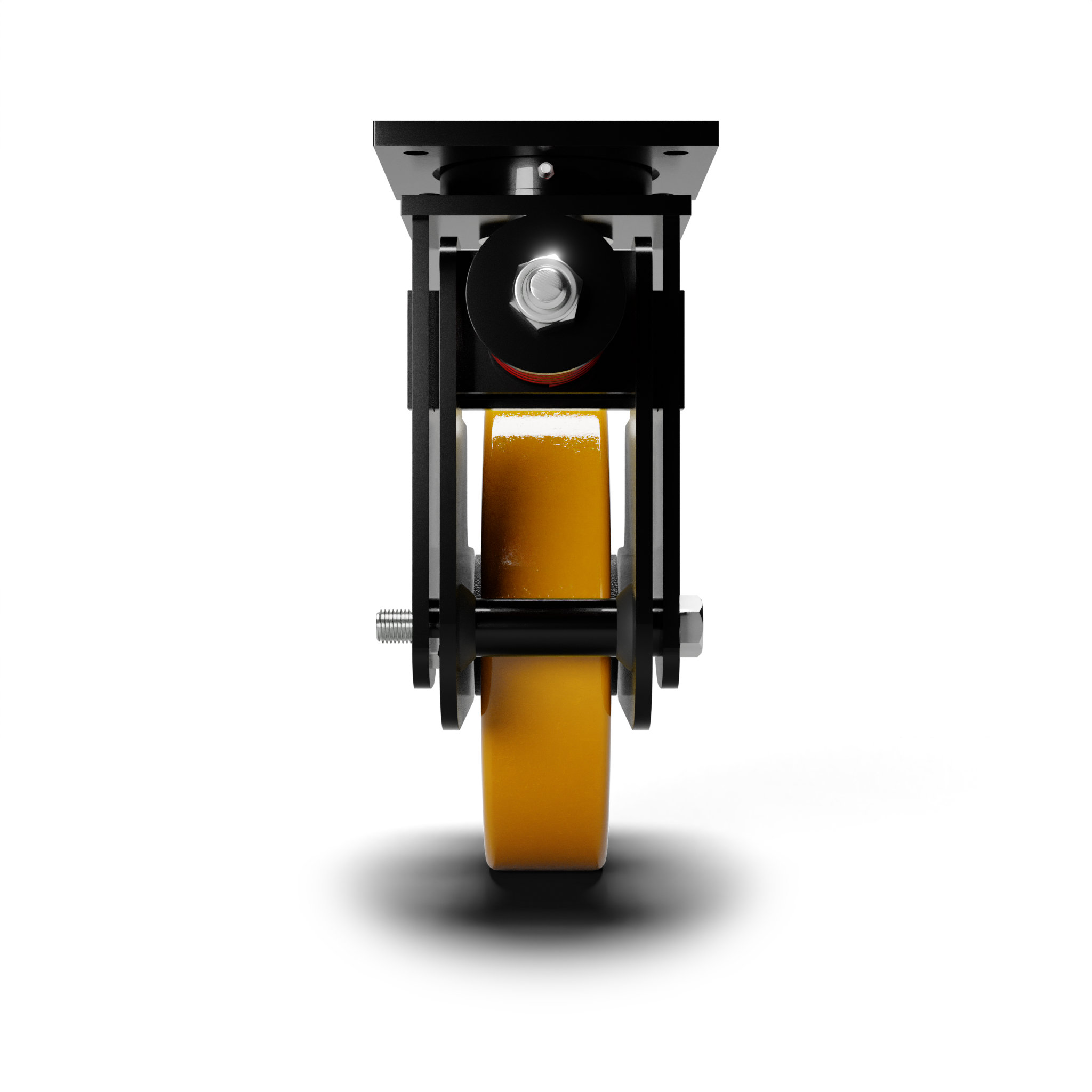

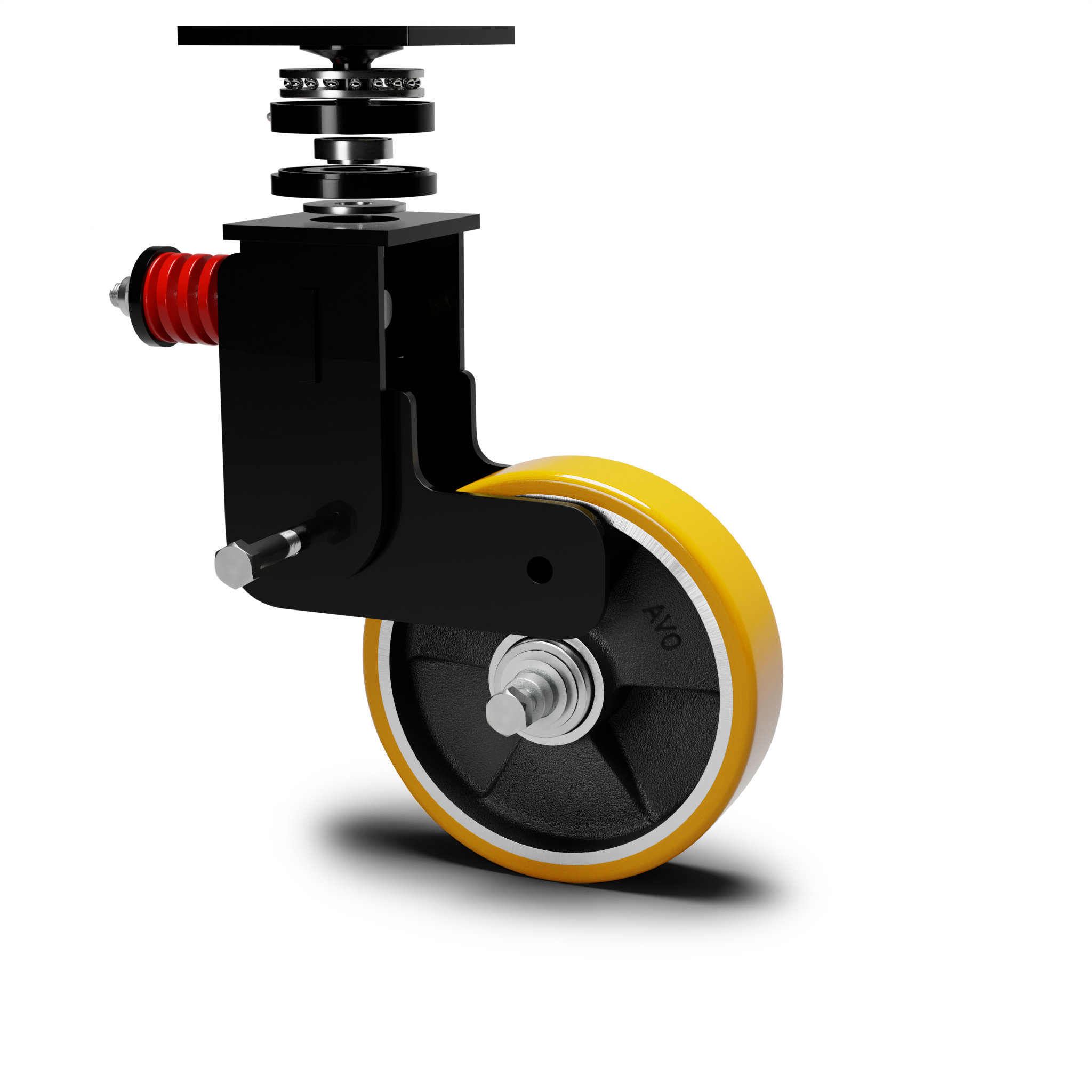

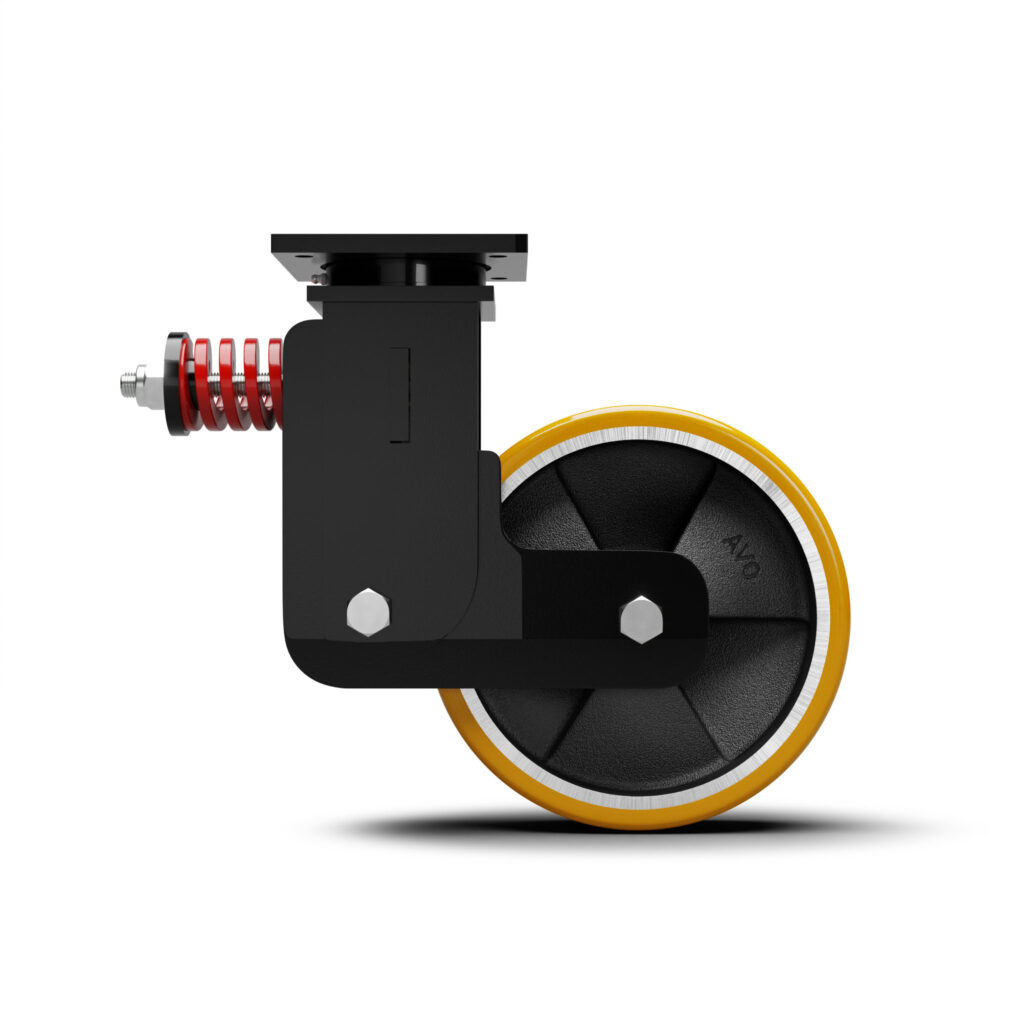

AVO – Wheel with avolan polyurethane and steel castor for industry, diameter 250mm ean 28187

30YML

Material: Avolan Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOLAN 91 Shore A and mechanical black painted cast iron centre. Hub on shielded ball bearings assembled with central spacer.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint. Steel spring mechanism.

Product line: Polyurethane

Linea di prodotto: Polyurethane

EAN13: 8018793281874

EAN5: 28187

Article code: 21M300L251LCU

Features

-20 | 80

1500

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

250

Band width (mm)

60

Hub width (mm)

60

Hub version

Ball bearing

Wheel hole (mm)

25

Bearing seat (mm)

52X15

Dynamic load capacity (DaN)

1500

Colour

Yellow

Material

Avolan Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

200X160

Interaxis plate hole (mm)

160X120

Plate bore size (mm)

14

Offset (mm)

155

Height from ground (mm)

395

Castor hole (mm)

/

Static load capacity (DaN)

1750

Structure

Swivel

Version

Spring-Loaded

Brake

/

Pivot

/

Pivot type

/

Finishing

Black painted
