Serie 19V-B30

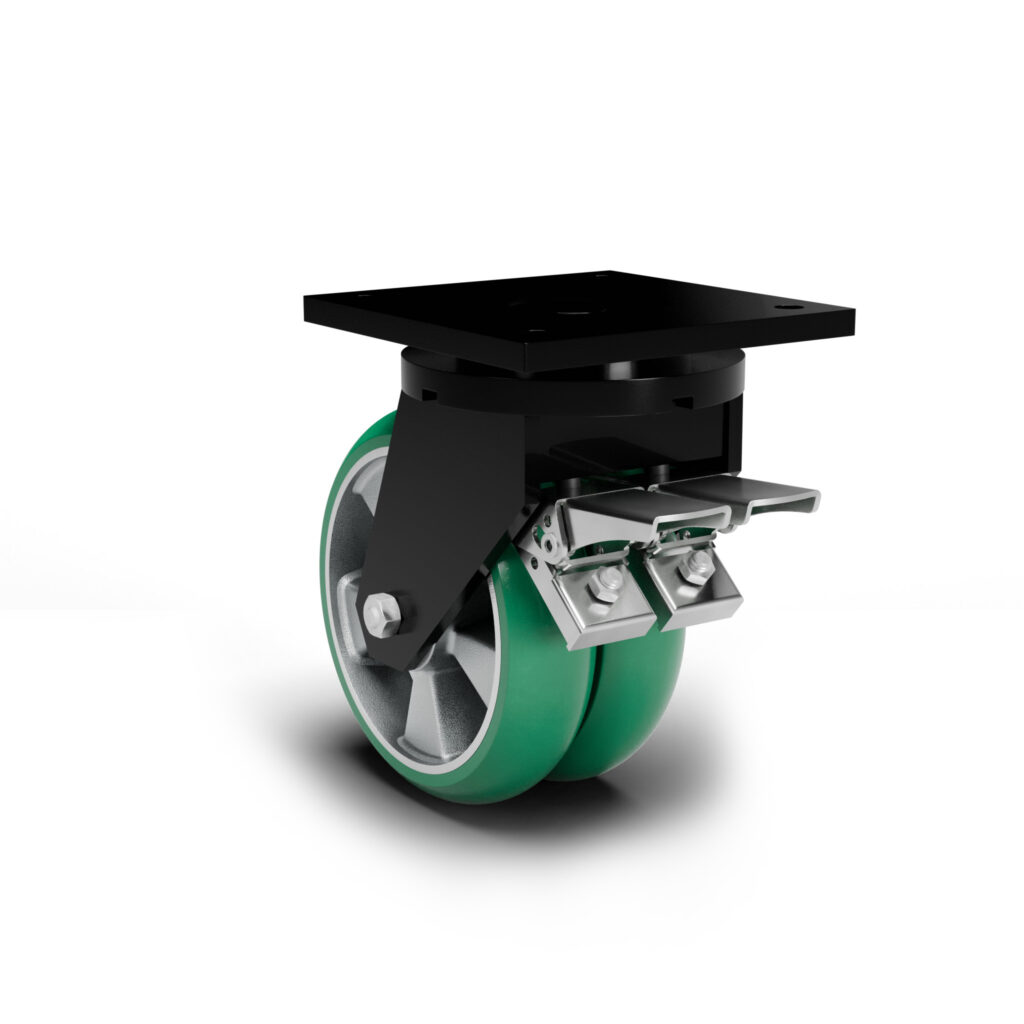

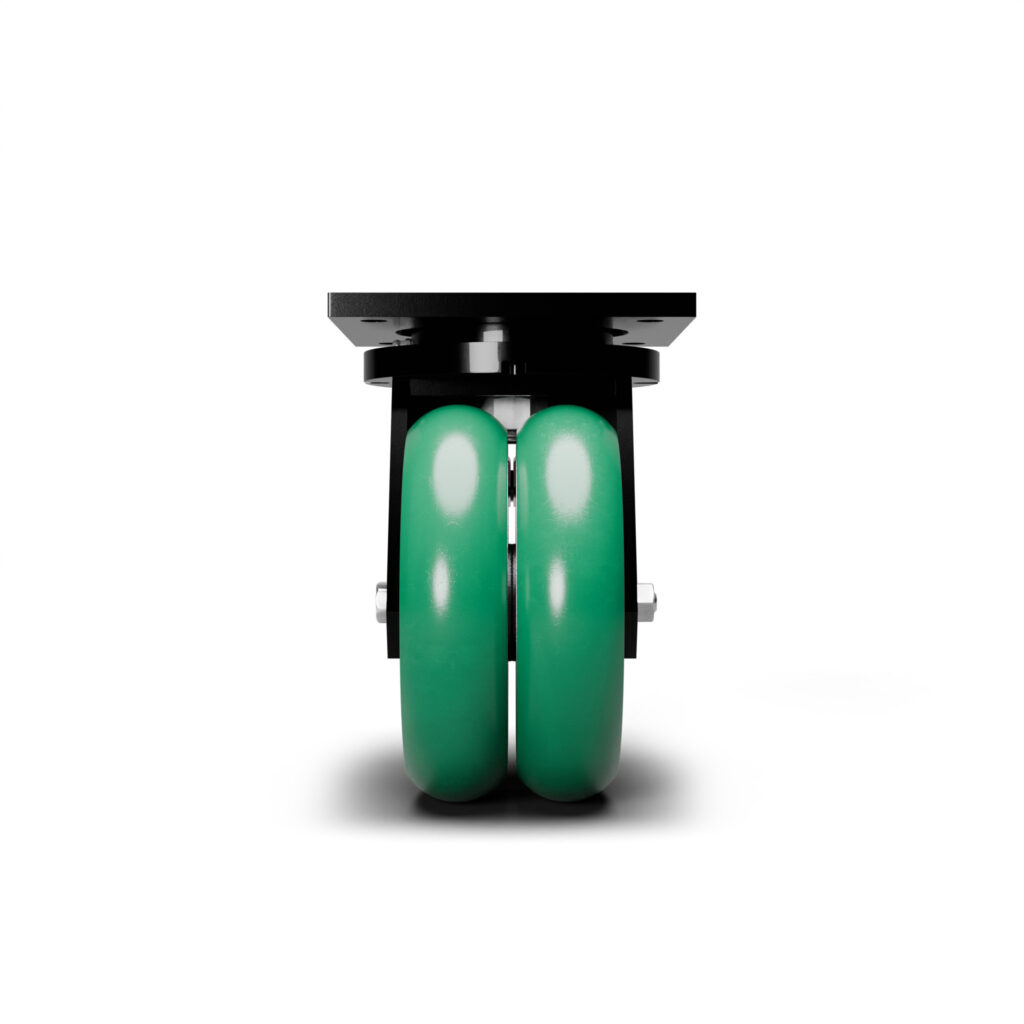

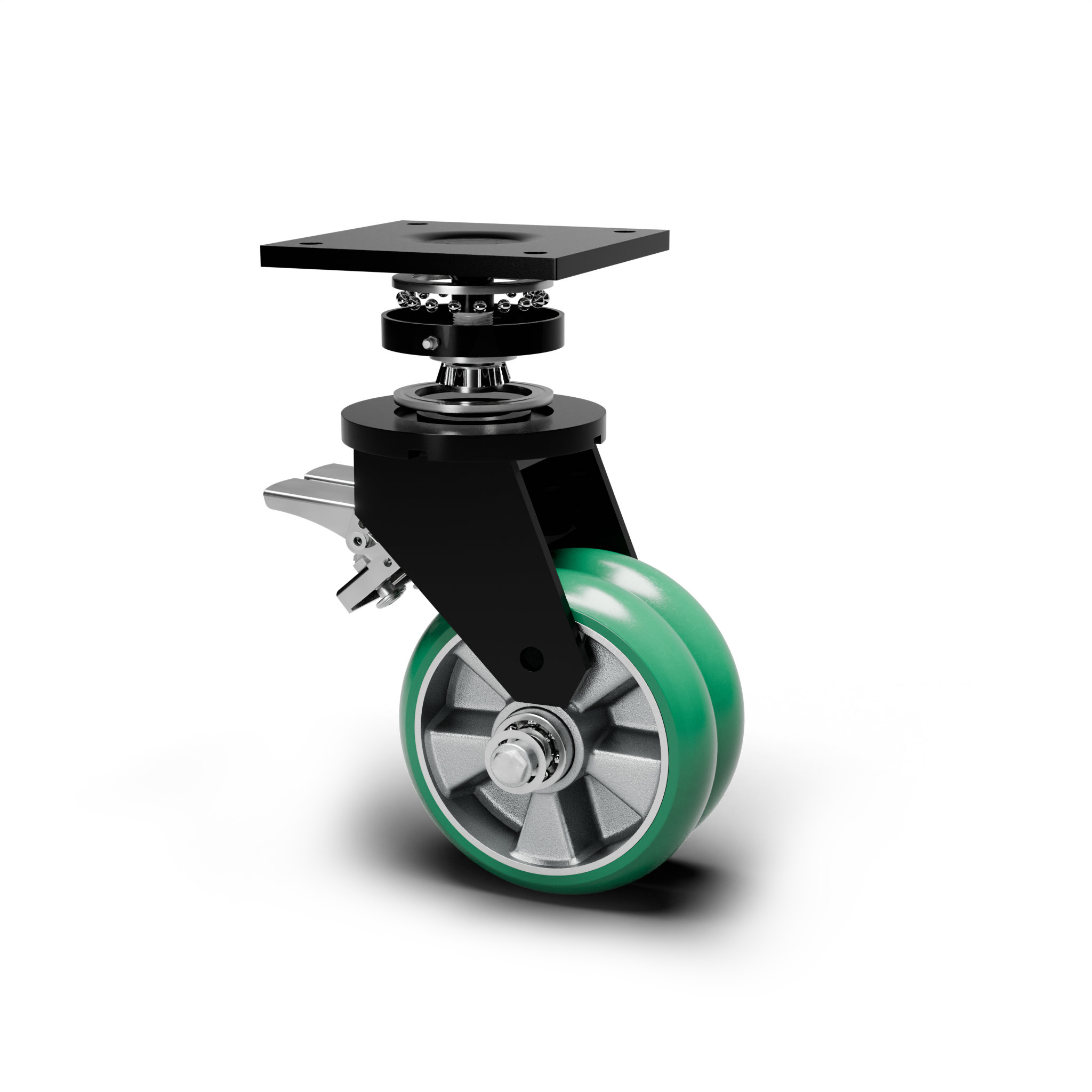

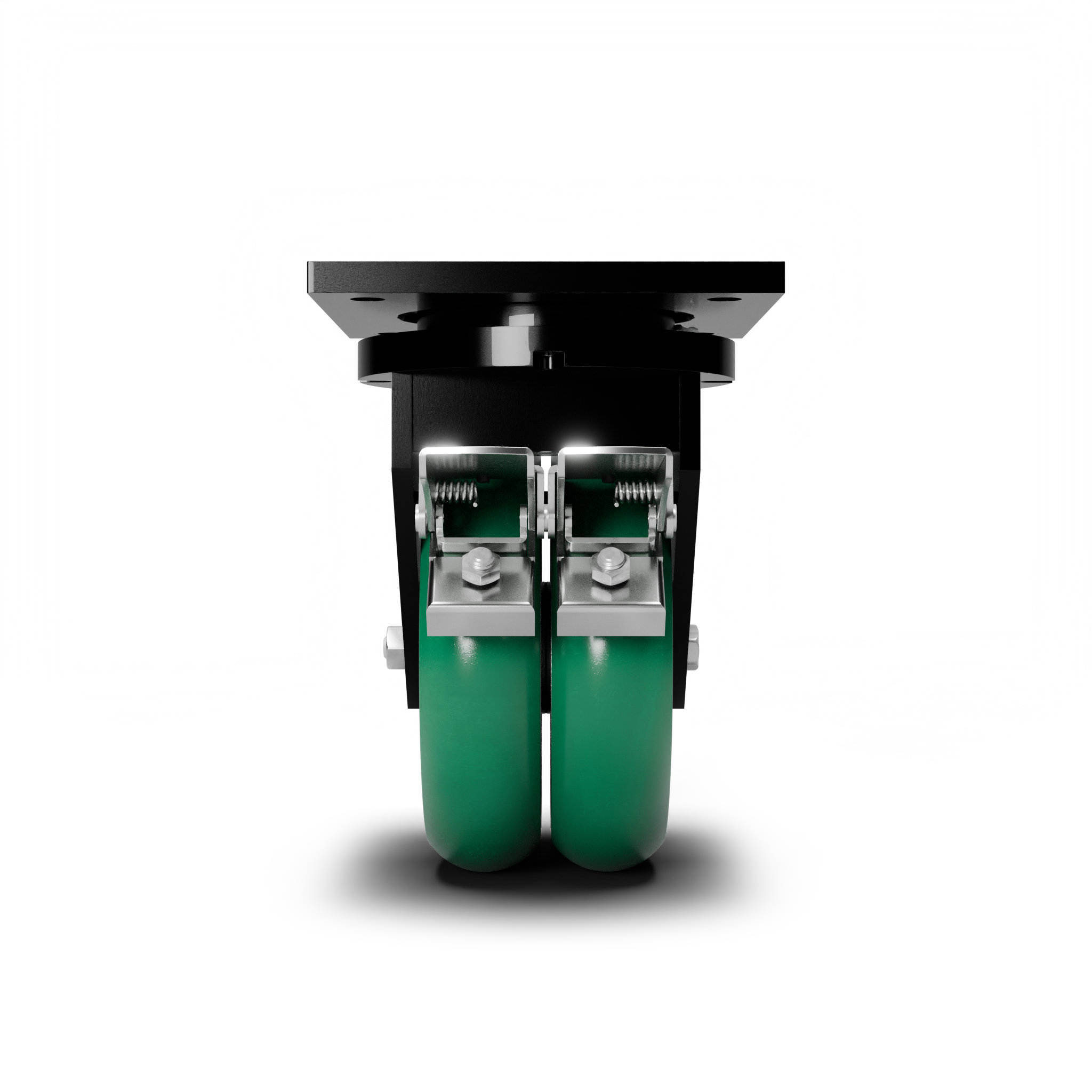

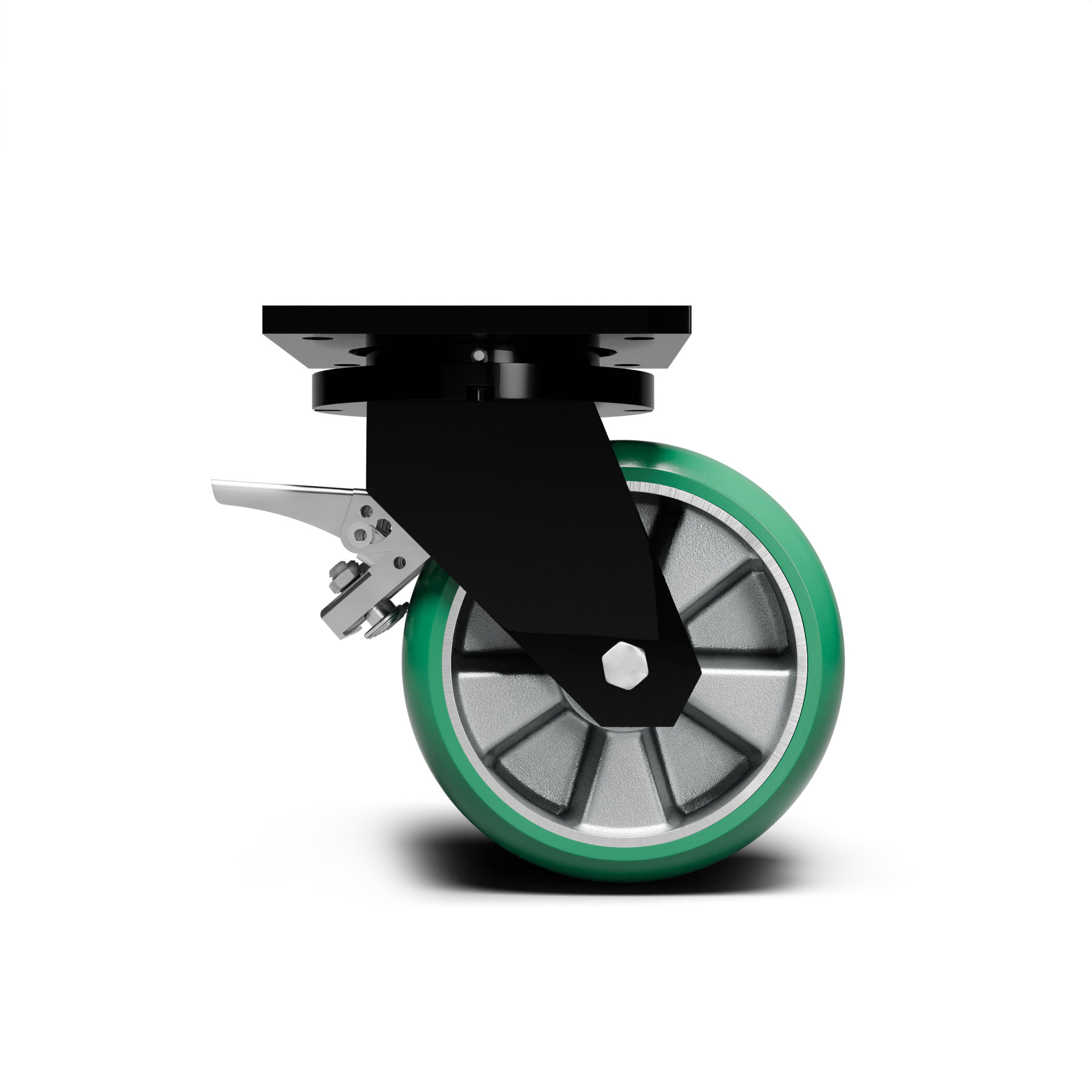

AVO – Wheel with avoplus polyurethane and steel castor for industry, diameter 160mm ean 28306

89BISV-B30

Material: Avoplus Polyurethane

Core: Aluminum

Application field: Industry

Request information

Description:

Wheel with soft AVOPLUS polyurethane 78 Shore A, round tread R30 and aluminium centre. Hub on shielded ball bearings assembled with central spacer.

Twin Wheel Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.

Product line: Polyurethane

EAN13: 8018793283069

EAN5: 28306

Article code: 09089F016BACV

Features

-20 | 80

1000

Ball bearing

Shore A

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

160

Band width (mm)

Hub width (mm)

Hub version

Ball bearing

Wheel hole (mm)

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

1000

Colour

Green

Material

Avoplus Polyurethane

Box pieces

Hardness scale

Shore A

Hardness

Bracket data

Plate size (mm)

200X200

Interaxis plate hole (mm)

160X160

Plate bore size (mm)

Offset (mm)

Height from ground (mm)

235

Castor hole (mm)

Static load capacity (DaN)

1250

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

Pivot type

Finishing

Black painted
