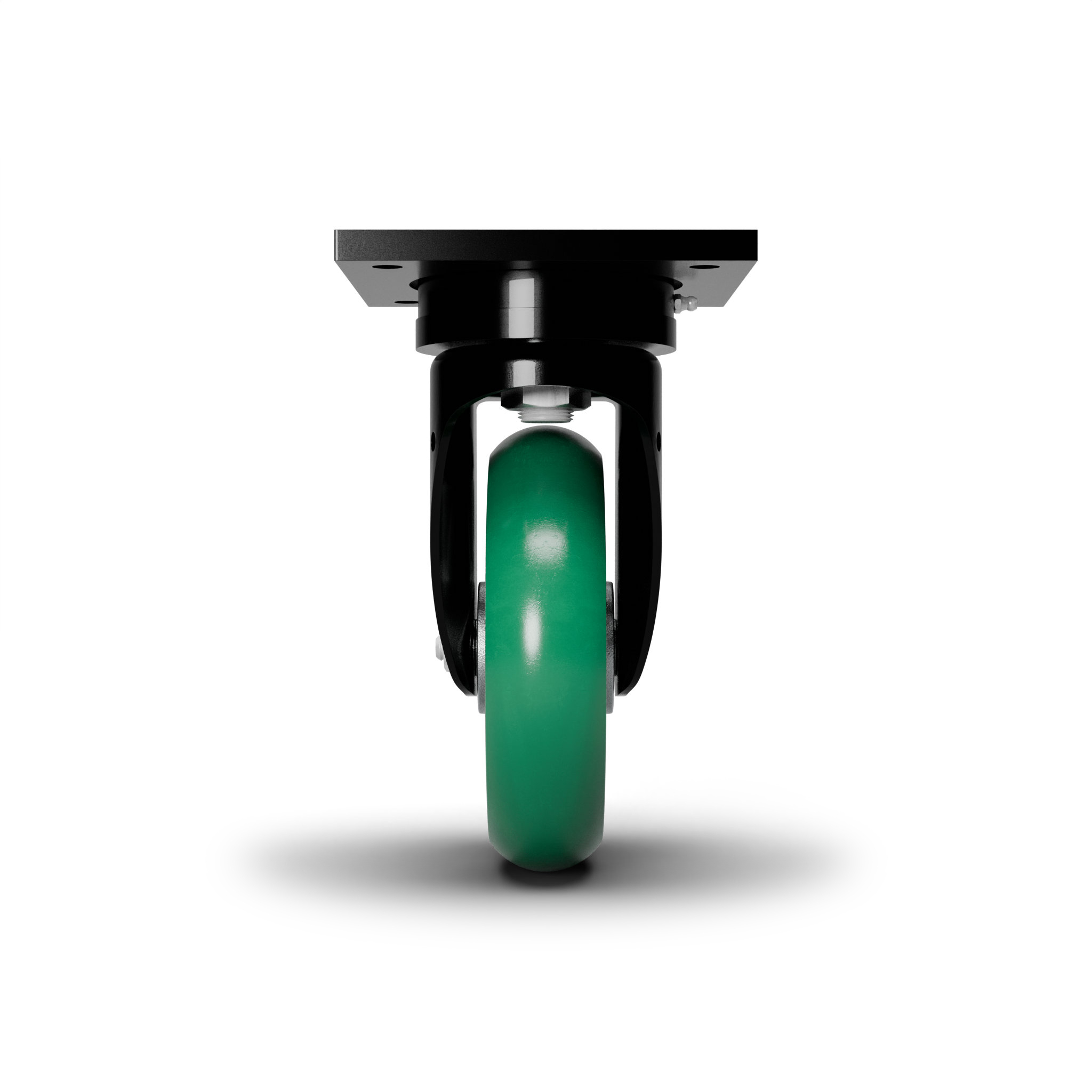

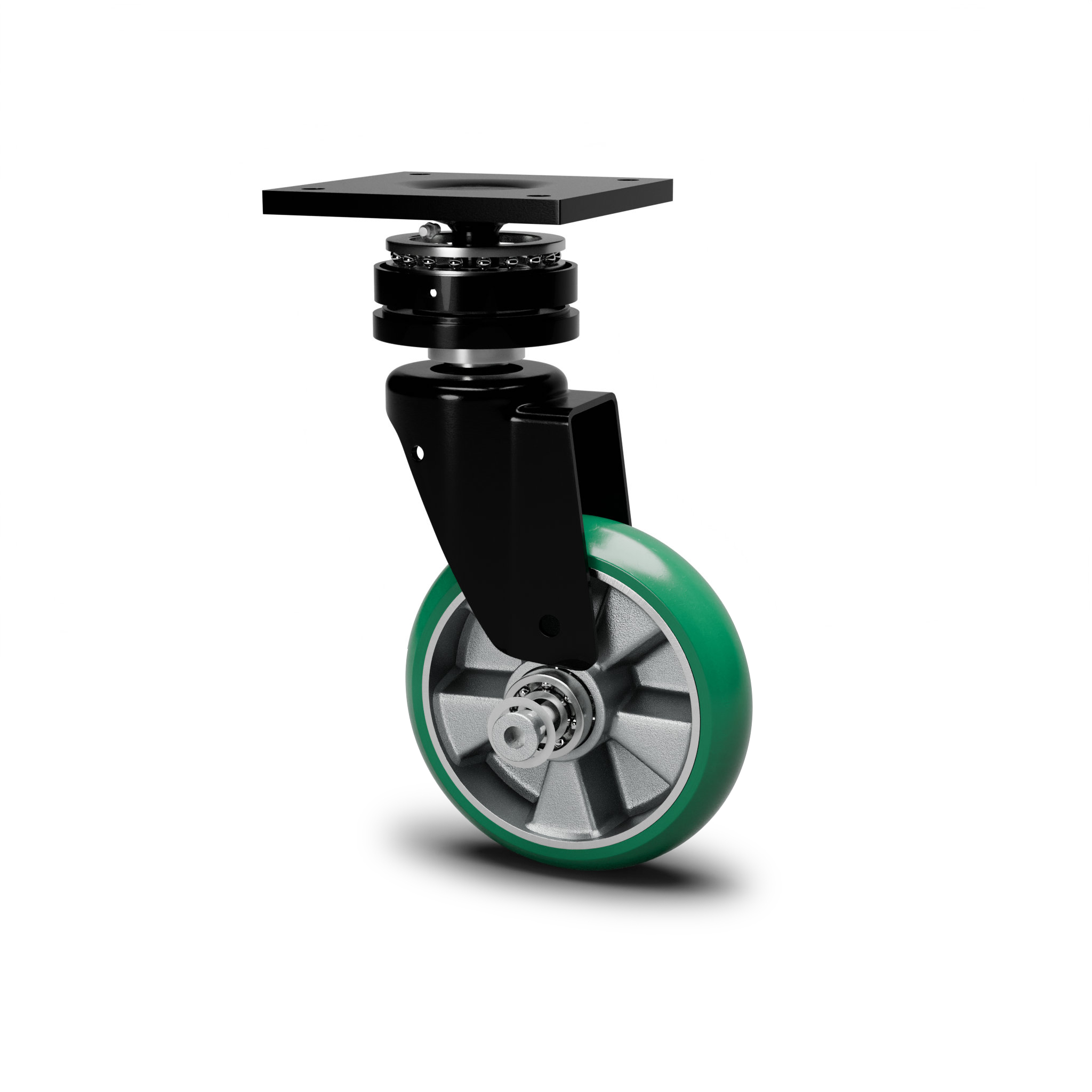

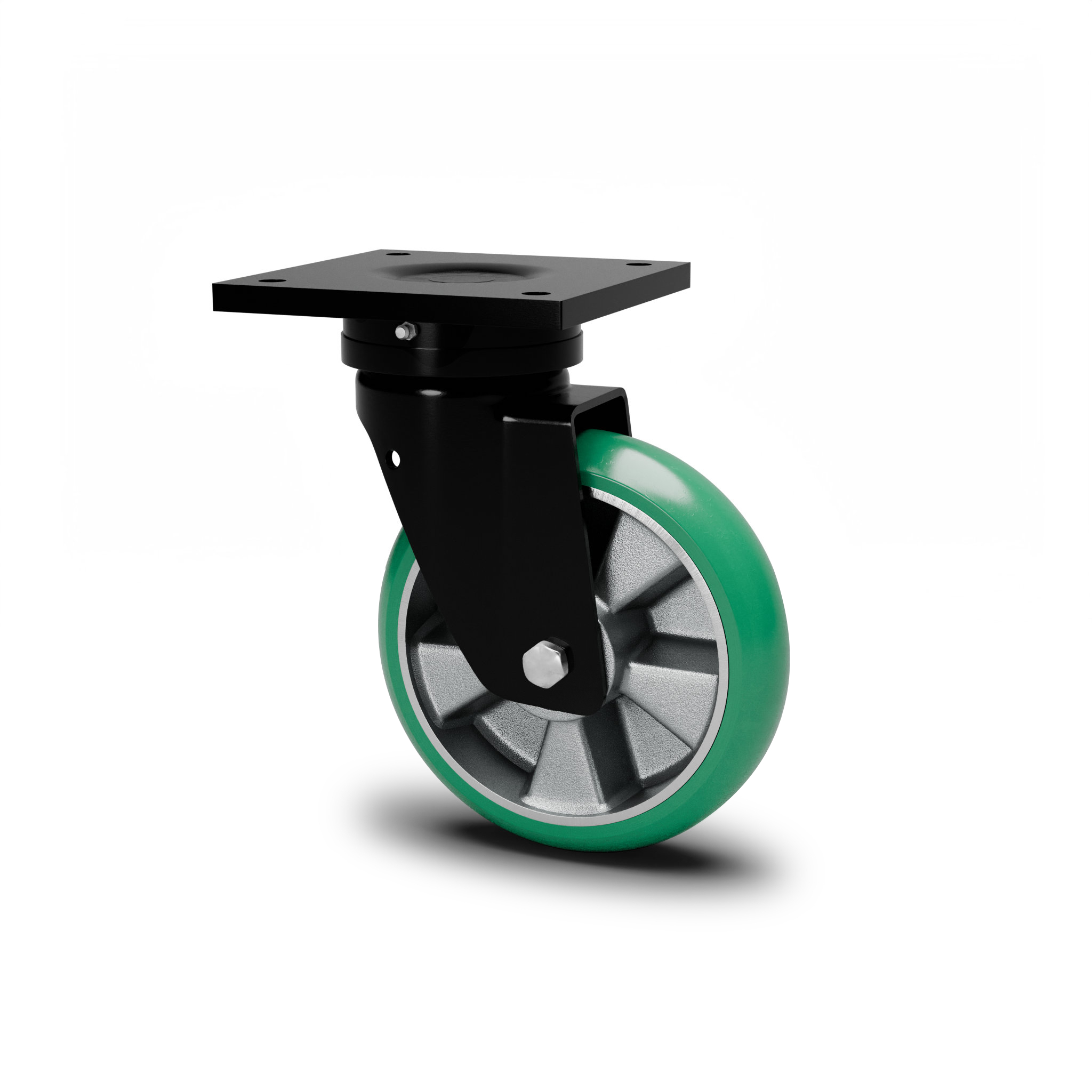

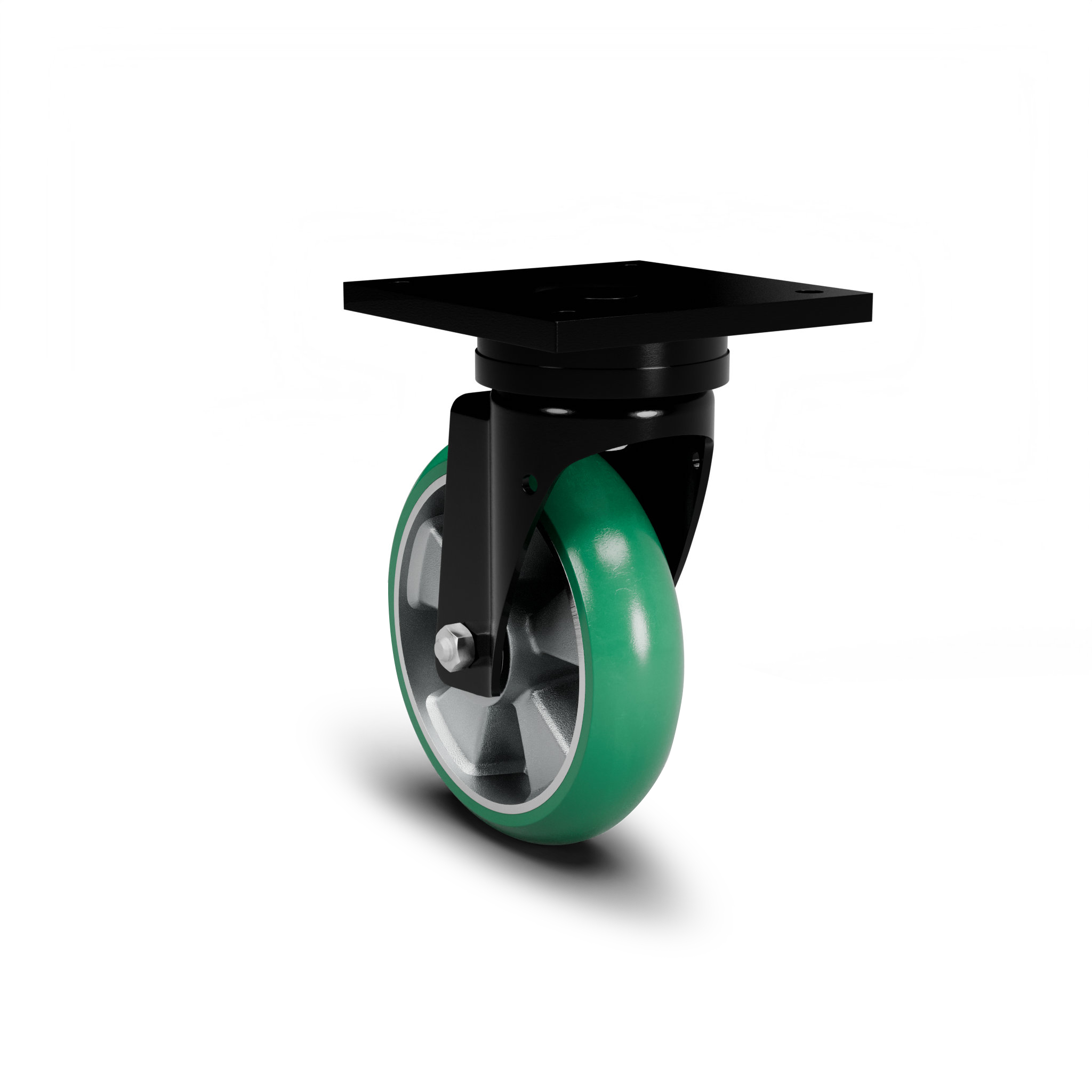

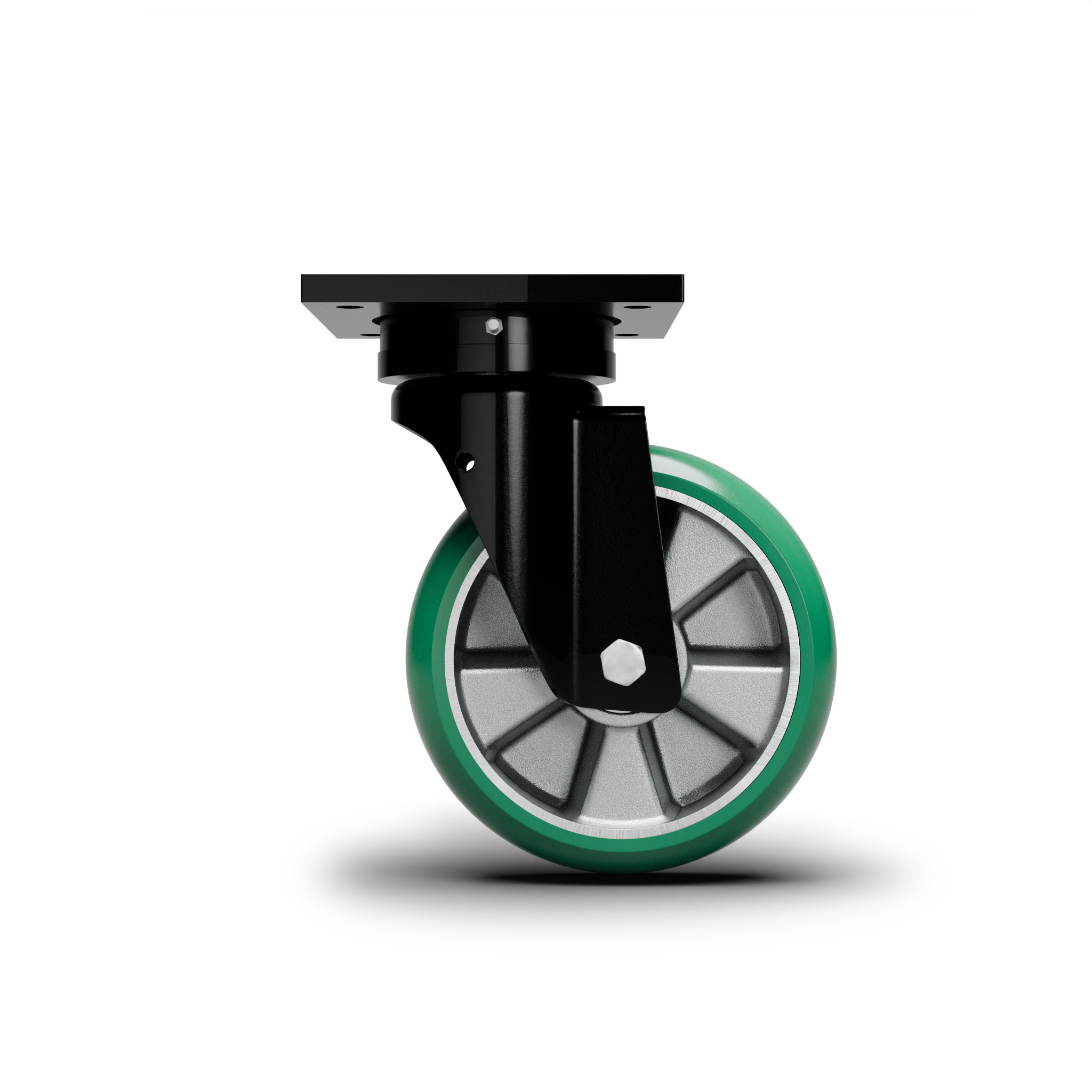

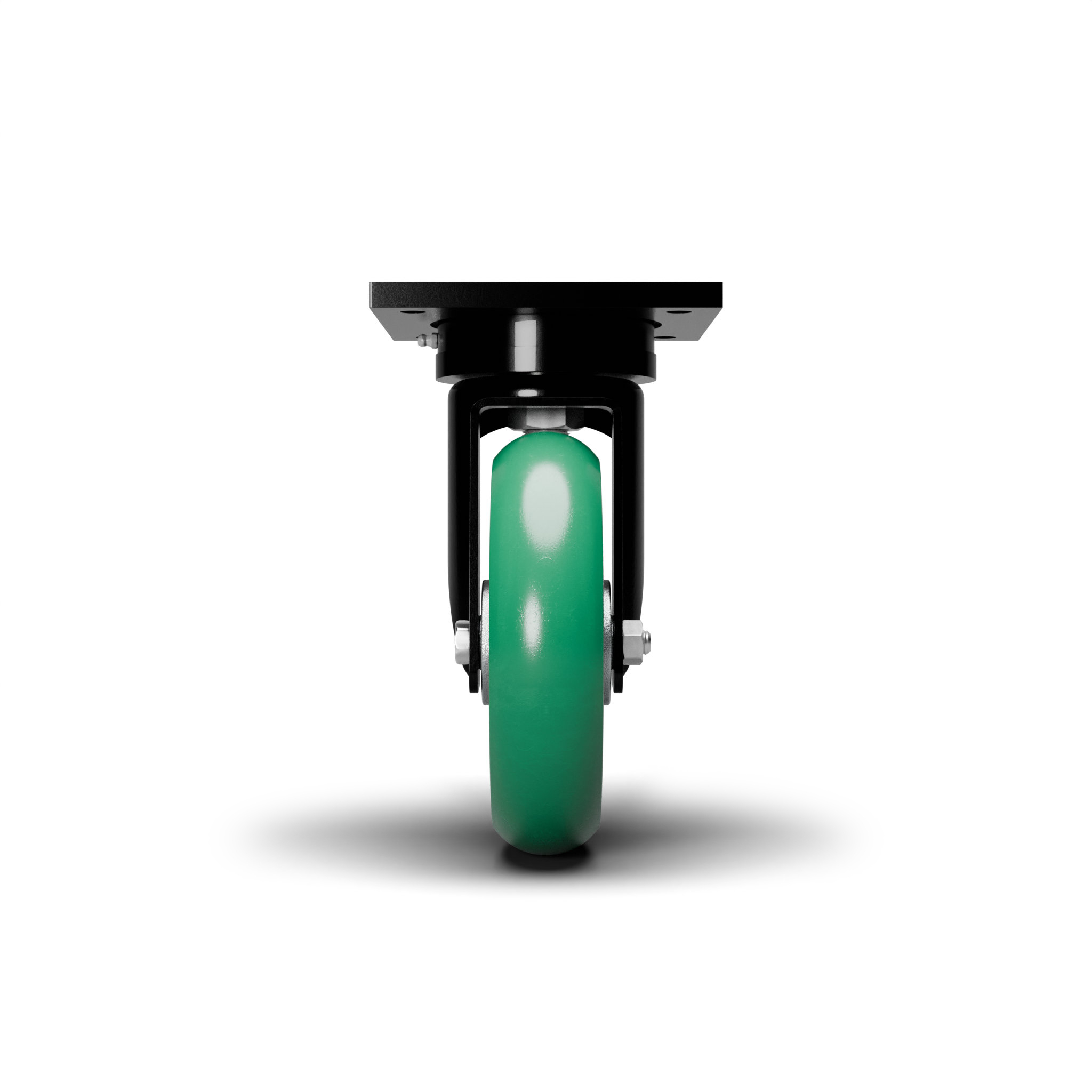

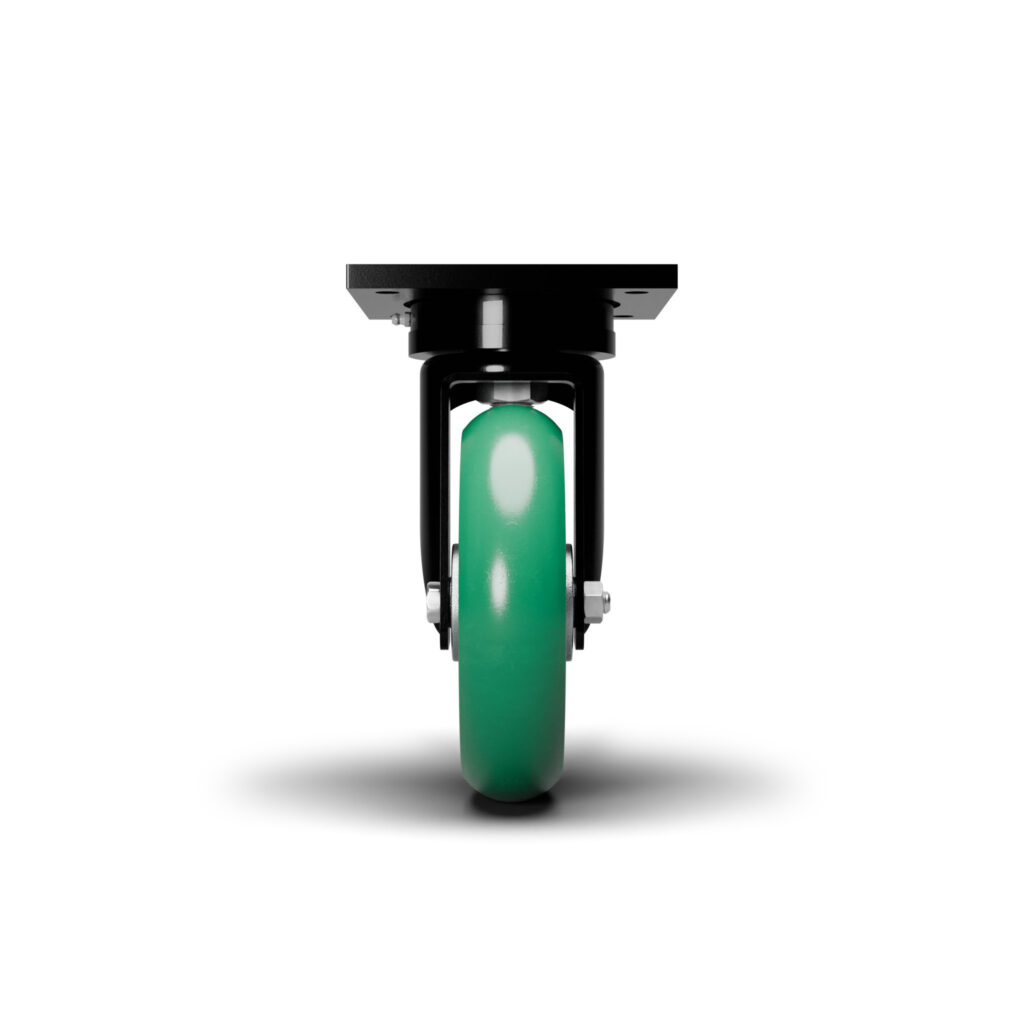

AVO – Wheel with avoplus polyurethane and steel castor for industry, diameter 200mm ean 28276

88V-B30

Material: Avoplus Polyurethane
Core: Aluminum
Application field: Industry
Request information

Description:

Wheel with soft AVOPLUS polyurethane 78 Shore A, round tread R30 and aluminium centre. Hub on shielded ball bearings assembled with central spacer.

Heavy-Duty Castors
Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint.
Product line: Polyurethane
EAN13: 8018793282765
EAN5: 28276
Article code: 090880200BACV

Features

-20 | 80

700

Ball bearing
Shore A
78

Floor types

Asphalt
Concrete
Grid
Stoneware
Download pdf product sheet
88V B30
88V-B30
88V-B30-3
88V-B30-4
88V-B30-5
88V-B30-7
88V-B30-8
download images

Wheel data

Diameter (mm)

200

Band width (mm)

50

Hub width (mm)

60

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

700

Colour

Green

Material

Avoplus Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

78

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13

Offset (mm)

57

Height from ground (mm)

260

Castor hole (mm)

/

Static load capacity (DaN)

880

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Black painted
