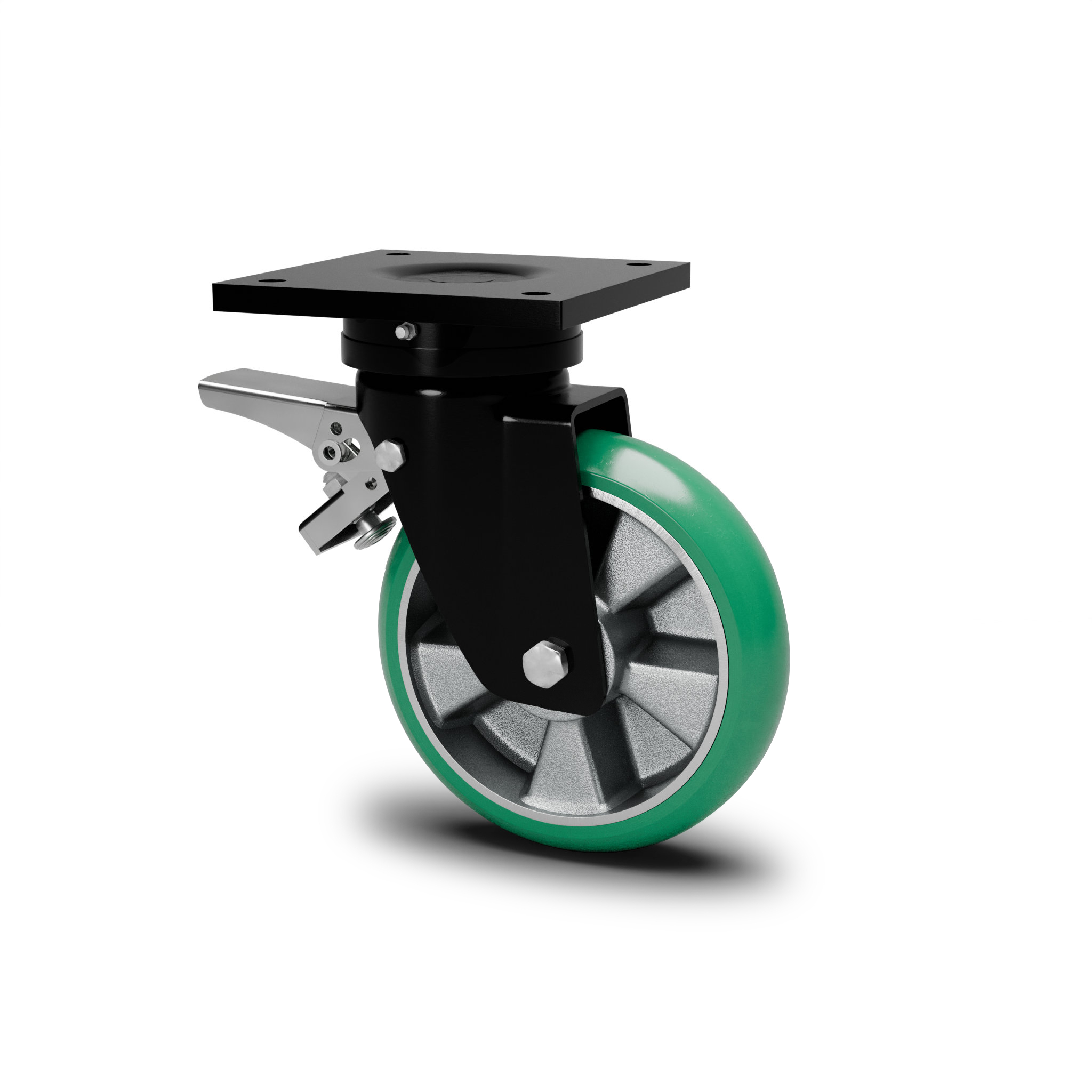

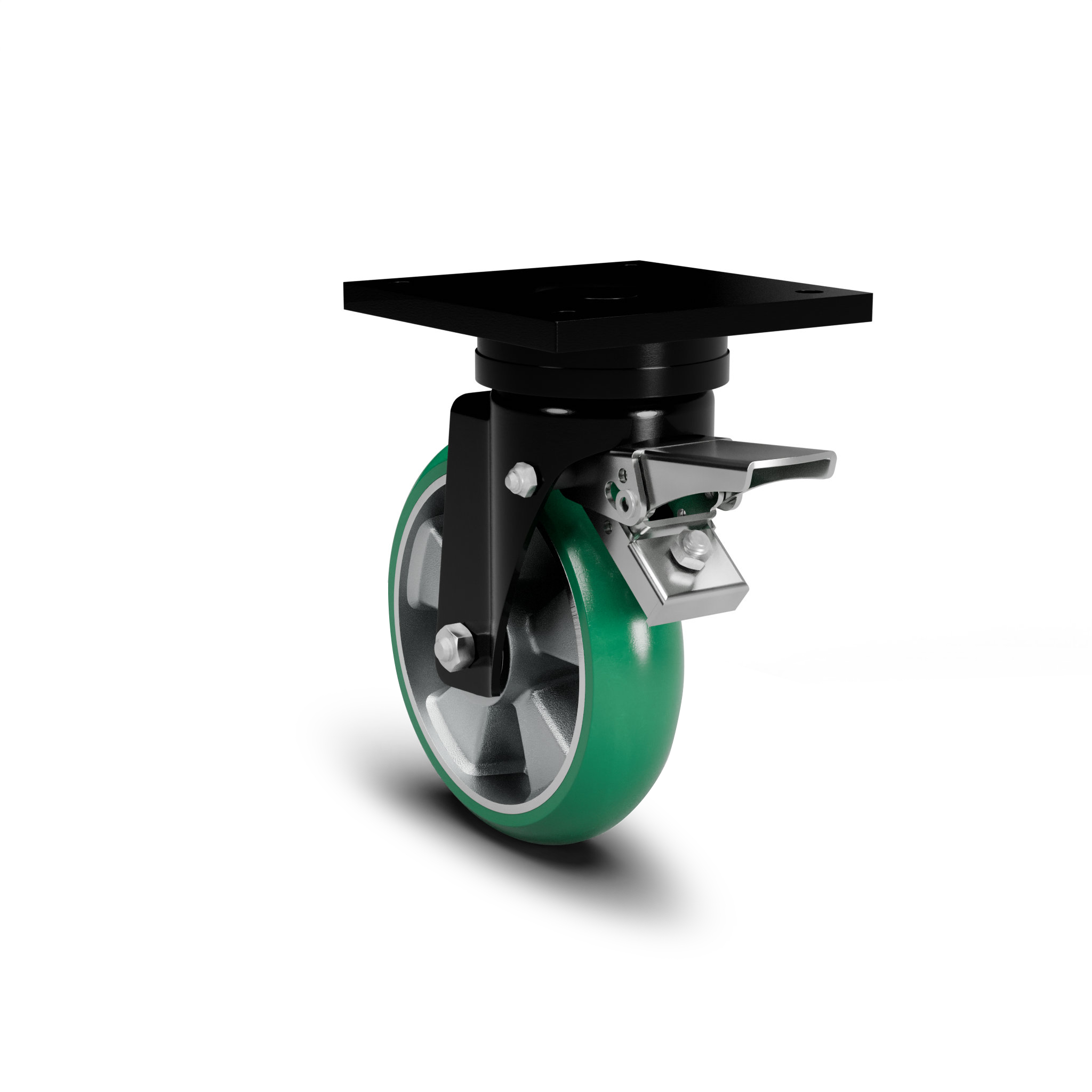

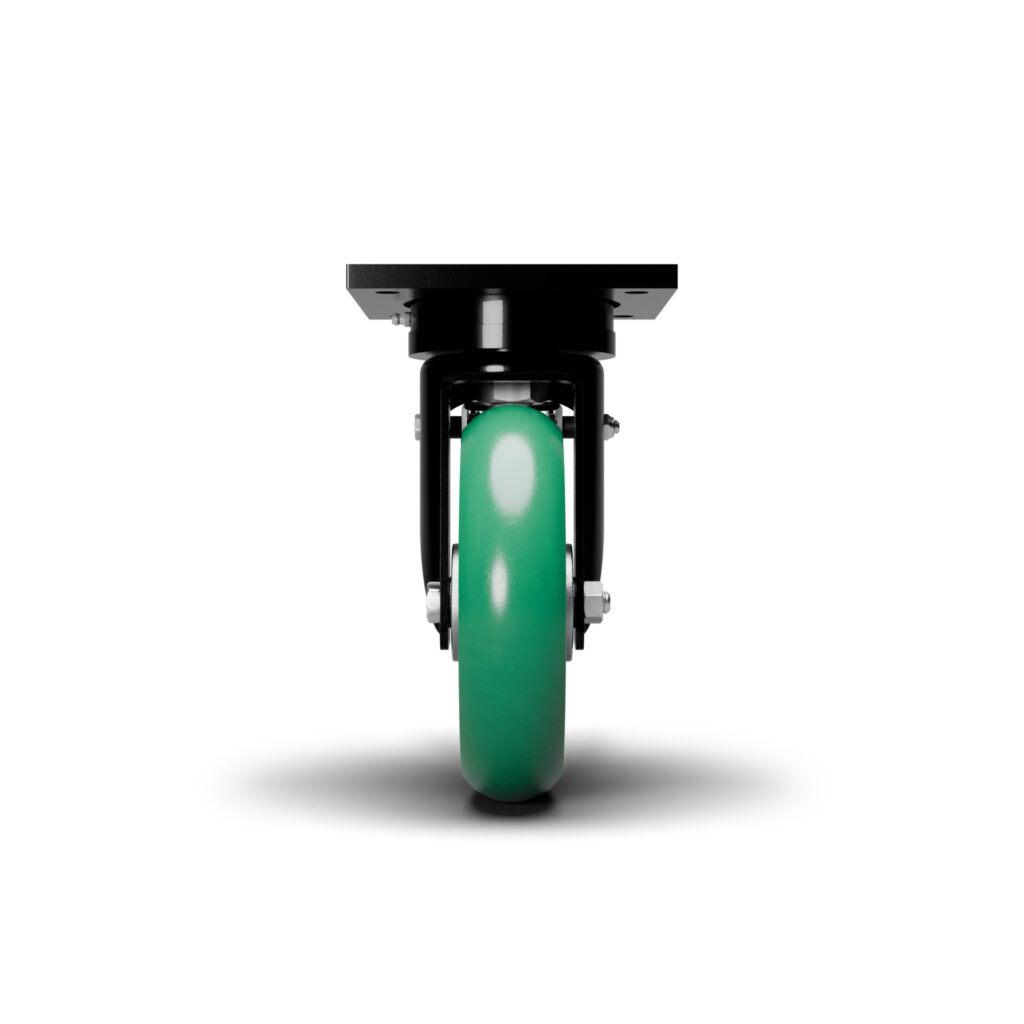

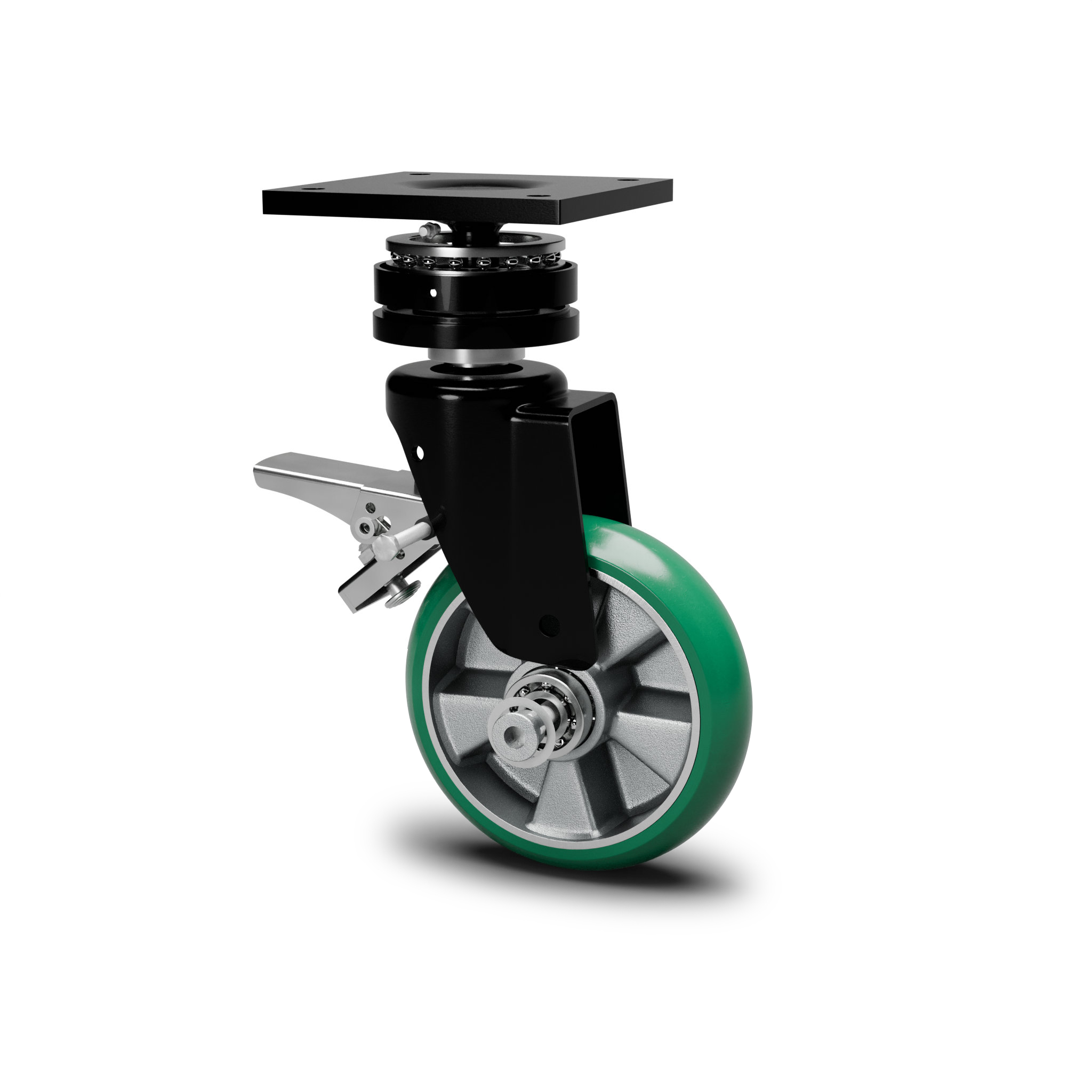

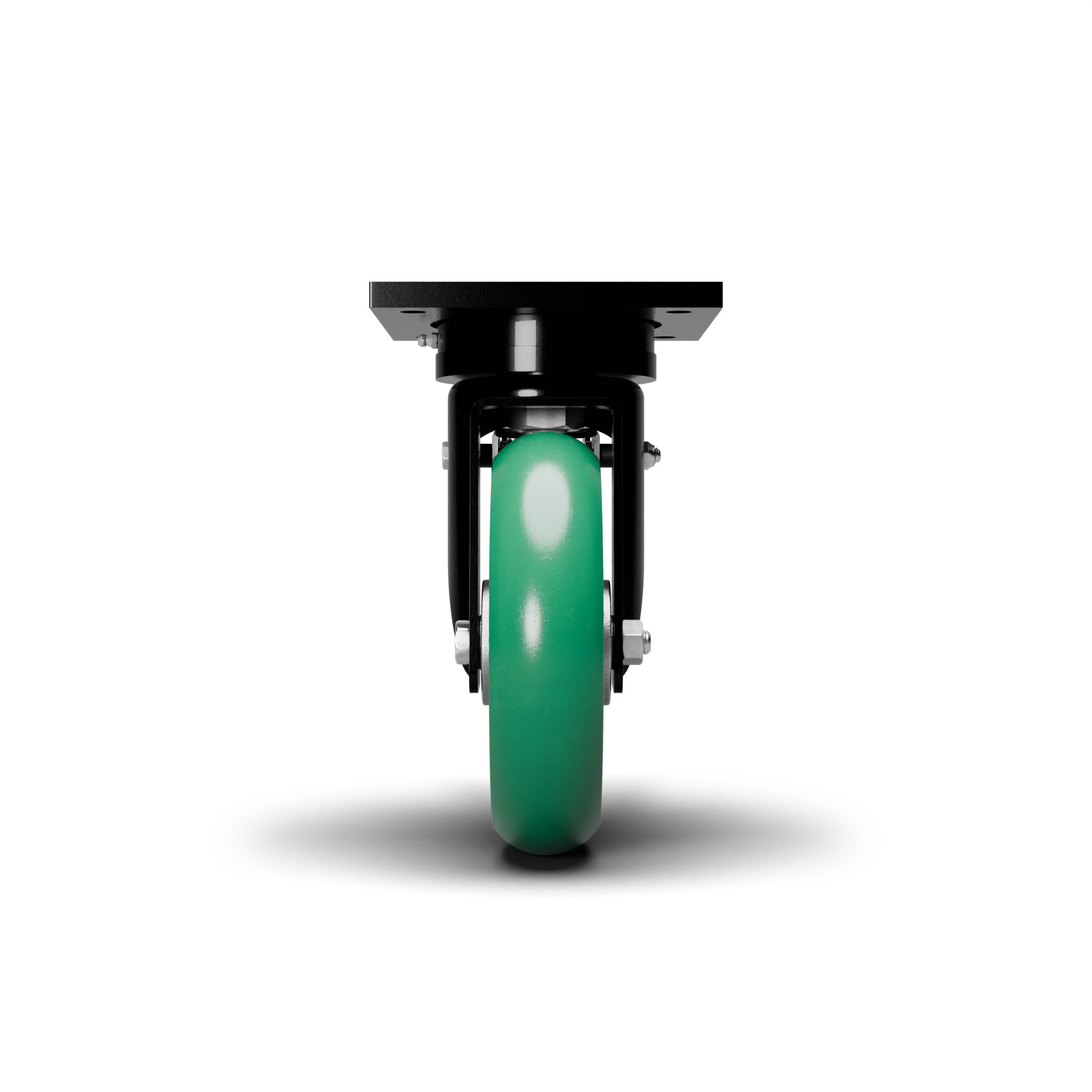

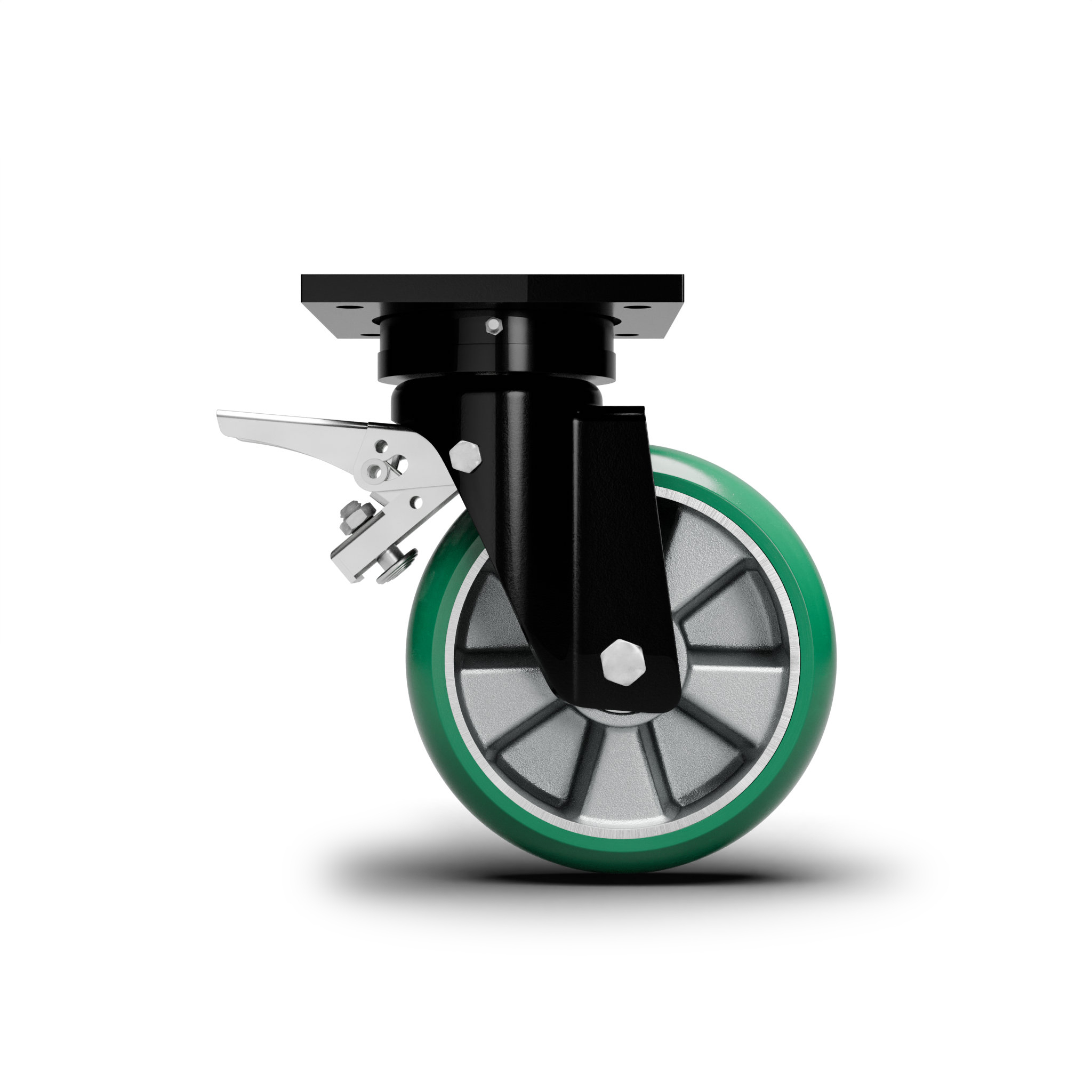

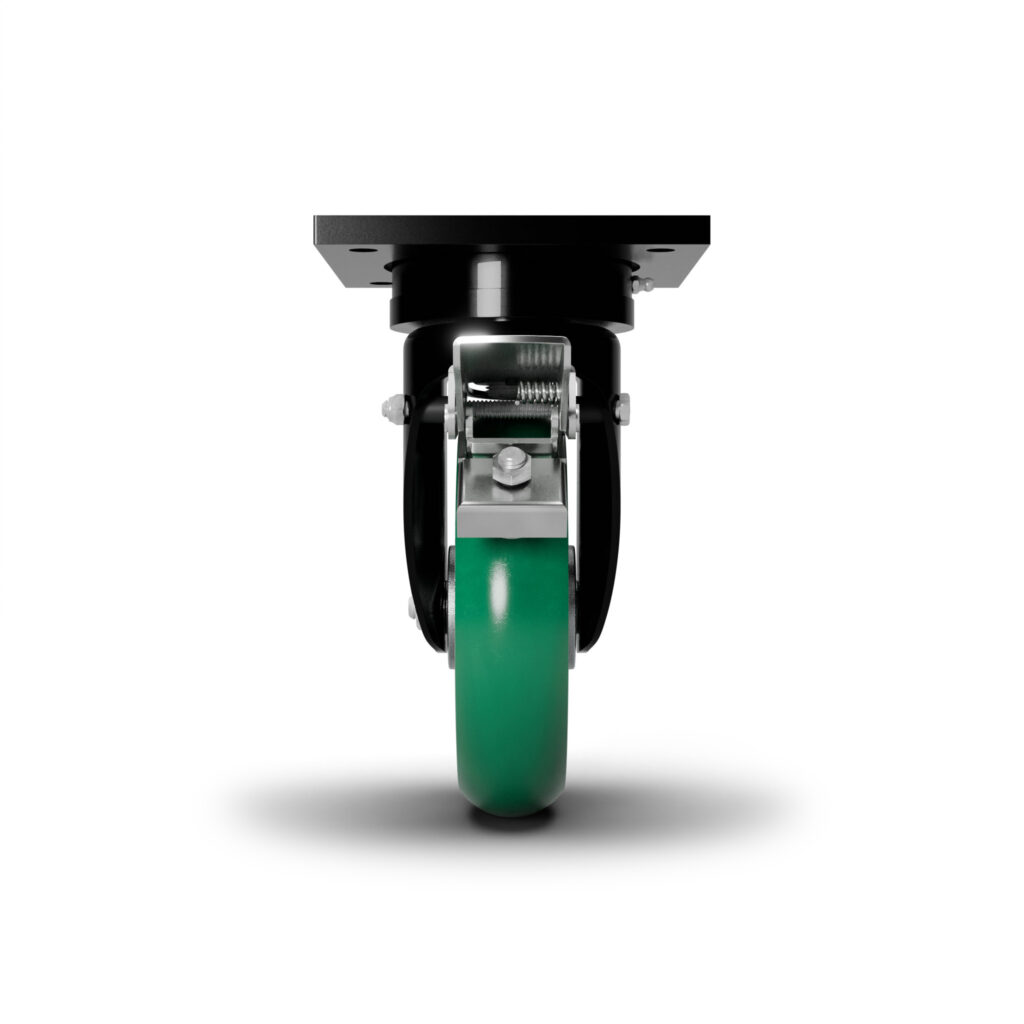

AVO – Wheel with avoplus polyurethane and steel castor for industry, diameter 200mm ean 28293

88BISV-B30

Material: Avoplus Polyurethane
Core: Aluminum
Application field: Industry
Request information

Description:

Wheel with soft AVOPLUS polyurethane 78 Shore A, round tread R30 and aluminium centre. Hub on shielded ball bearings assembled with central spacer.

Extra Heavy-Duty Castors
Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.
Product line: Polyurethane
Linea di prodotto: Polyurethane
EAN13: 8018793282932
EAN5: 28293
Article code: 09088F020BACV

Features

-20 | 80

700

Ball bearing
Shore A
78

Floor types

Asphalt
Concrete
Grid
Stoneware
Download pdf product sheet
88BISV B30
88BISV-B30
88BISV-B30-3
88BISV-B30-4
88BISV-B30-5
88BISV-B30-7
88BISV-B30-8
download images

Wheel data

Diameter (mm)

200

Band width (mm)

50

Hub width (mm)

60

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

700

Colour

Green

Material

Avoplus Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

78

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13

Offset (mm)

57

Height from ground (mm)

260

Castor hole (mm)

/

Static load capacity (DaN)

880

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

/

Pivot type

/

Finishing

Black painted
