Serie 15

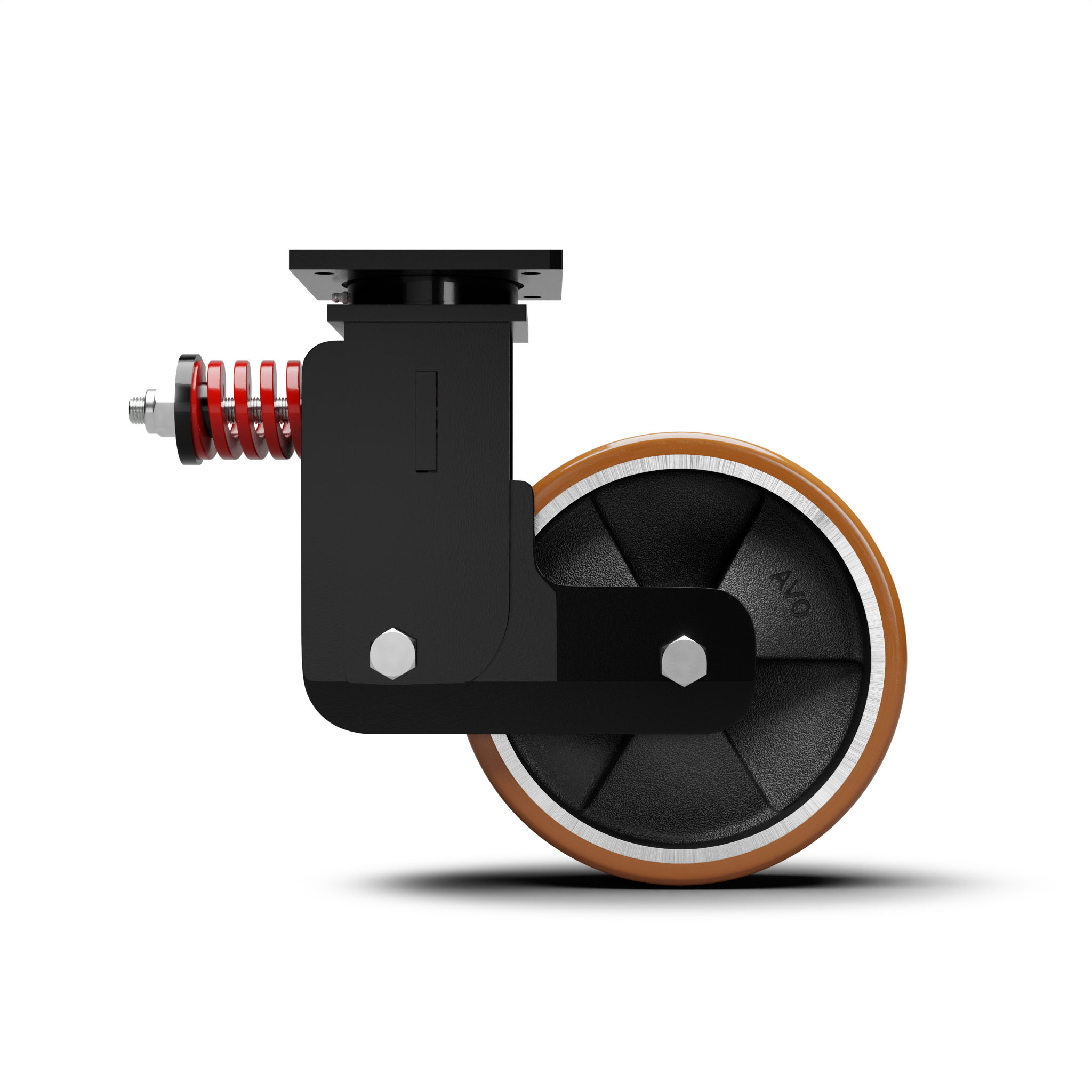

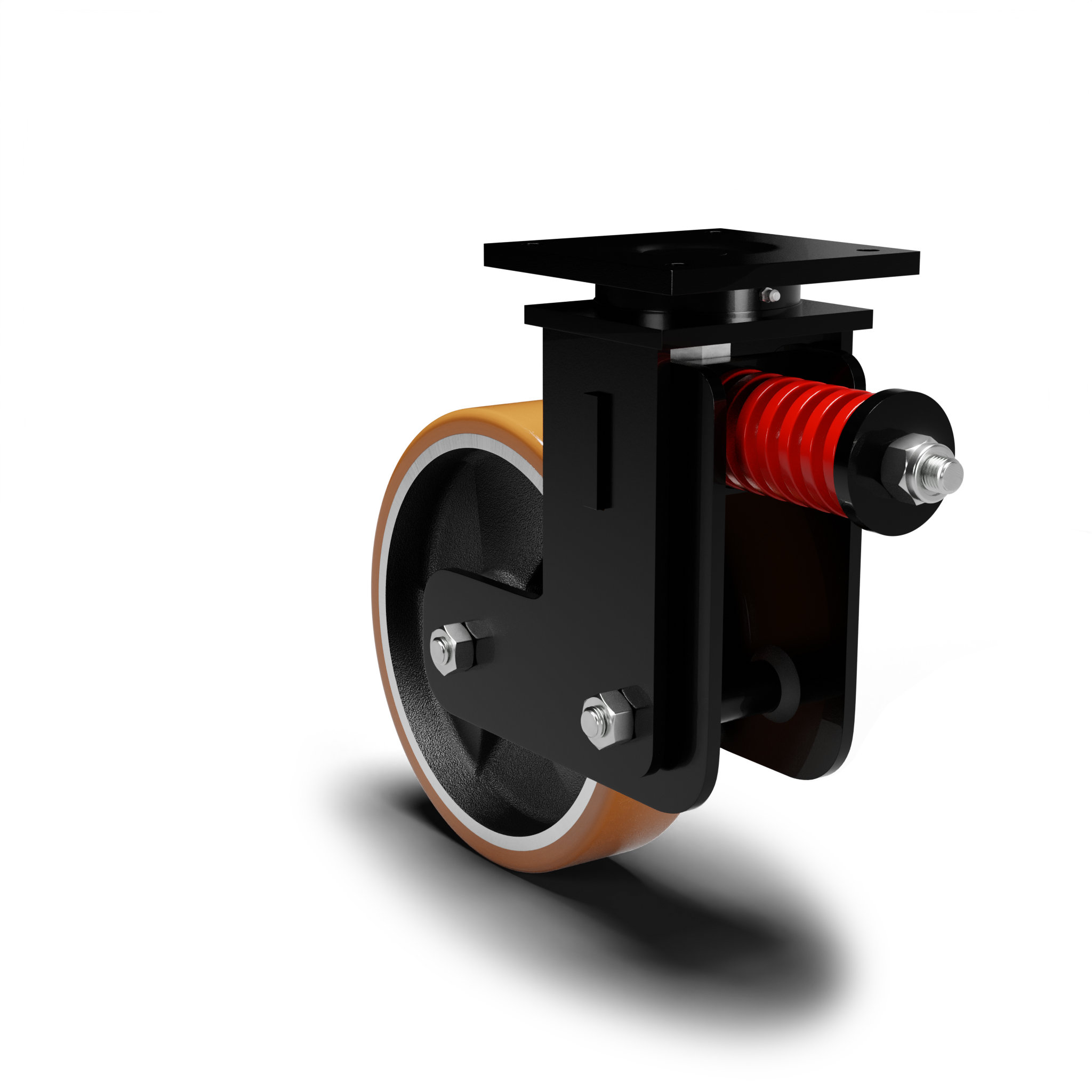

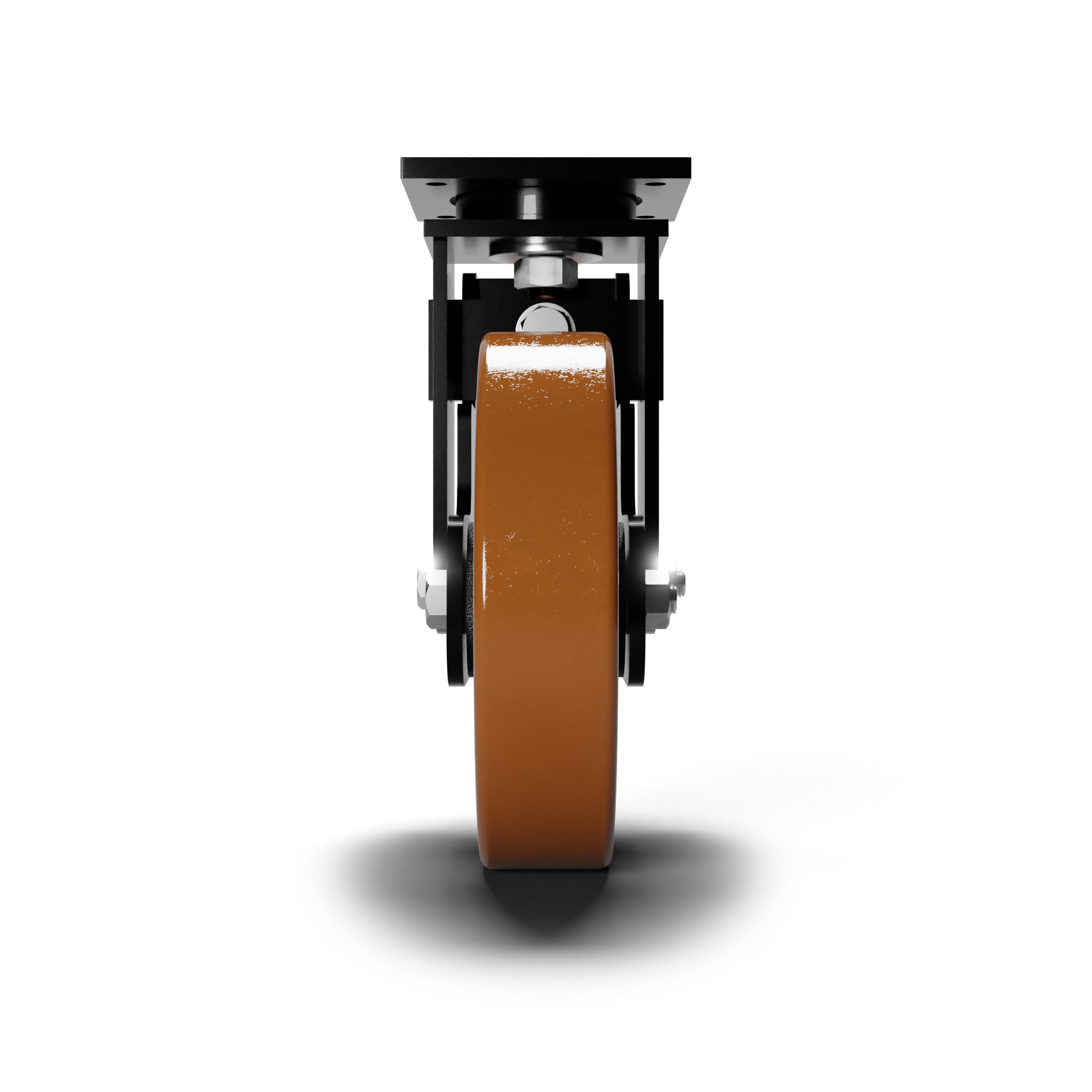

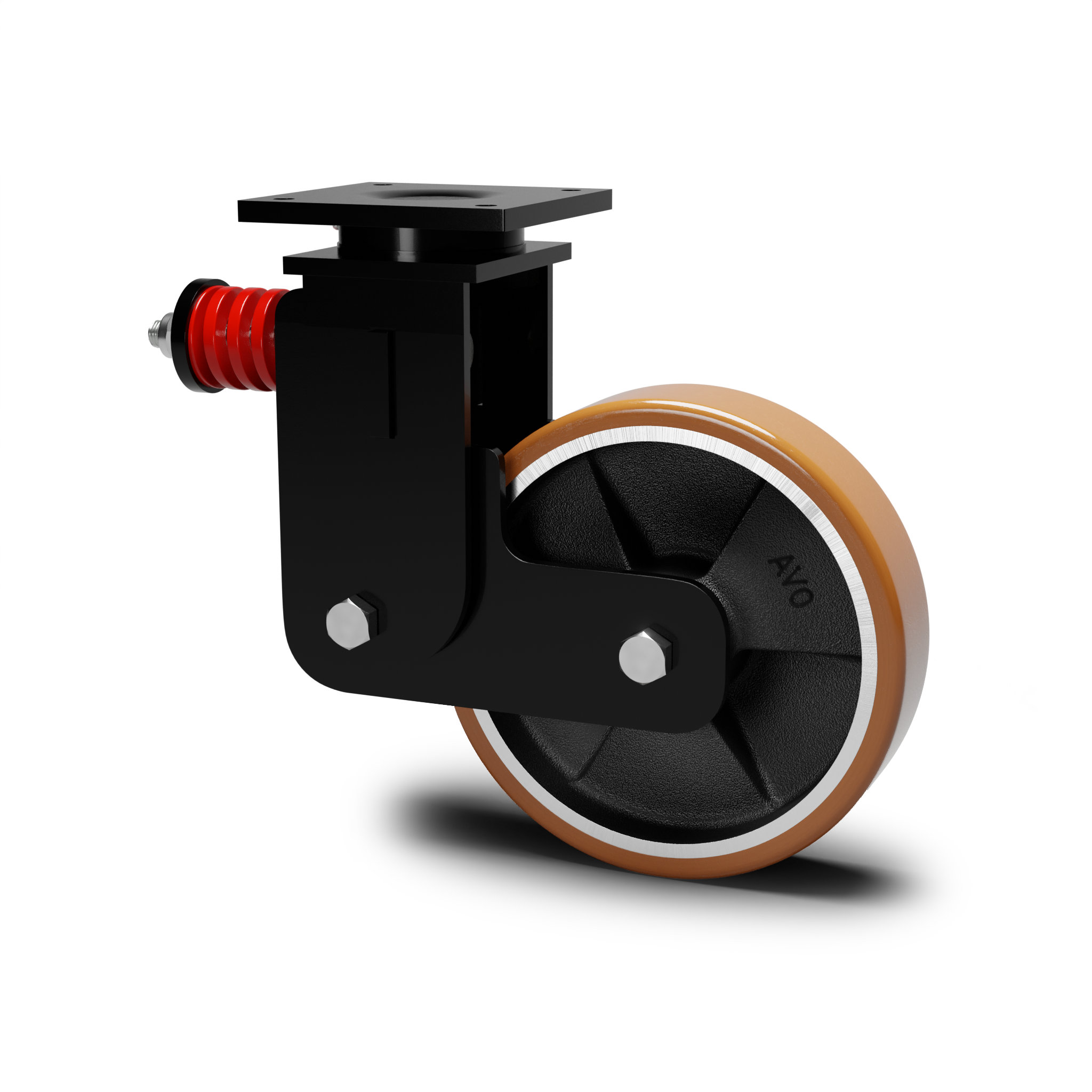

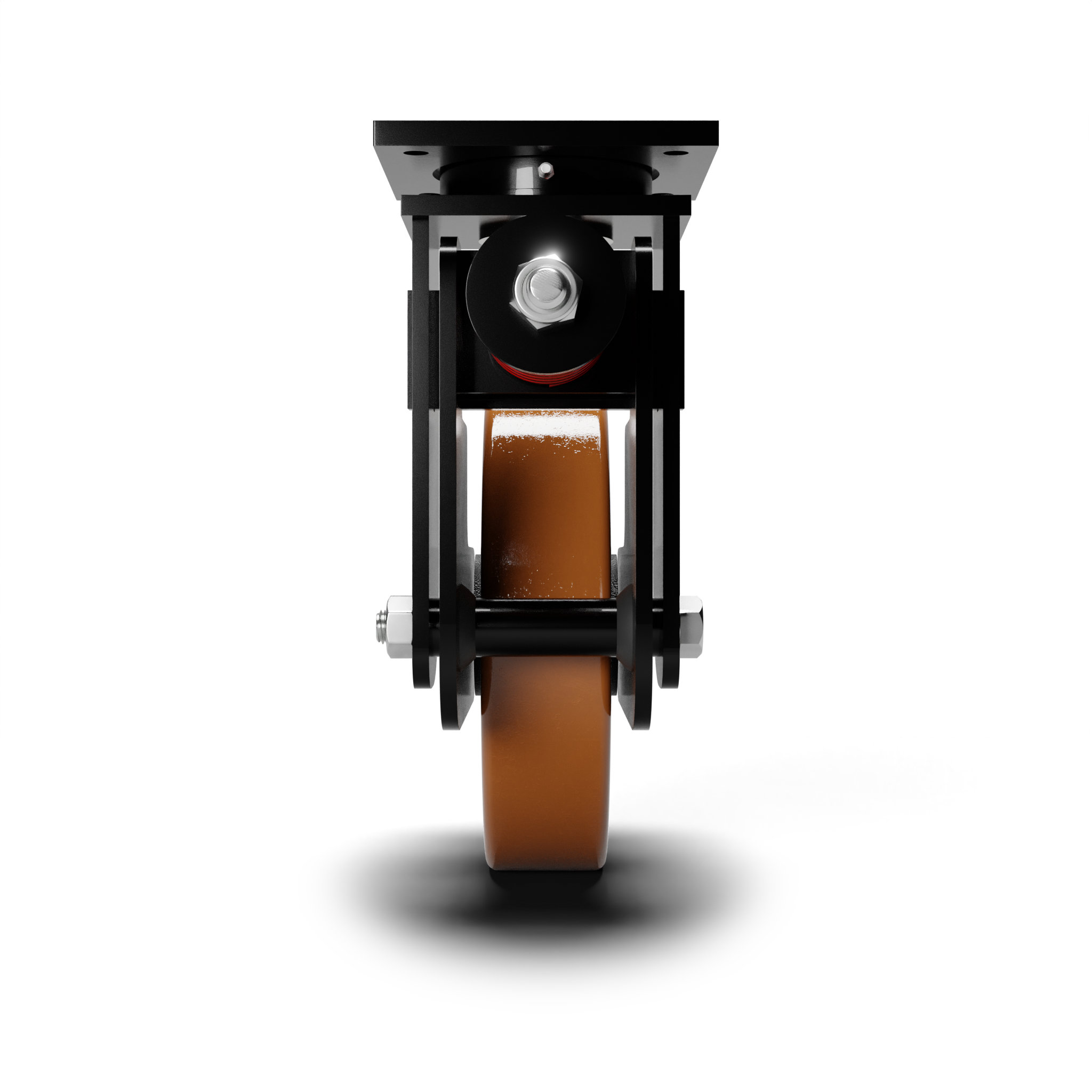

AVO – Wheel with avoprene polyurethane and steel castor for industry, diameter 200mm ean 28189

30ML

Material: Avoprene Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOPRENE 91 Shore A and mechanical black painted cast iron centre. Hub on shielded ball bearings assembled with central spacer.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint. Steel spring mechanism.

Product line: Polyurethane

Linea di prodotto: Polyurethane

EAN13: 8018793281898

EAN5: 28189

Article code: 13M300L200LCA

Features

-20 | 80

1100

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

200

Band width (mm)

50

Hub width (mm)

60

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

52X15

Dynamic load capacity (DaN)

1100

Colour

Brown

Material

Avoprene Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

175X140

Interaxis plate hole (mm)

140X105

Plate bore size (mm)

14

Offset (mm)

115

Height from ground (mm)

275

Castor hole (mm)

/

Static load capacity (DaN)

1400

Structure

Swivel

Version

Spring-Loaded

Brake

/

Pivot

/

Pivot type

/

Finishing

Black painted
