Serie 15

AVO – Wheel with avoprene polyurethane and steel castor for industry, diameter 300mm ean 28136

33DIRBIS

Material: Avoprene Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOPRENE 91 Shore A and mechanical black painted cast iron centre. Hub on shielded ball bearings assembled with central spacer.

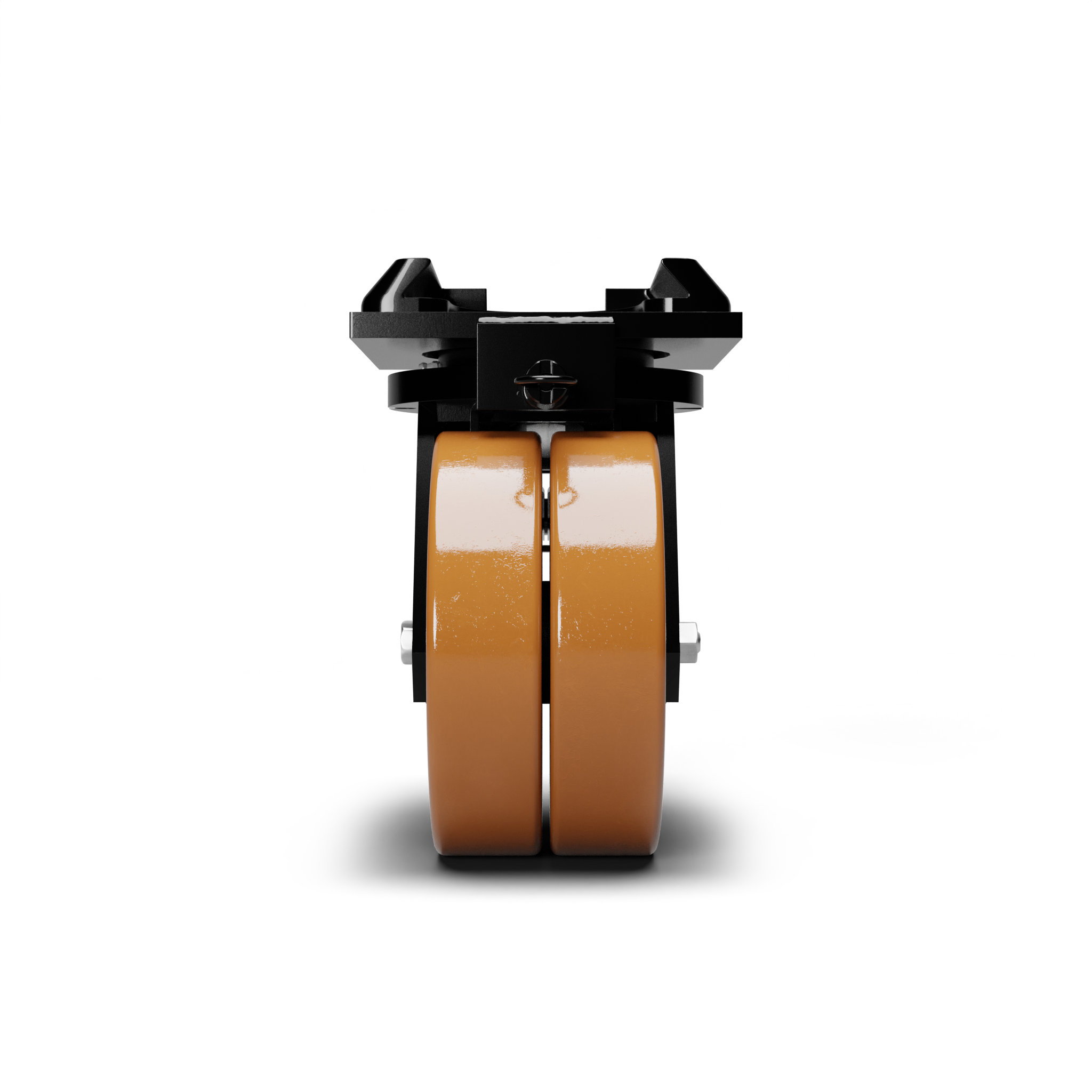

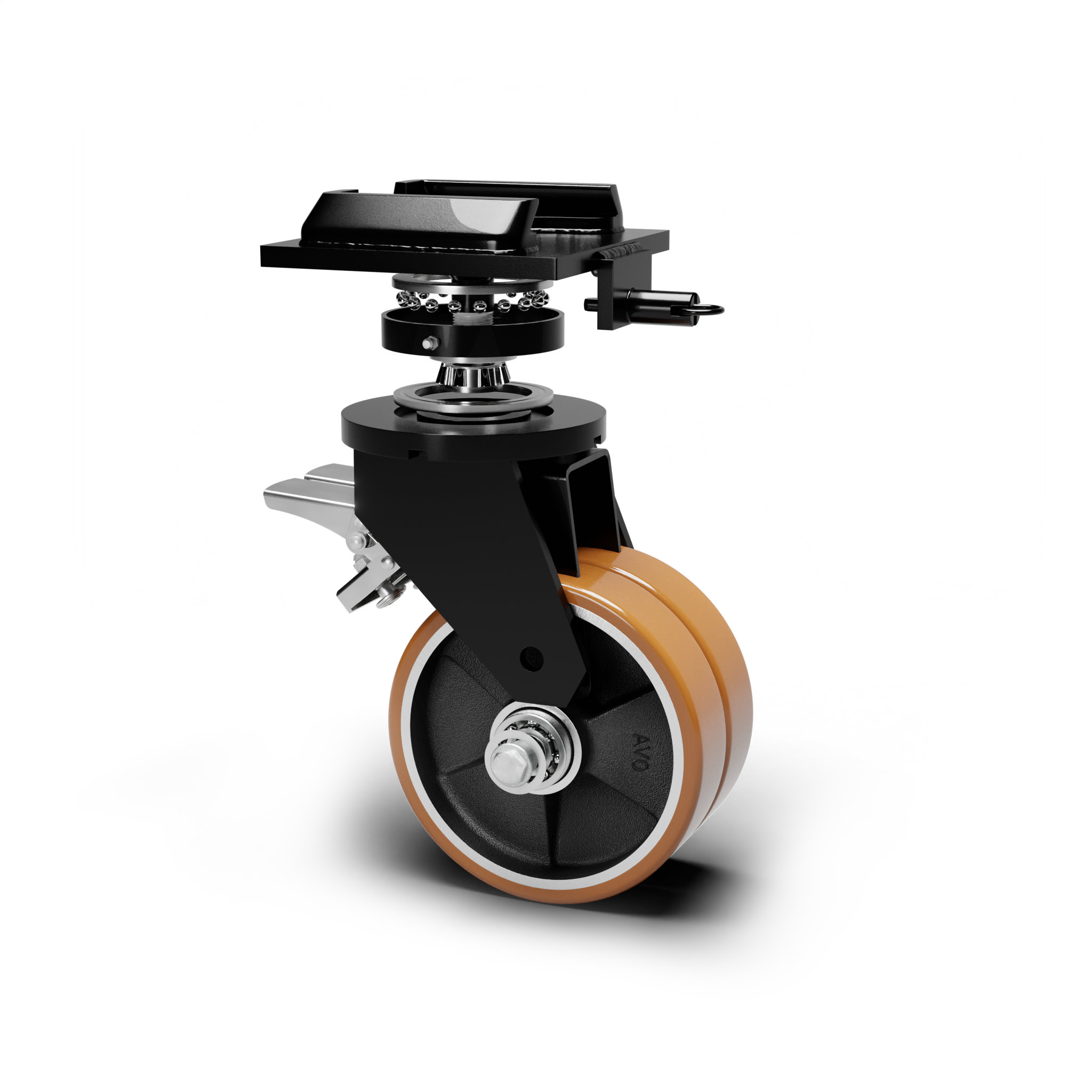

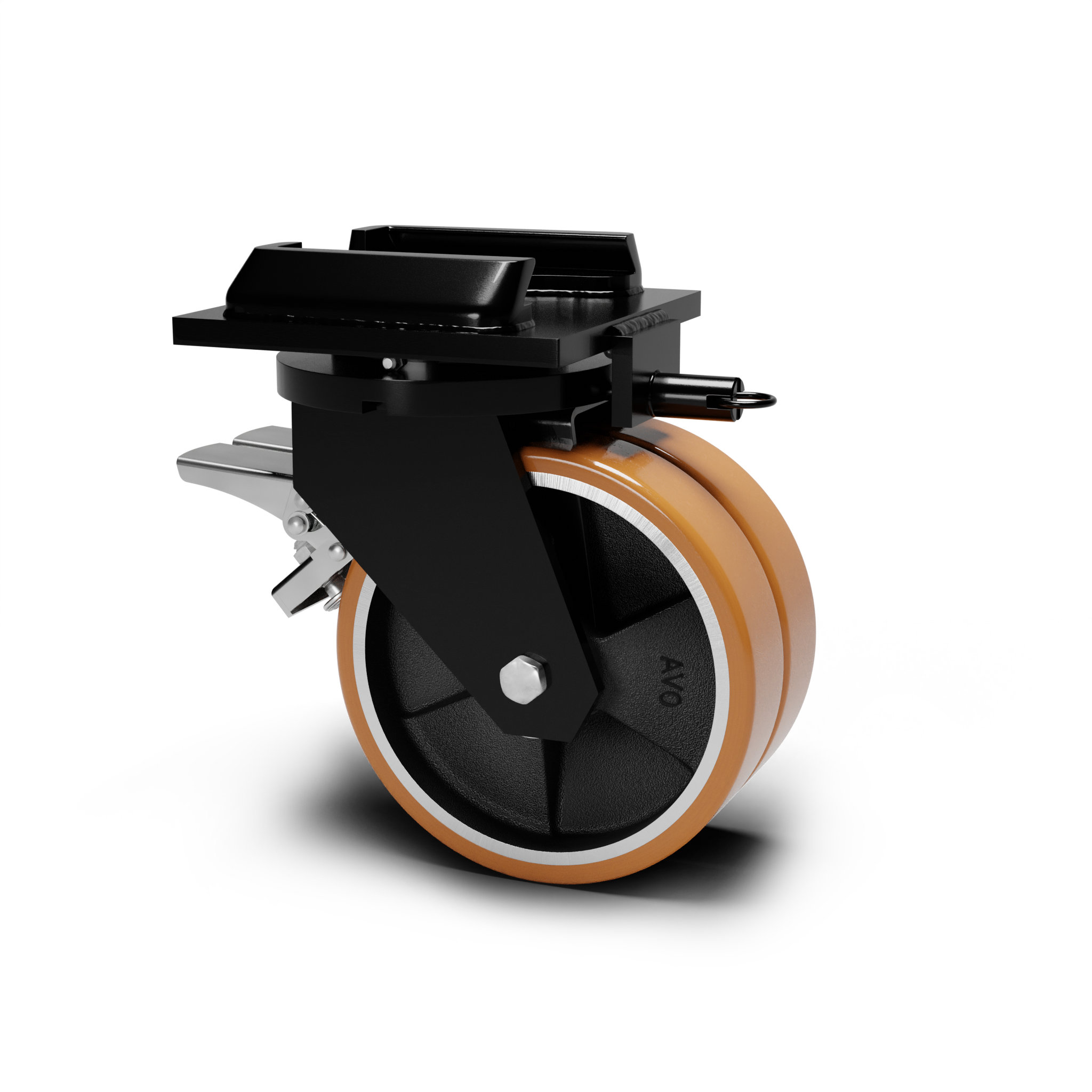

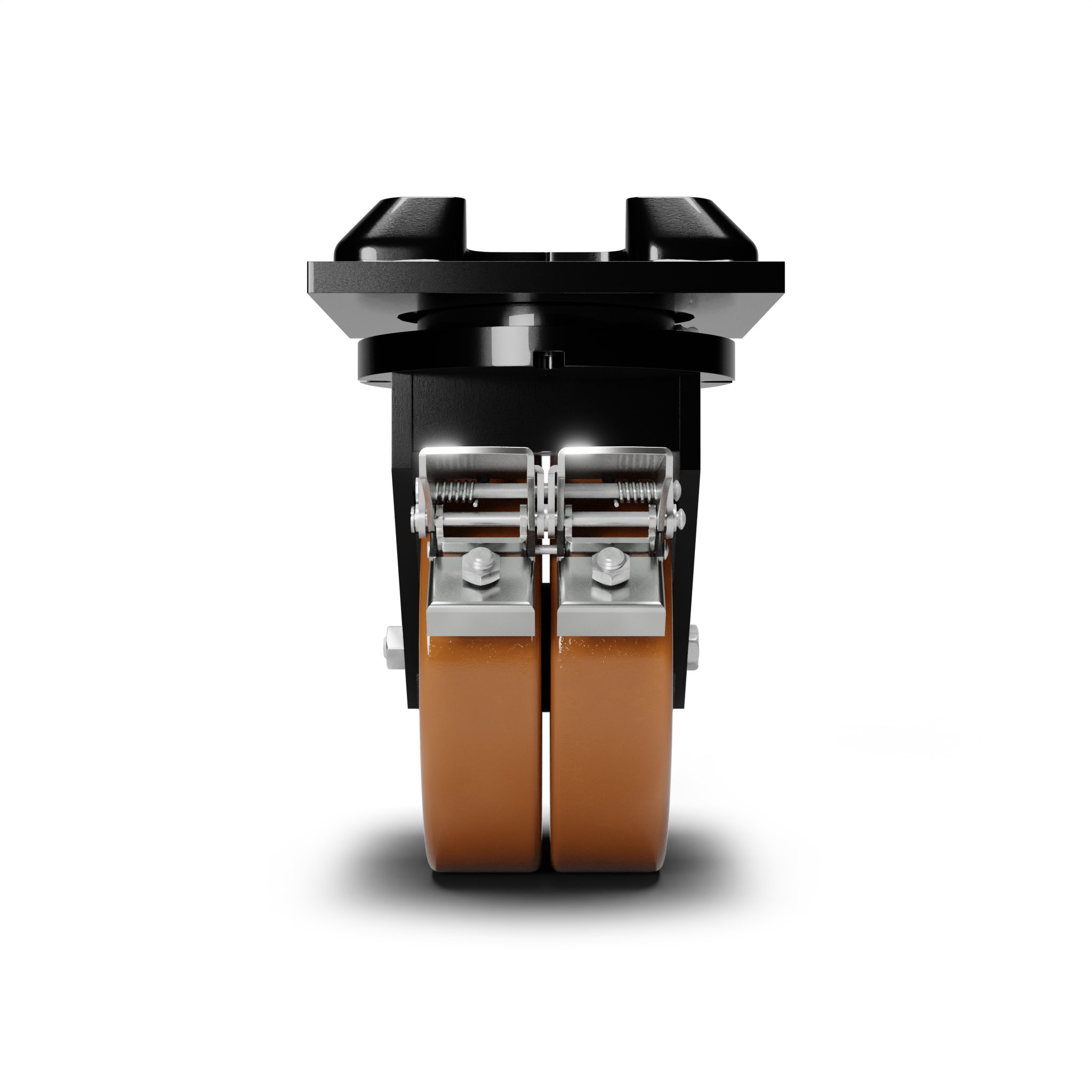

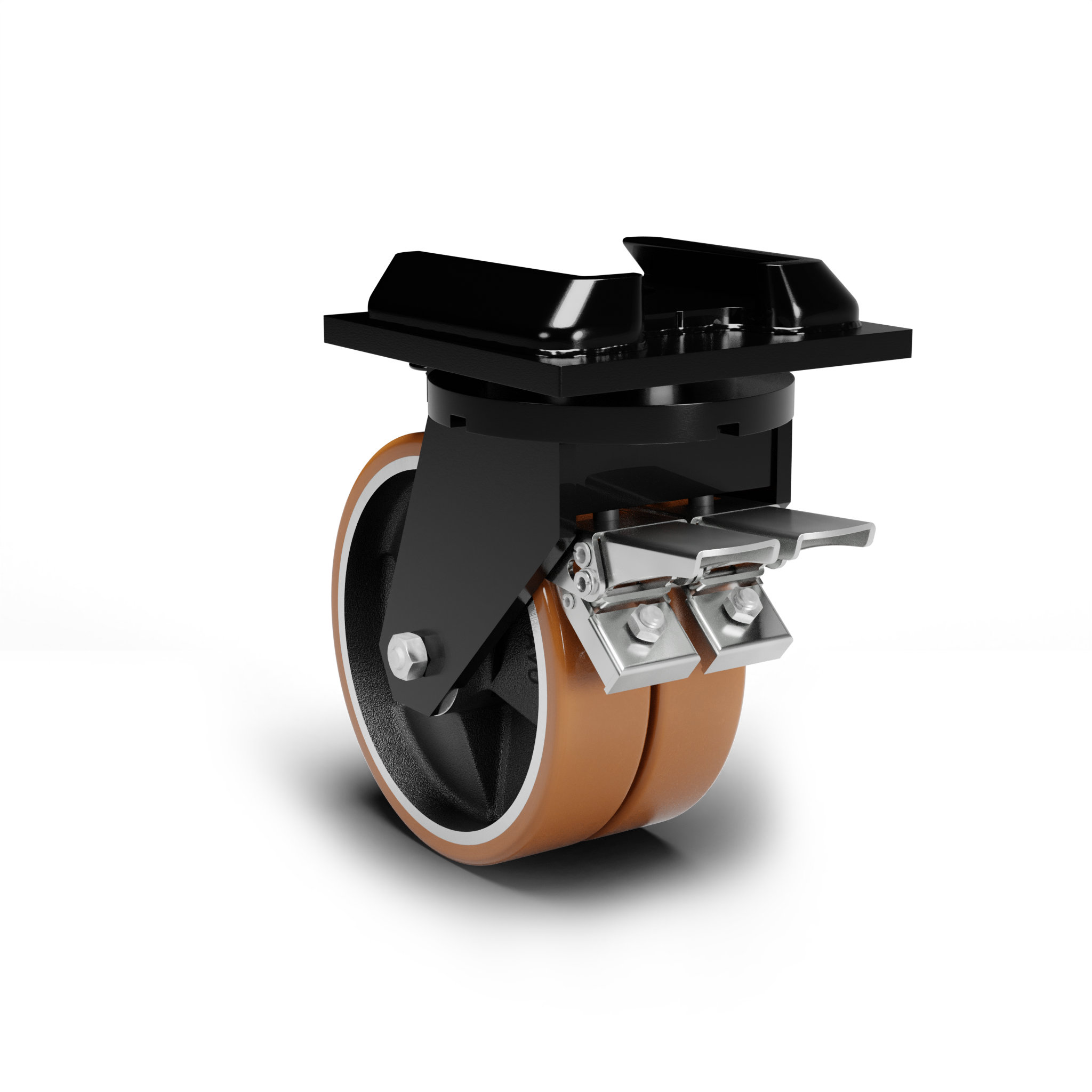

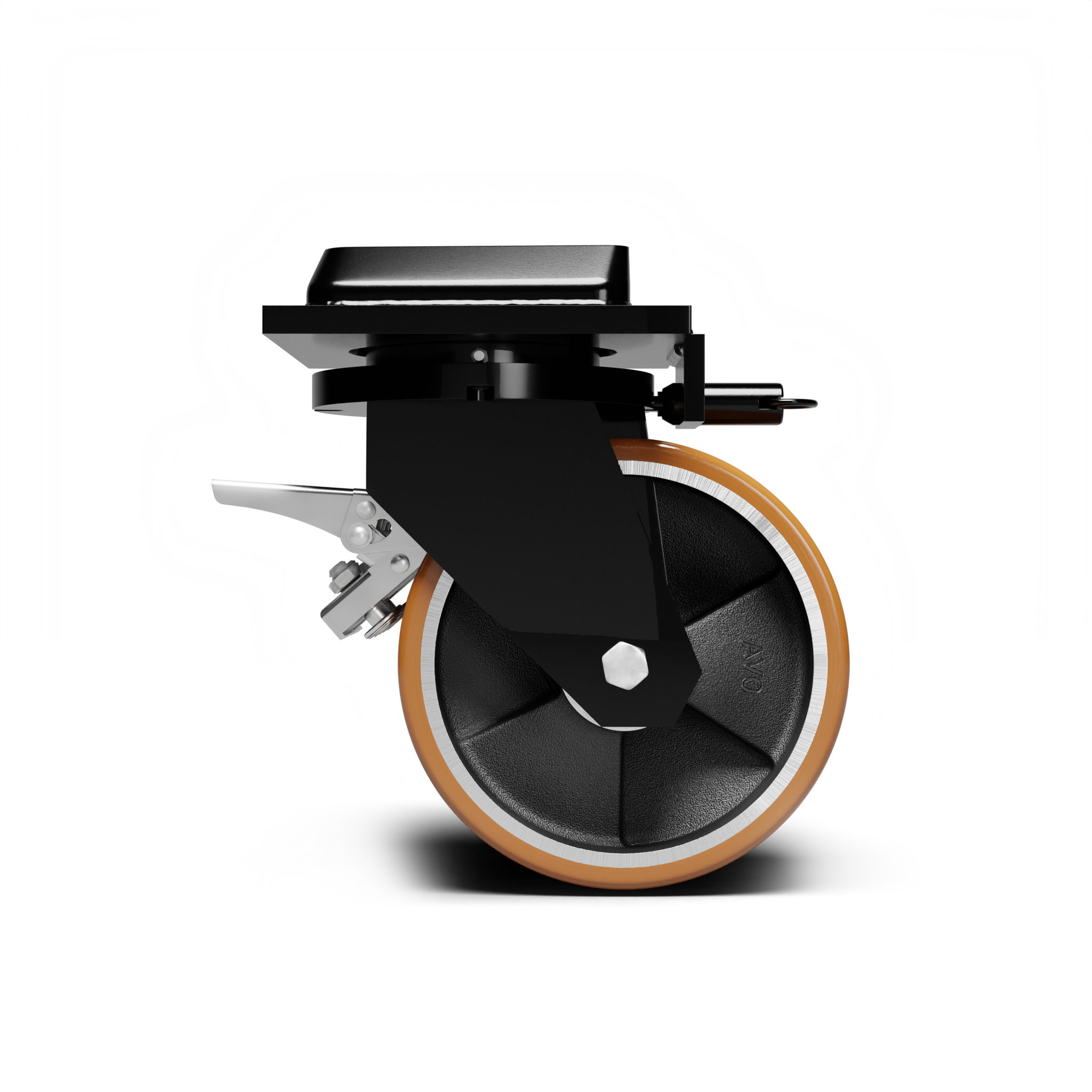

Twin Wheel Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and directional lock. Black epoxy paint.

Product line: Polyurethane

Linea di prodotto: Polyurethane

EAN13: 8018793281362

EAN5: 28136

Article code: 13F33DI300GCA

Features

-20 | 80

4000

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

300

Band width (mm)

70

Hub width (mm)

70

Hub version

Ball bearing

Wheel hole (mm)

30

Bearing seat (mm)

62X16

Dynamic load capacity (DaN)

4000

Colour

Brown

Material

Avoprene Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

230X230

Interaxis plate hole (mm)

190X190

Plate bore size (mm)

19

Offset (mm)

83

Height from ground (mm)

375

Castor hole (mm)

/

Static load capacity (DaN)

5000

Structure

Swivel

Version

Plate with brake

Brake

Directional lock

Pivot

/

Pivot type

/

Finishing

Black painted
