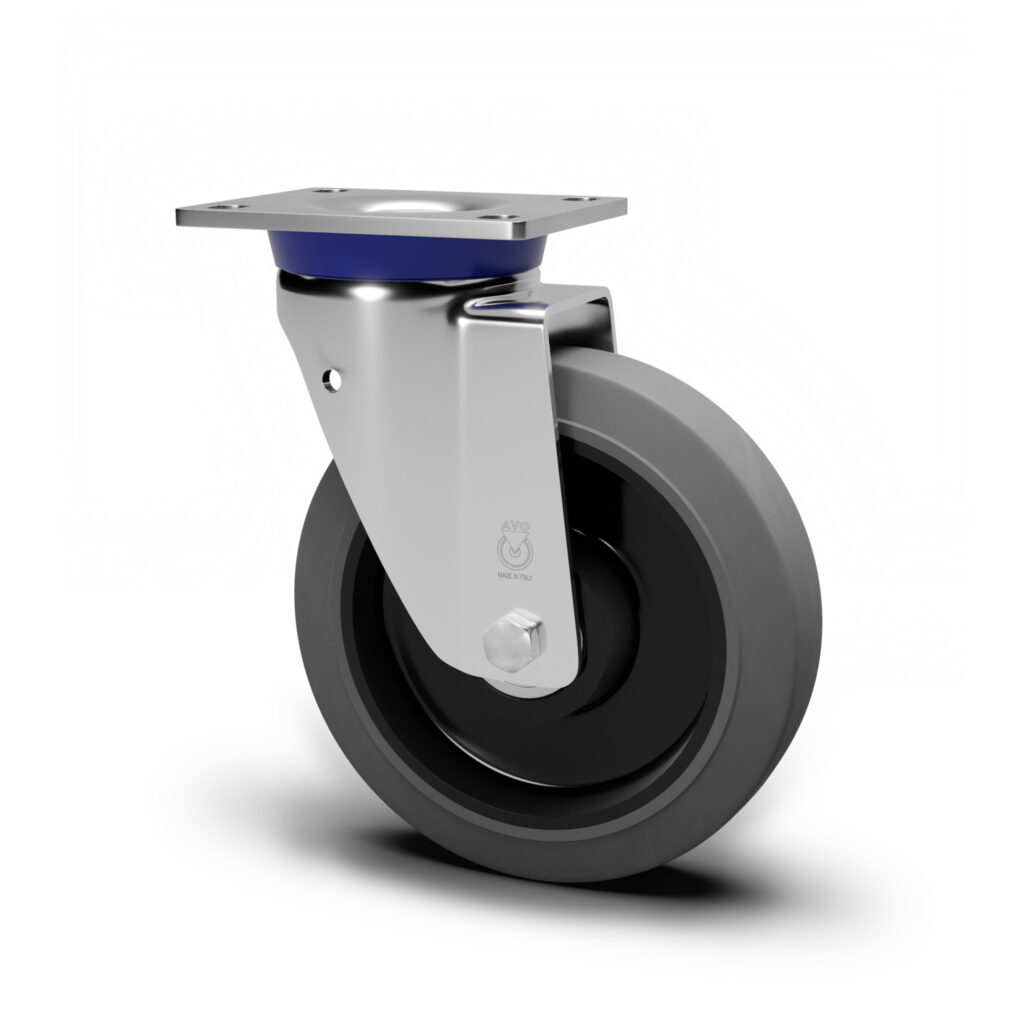

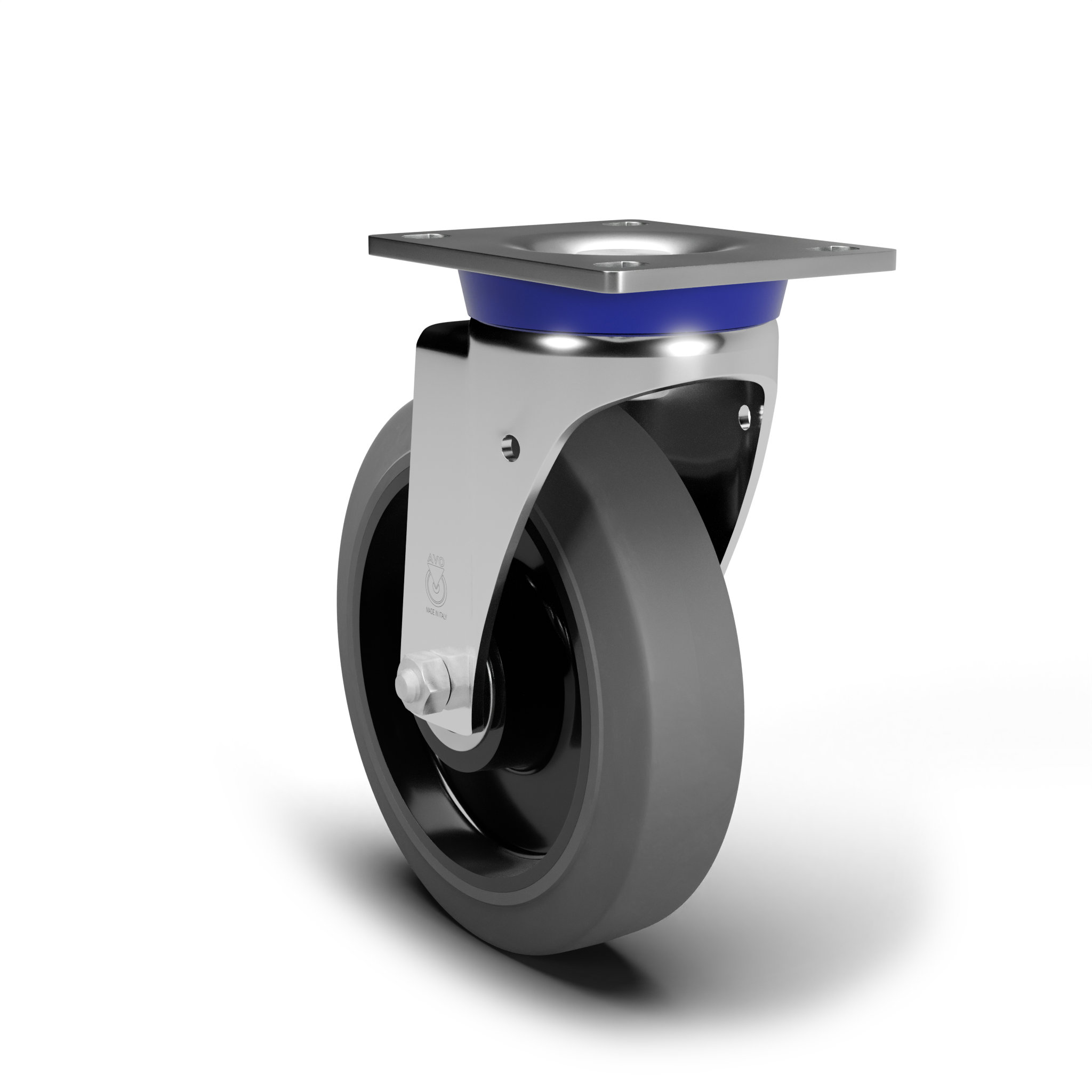

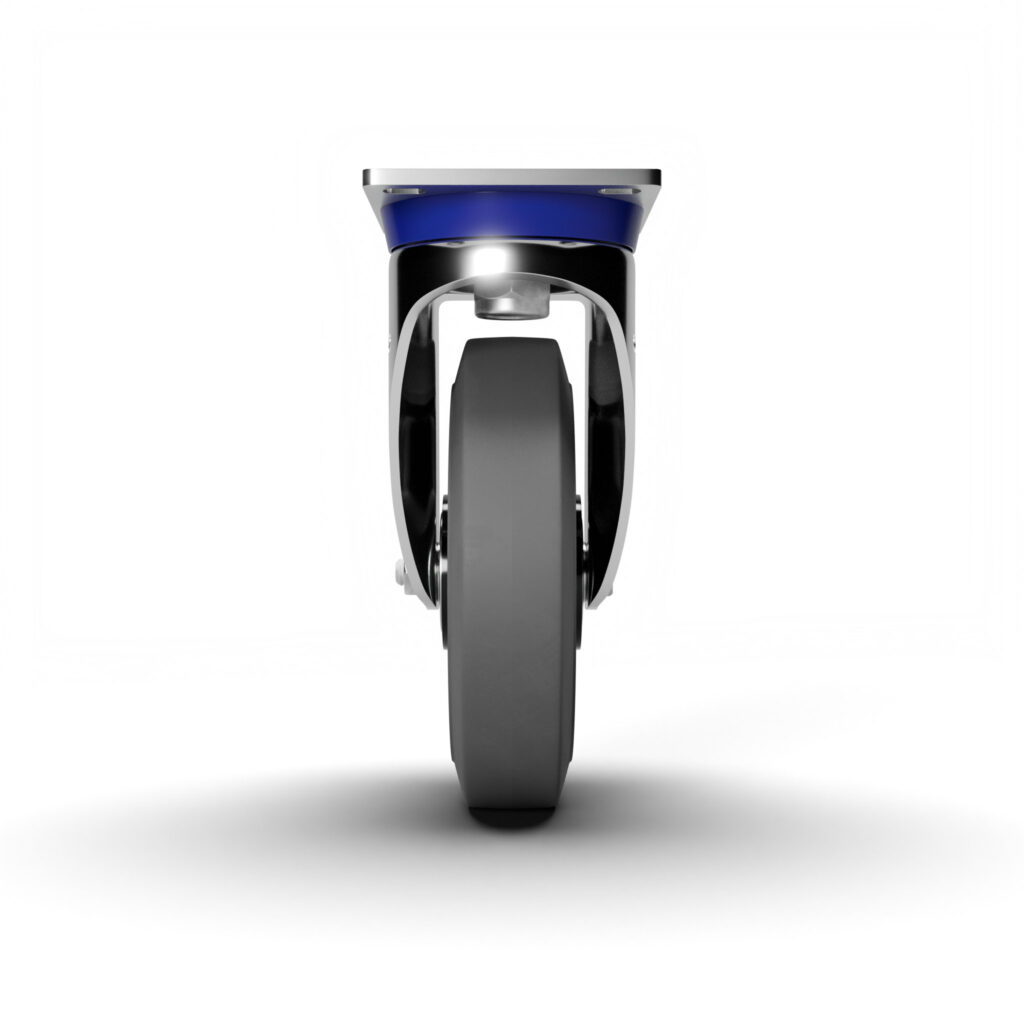

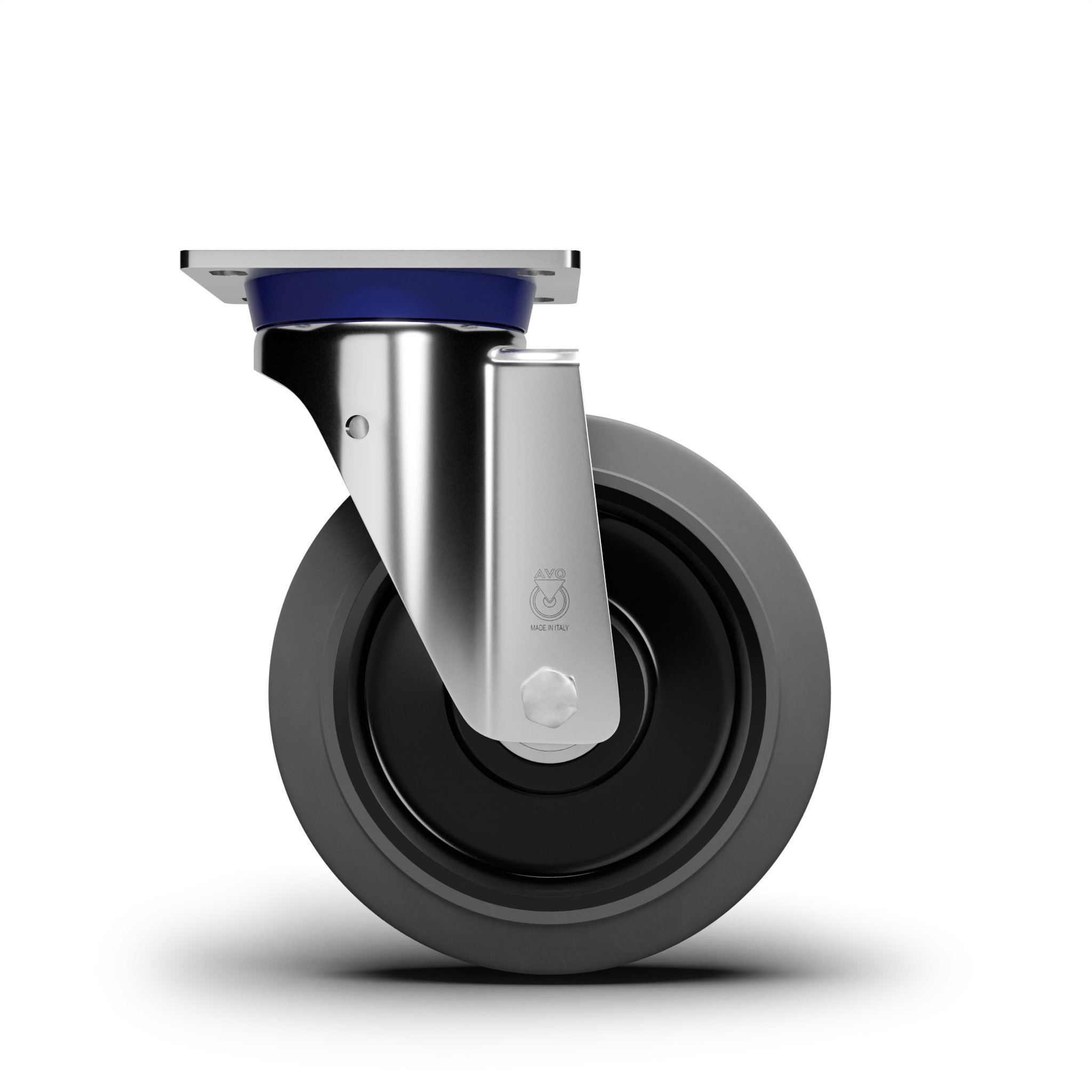

AVO – Wheel with cut-resistant rubber tyre and aisi 304 stainless steel castor for industry, diameter 200mm ean 28840

67X-AM

Material: Cut-resistant Rubber tyre

Core: Polyamide 6

Application field: Industry

Request information

Description:

Wheel with elastic grey non-marking rubber tyre 68 Shore A and Polyamide 6 centre. Hub on stainless steel roller bearing, shielded stainless steel ball bearings assembled with central spacer.

Heavy-Duty Castors

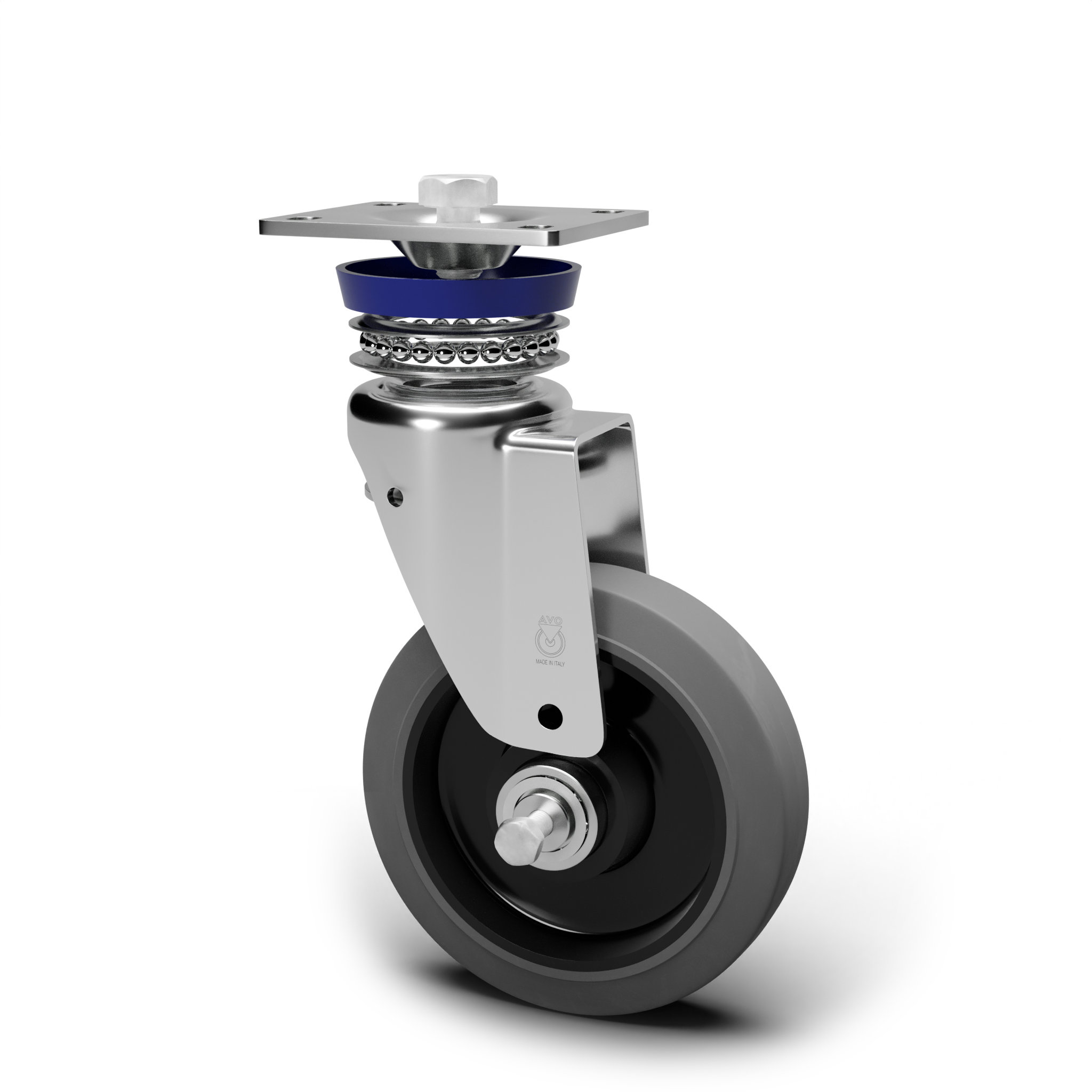

Made of pressed stainless steel AISI 304, turning on double rim of stainless-steel balls AISI 420, with plate. Dust cover ring on the balls.

Product line: Stainless steel

Linea di prodotto: Stainless steel

EAN13: 8018793288408

EAN5: 28840

Article code: 00X6700200NRG

Features

-20 | 70

600

Stainless steel roller bearing

Shore A

68

Floor types

Stoneware

Wood

Download pdf product sheet

download images

Request the drawing

Request STP file

Wheel data

Diameter (mm)

200

Band width (mm)

50

Hub width (mm)

58

Hub version

Stainless steel roller bearing

Wheel hole (mm)

20

Bearing seat (mm)

/

Dynamic load capacity (DaN)

600

Colour

Grey

Material

Cut-resistant Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

68

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13X16

Offset (mm)

55

Height from ground (mm)

251

Castor hole (mm)

/

Static load capacity (DaN)

750

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

AISI 304 stainless steel
