Serie 604-AM

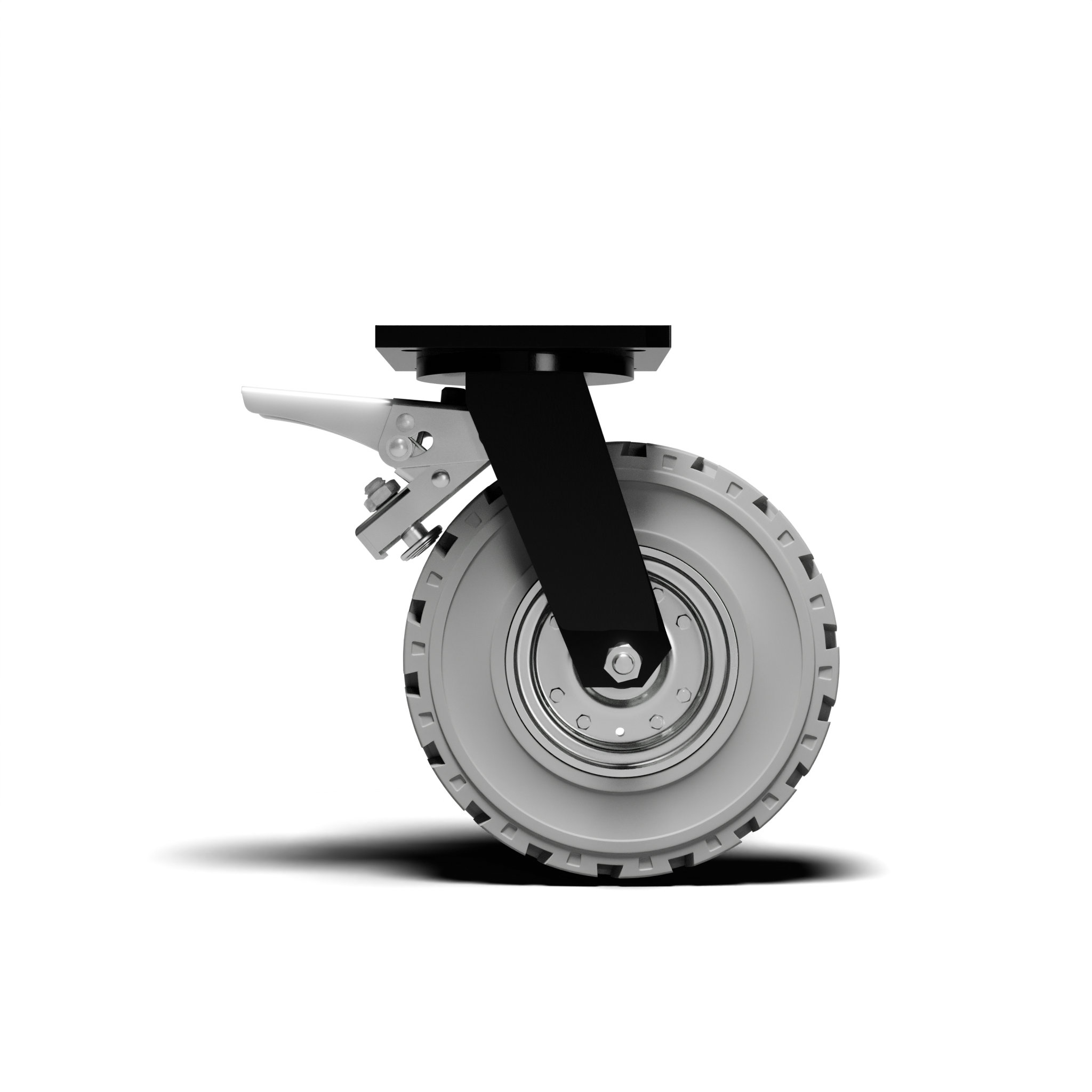

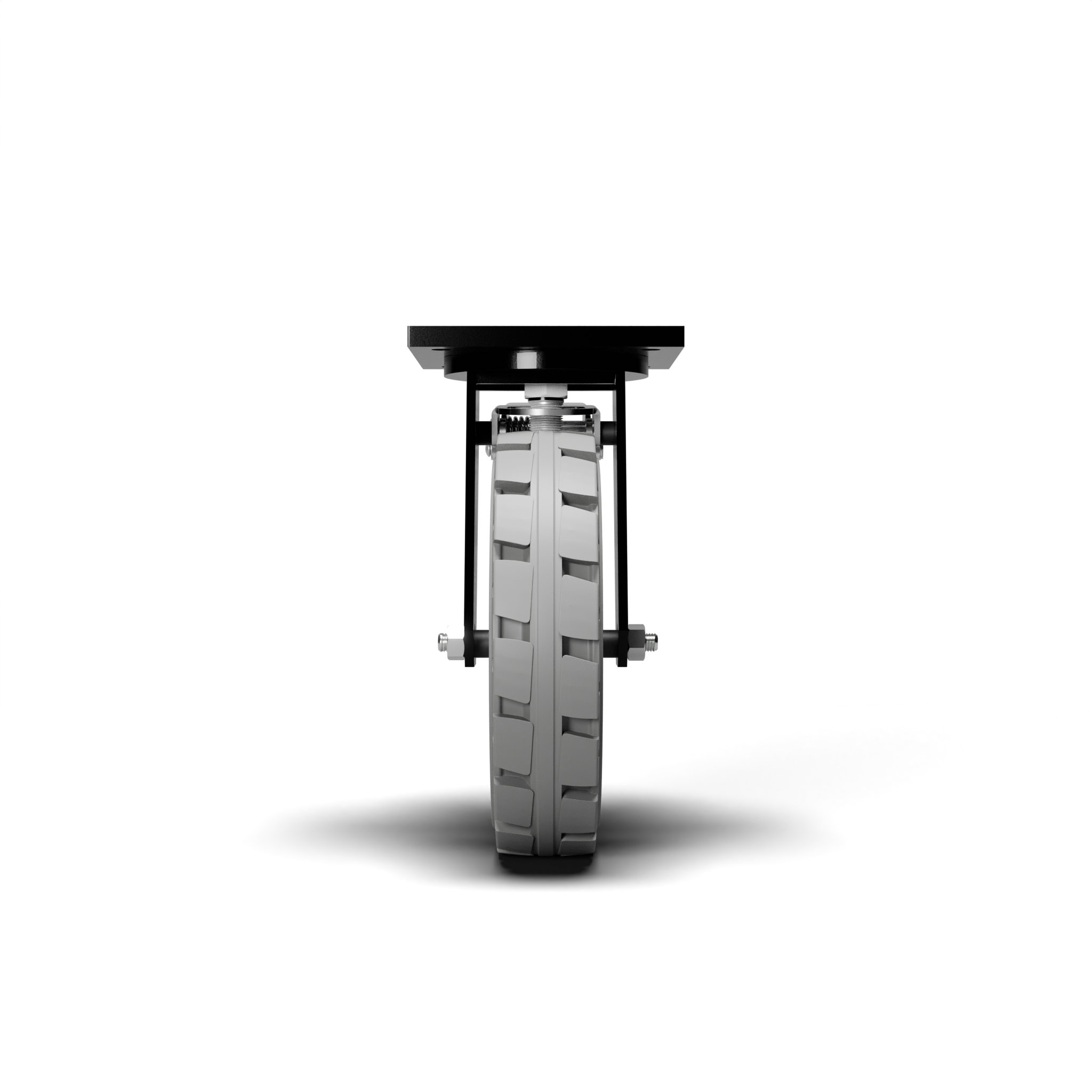

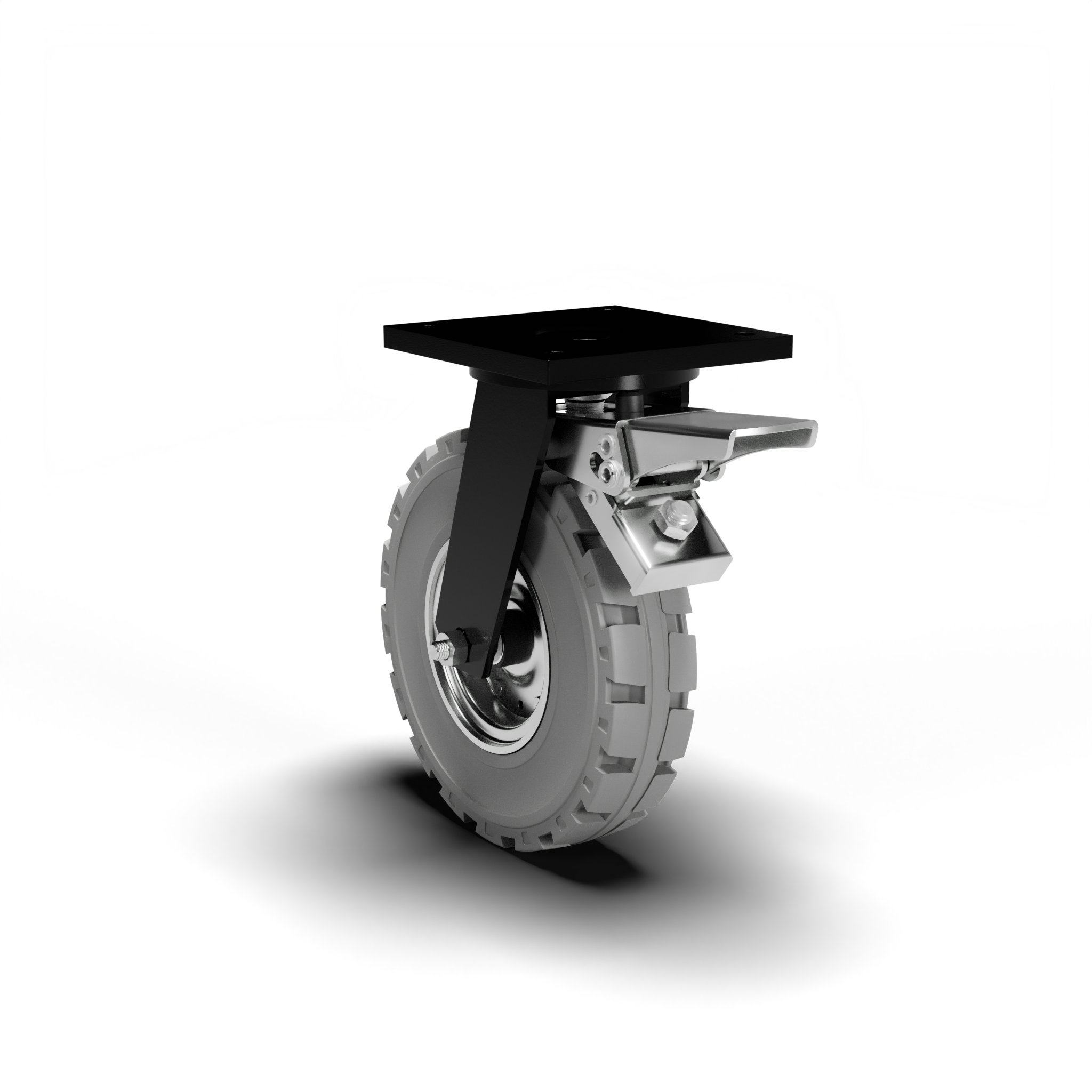

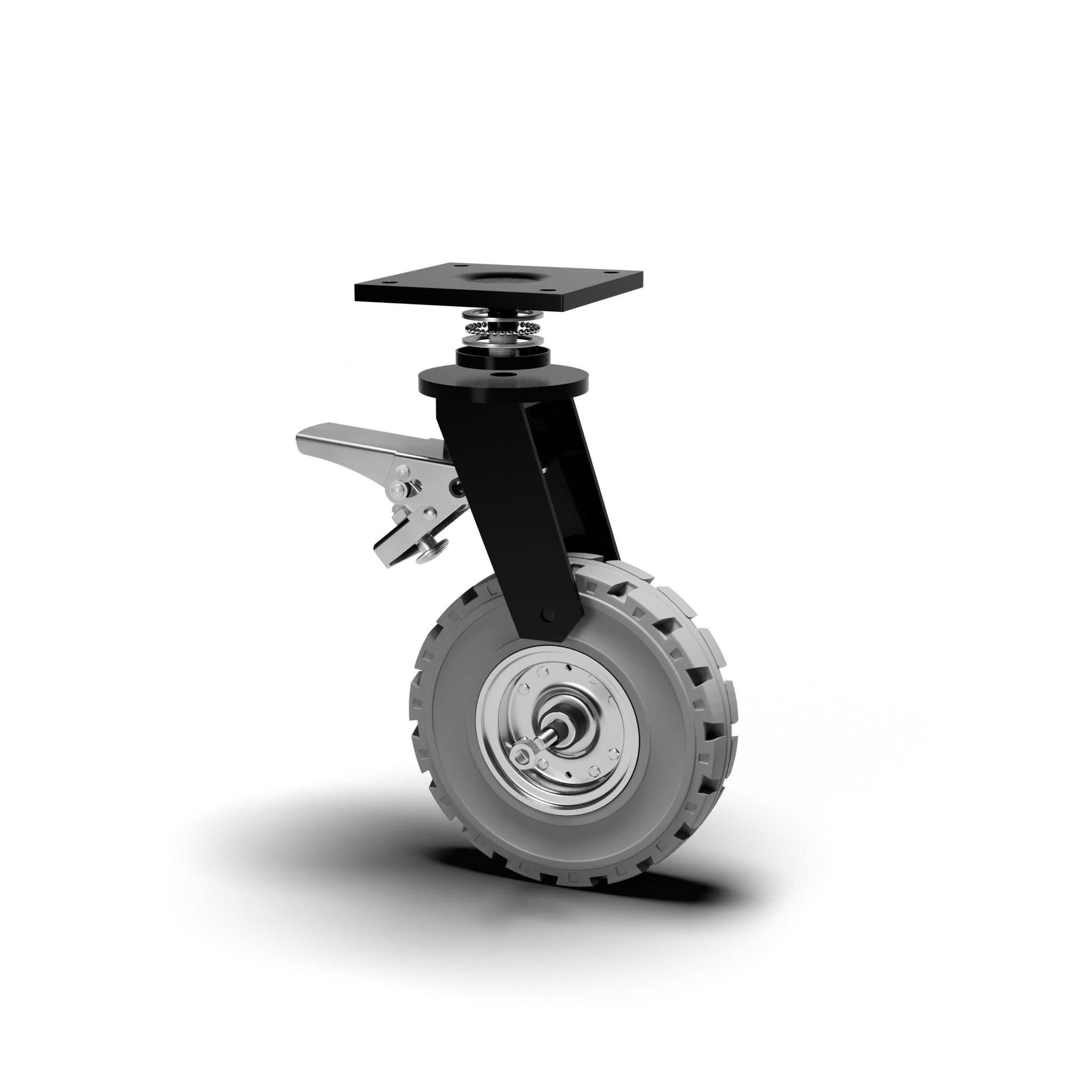

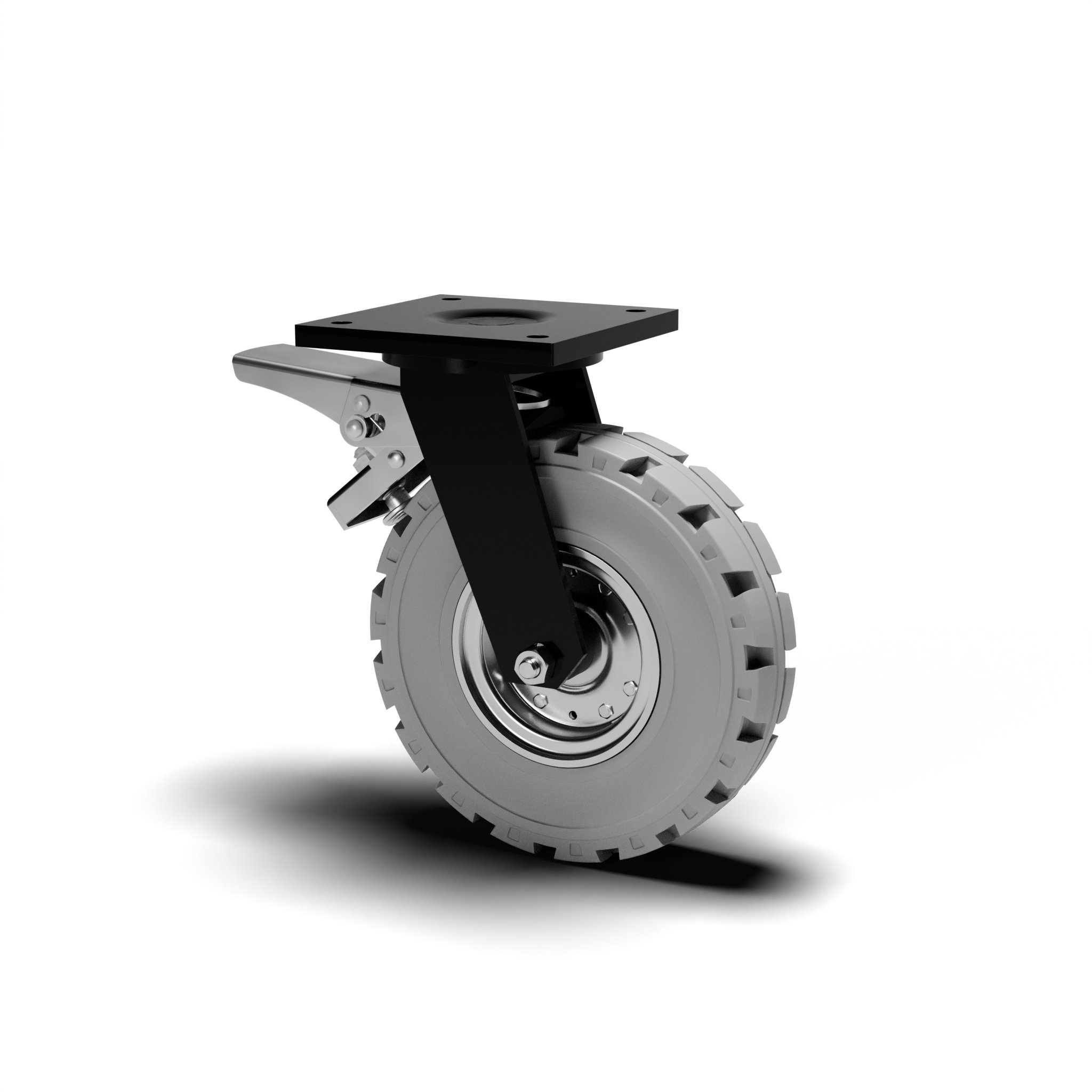

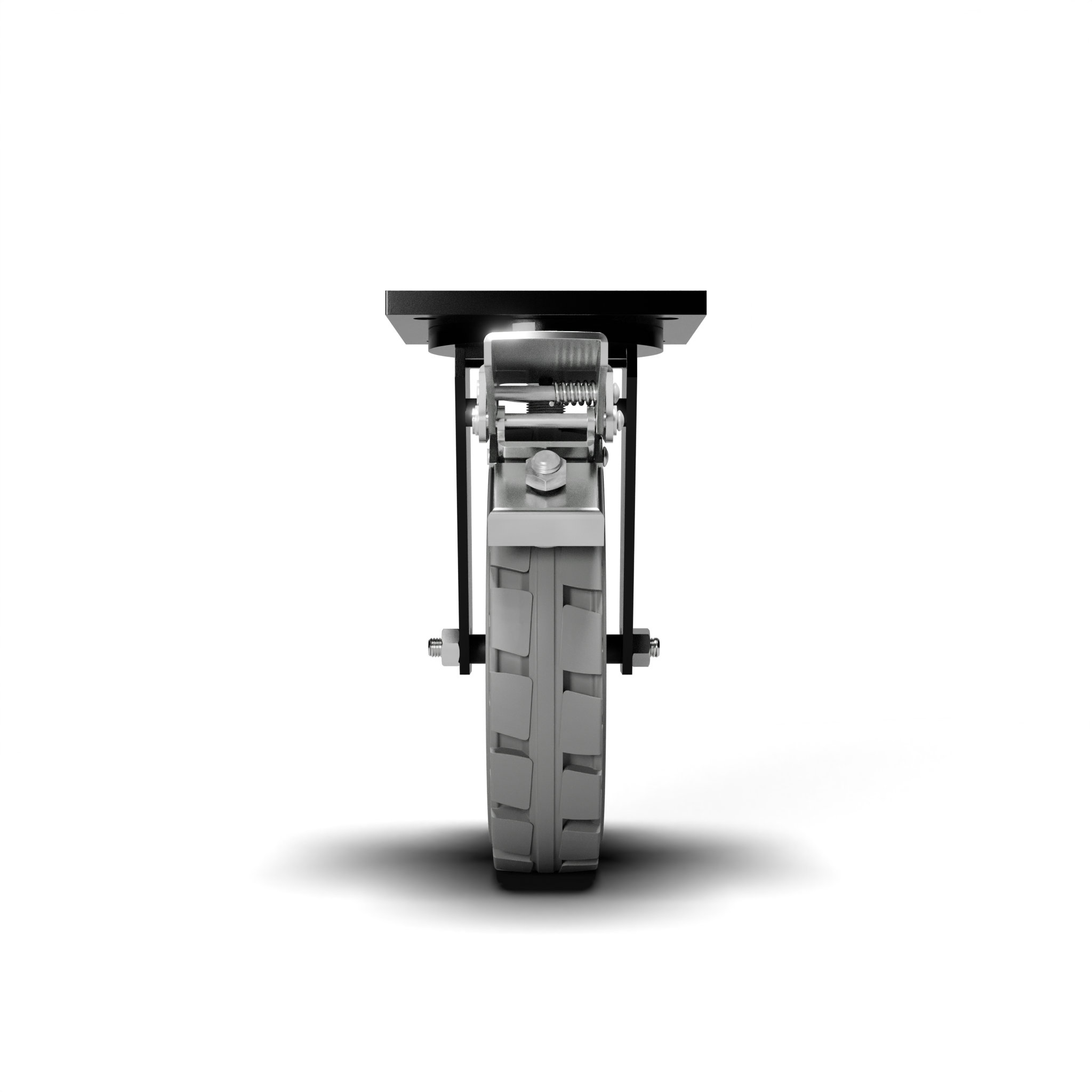

AVO – Wheel with non-marking rubber tyre and steel castor for industry, diameter 250mm ean 29209

606BIS-AM

Material: Non-marking Rubber tyre

Core: Steel

Application field: Industry

Request information

Description:

Extra robust and solid elastic non-marking grey rubber Wheel 65-70 Shore A with zinc-chromium plated pressed steel flanges. Highly shock and cut resistant, high smoothness and vibration absorbing. Hub on shielded 2RS ball bearings or 2RS stainless steel ball bearings.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.

Product line: Rubber tyre

Product line: Rubber tyre

EAN13: 8018793292092

EAN5: 29209

Article code: 216060F25008G

Features

-20 | 80

450

Ball bearing

Shore A

70

Floor types

Asphalt

Concrete

Grid

Off-Road

Stoneware

Download pdf product sheet

download images

Request the drawing

Request STP file

Wheel data

Diameter (mm)

250

Band width (mm)

84

Hub width (mm)

75

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

/

Dynamic load capacity (DaN)

450

Colour

Grey

Material

Non-marking Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

70

Bracket data

Plate size (mm)

175X140

Interaxis plate hole (mm)

140X105

Plate bore size (mm)

15

Offset (mm)

80

Height from ground (mm)

305

Castor hole (mm)

/

Static load capacity (DaN)

570

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

/

Pivot type

/

Finishing

Black painted
