Serie 604-AM

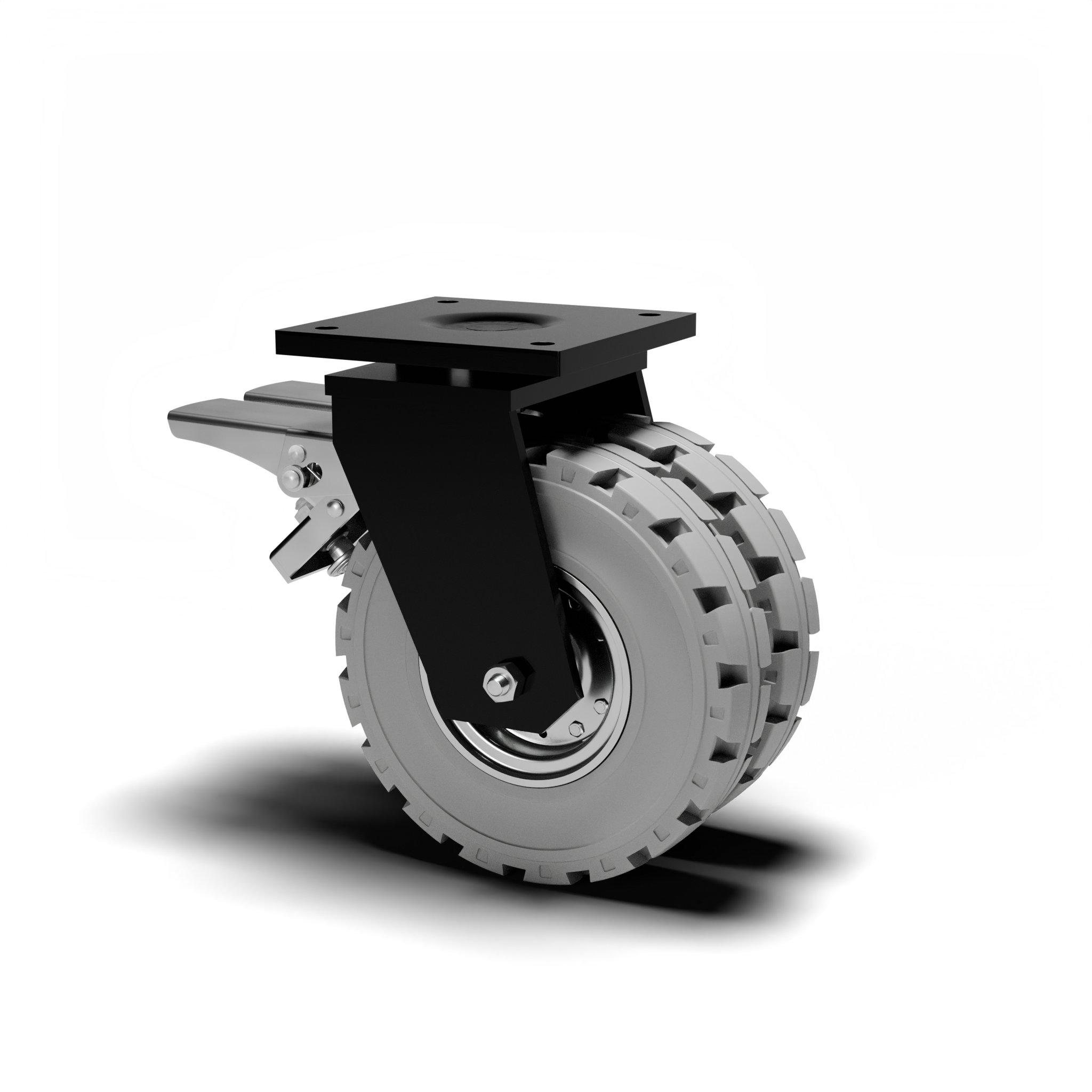

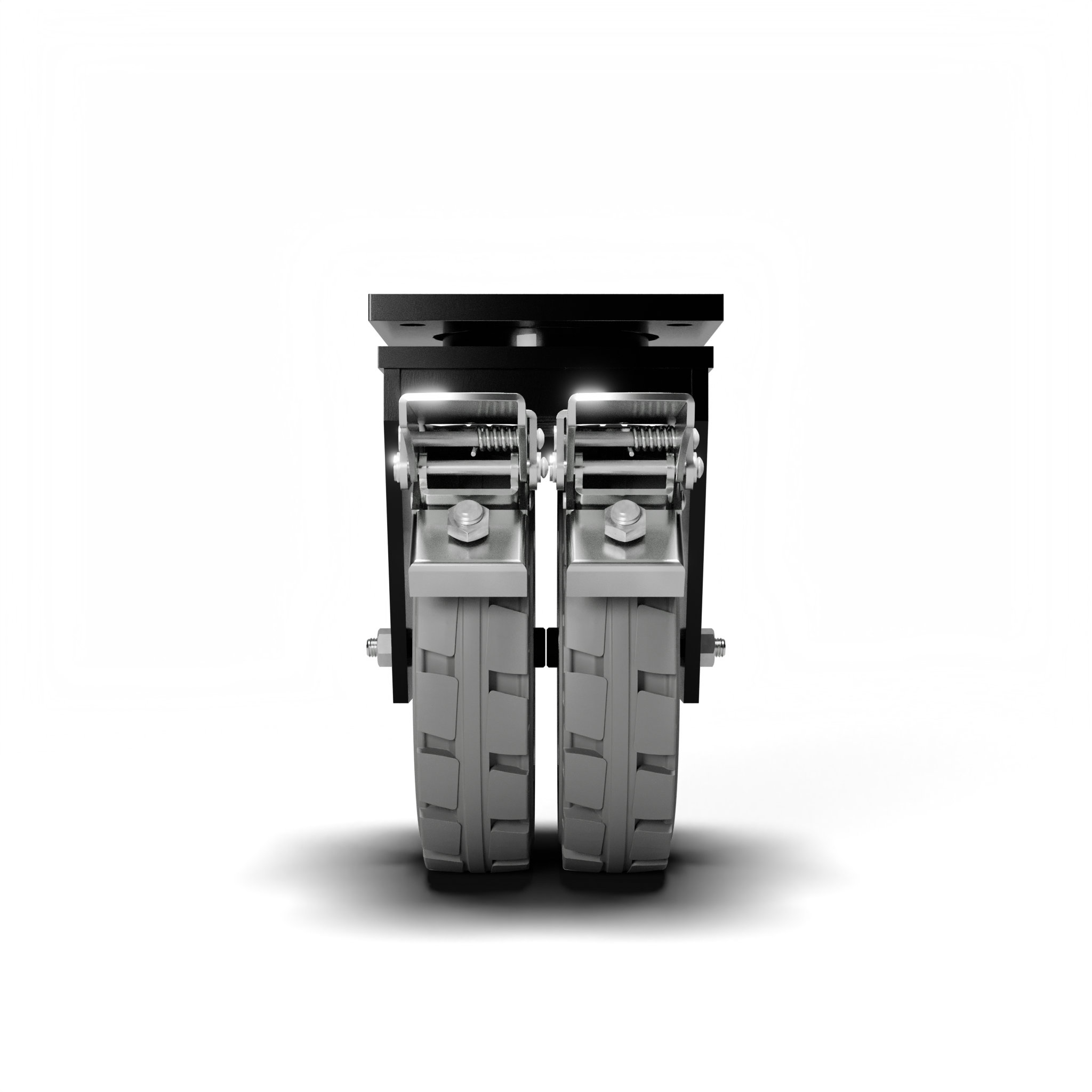

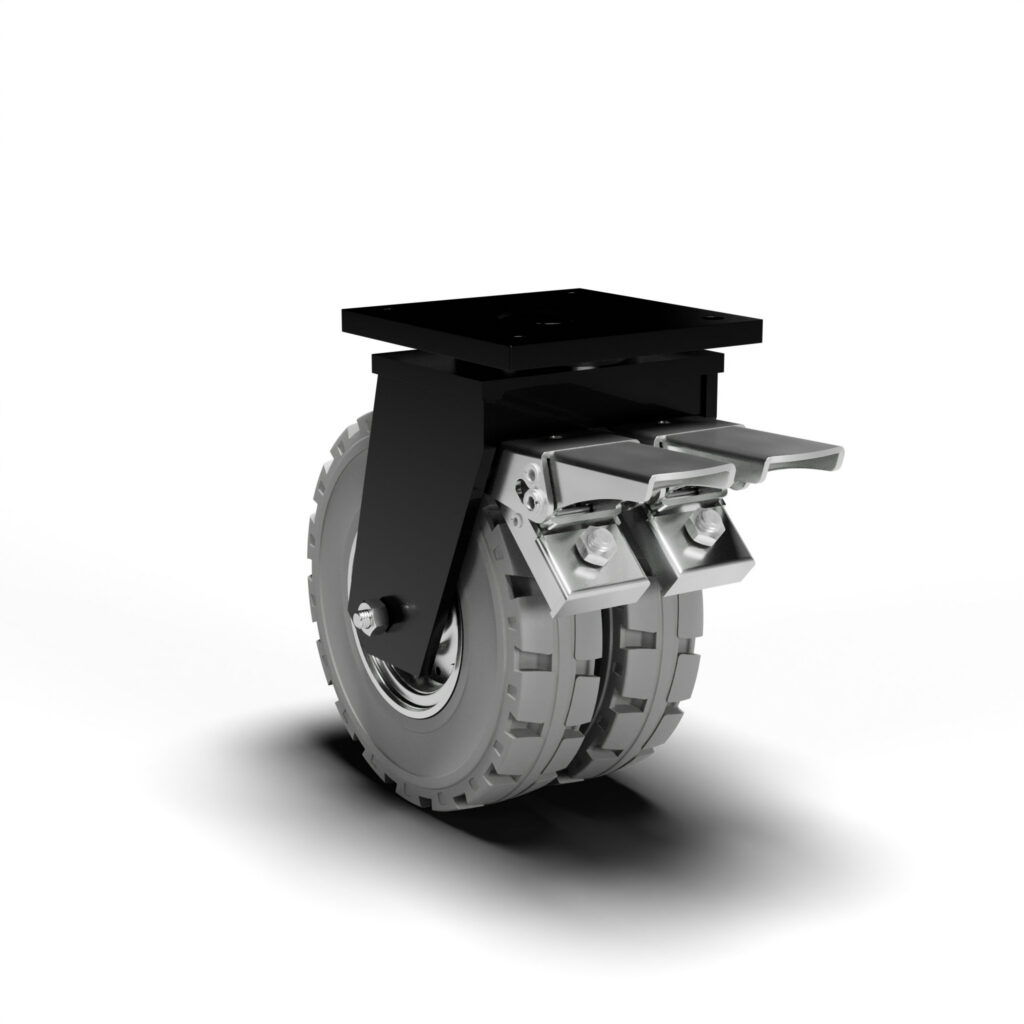

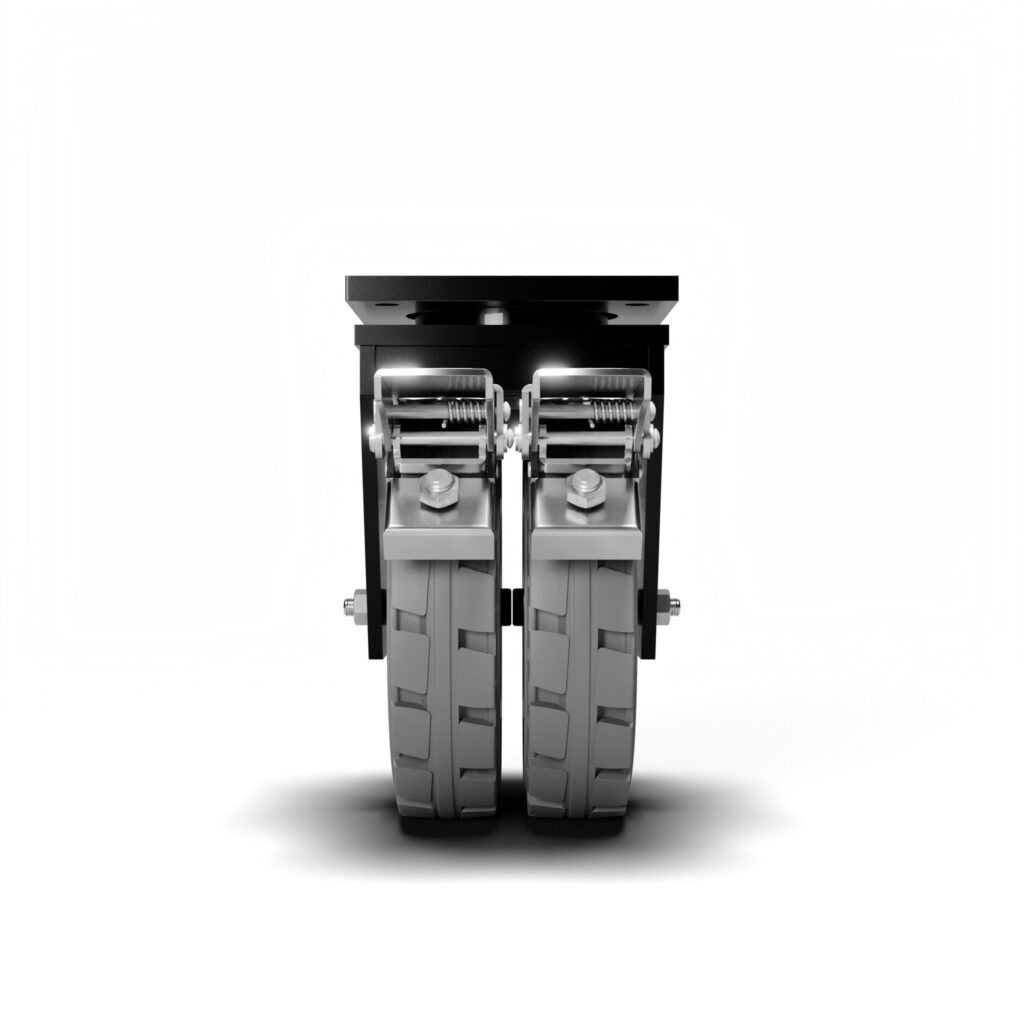

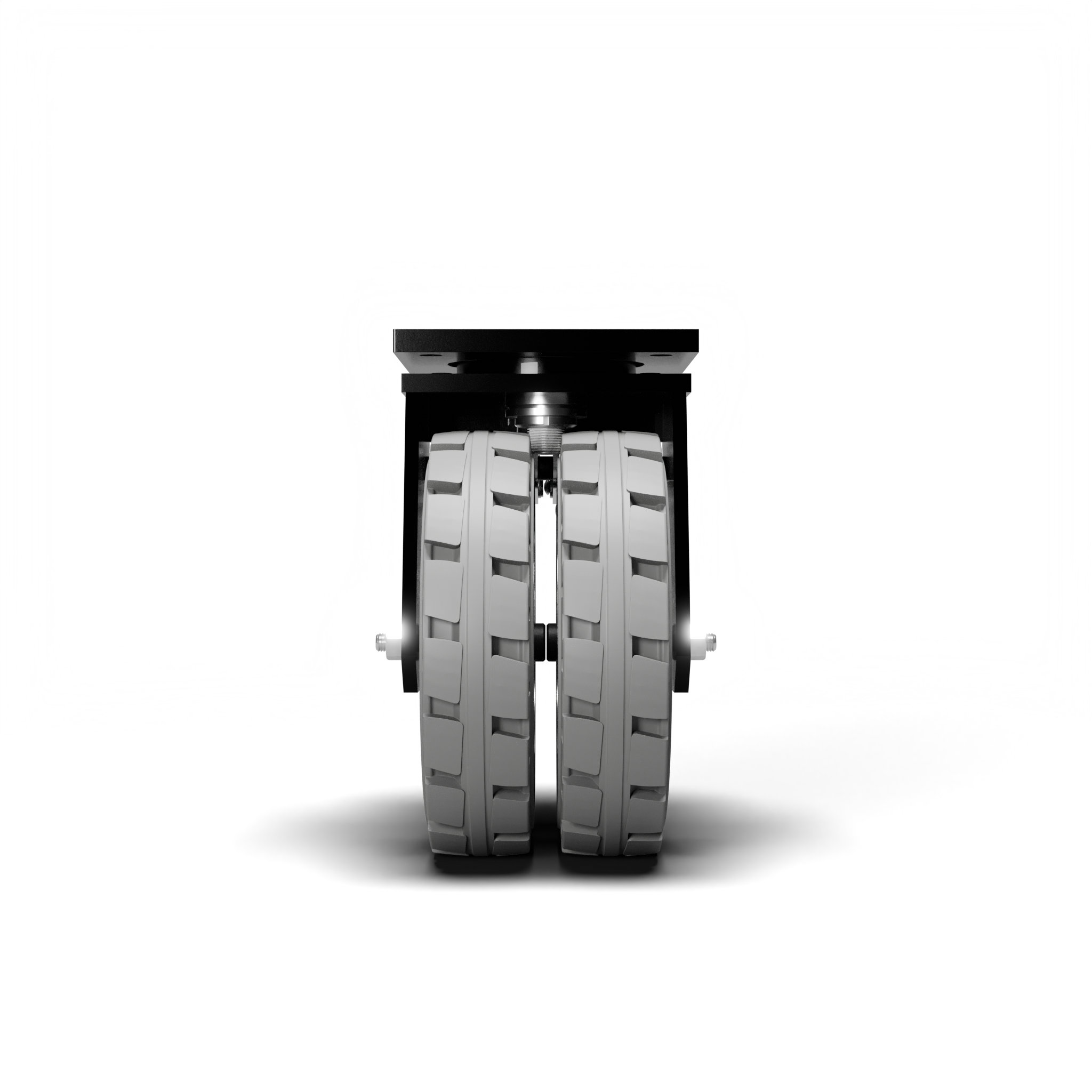

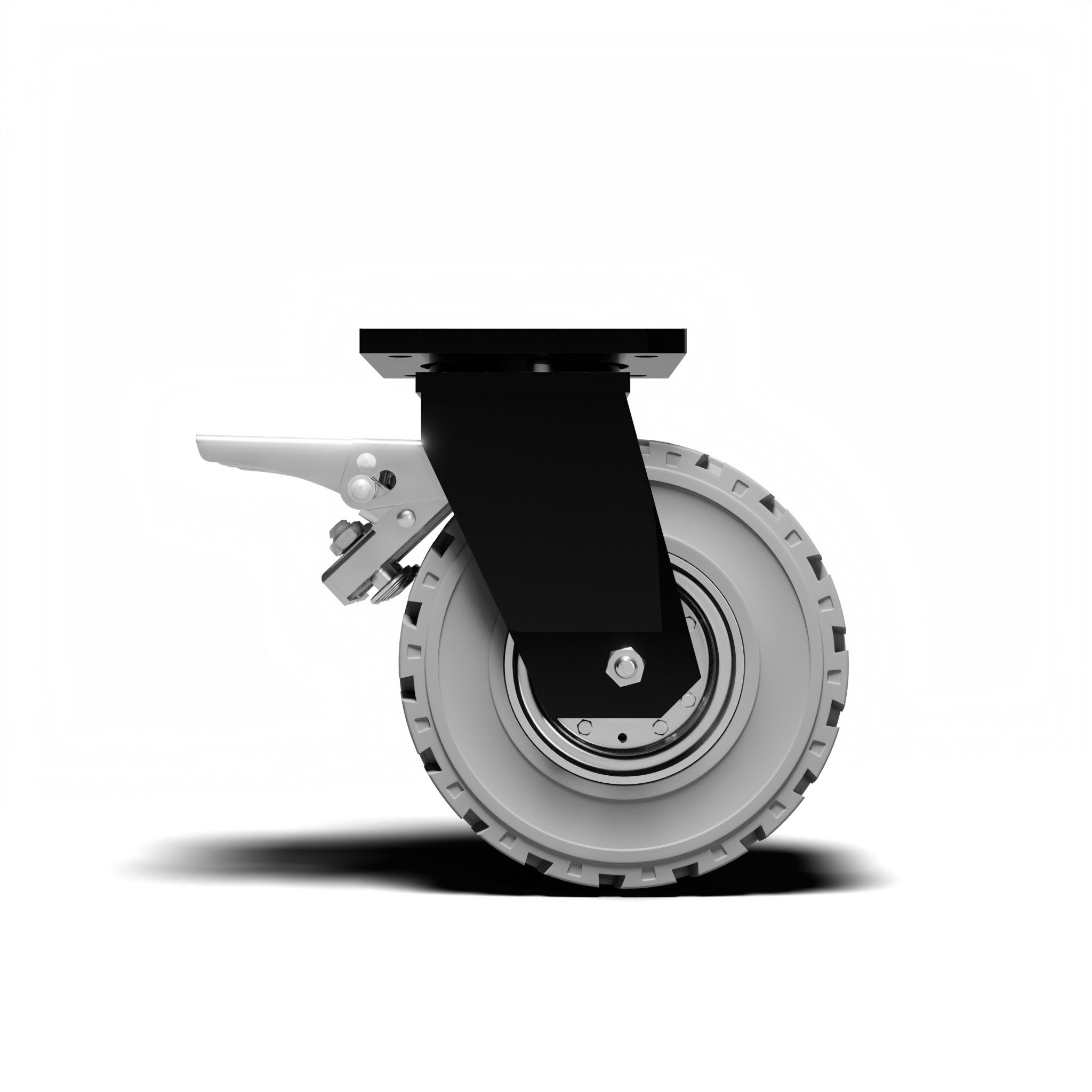

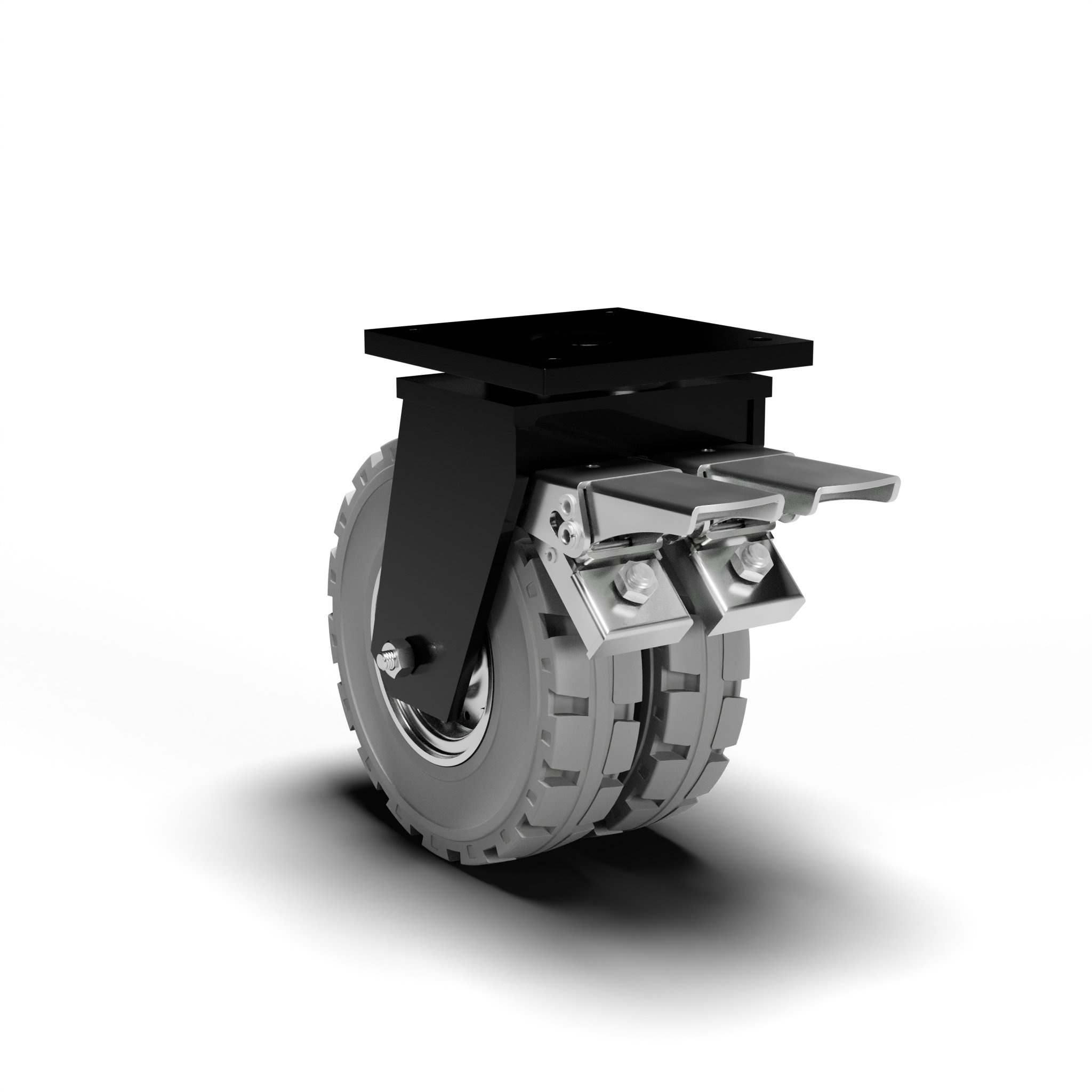

AVO – Wheel with non-marking rubber tyre and steel castor for industry, diameter 250mm ean 29217

607BIS-AM

Material: Non-marking Rubber tyre

Core: Steel

Application field: Industry

Request information

Description:

Extra robust and solid elastic non-marking grey rubber Wheel 65-70 Shore A with zinc-chromium plated pressed steel flanges. Highly shock and cut resistant, high smoothness and vibration absorbing. Hub on shielded 2RS ball bearings or 2RS stainless steel ball bearings.

Twin Wheel Extra Heavy-Duty Castors

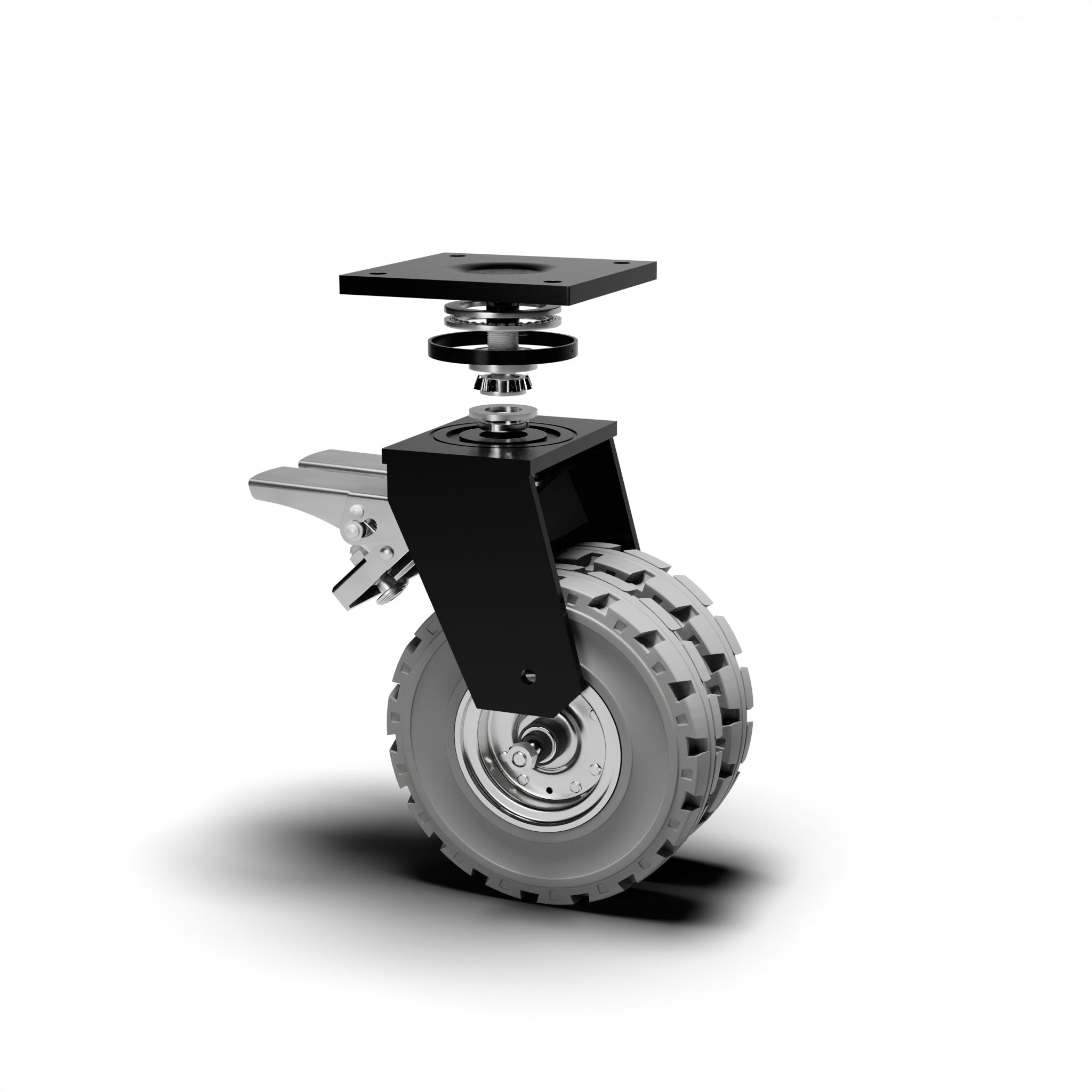

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.

Product line: Rubber tyre

Product line: Rubber tyre

EAN13: 8018793292177

EAN5: 29217

Article code: 216070F25008G

Features

-20 | 80

900

Ball bearing

Shore A

70

Floor types

Asphalt

Concrete

Grid

Off-Road

Stoneware

Download pdf product sheet

download images

Request STP file

Wheel data

Diameter (mm)

250

Band width (mm)

84

Hub width (mm)

75

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

/

Dynamic load capacity (DaN)

900

Colour

Grey

Material

Non-marking Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

70

Bracket data

Plate size (mm)

175X140

Interaxis plate hole (mm)

140X105

Plate bore size (mm)

15

Offset (mm)

75

Height from ground (mm)

305

Castor hole (mm)

/

Static load capacity (DaN)

1100

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

/

Pivot type

/

Finishing

Black painted

Related products

606A-AM

AVO – Wheel with non-marking rubber tyre and steel castor for industry, diameter 306mm ean 29207

In Non-marking Rubber tyre

For Industry

-20 | 80

550

306

93

75

200X200

20

375,00

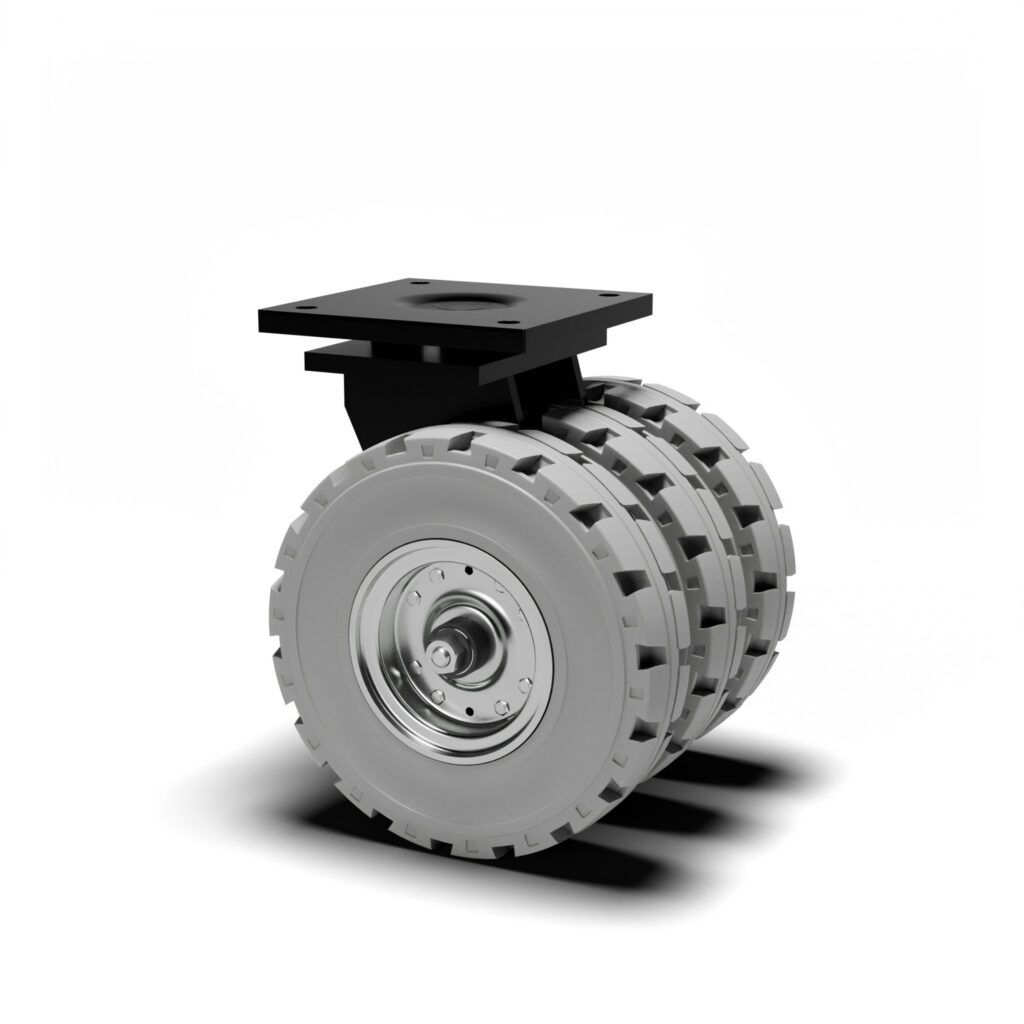

605-AM
