Serie 604-AM

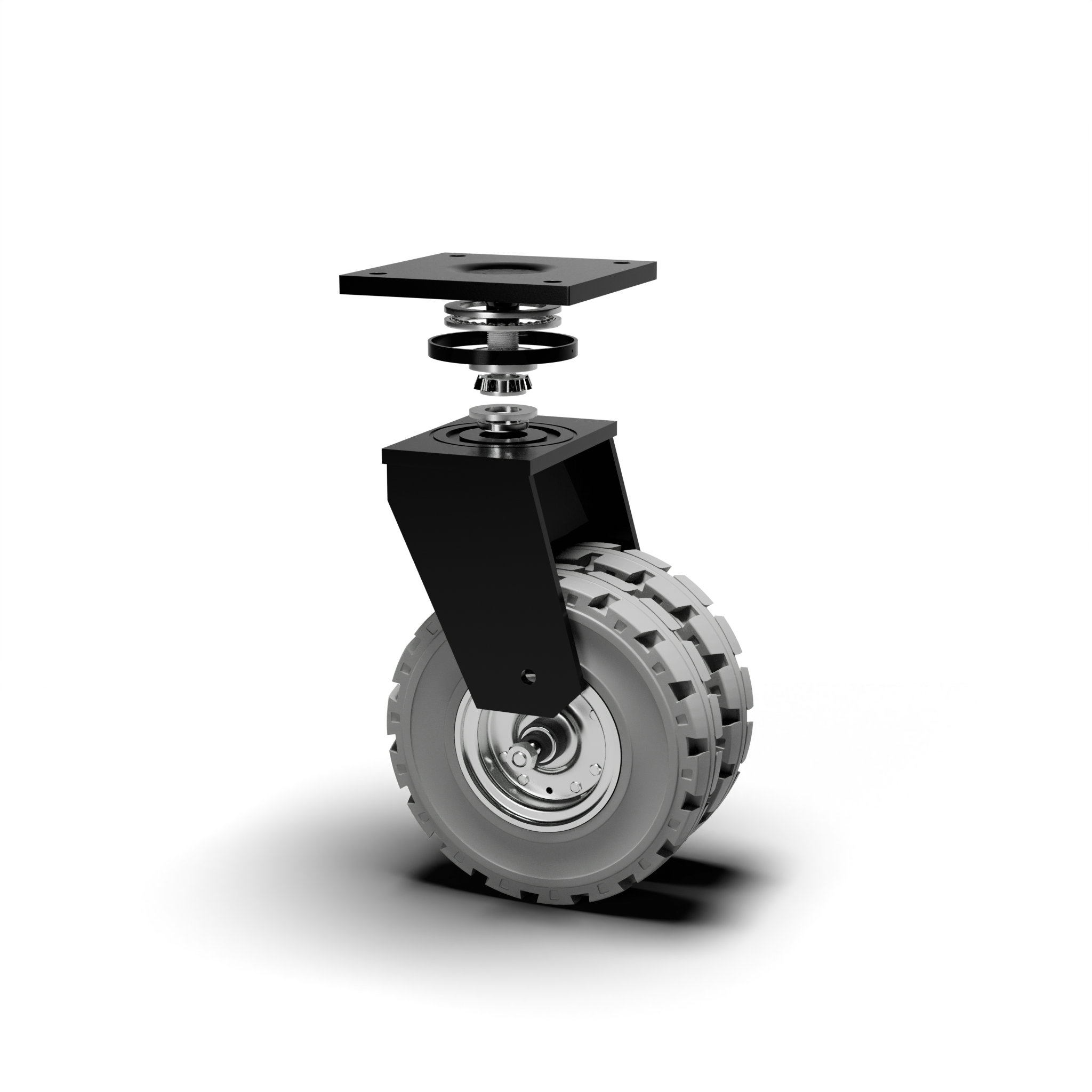

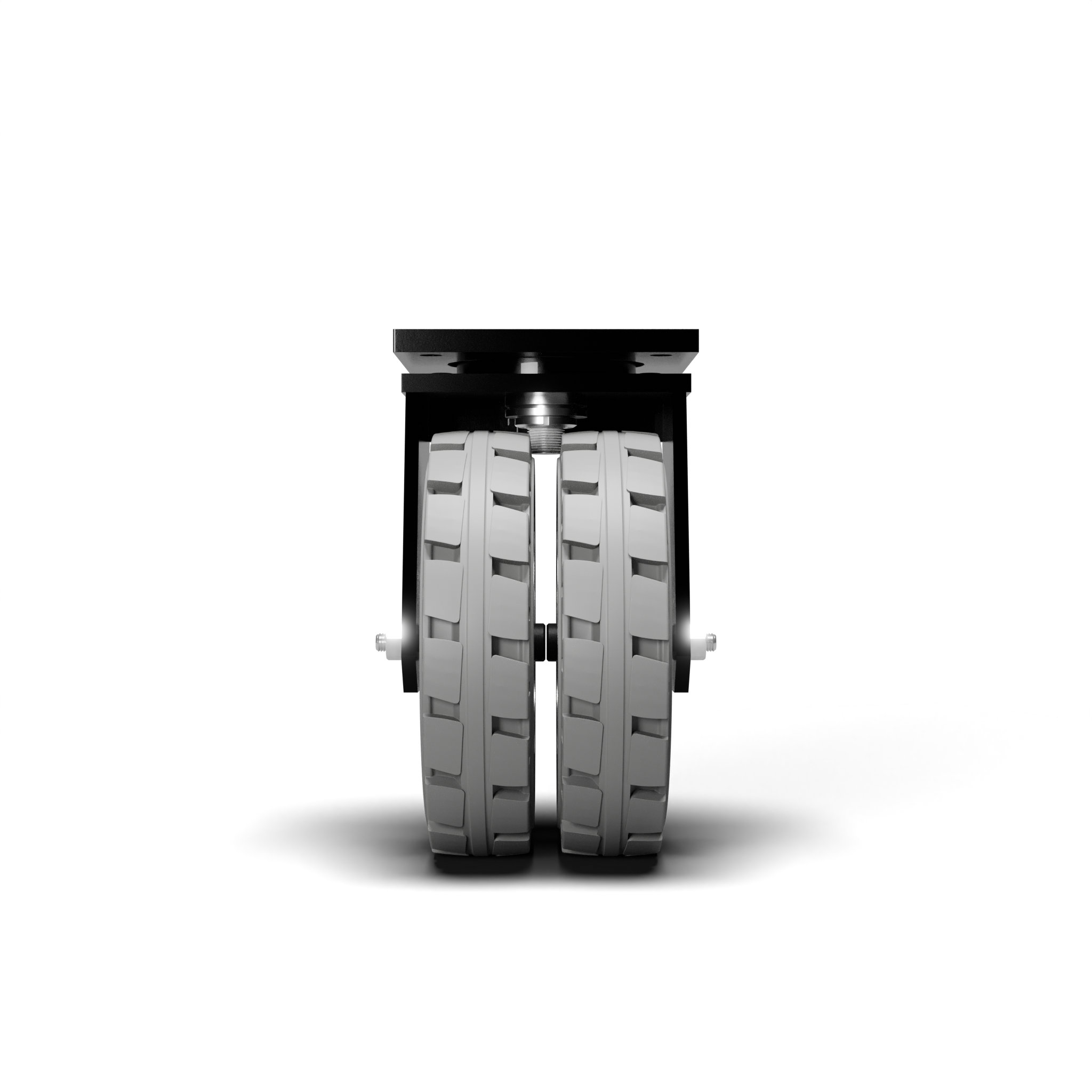

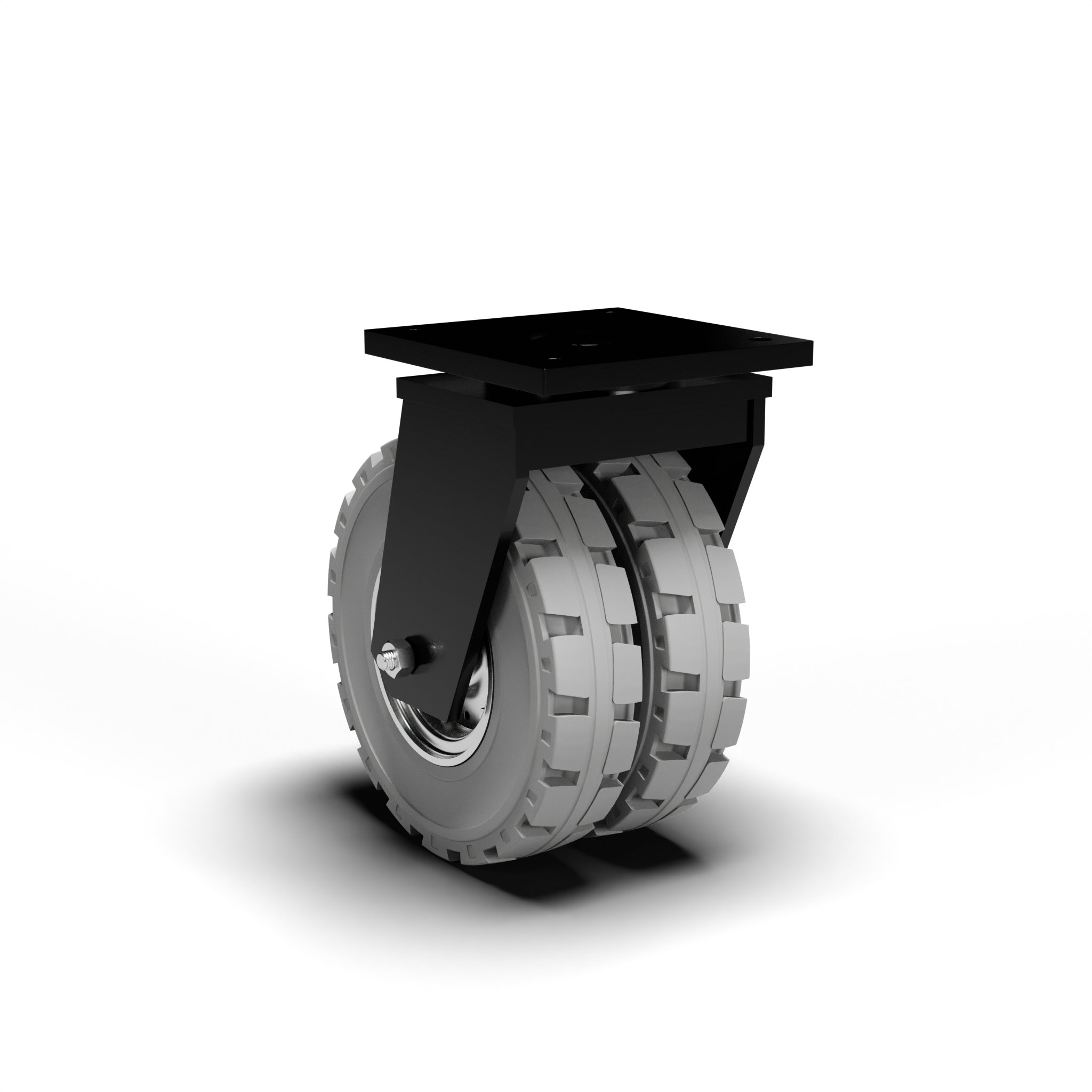

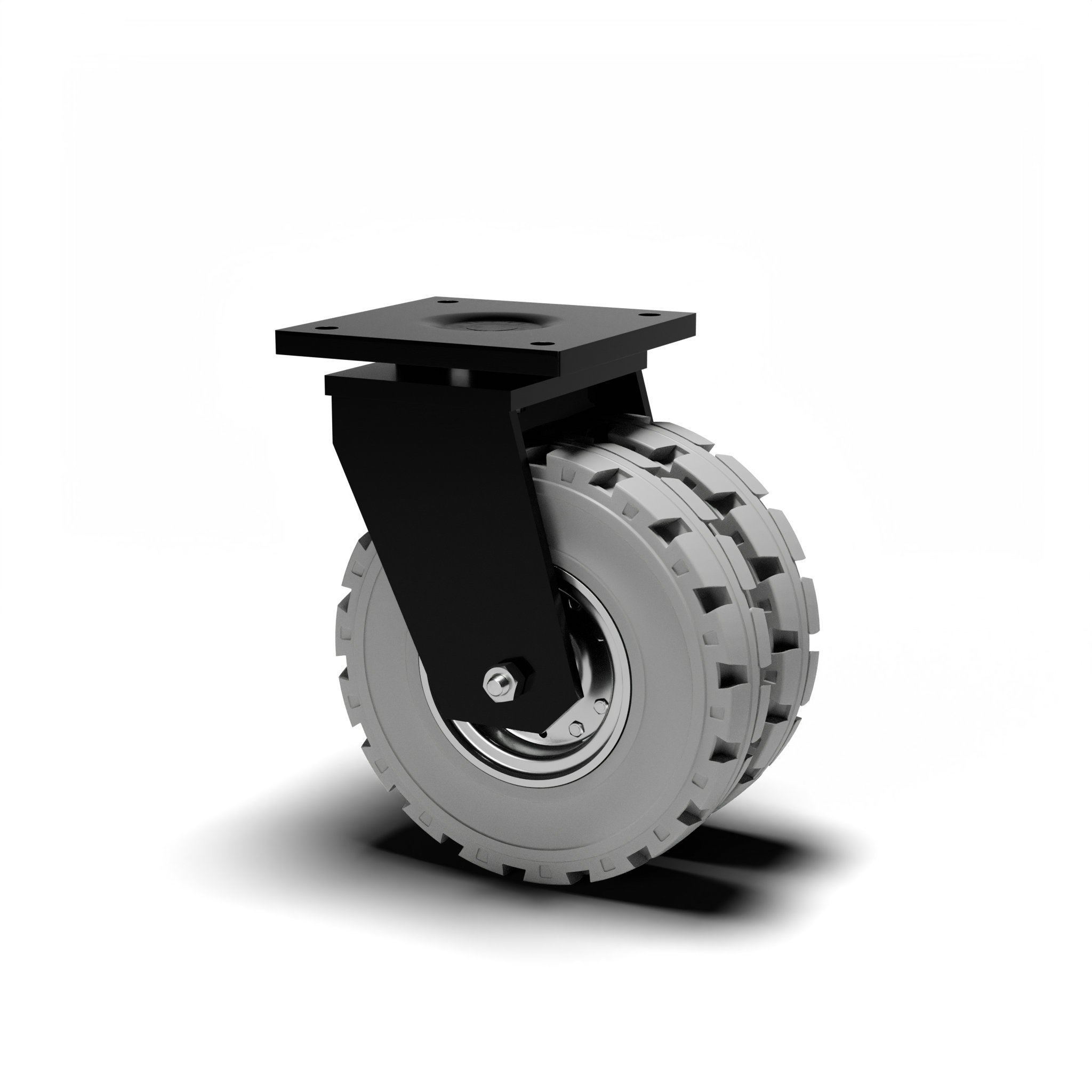

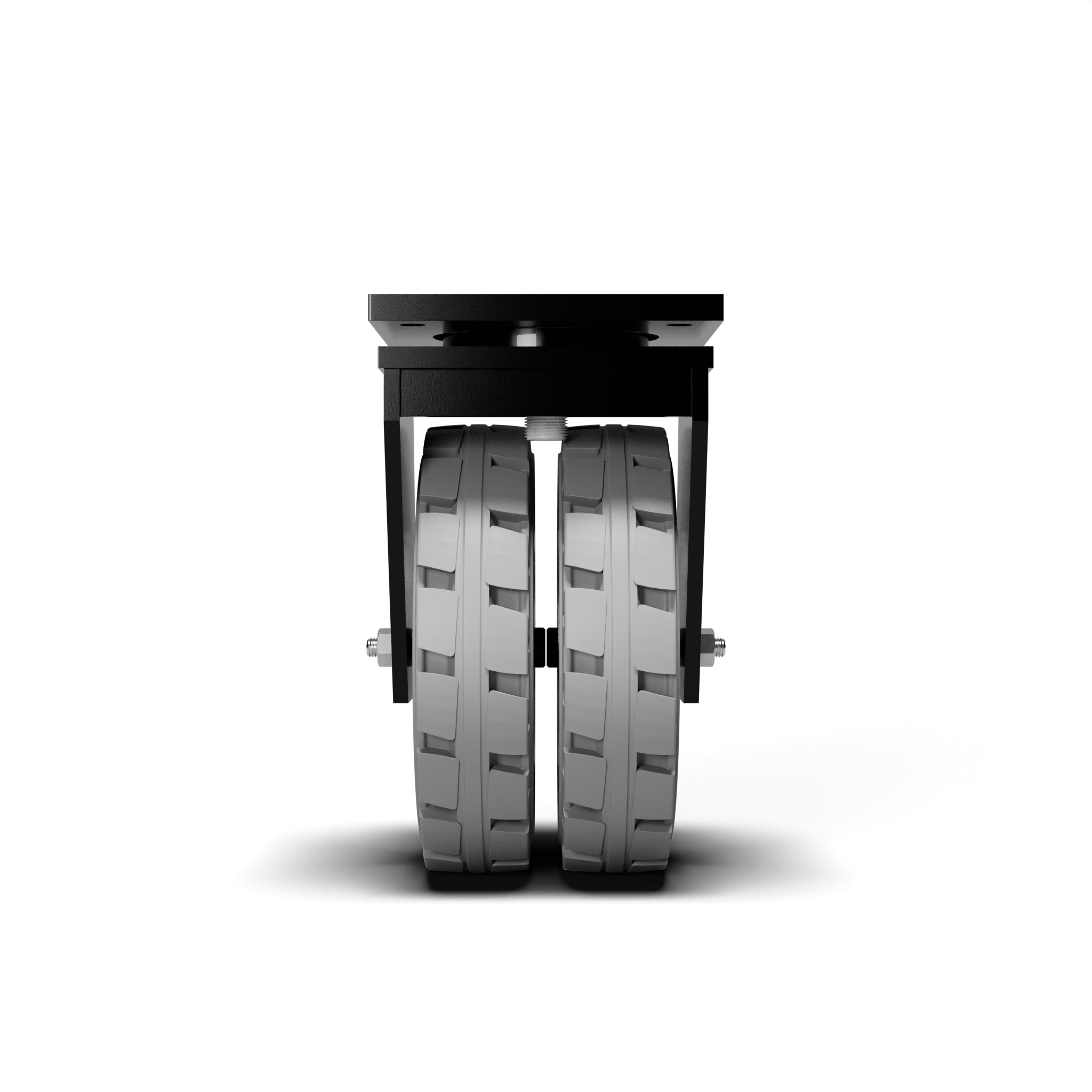

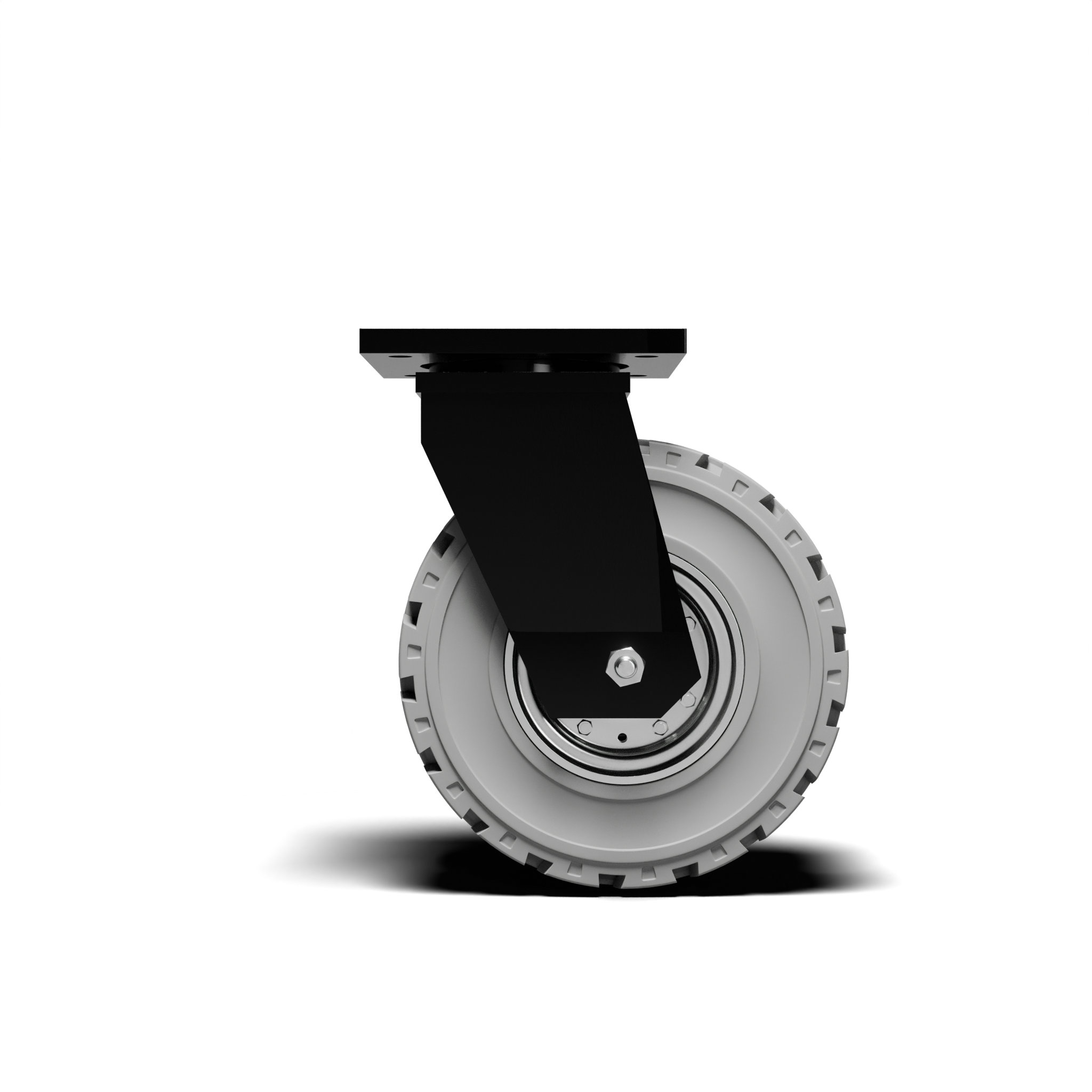

AVO – Wheel with non-marking rubber tyre and steel castor for industry, diameter 306mm ean 29213

607-AM

Material: Non-marking Rubber tyre

Core: Steel

Application field: Industry

Request information

Description:

Extra robust and solid elastic non-marking grey rubber Wheel 65-70 Shore A with zinc-chromium plated pressed steel flanges. Highly shock and cut resistant, high smoothness and vibration absorbing. Hub on shielded 2RS ball bearings or 2RS stainless steel ball bearings.

Twin Wheel Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint.

Product line: Rubber tyre

Product line: Rubber tyre

EAN13: 8018793292139

EAN5: 29213

Article code: 216070030609G

Features

-20 | 80

1100

Ball bearing

Shore A

70

Floor types

Asphalt

Concrete

Grid

Off-Road

Stoneware

Download pdf product sheet

download images

Request the drawing

Request STP file

Wheel data

Diameter (mm)

306

Band width (mm)

93

Hub width (mm)

75

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

/

Dynamic load capacity (DaN)

1100

Colour

Grey

Material

Non-marking Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

70

Bracket data

Plate size (mm)

230X230

Interaxis plate hole (mm)

190X190

Plate bore size (mm)

19

Offset (mm)

90

Height from ground (mm)

376

Castor hole (mm)

/

Static load capacity (DaN)

1300

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Black painted
