Serie 604-AM

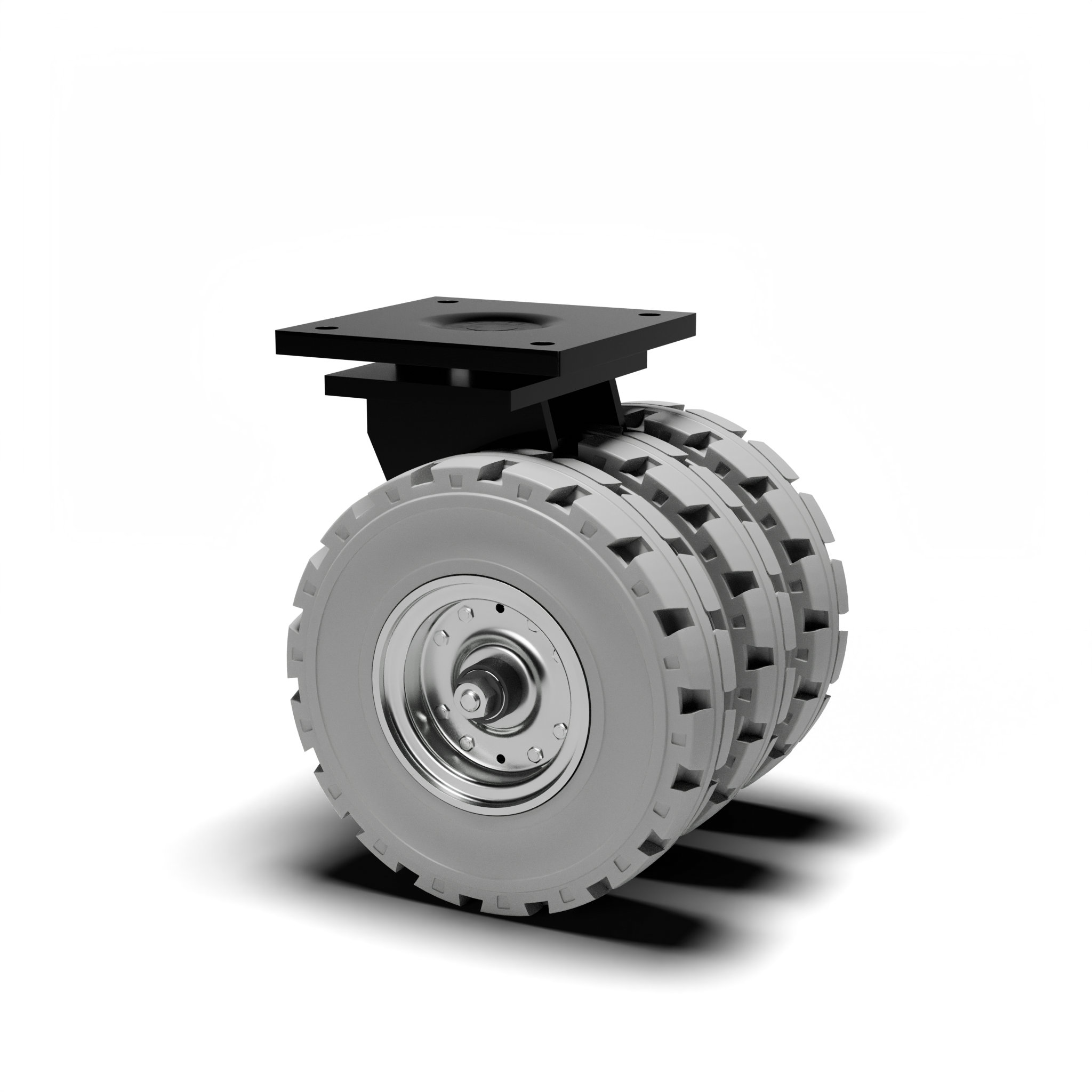

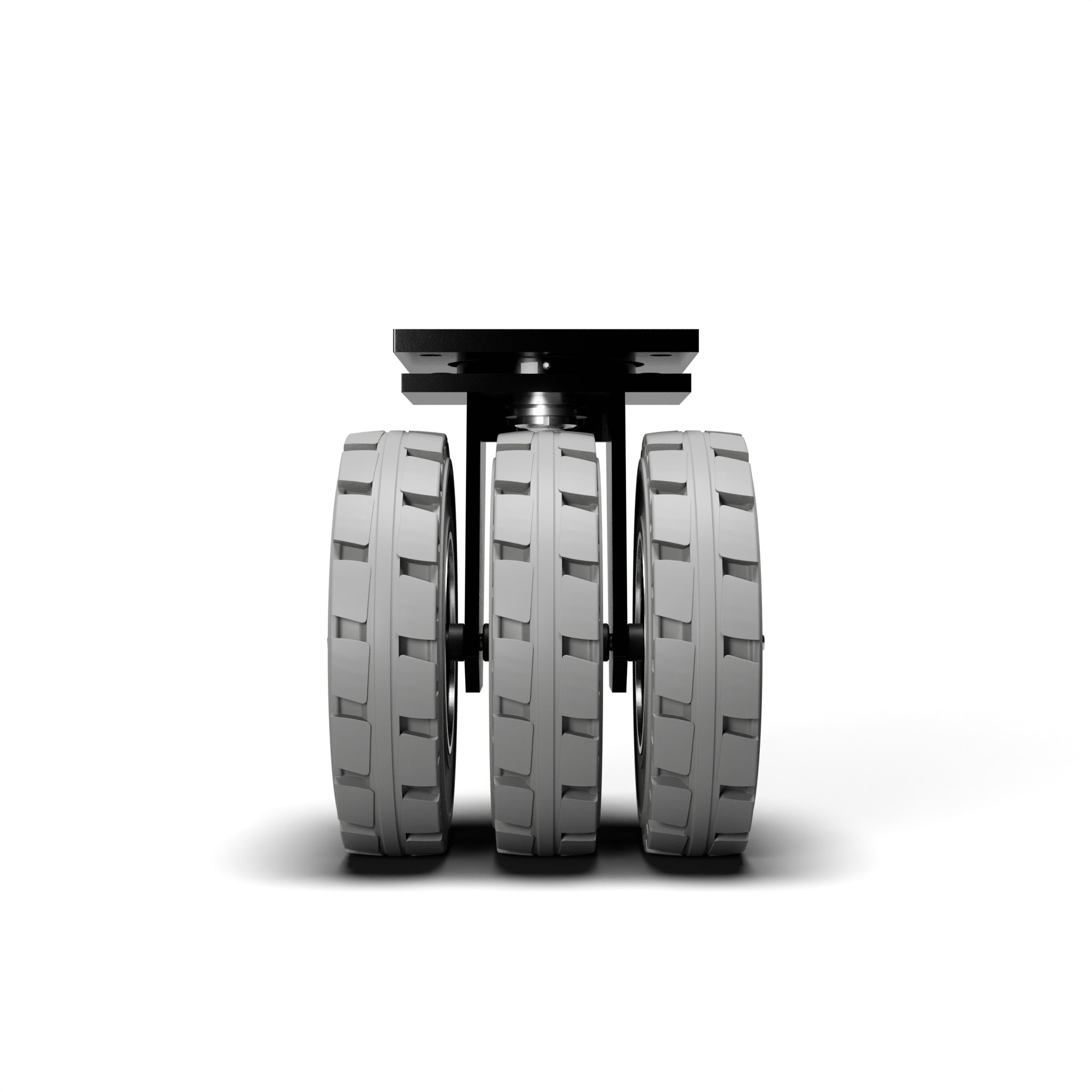

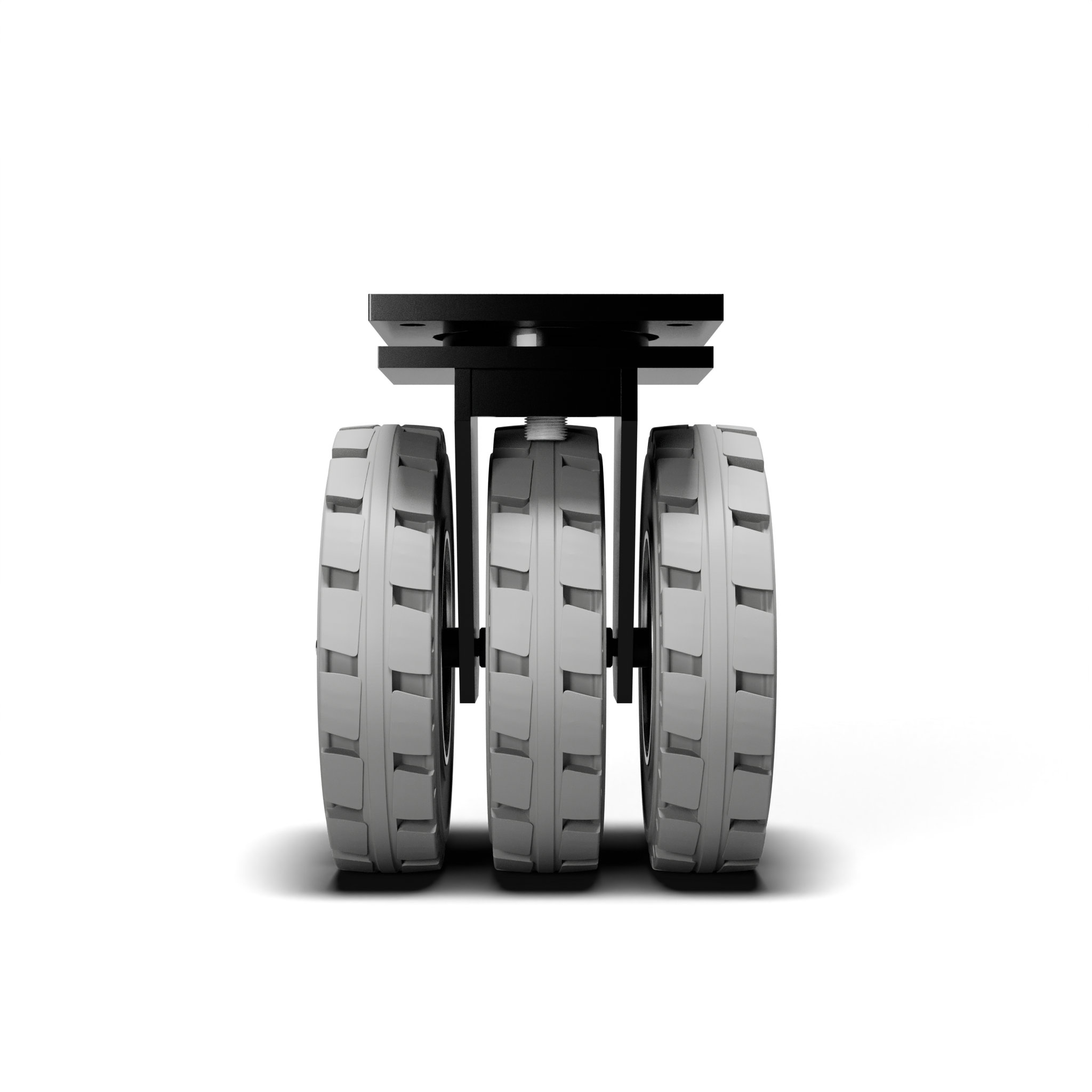

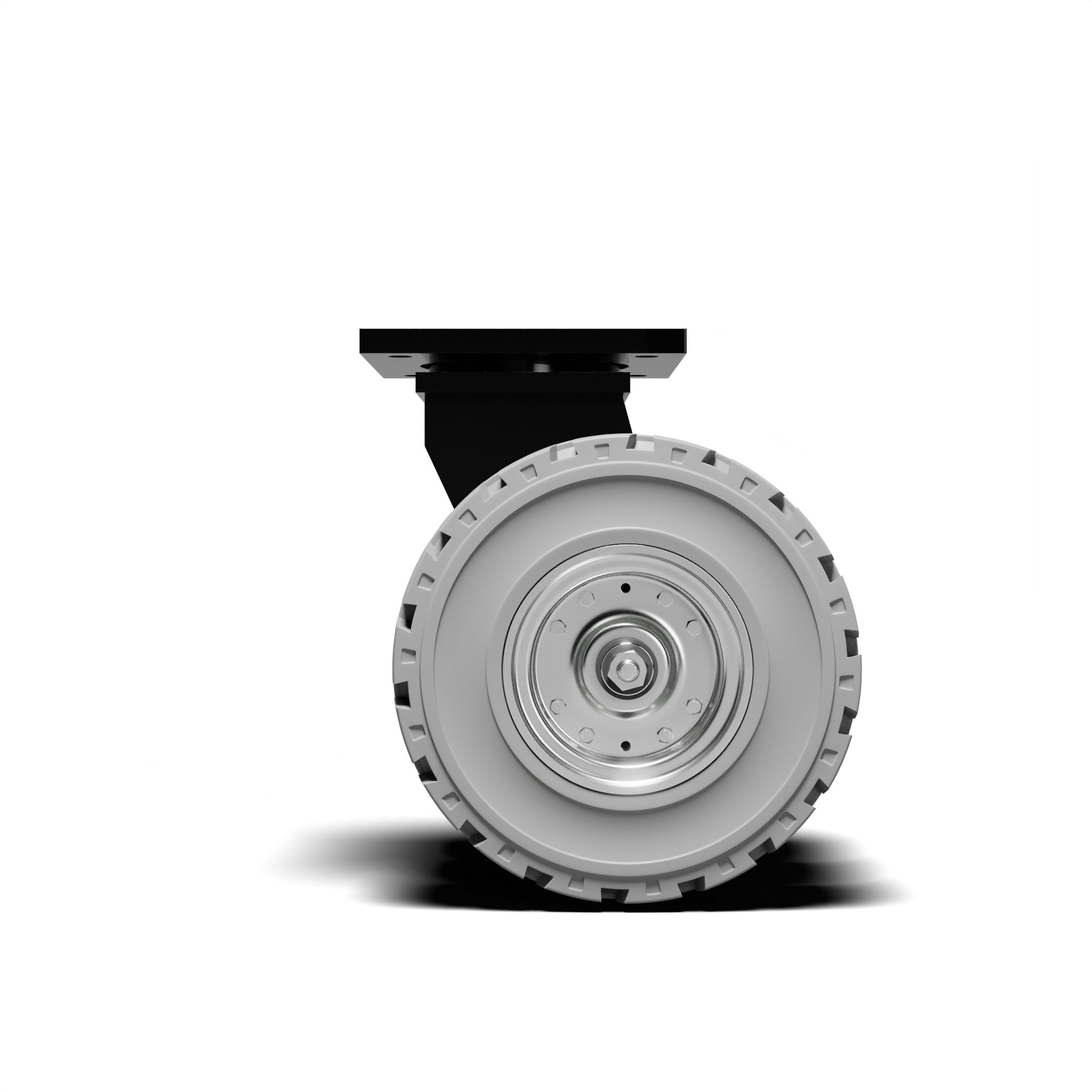

AVO – Wheel with non-marking rubber tyre and steel castor for industry, diameter 406mm ean 29194

605-AM

Material: Non-marking Rubber tyre

Core: Steel

Application field: Industry

Request information

Description:

Extra robust and solid elastic non-marking grey rubber Wheel 65-70 Shore A with zinc-chromium plated pressed steel flanges. Highly shock and cut resistant, high smoothness and vibration absorbing. Hub on shielded 2RS ball bearings or 2RS stainless steel ball bearings.

Twin Wheel Extra Heavy-Duty Castors

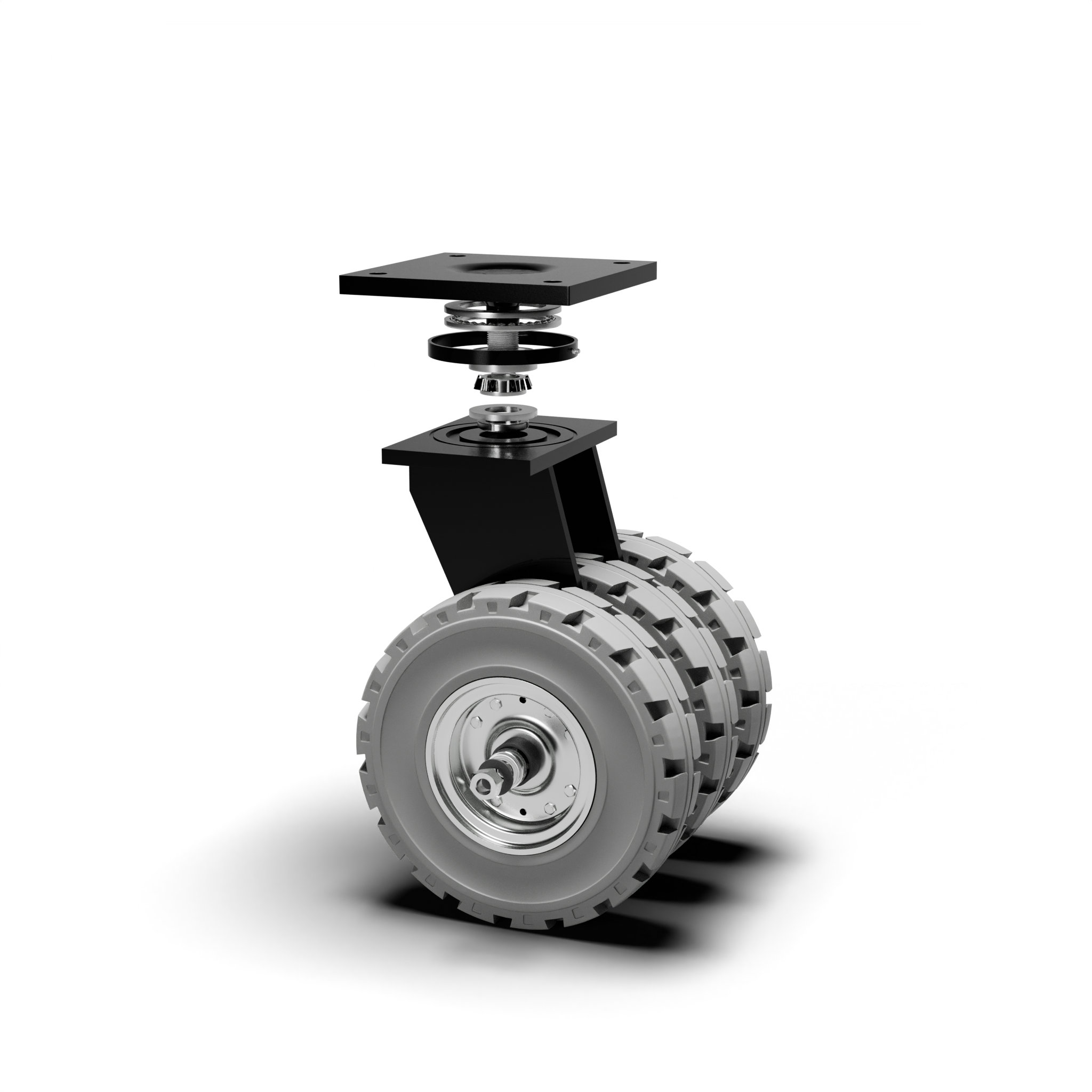

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint.

Product line: Rubber tyre

Product line: Rubber tyre

EAN13: 8018793291941

EAN5: 29194

Article code: 216050040610G

Features

-20 | 80

2850

Ball bearing

Shore A

70

Floor types

Asphalt

Concrete

Grid

Off-Road

Stoneware

Download pdf product sheet

download images

Request the drawing

Request STP file

Wheel data

Diameter (mm)

406

Band width (mm)

104

Hub width (mm)

100

Hub version

Ball bearing

Wheel hole (mm)

25

Bearing seat (mm)

/

Dynamic load capacity (DaN)

2850

Colour

Grey

Material

Non-marking Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

70

Bracket data

Plate size (mm)

315X315

Interaxis plate hole (mm)

250X250

Plate bore size (mm)

21

Offset (mm)

100

Height from ground (mm)

535

Castor hole (mm)

/

Static load capacity (DaN)

3550

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Black painted
