Serie 114A

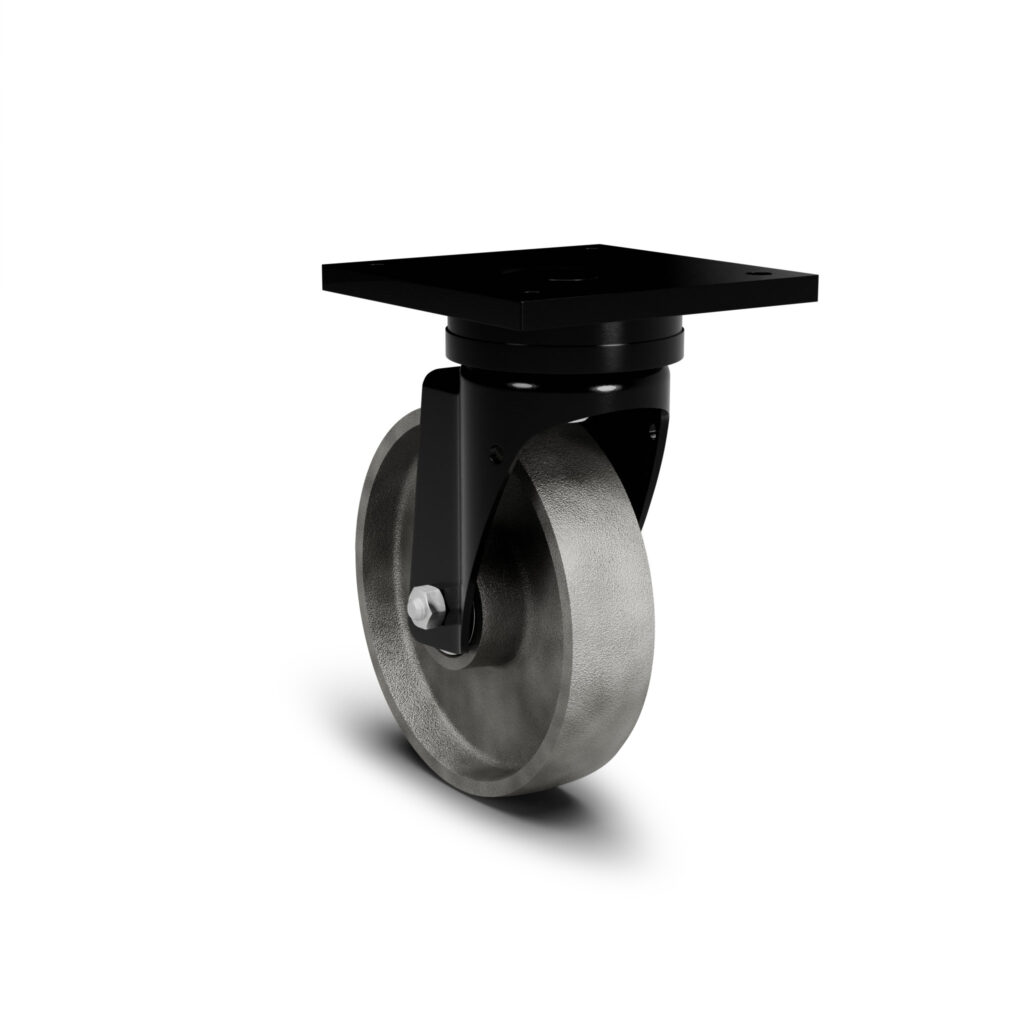

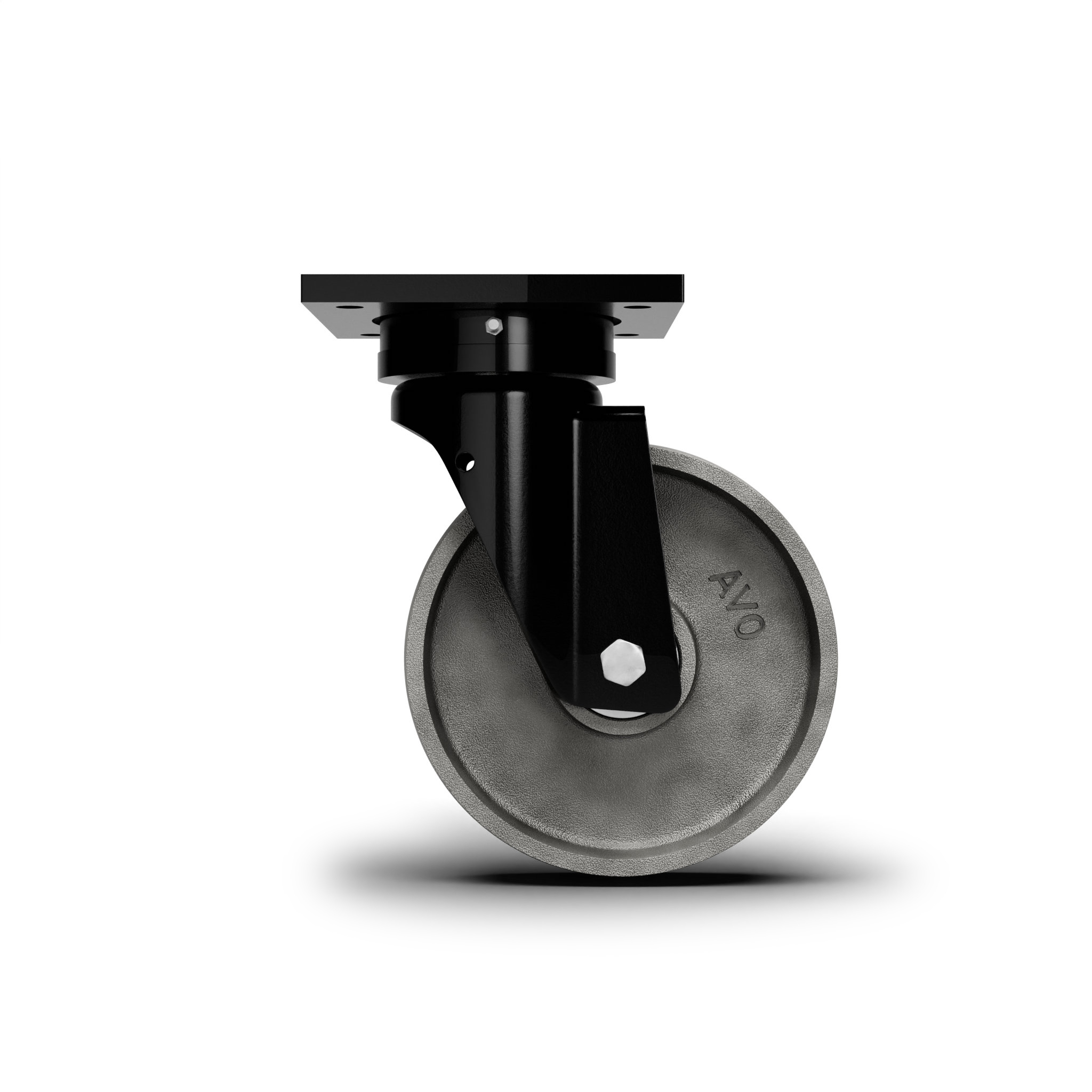

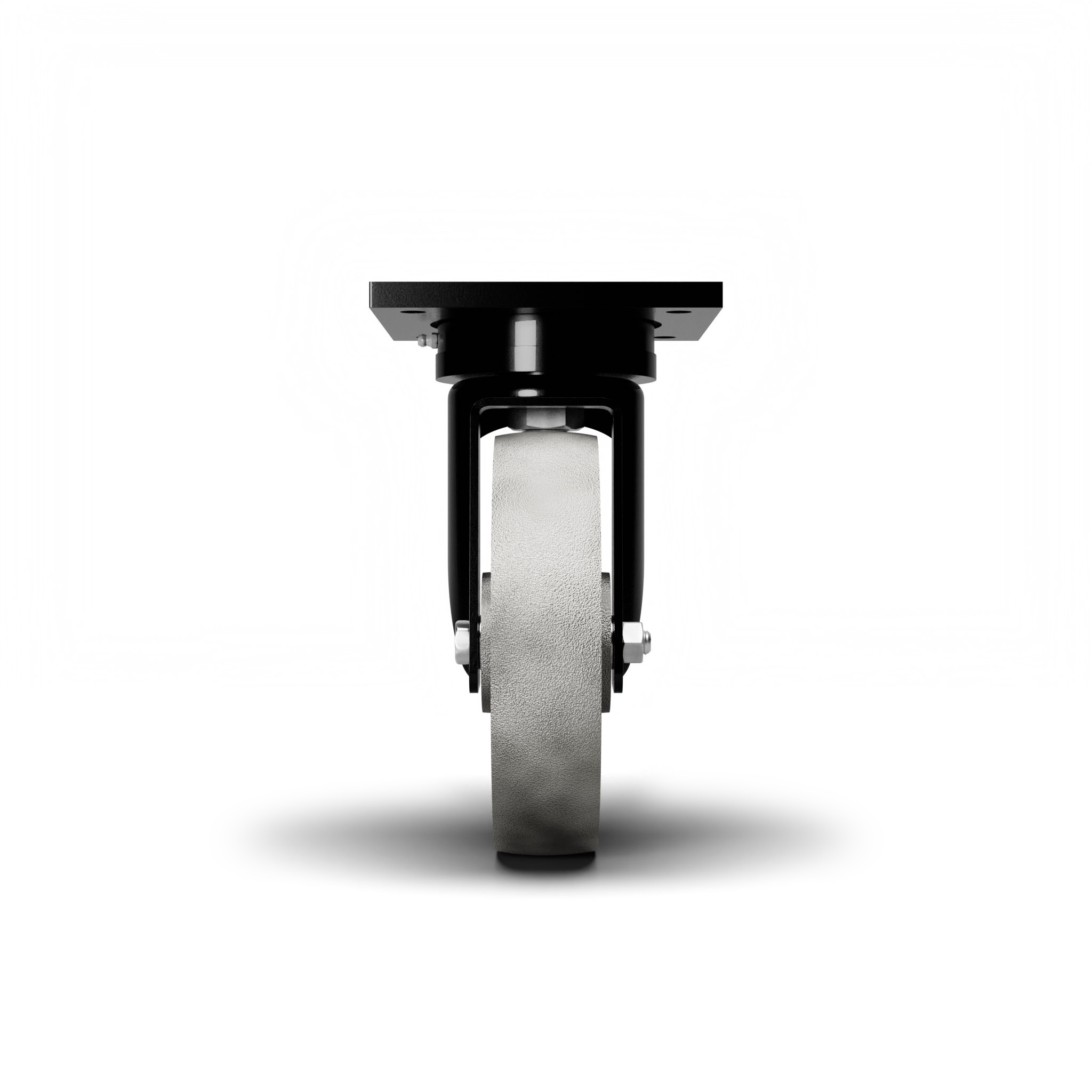

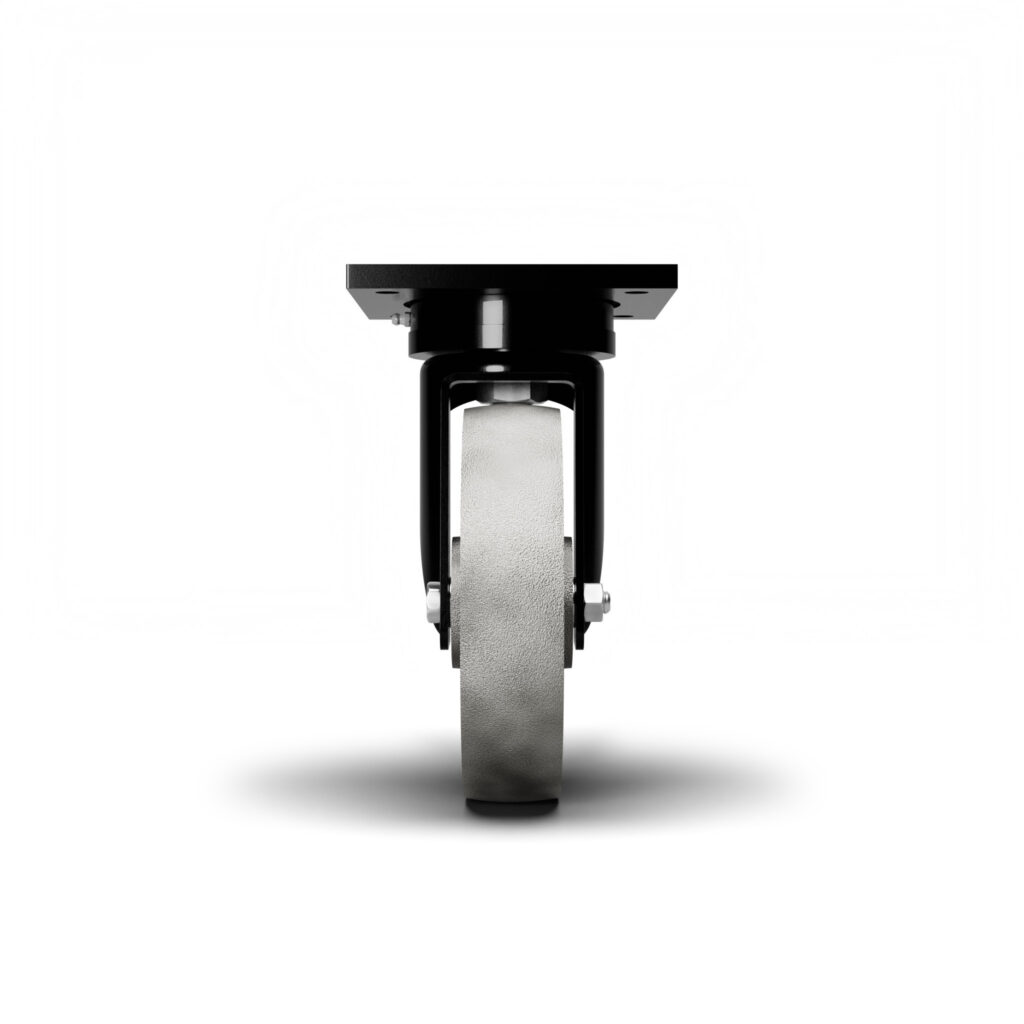

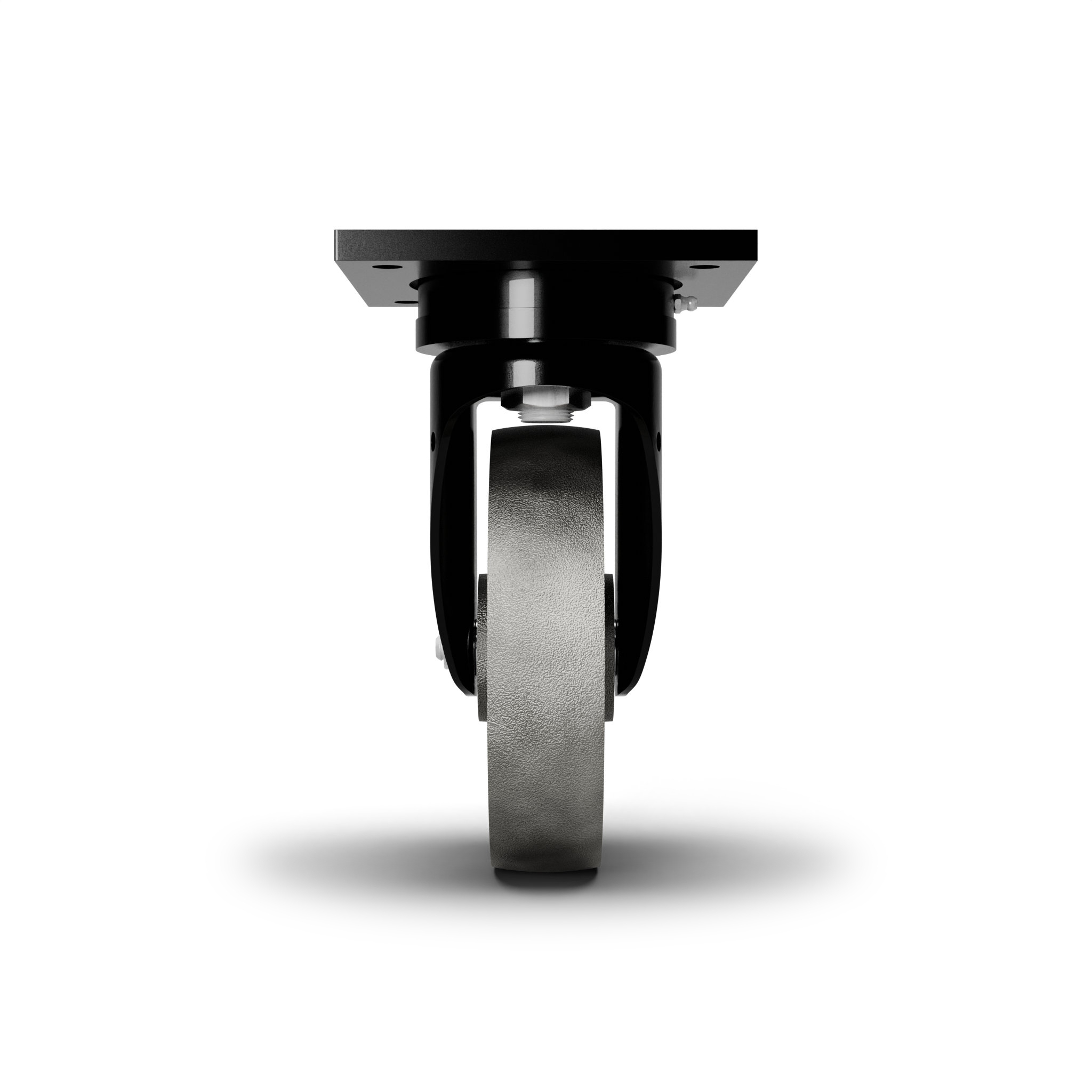

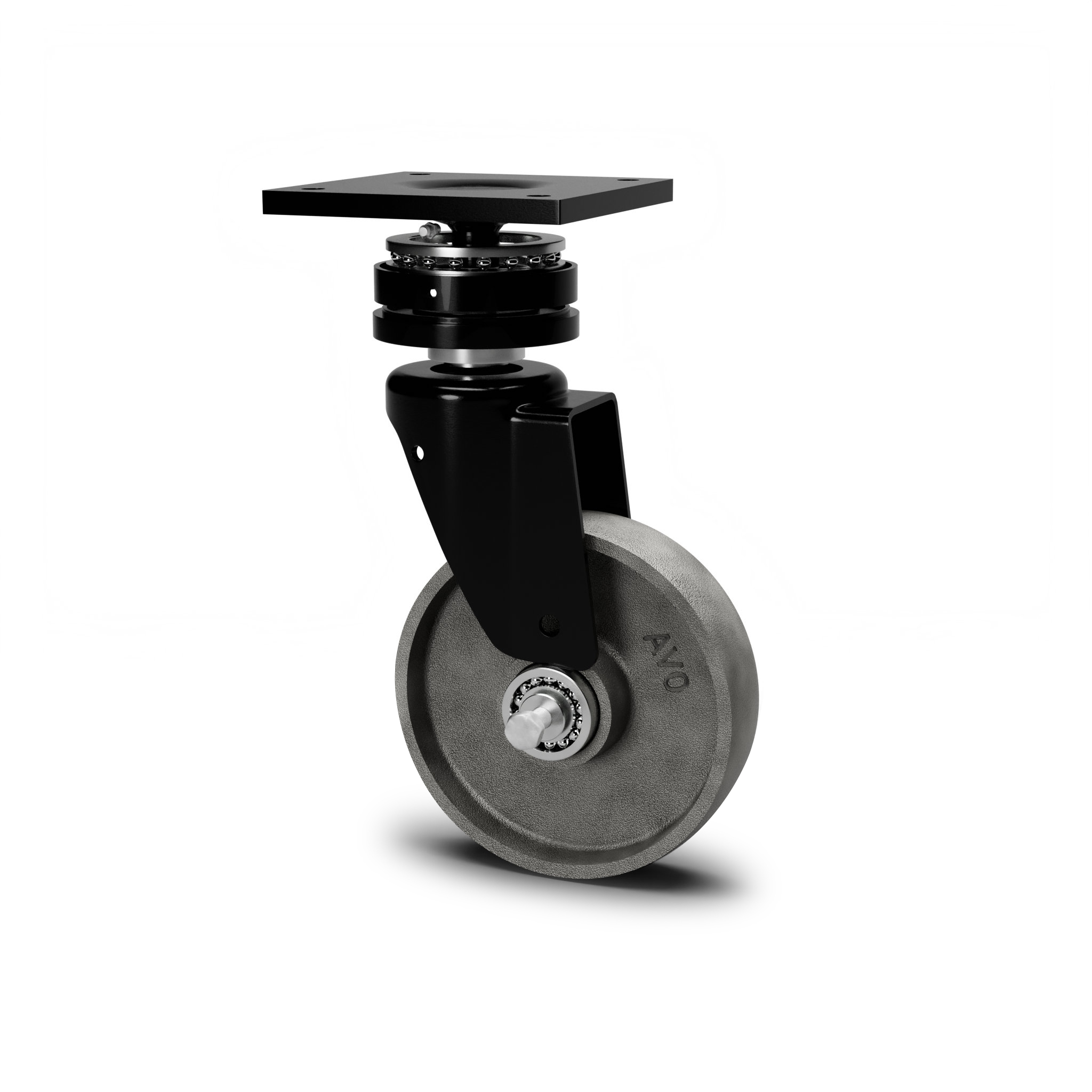

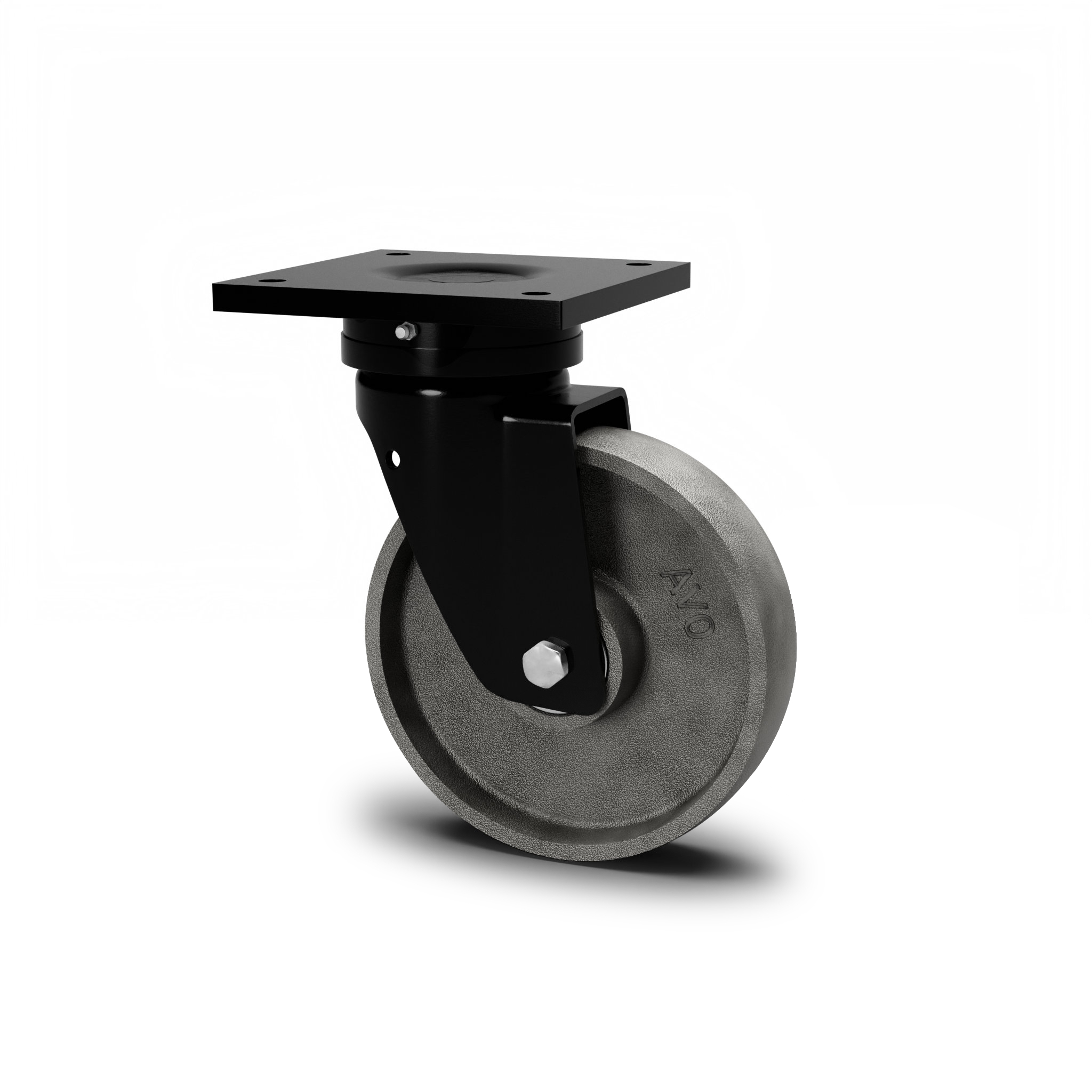

AVO – Wheel with mechanical cast iron and steel castor for industry, diameter 100mm ean 14628

109

Material: Mechanical Cast iron

Core: Cast Iron

Application field: Industry

Request information

Description:

Cast iron wheel, resistant to high temperatures with low rolling resistance. Hub on shielded ball bearings. Special ball bearings for high or low temperatures are available on request.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint.

Product line: Cast Iron, High temperature

Linea di prodotto: Cast Iron, High temperature

EAN13: 8018793146289

EAN5: 14628

Article code: 04109001000GP

Features

-20 | 120

300

Ball bearing

HB

200

Floor types

Asphalt

Concrete

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

100

Band width (mm)

30

Hub width (mm)

30

Hub version

Ball bearing

Wheel hole (mm)

15

Bearing seat (mm)

35X11

Dynamic load capacity (DaN)

300

Colour

Grey

Material

Mechanical Cast iron

Box pieces

/

Hardness scale

HB

Hardness

200

Bracket data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

11

Offset (mm)

36

Height from ground (mm)

150

Castor hole (mm)

/

Static load capacity (DaN)

380

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Black painted
