Serie 114

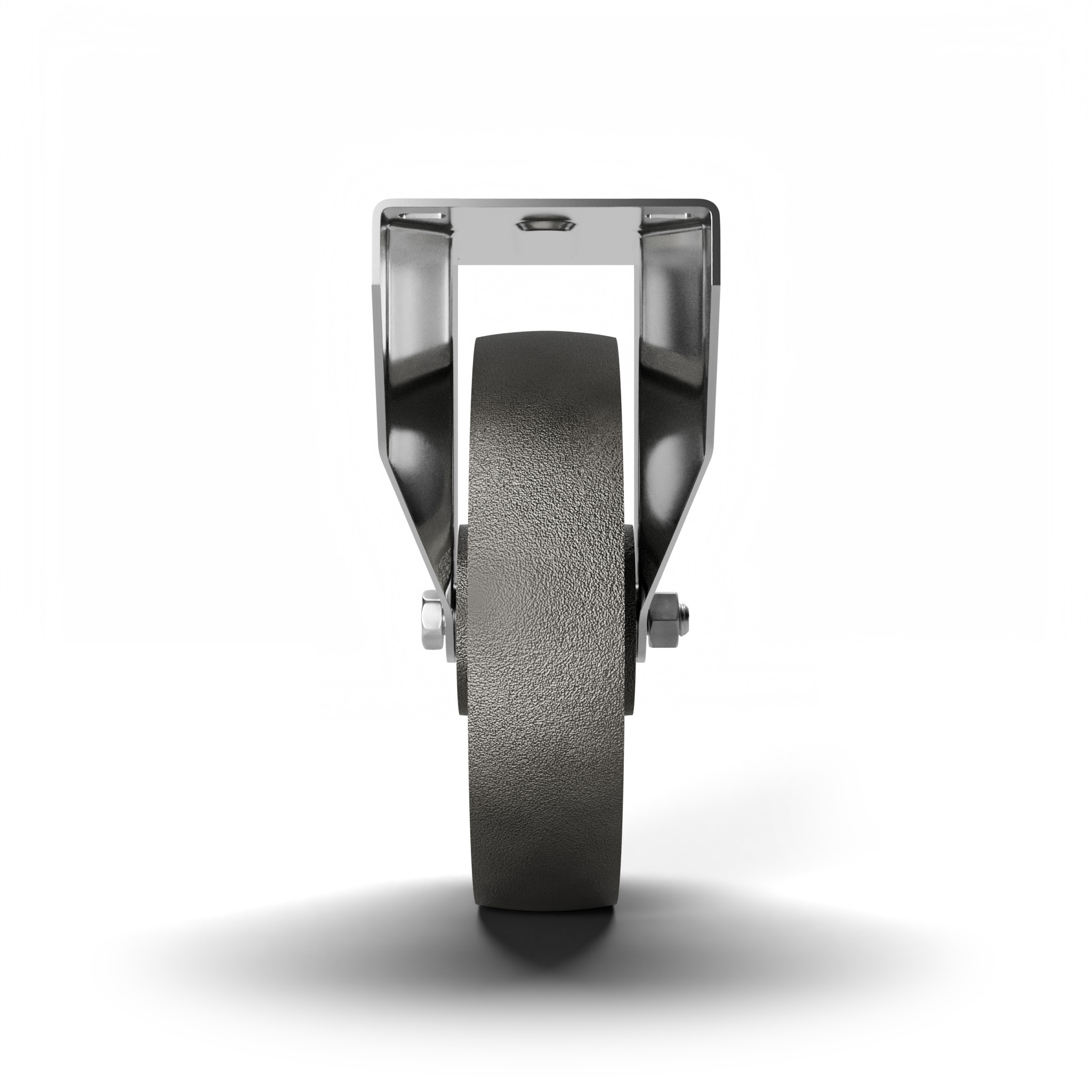

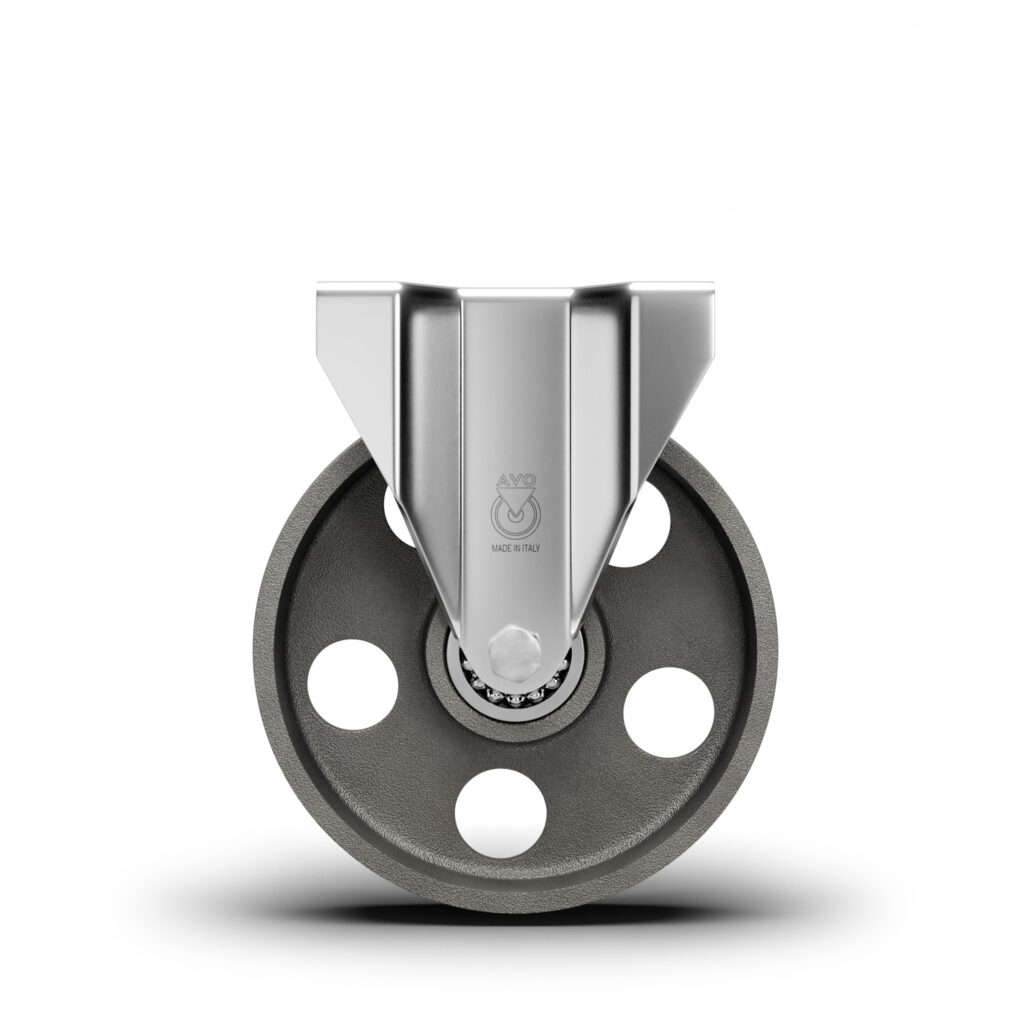

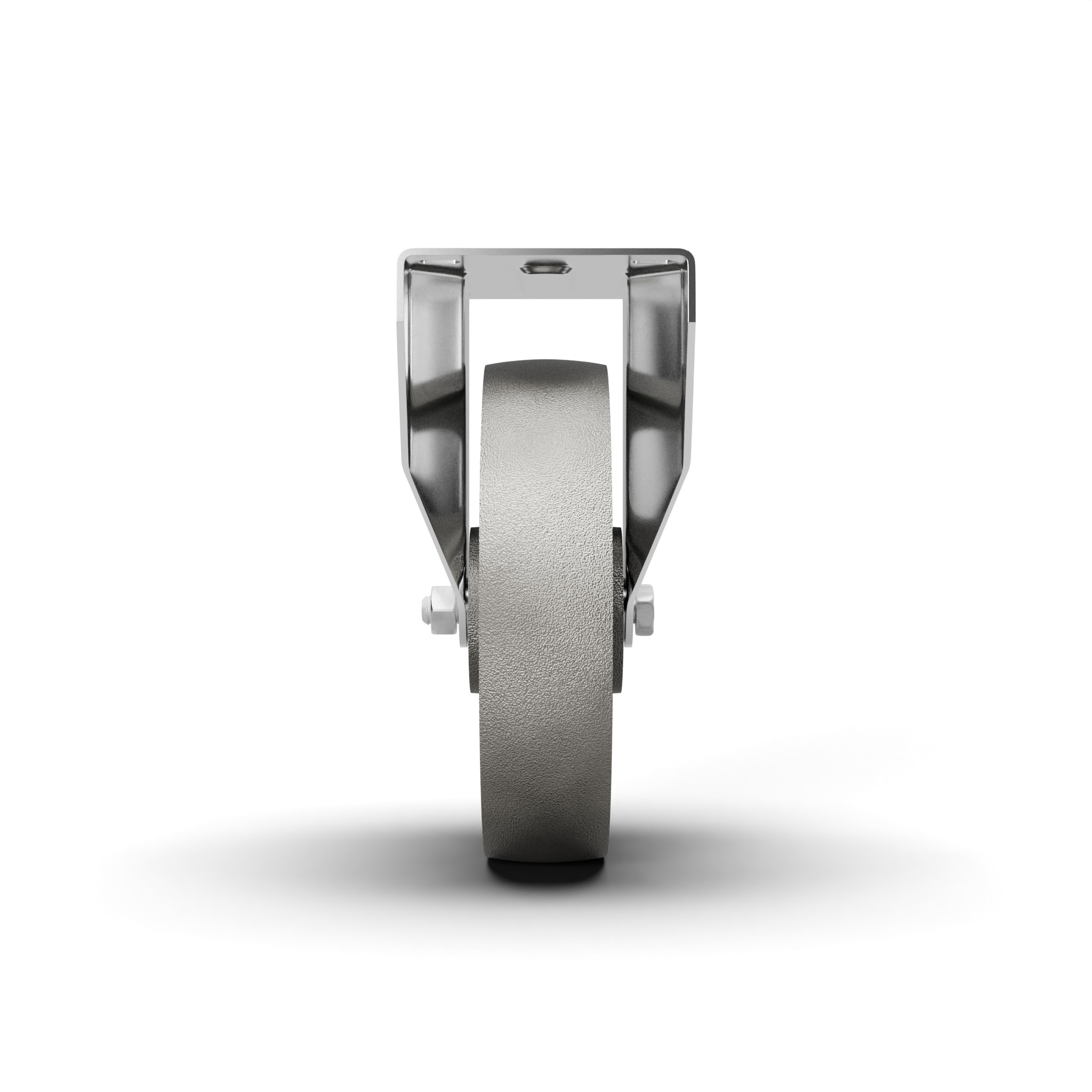

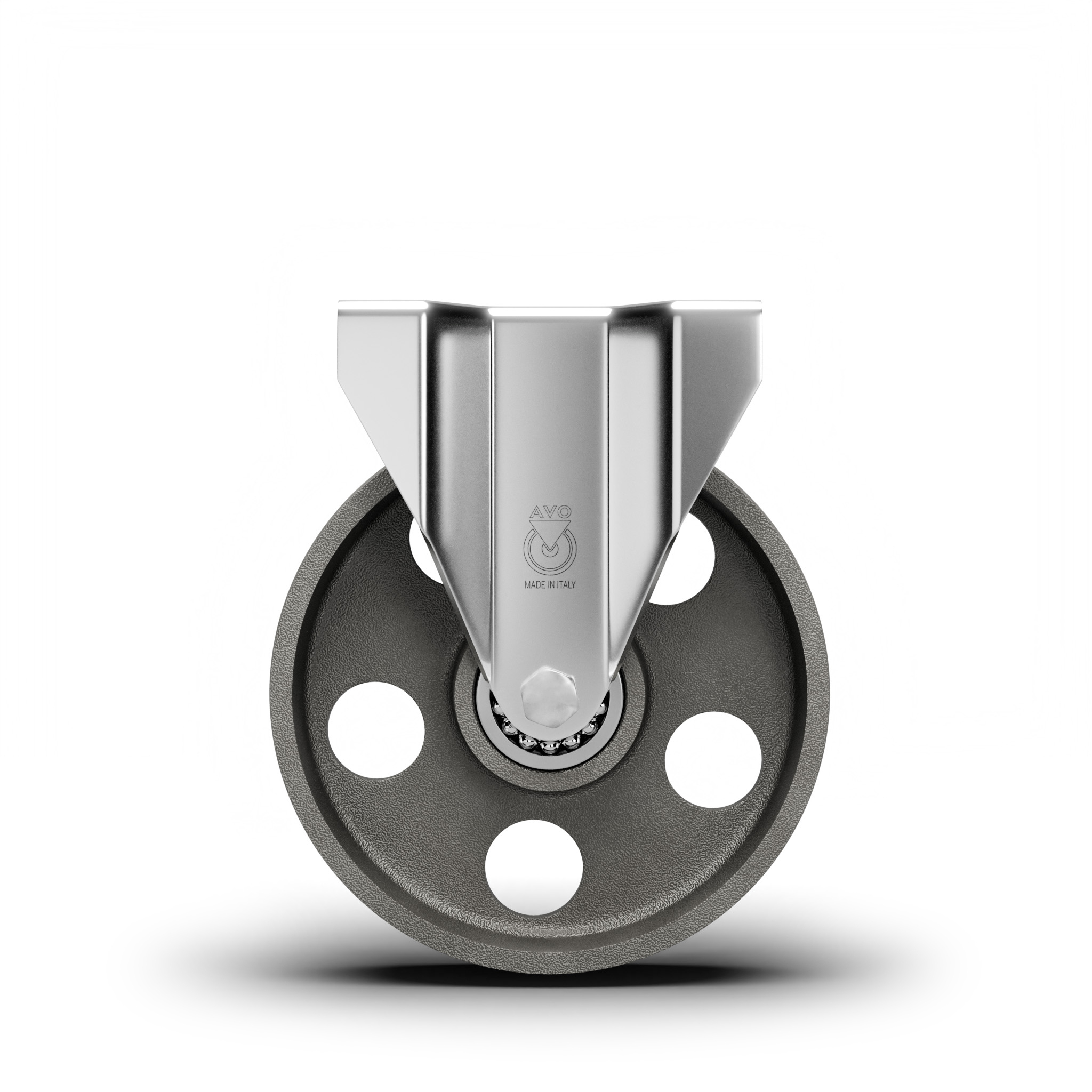

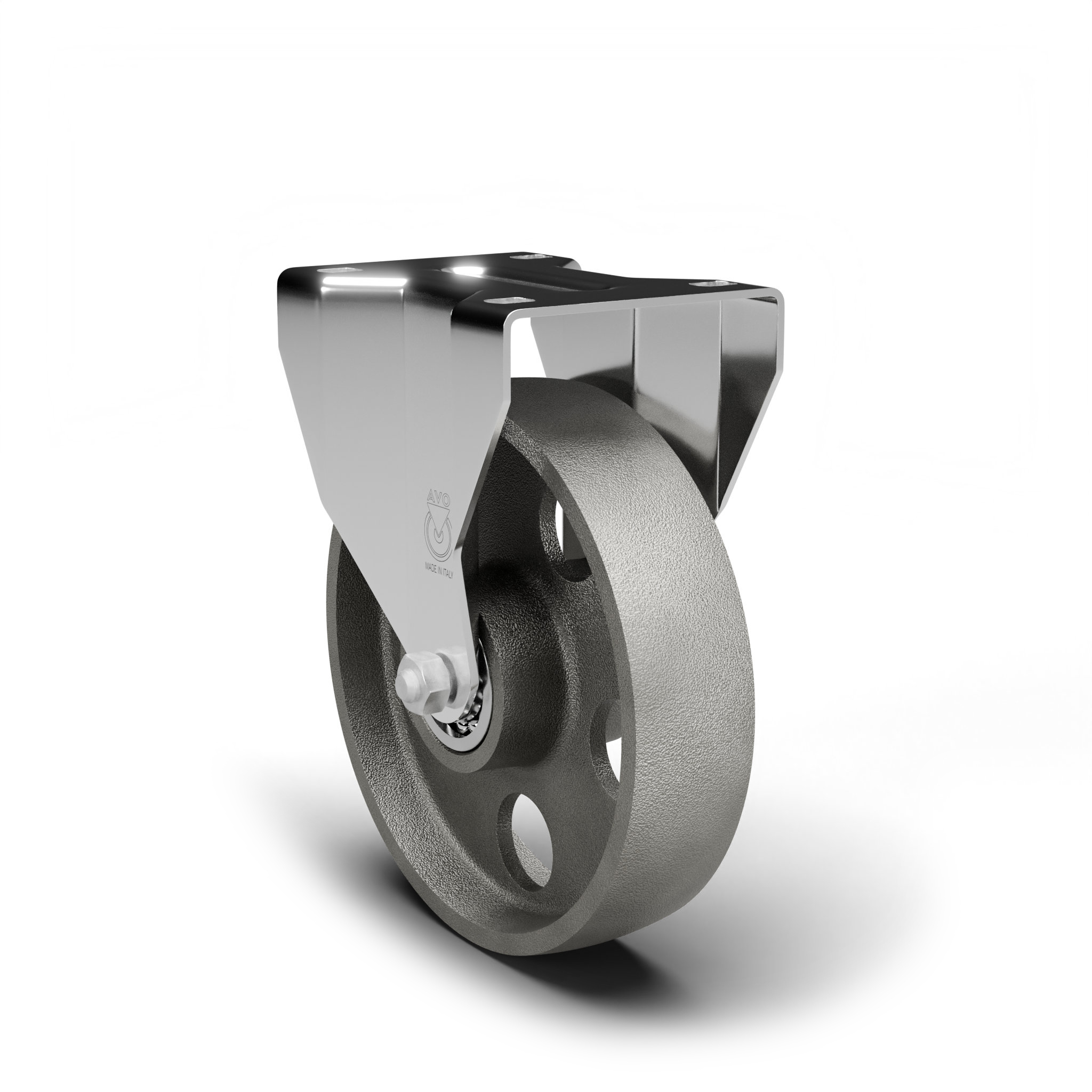

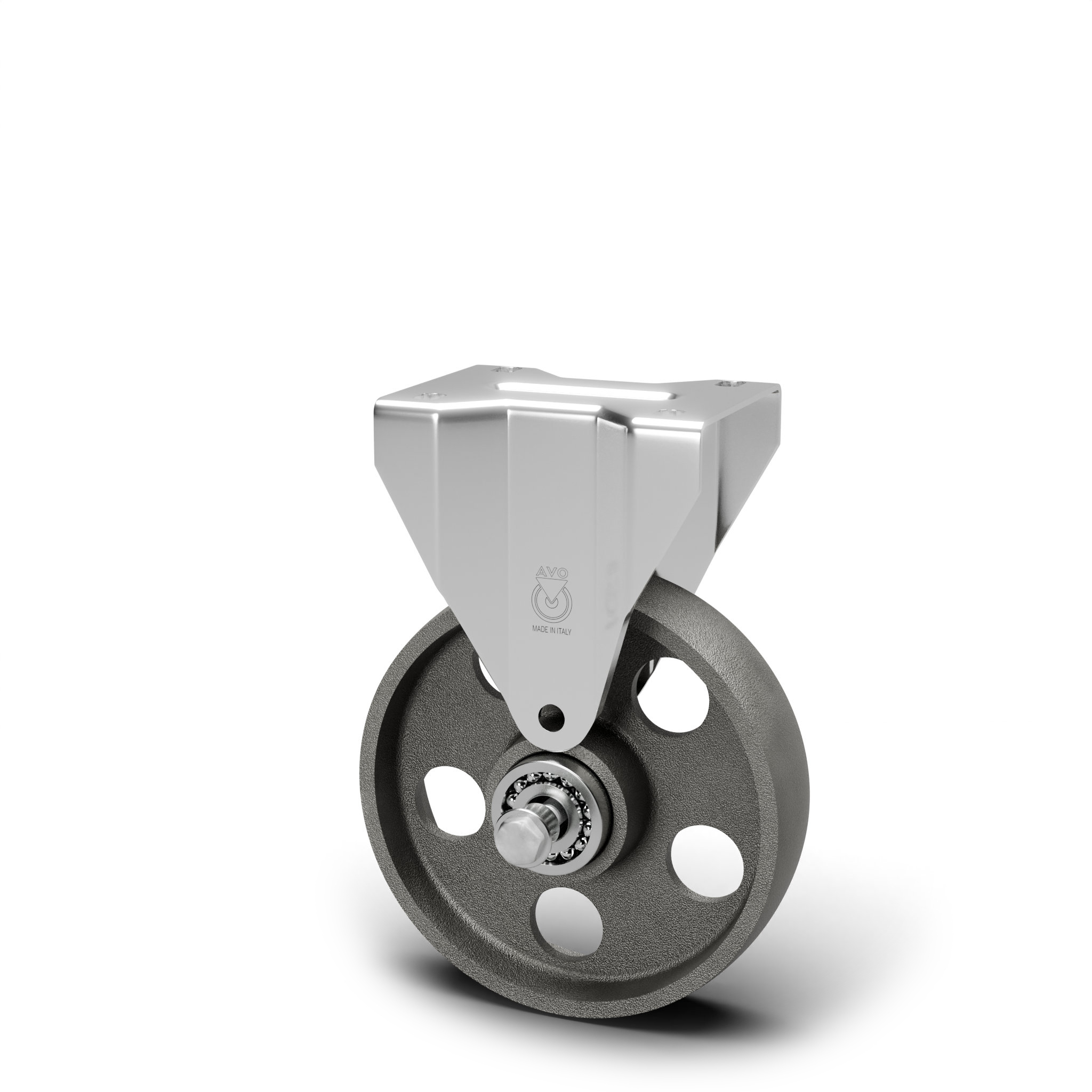

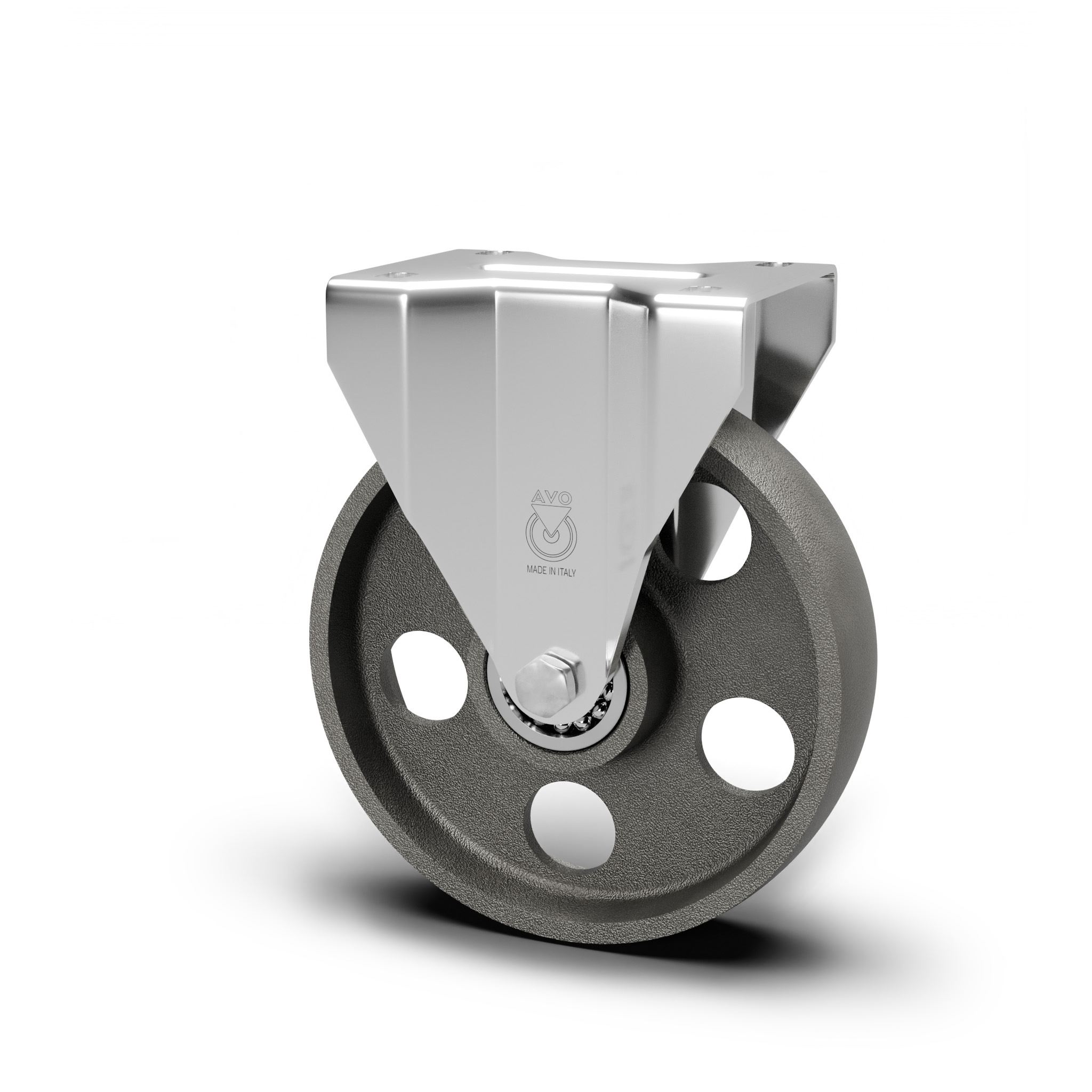

AVO – Wheel with mechanical cast iron and steel castor for industry, diameter 140mm ean 20581

105A

Material: Mechanical Cast iron

Core: Cast Iron

Application field: Industry

Request information

Description:

Cast iron wheel, high temperatures resistant with low rolling resistance with pearlitic or laminar structure in accordance with ISO 185. Hub on plain bore.

Medium duty castors

Made of zinc-chromium plated pressed steel, fixed. Assembled with self-locking nut.

Product line: Cast Iron, High temperature

Linea di prodotto: Cast Iron, High temperature

EAN13: 8018793205818

EAN5: 20581

Article code: 04105A01401GM

Features

-40 | 500

200

Plain bore

HB

200

Floor types

Asphalt

Concrete

Download pdf product sheet

download images

Wheel data

Diameter (mm)

140

Band width (mm)

35

Hub width (mm)

50

Hub version

Plain bore

Wheel hole (mm)

15

Bearing seat (mm)

/

Dynamic load capacity (DaN)

200

Colour

Grey

Material

Mechanical Cast iron

Box pieces

/

Hardness scale

HB

Hardness

200

Bracket data

Plate size (mm)

140X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

11X16

Offset (mm)

/

Height from ground (mm)

176

Castor hole (mm)

/

Static load capacity (DaN)

250

Structure

Fixed

Version

/

Brake

/

Pivot

/

Pivot type

/

Finishing

Galvanized
