Serie 114A

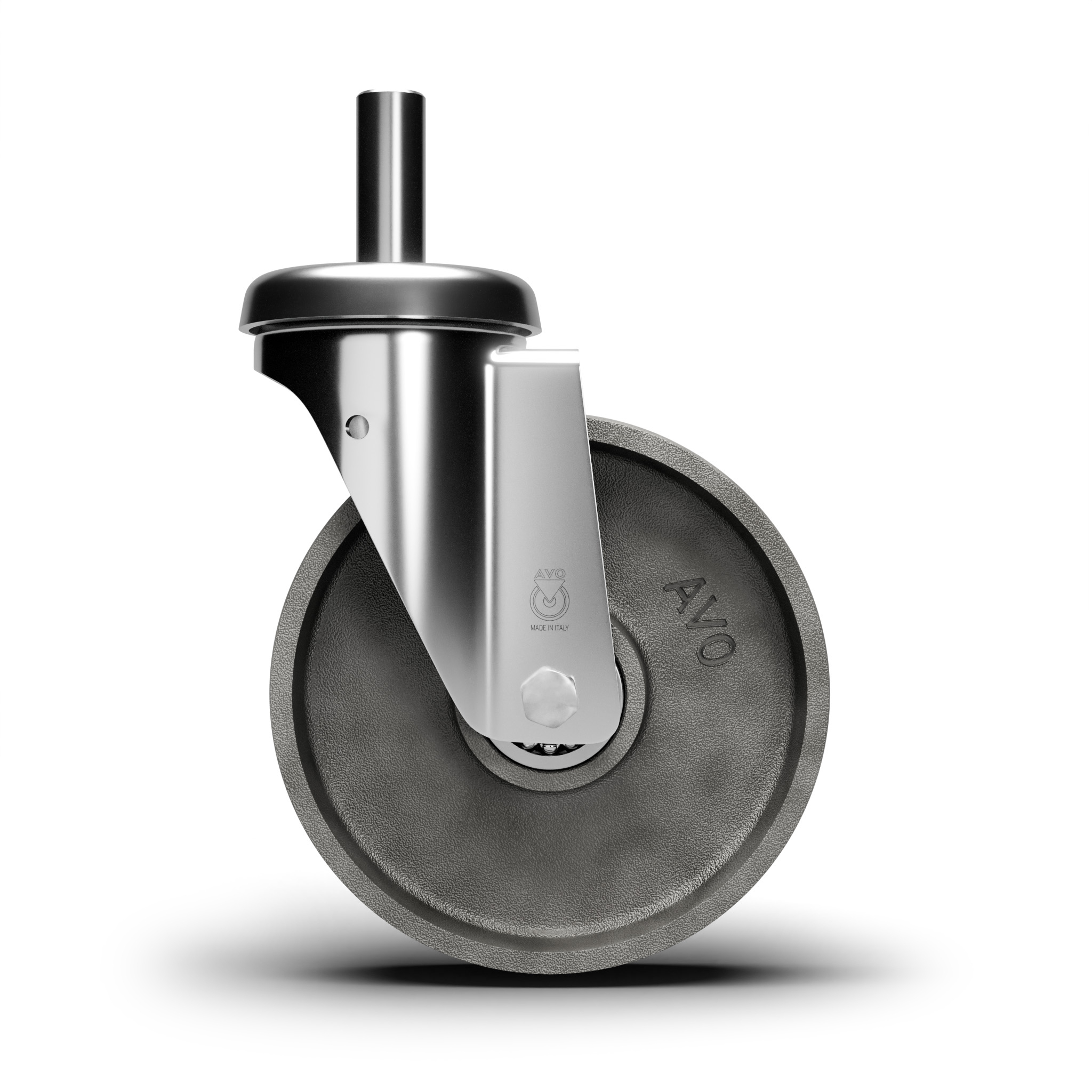

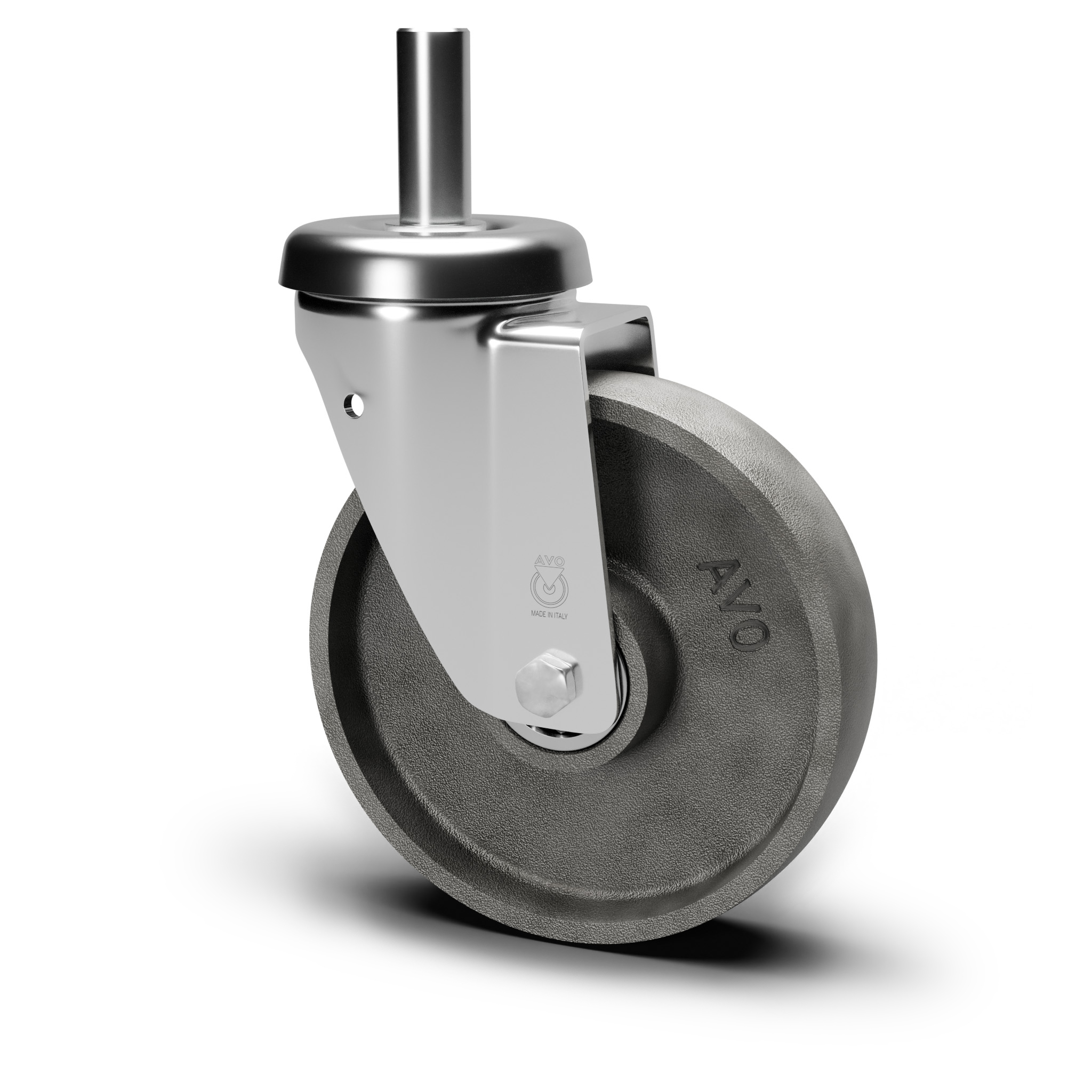

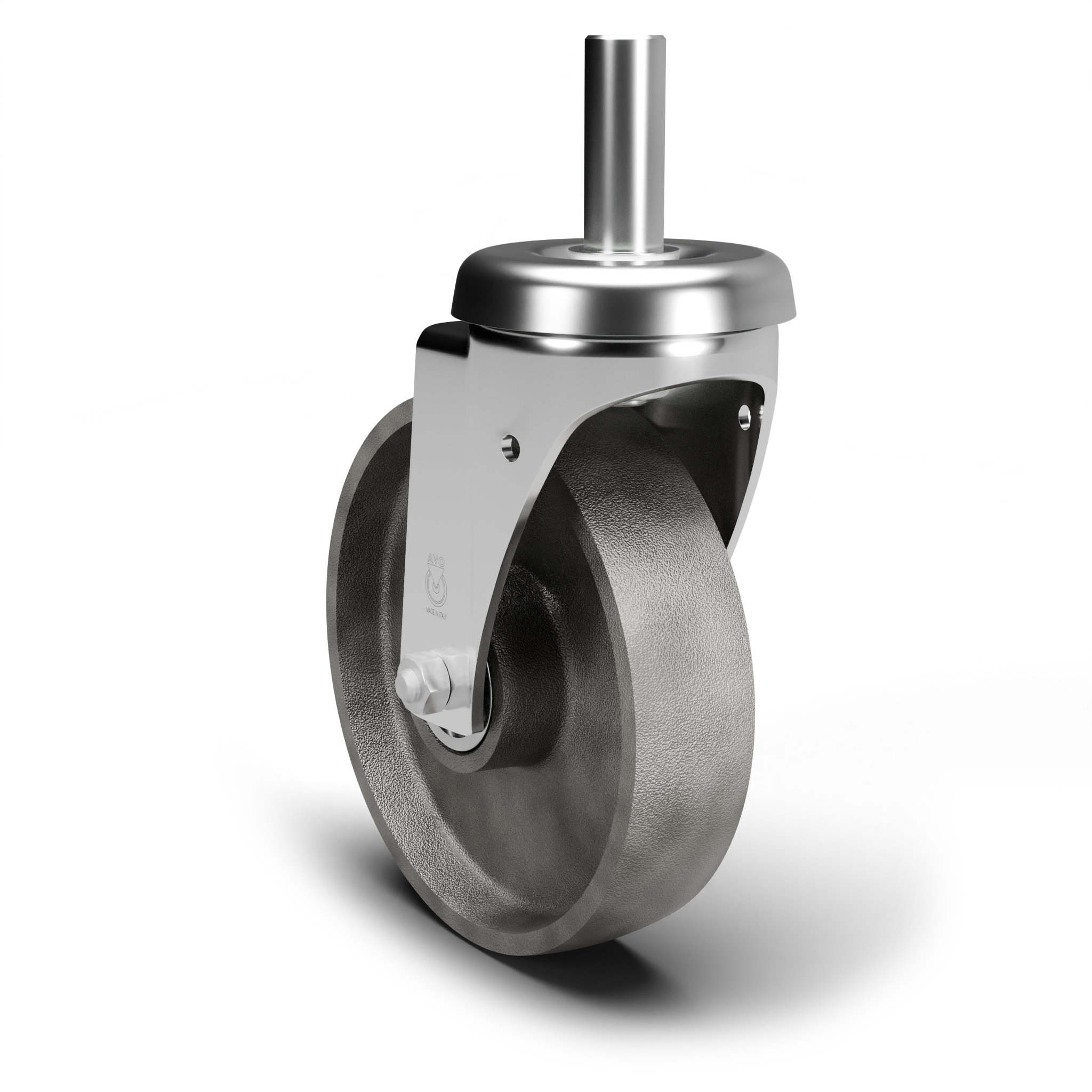

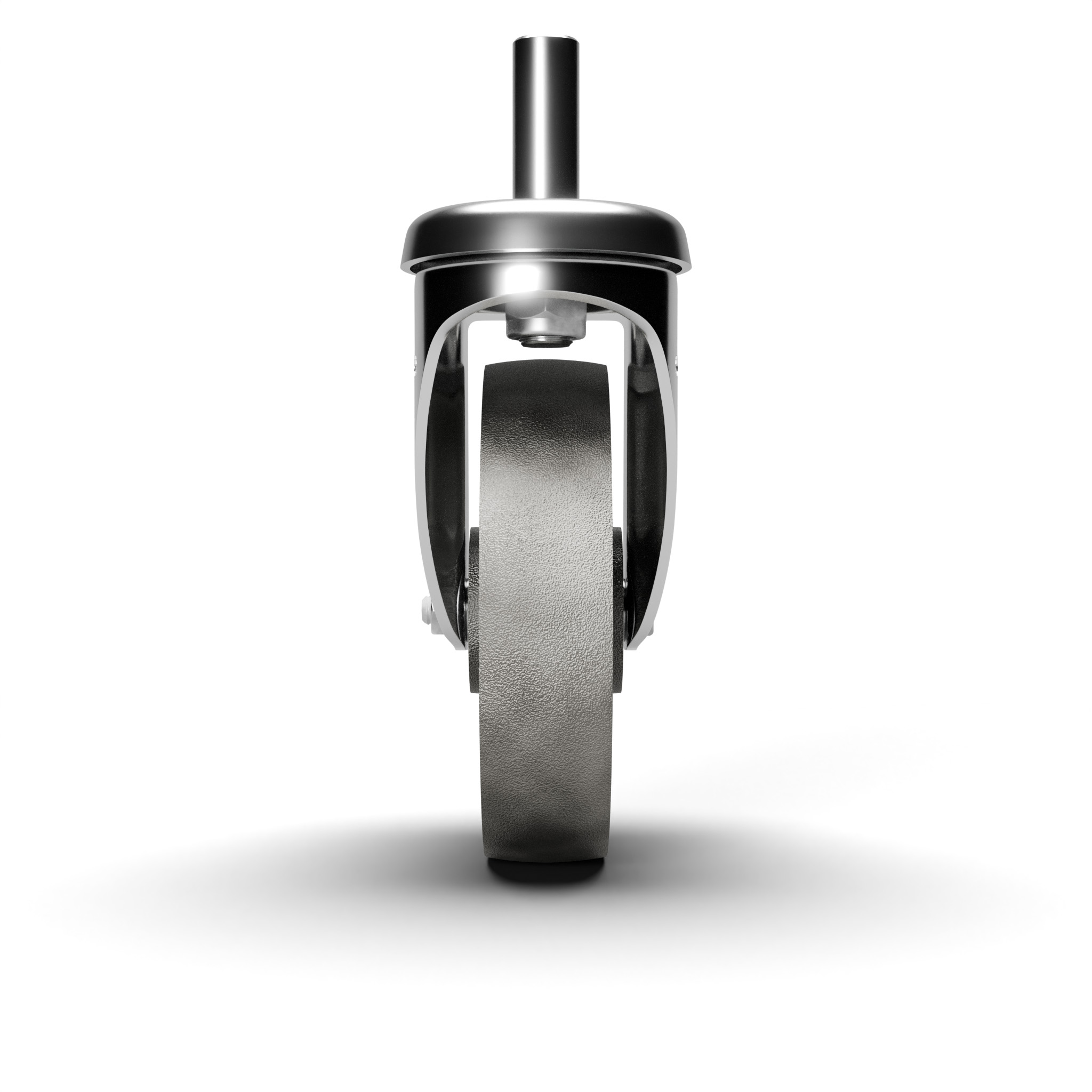

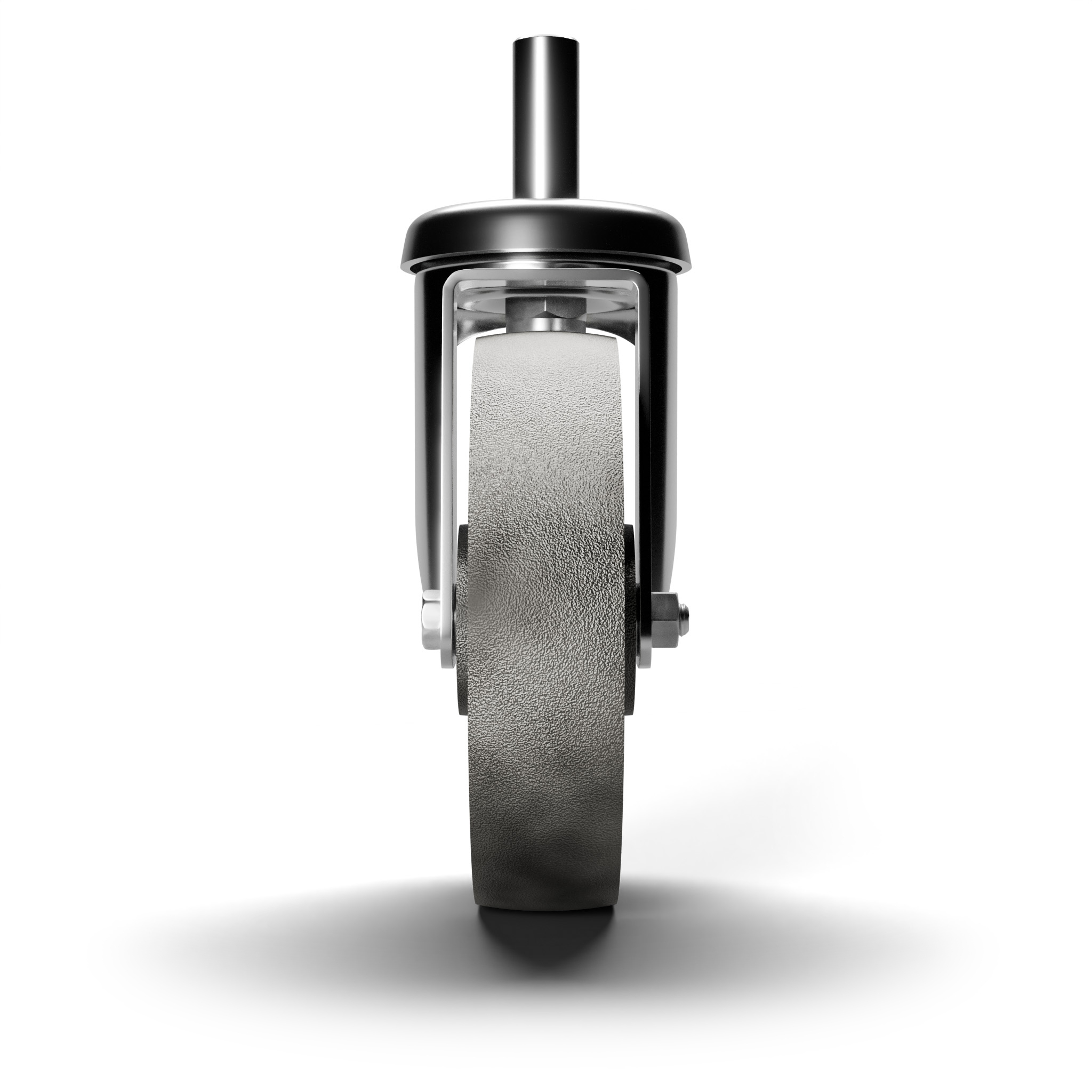

AVO – Wheel with mechanical cast iron and steel castor for industry, diameter 150mm ean 05516

106B

Material: Mechanical Cast iron

Core: Cast Iron

Application field: Industry

Request information

Description:

Cast iron wheel, resistant to high temperatures with low rolling resistance. Hub on shielded ball bearings. Special ball bearings for high or low temperatures are available on request.

Heavy-Duty Castors

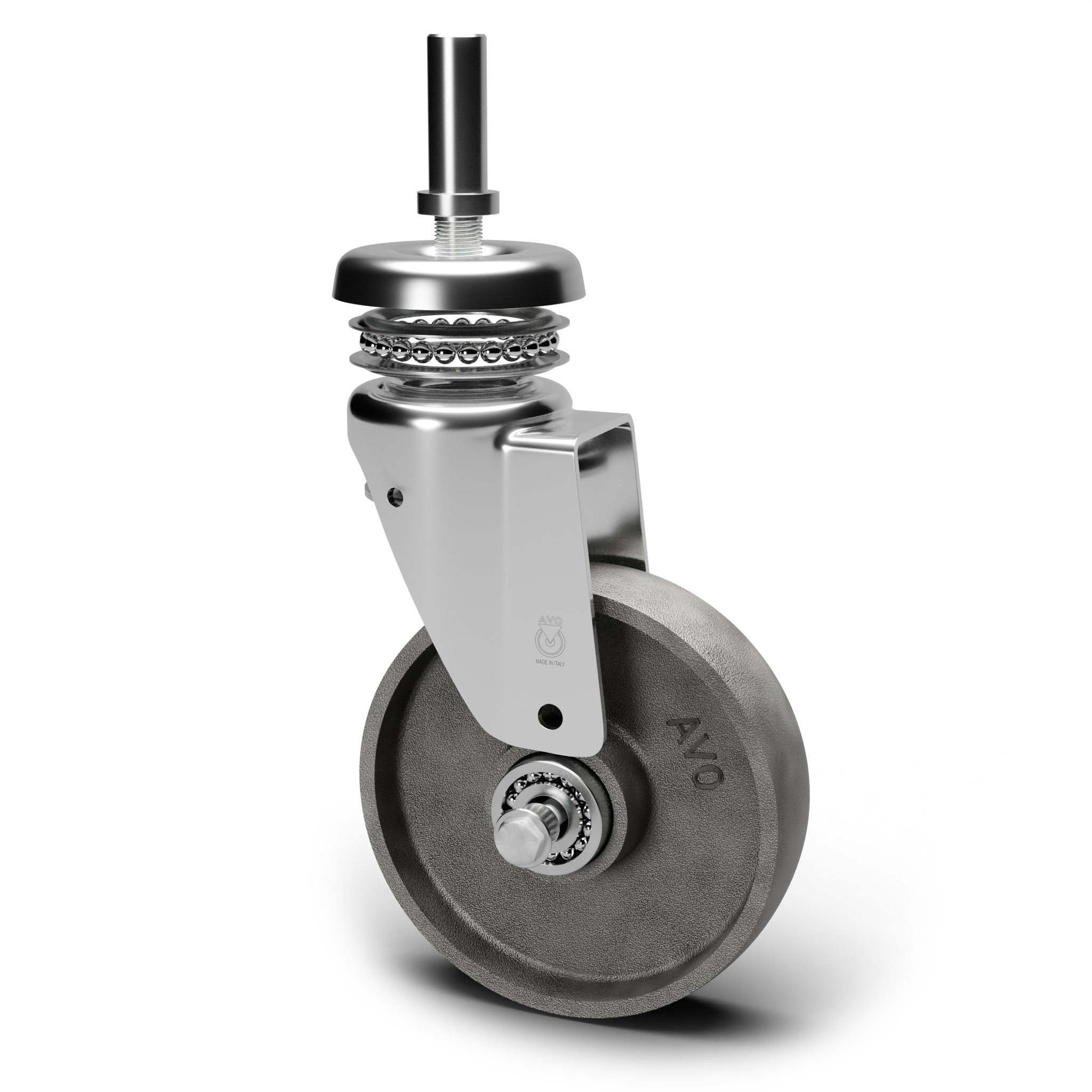

Made of zinc-chromium plated pressed steel, high thickness, turning on double rim of balls fitted in hardening steel thrust-bearings, with stem. Assembled with self-locking nut.

Product line: Cast Iron, High temperature

Linea di prodotto: Cast Iron, High temperature

EAN13: 8018793055161

EAN5: 05516

Article code: 04106B01500GP

Features

-20 | 120

500

Ball bearing

HB

200

Floor types

Asphalt

Concrete

Download pdf product sheet

download images

Wheel data

Diameter (mm)

150

Band width (mm)

38

Hub width (mm)

38

Hub version

Ball bearing

Wheel hole (mm)

17

Bearing seat (mm)

40X12

Dynamic load capacity (DaN)

500

Colour

Grey

Material

Mechanical Cast iron

Box pieces

/

Hardness scale

HB

Hardness

200

Bracket data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

50

Height from ground (mm)

184

Castor hole (mm)

/

Static load capacity (DaN)

630

Structure

Swivel

Version

Axle

Brake

/

Pivot

22X50

Pivot type

Stem(on request threaded stem), Plain axle

Finishing

Galvanized
