Serie 114A

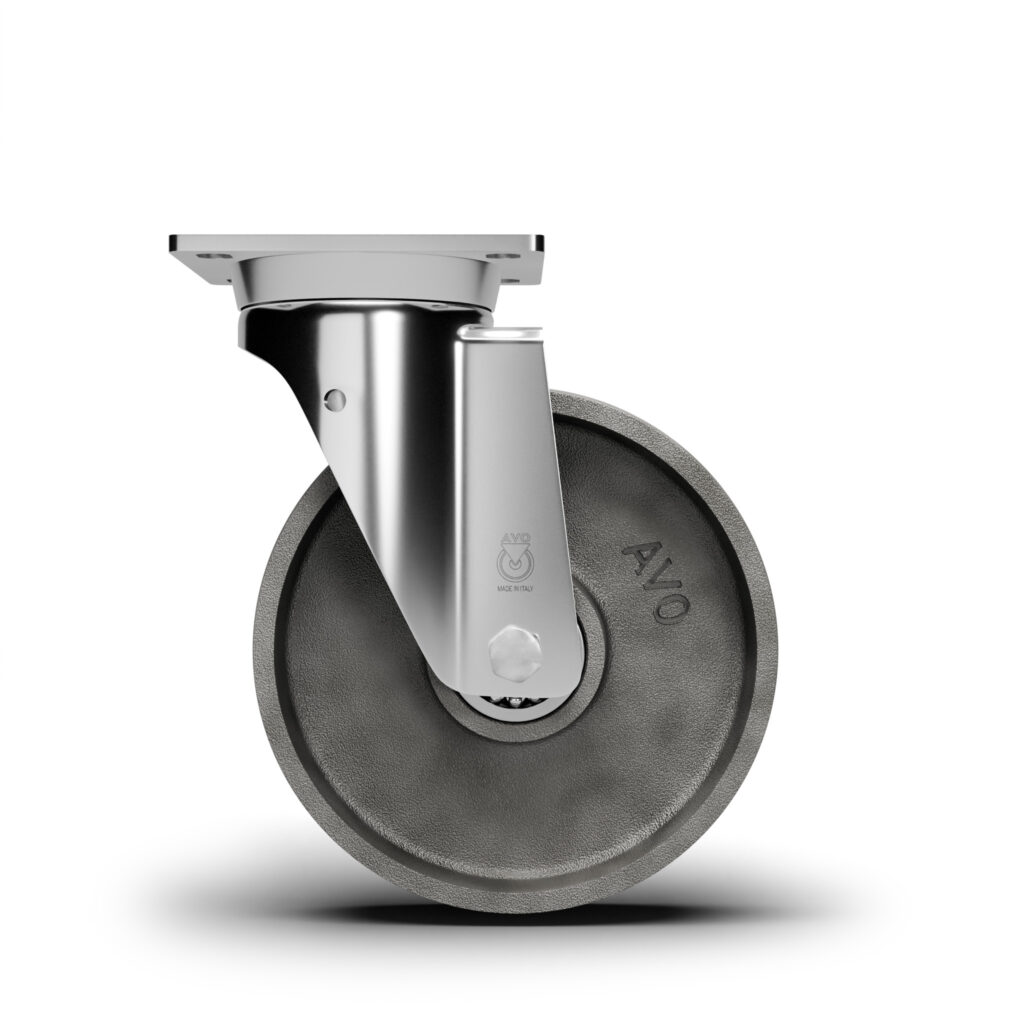

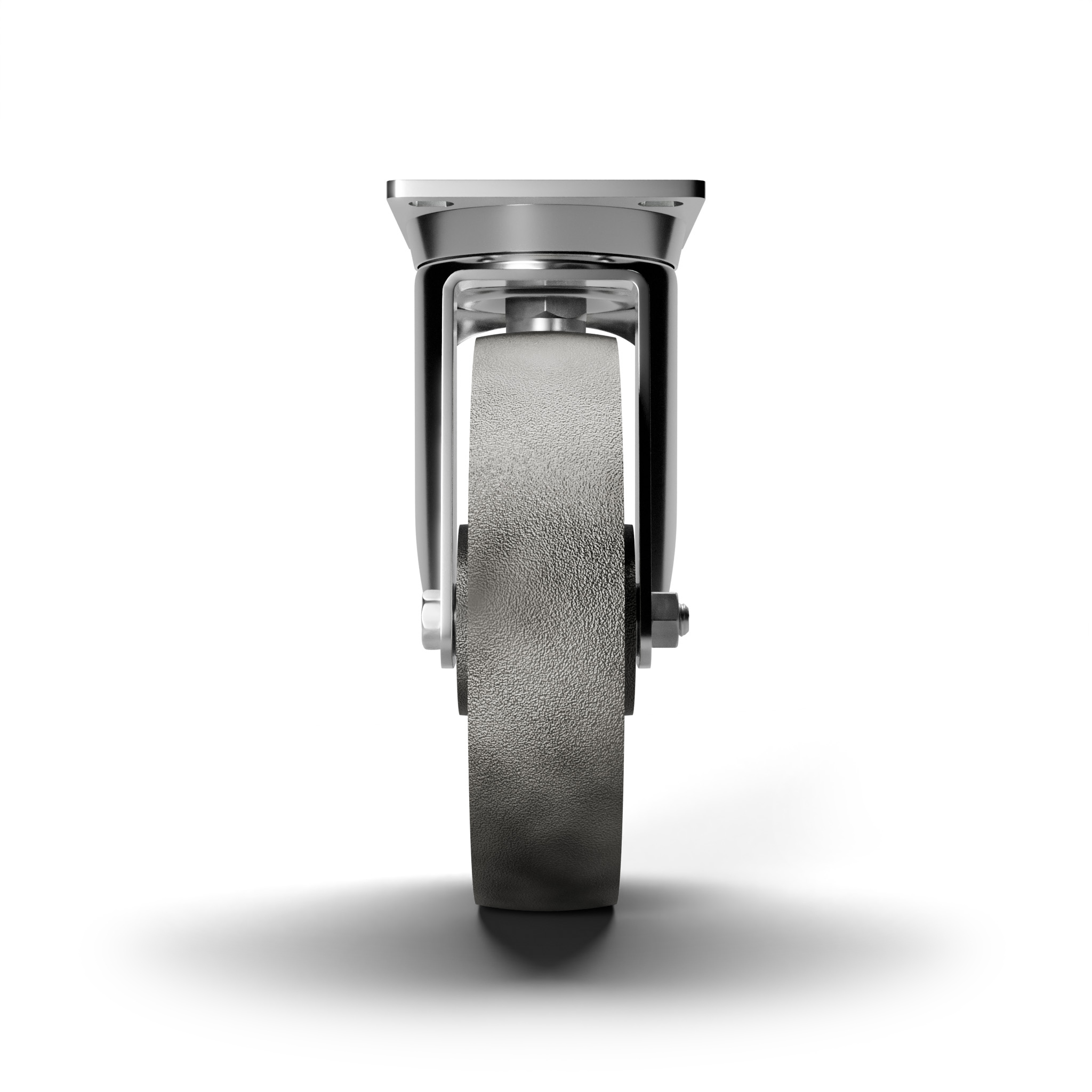

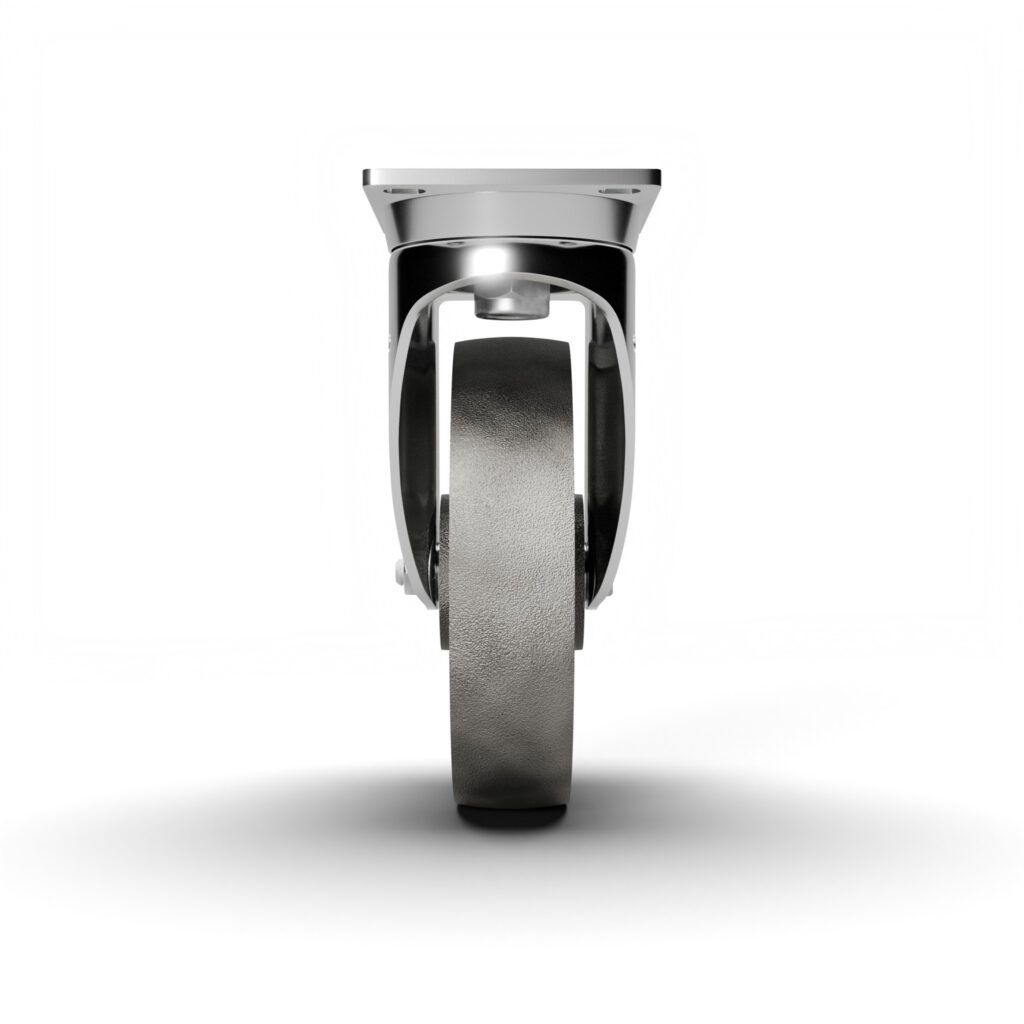

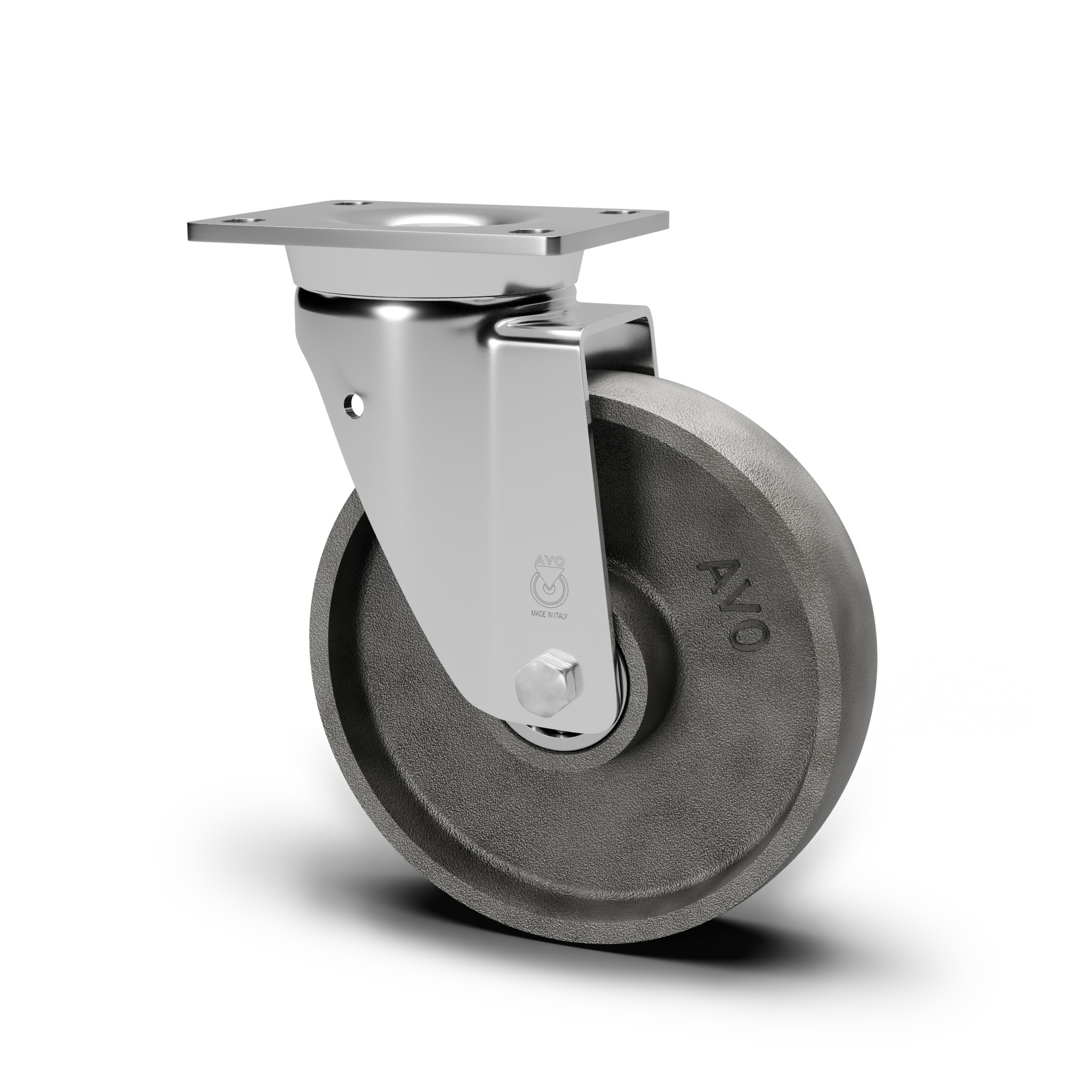

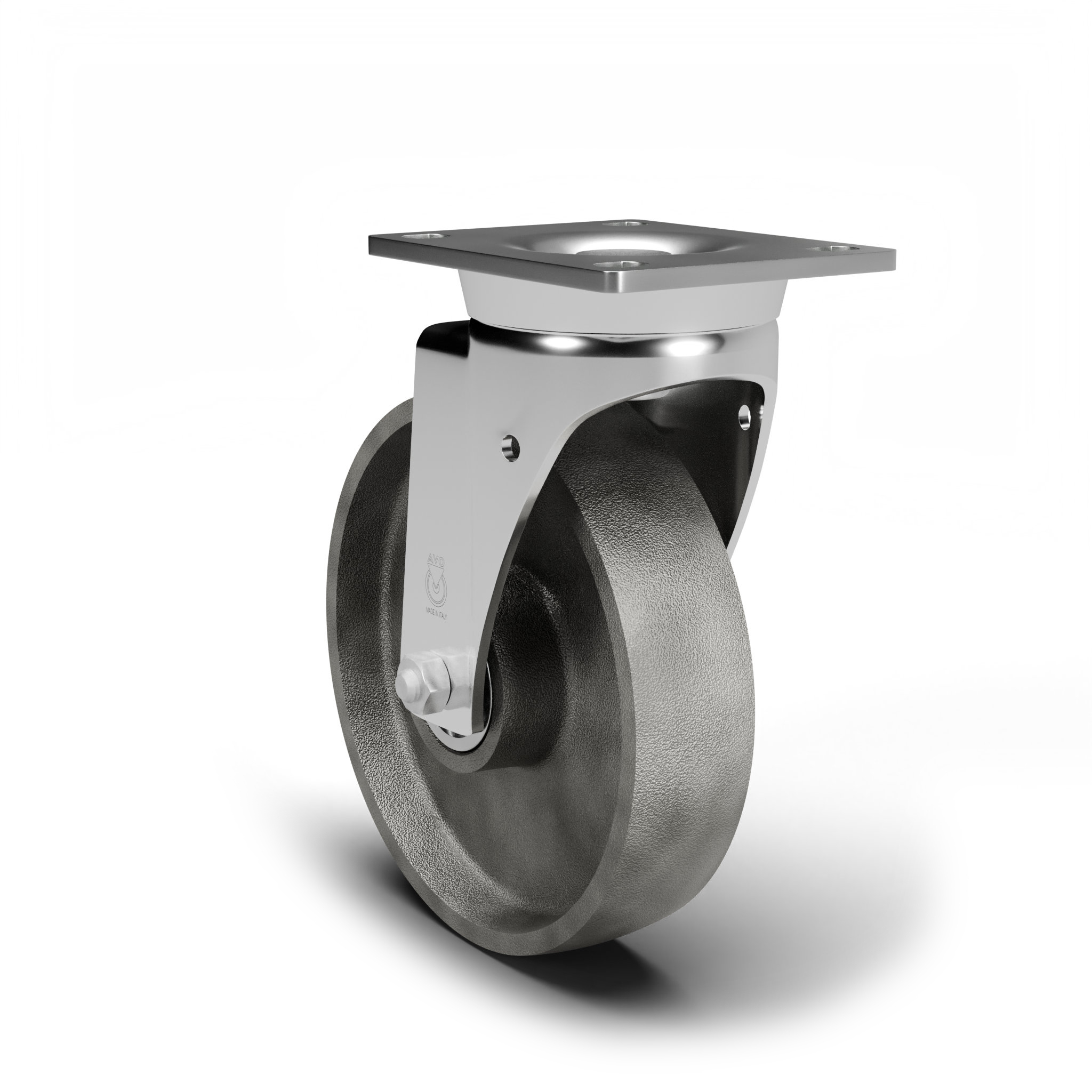

AVO – Wheel with mechanical cast iron and steel castor for industry, diameter 175mm ean 05525

106

Material: Mechanical Cast iron

Core: Cast Iron

Application field: Industry

Request information

Description:

Cast iron wheel, resistant to high temperatures with low rolling resistance. Hub on shielded ball bearings. Special ball bearings for high or low temperatures are available on request.

Heavy-Duty Castors

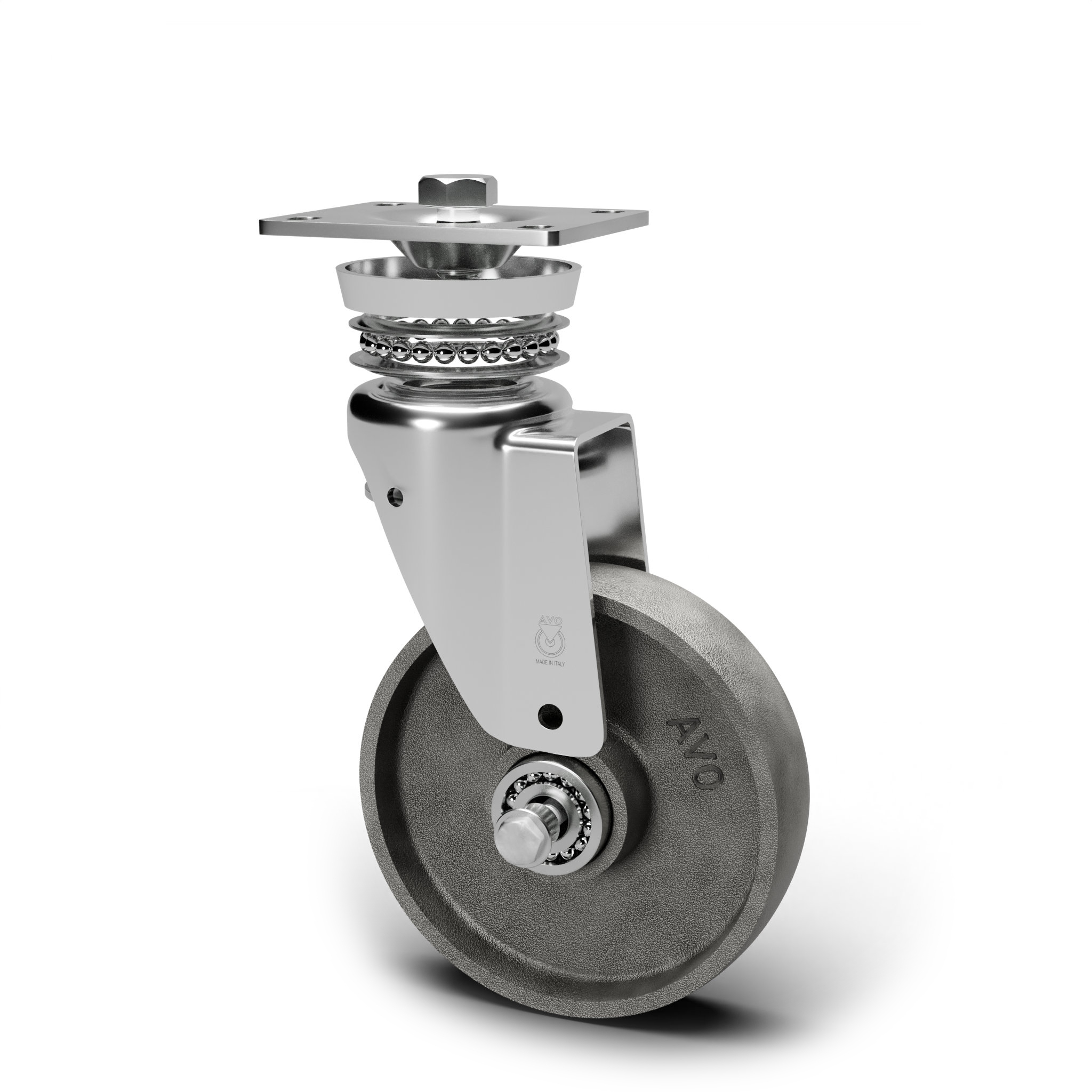

Made of zinc-chromium plated pressed steel, high thickness, turning on double rim of balls fitted in hardening steel thrust-bearings, with plate. Assembled with self-locking nut.

Product line: Cast Iron, High temperature

Linea di prodotto: Cast Iron, High temperature

EAN13: 8018793055253

EAN5: 05525

Article code: 04106001750GP

Features

-20 | 120

800

Ball bearing

HB

200

Floor types

Asphalt

Concrete

Download pdf product sheet

download images

Wheel data

Diameter (mm)

175

Band width (mm)

38

Hub width (mm)

38

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

800

Colour

Grey

Material

Mechanical Cast iron

Box pieces

/

Hardness scale

HB

Hardness

200

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13X16

Offset (mm)

57

Height from ground (mm)

238

Castor hole (mm)

/

Static load capacity (DaN)

1000

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Galvanized
