Serie 114

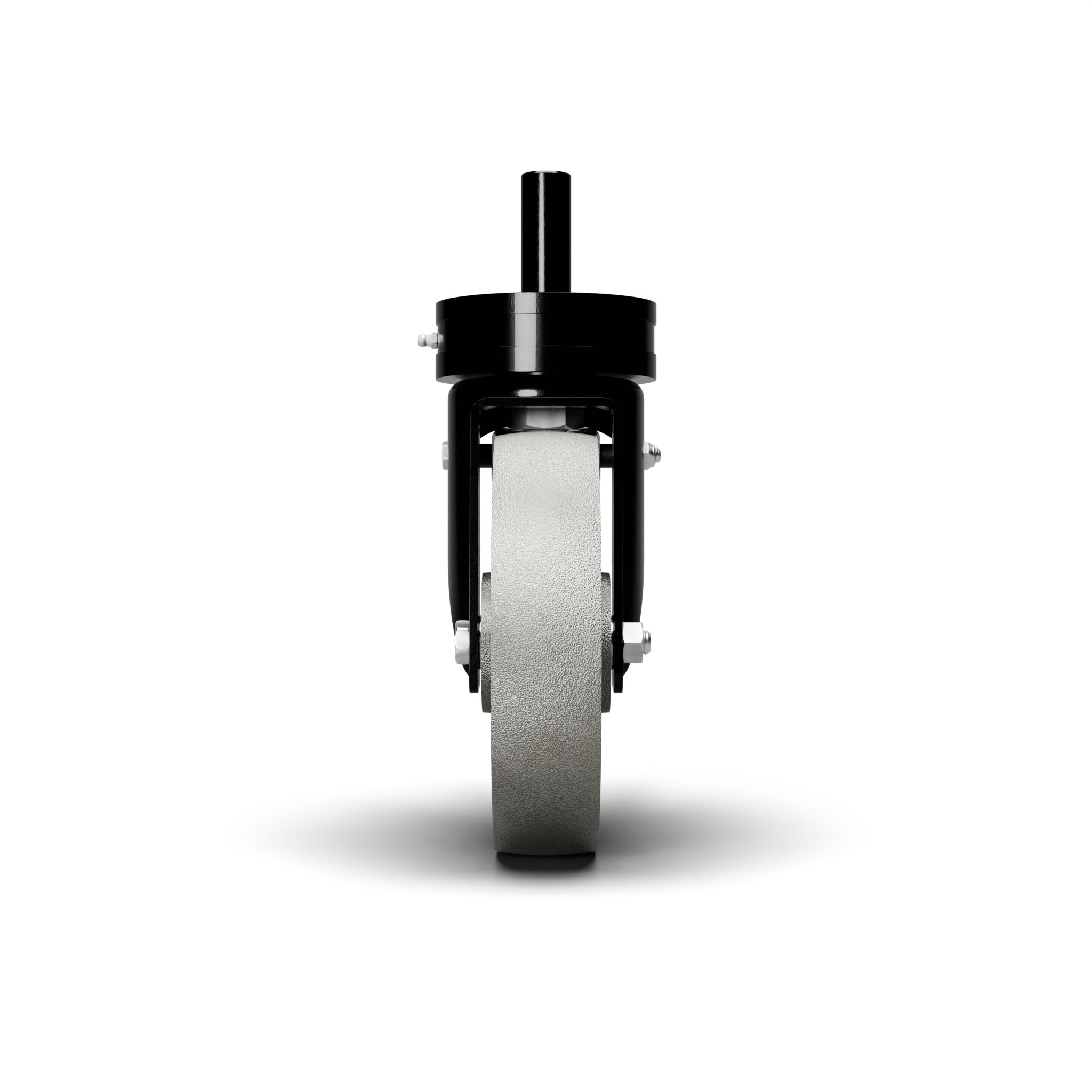

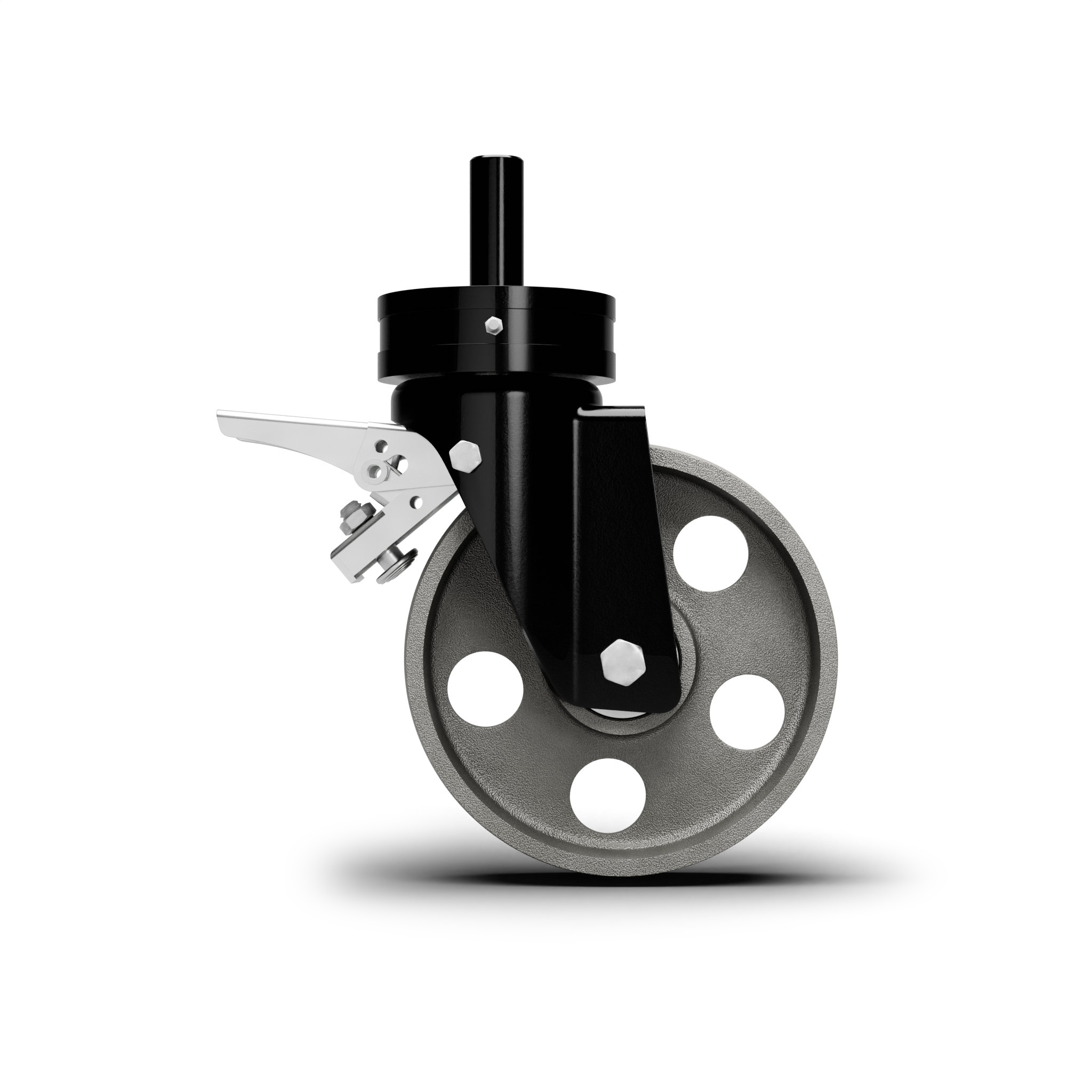

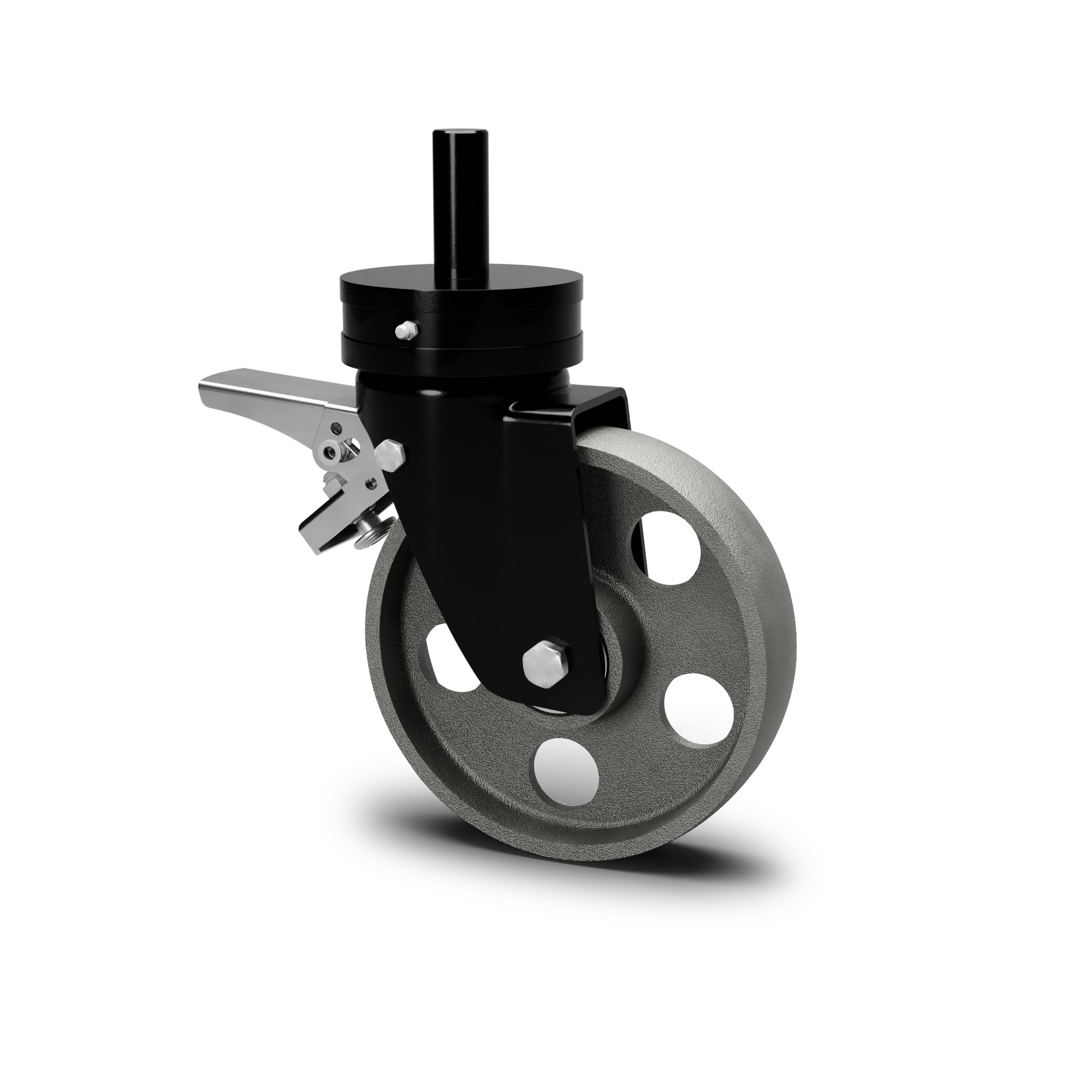

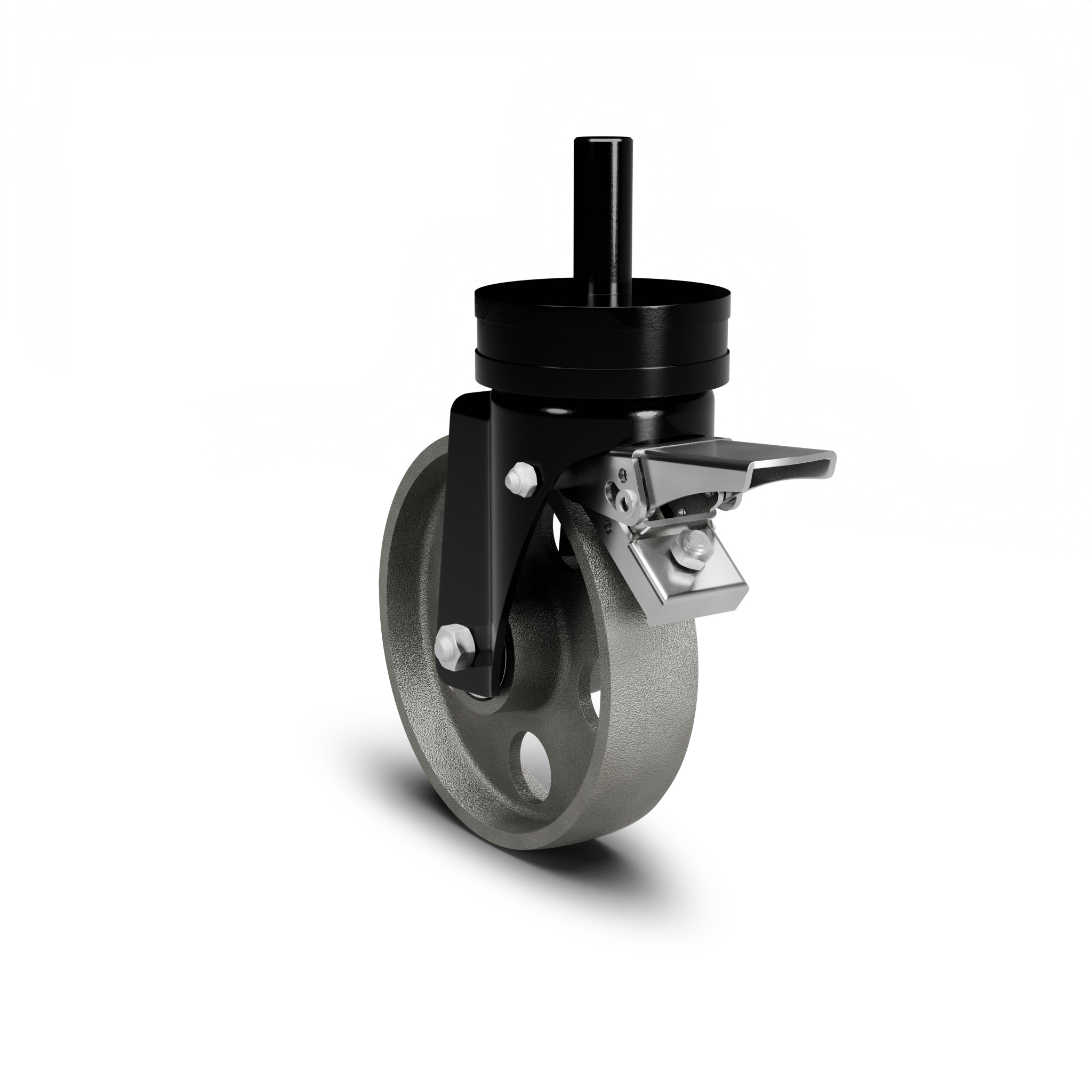

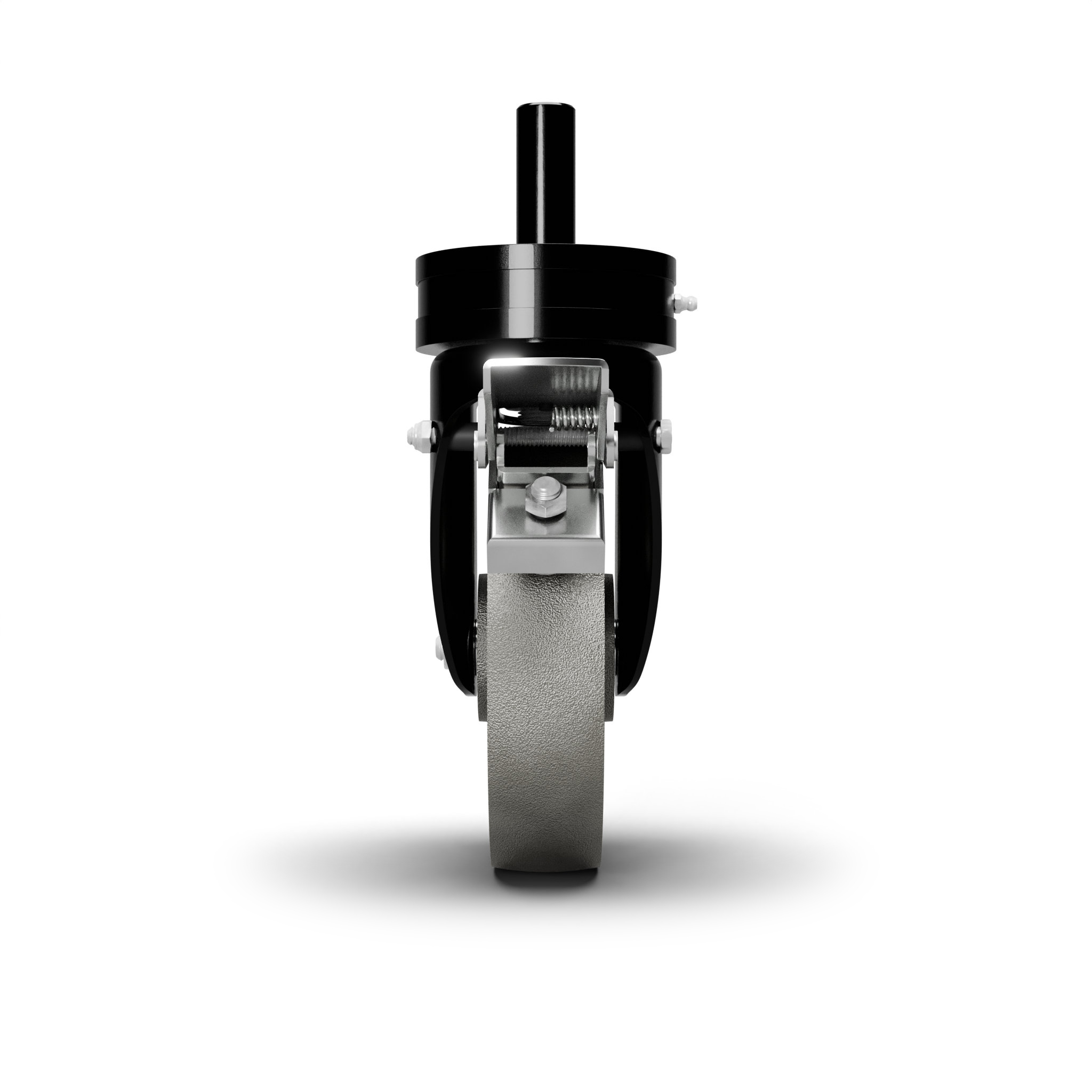

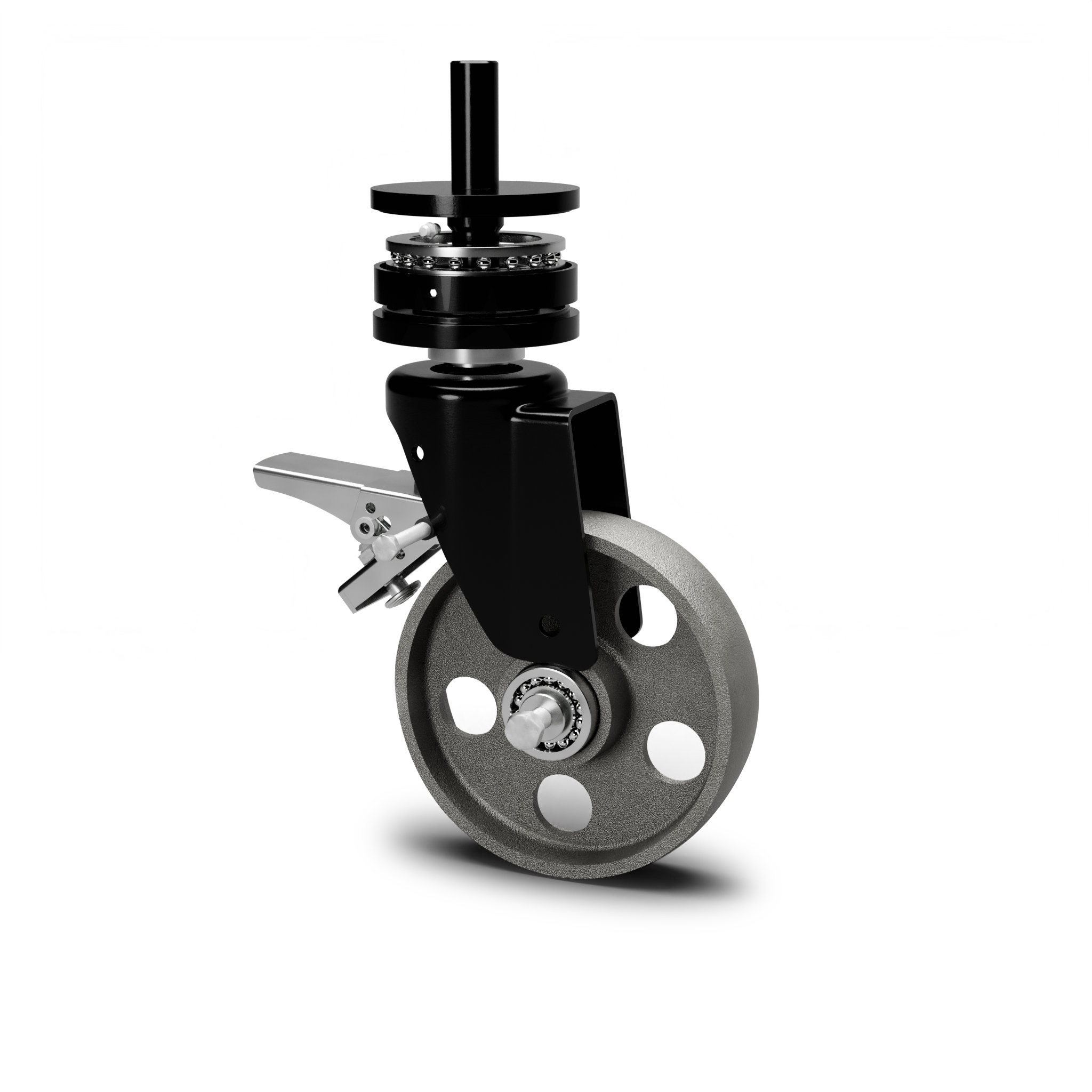

AVO – Wheel with mechanical cast iron and steel castor for industry, diameter 200mm ean 27930

108BISB

Material: Mechanical Cast iron

Core: Cast Iron

Application field: Industry

Request information

Description:

Cast iron wheel, high temperatures resistant with low rolling resistance with pearlitic or laminar structure in accordance with ISO 185. Hub on plain bore.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with stem and rear brake. Black epoxy paint.

Product line: Cast Iron, High temperature

Linea di prodotto: Cast Iron, High temperature

EAN13: 8018793279307

EAN5: 27930

Article code: 04108BF2000GM

Features

-40 | 500

600

Plain bore

HB

200

Floor types

Asphalt

Concrete

Download pdf product sheet

download images

Wheel data

Diameter (mm)

200

Band width (mm)

50

Hub width (mm)

58

Hub version

Plain bore

Wheel hole (mm)

20

Bearing seat (mm)

/

Dynamic load capacity (DaN)

600

Colour

Grey

Material

Mechanical Cast iron

Box pieces

/

Hardness scale

HB

Hardness

200

Bracket data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

57

Height from ground (mm)

260

Castor hole (mm)

/

Static load capacity (DaN)

750

Structure

Swivel

Version

Axle with brake

Brake

Rear

Pivot

25X65

Pivot type

Stem(on request threaded stem), Plain axle

Finishing

Black painted
