Serie 116C

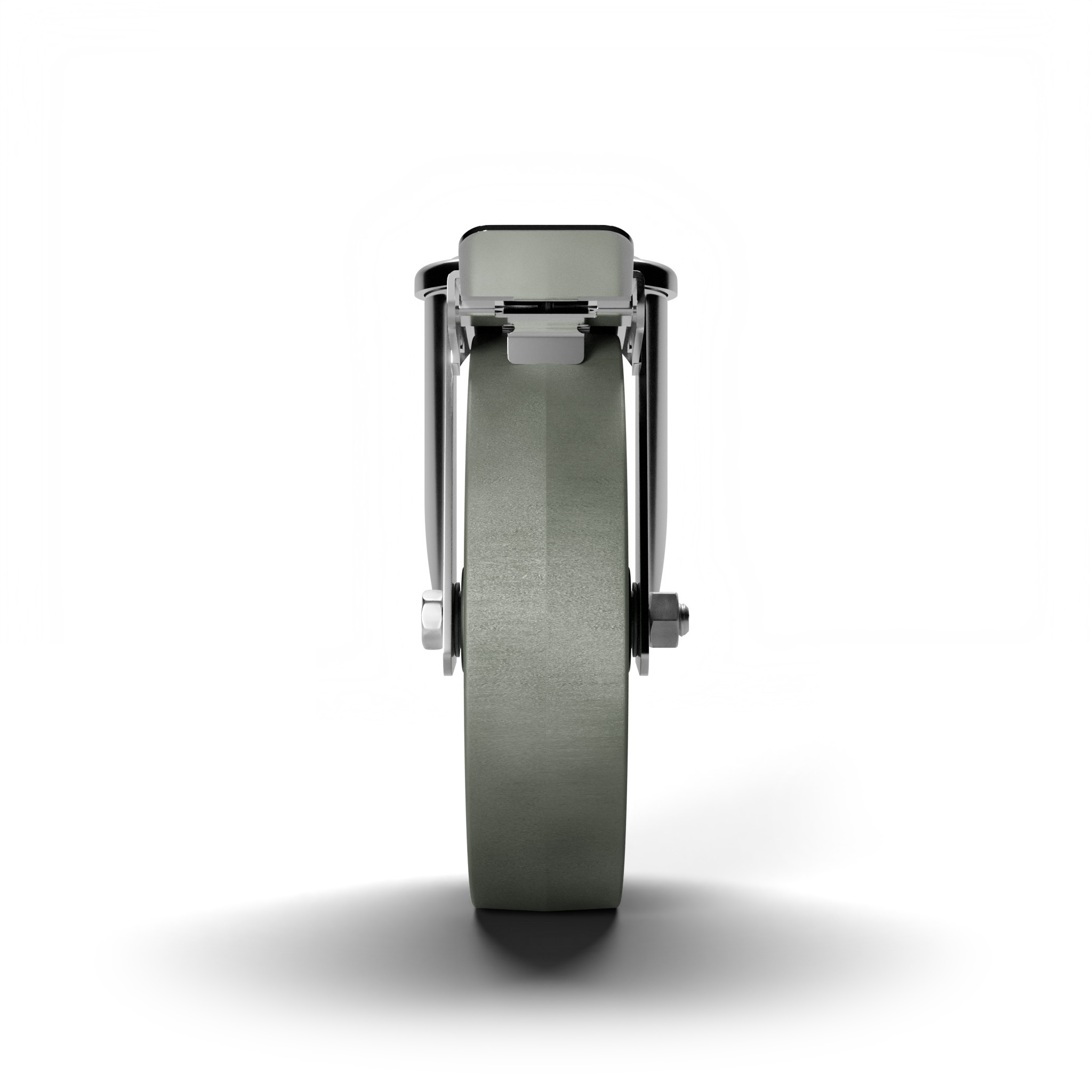

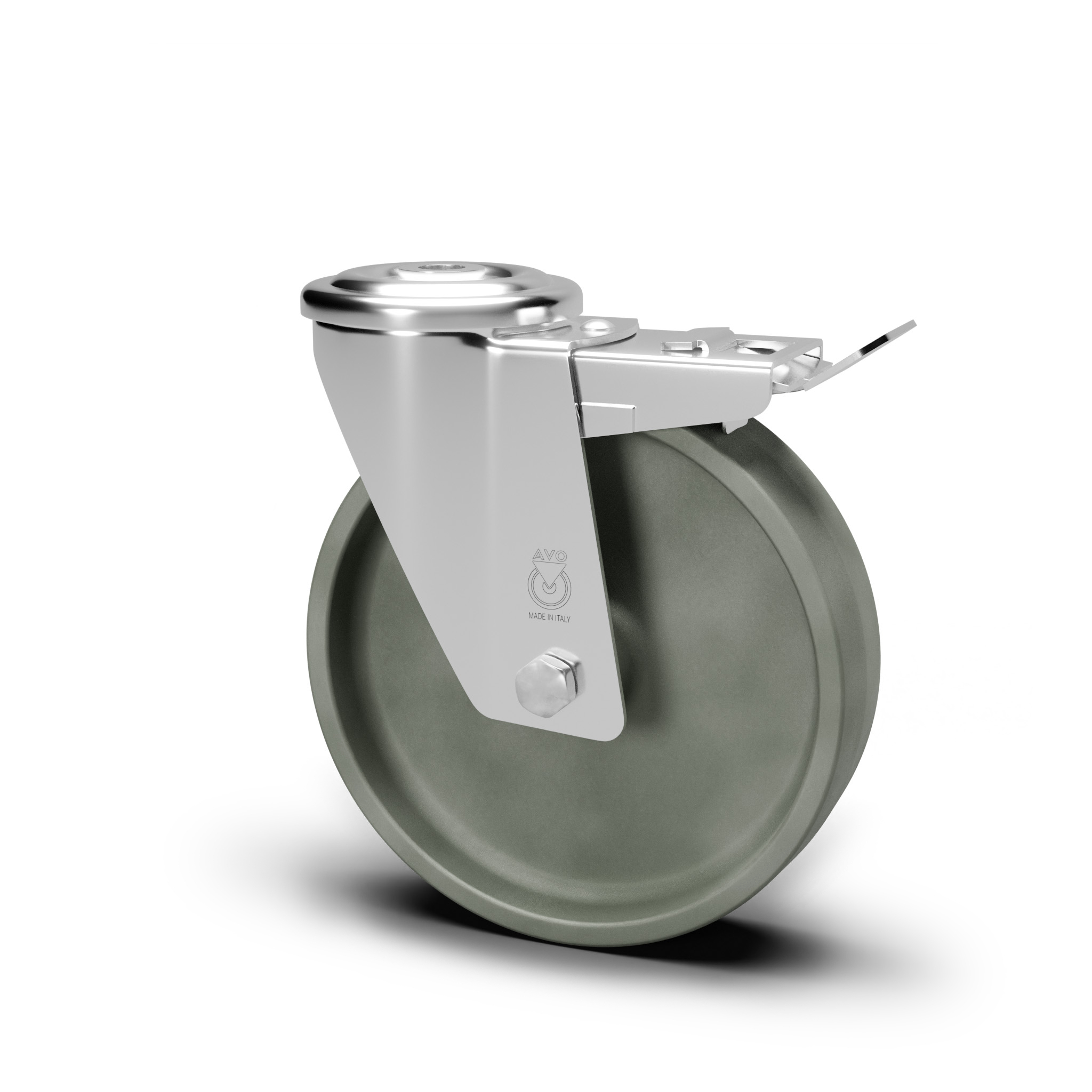

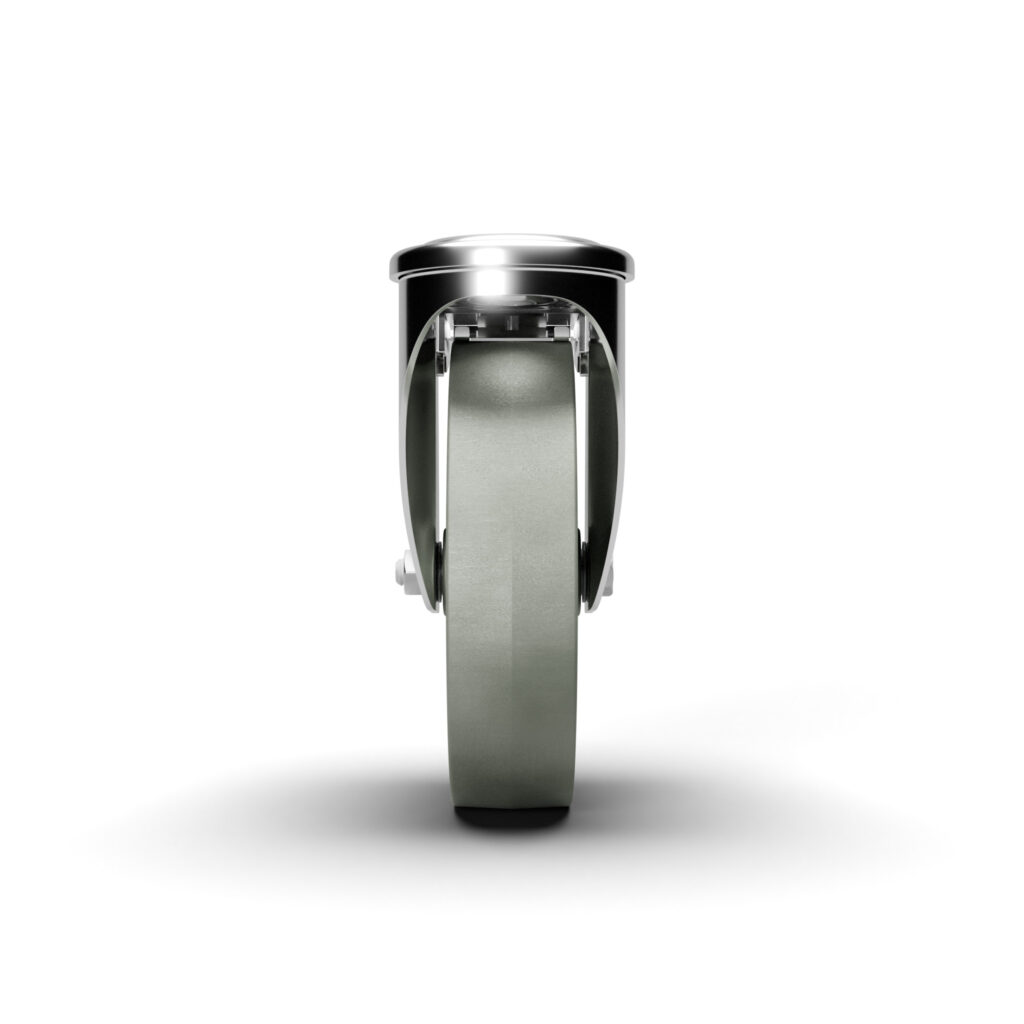

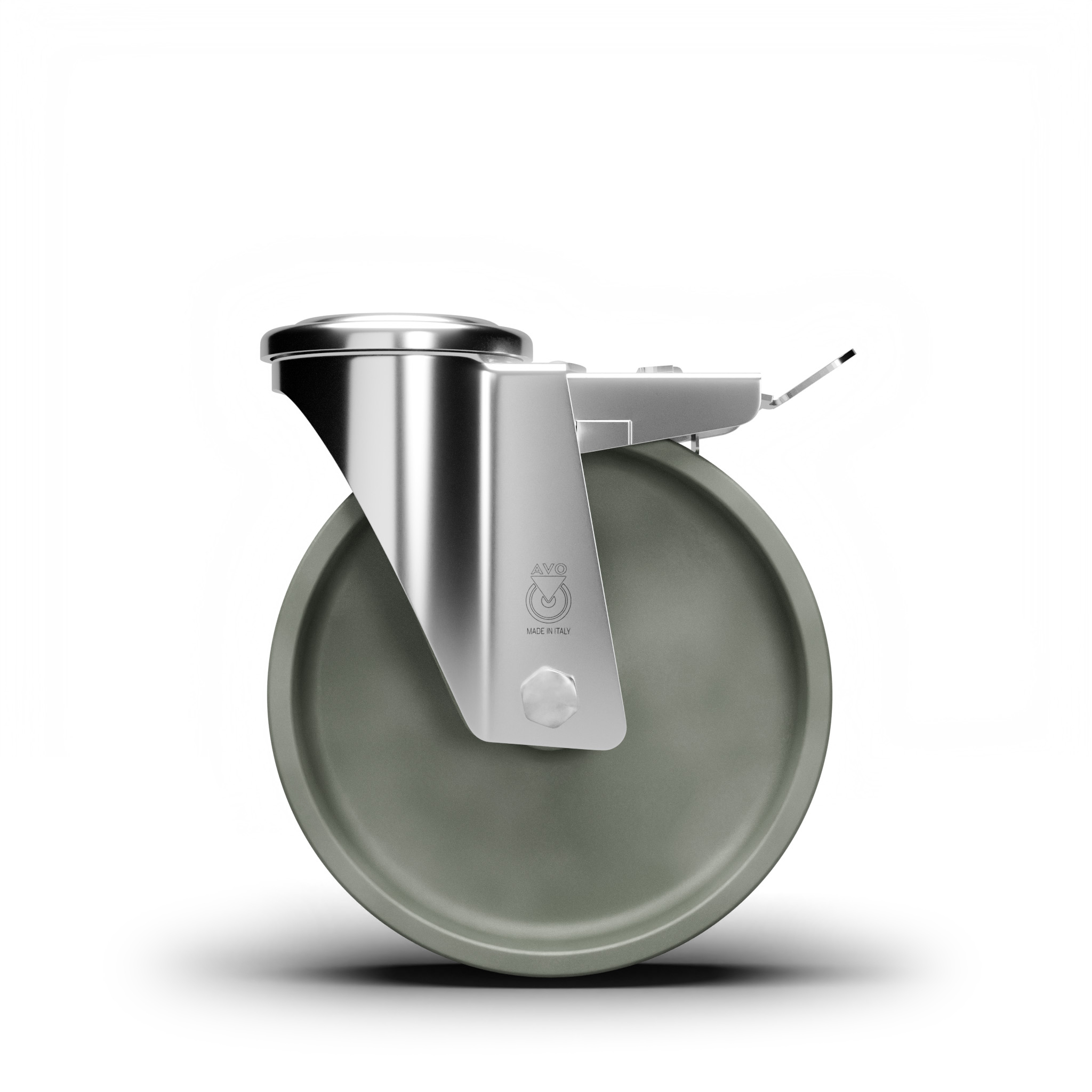

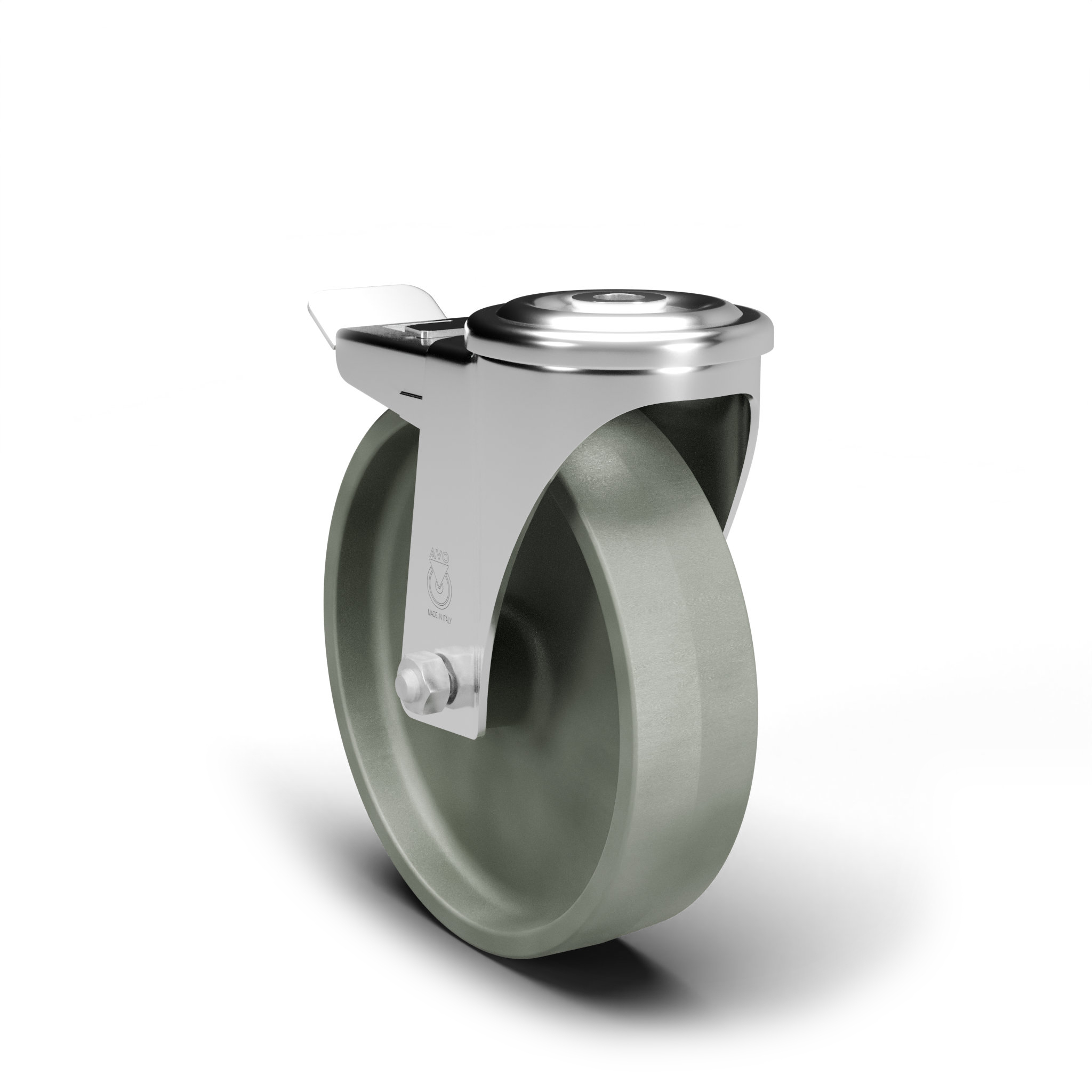

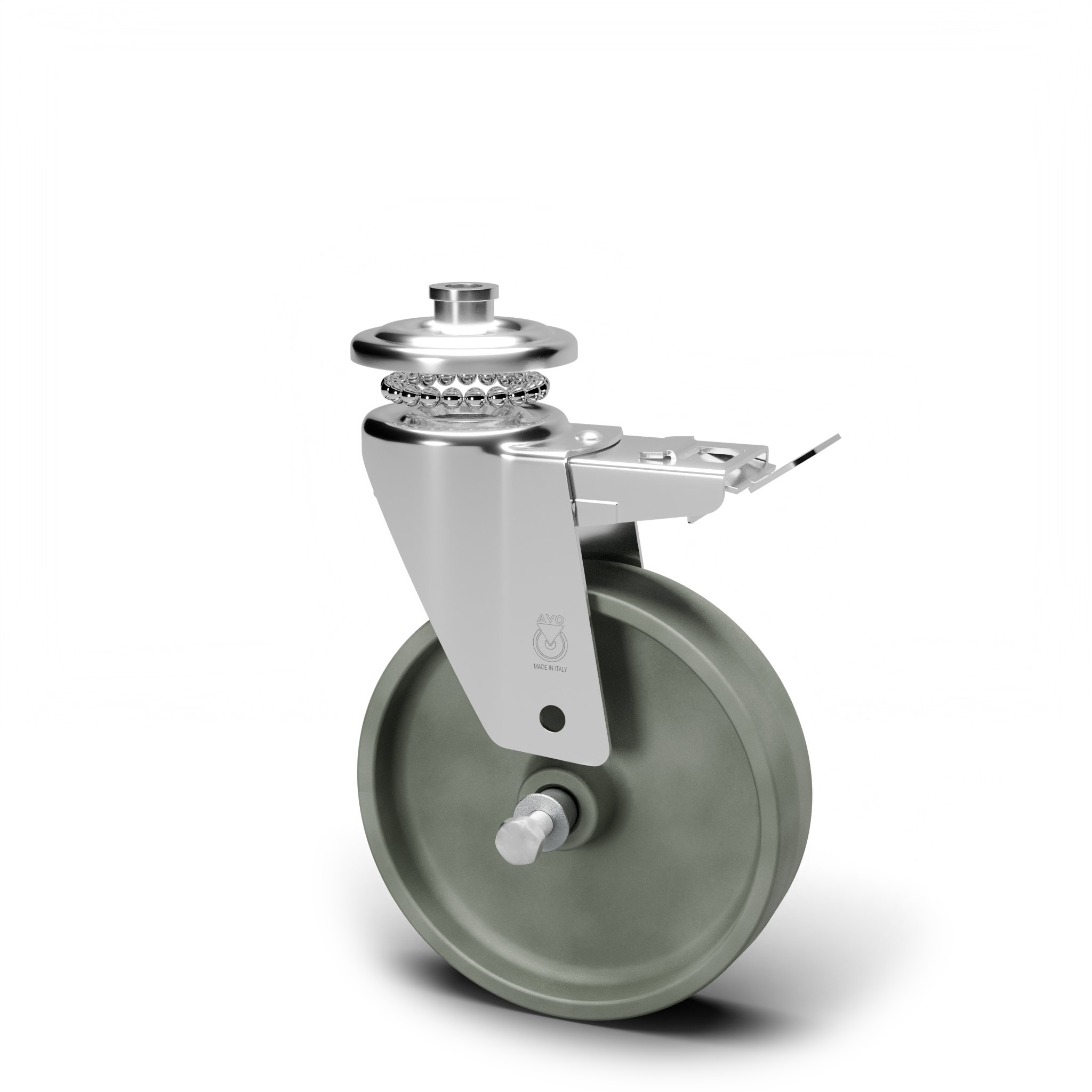

AVO – Wheel with 30% glass-filled polyamide 6 and aisi 304 stainless steel castor for industry, diameter 100mm ean 24889

98XANTF

Material: 30% glass-filled Polyamide 6

Core: Glass-filled polyamide 6

Application field: Industry

Request information

Description:

Polyamide 6 wheel with 30% fiber glass. Hub on plain bore.

Medium duty castors

Made of pressed stainless steel AISI 304, turning on double rim of balls AISI 420, with bolt hole and front brake.

Product line: High temperature, Polyamide

Linea di prodotto: High temperature, Polyamide

EAN13: 8018793248891

EAN5: 24889

Article code: 05X98FA1000FN

Features

-25 | 120

120

Plain bore

Shore D

Floor types

Asphalt

Concrete

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

100

Band width (mm)

Hub width (mm)

Hub version

Plain bore

Wheel hole (mm)

Bearing seat (mm)

Dynamic load capacity (DaN)

120

Colour

Grey

Material

30% glass-filled Polyamide 6

Box pieces

Hardness scale

Shore D

Hardness

Bracket data

Plate size (mm)

Interaxis plate hole (mm)

Plate bore size (mm)

Offset (mm)

Height from ground (mm)

128

Castor hole (mm)

Static load capacity (DaN)

150

Structure

Swivel

Version

Bolt hole with brake

Brake

Front

Pivot

Pivot type

Finishing

AISI 304 stainless steel
