AVO – Wheel made of polyamide 6 with steel castor for industry, diameter 125mm ean 11262

118BISANT

Material: Polyamide 6
Core: Polyamide 6
Application field: Industry
Request information

Description:

Monolithic Polyamide 6 wheel. Hub on plain bore, roller bearings or shielded ball bearings assembled whit central spacer.

Medium duty castors
Made of zinc-chromium plated pressed steel, turning on double rim of balls, with plate and front brake. Assembled with self-locking nut and dust cover ring on the balls.
Product line: Polyamide, Stainless steel
EAN13: 8018793112628
EAN5: 11262
Article code: 05118S0A125CN

Features

-25 | 85

170

Ball bearing
Shore D
82

Floor types

Concrete
Stoneware
Download pdf product sheet
118BISANT
118BISANT
118BISANT-3
118BISANT-4
118BISANT-5
118BISANT-7
118BISANT-8
Download drawing
download images

Wheel data

Diameter (mm)

125

Band width (mm)

40

Hub width (mm)

45

Hub version

Ball bearing

Wheel hole (mm)

15

Bearing seat (mm)

35X11

Dynamic load capacity (DaN)

170

Colour

White

Material

Polyamide 6

Box pieces

/

Hardness scale

Shore D

Hardness

82

Bracket data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

8,5X12

Offset (mm)

42

Height from ground (mm)

155

Castor hole (mm)

/

Static load capacity (DaN)

220

Structure

Swivel

Version

Plate with brake

Brake

Front

Pivot

/

Pivot type

/

Finishing

Galvanized

Related products

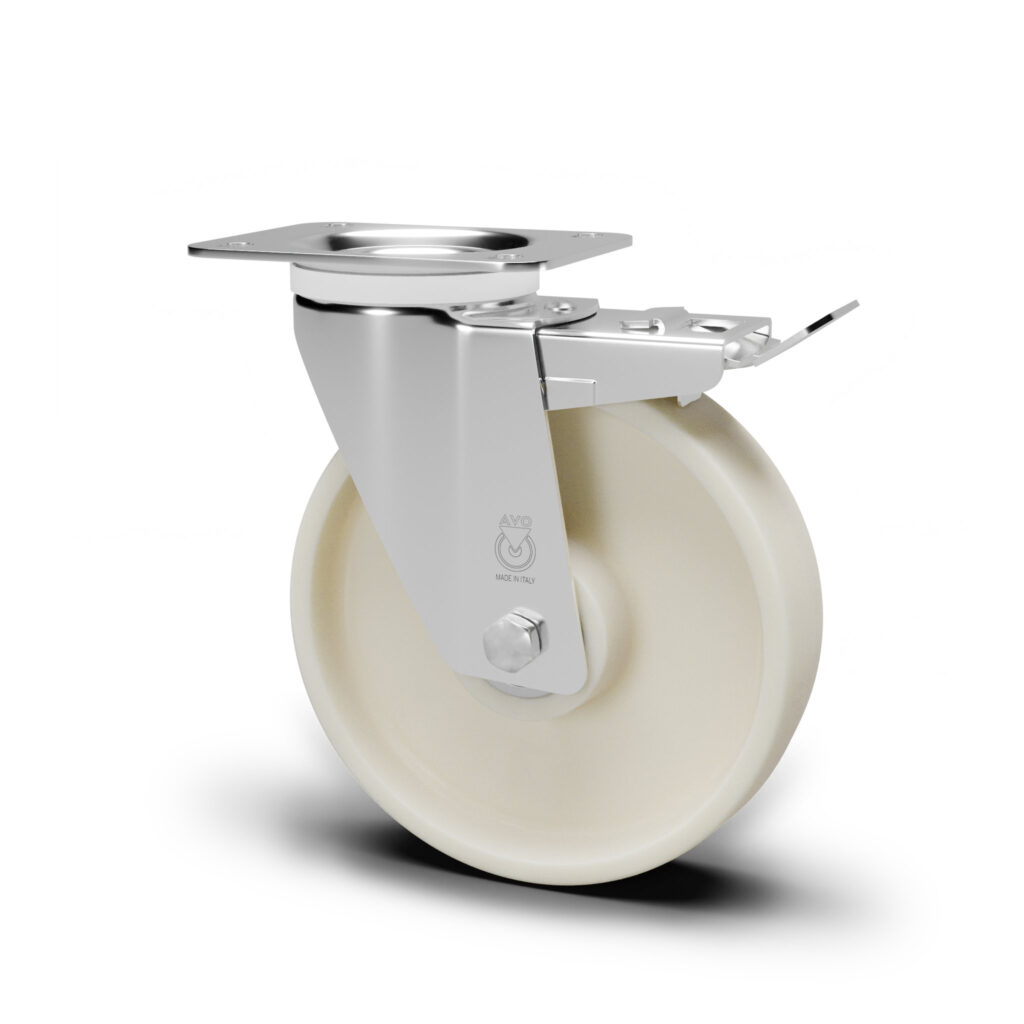

319XANT-AVO
