Serie 116N-P

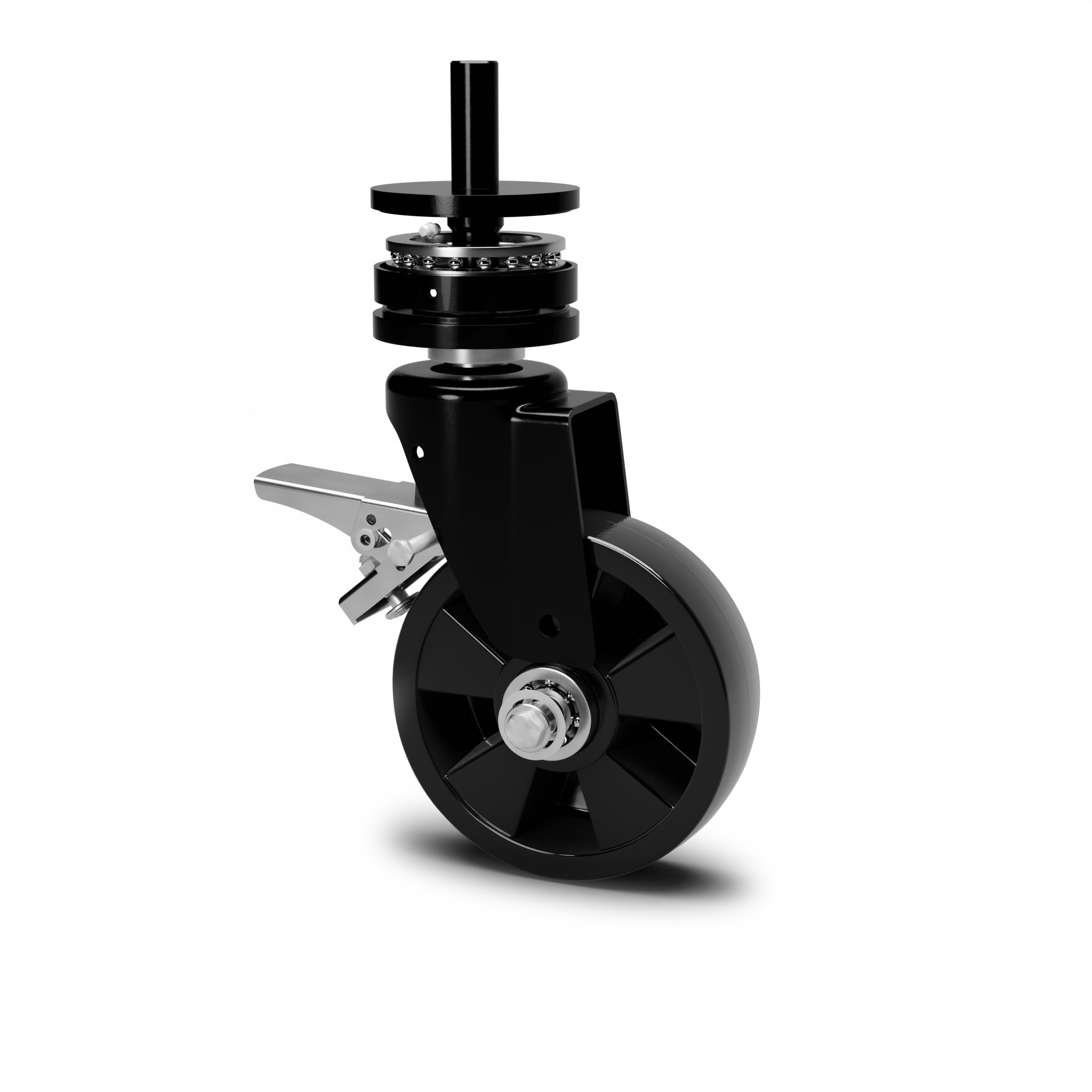

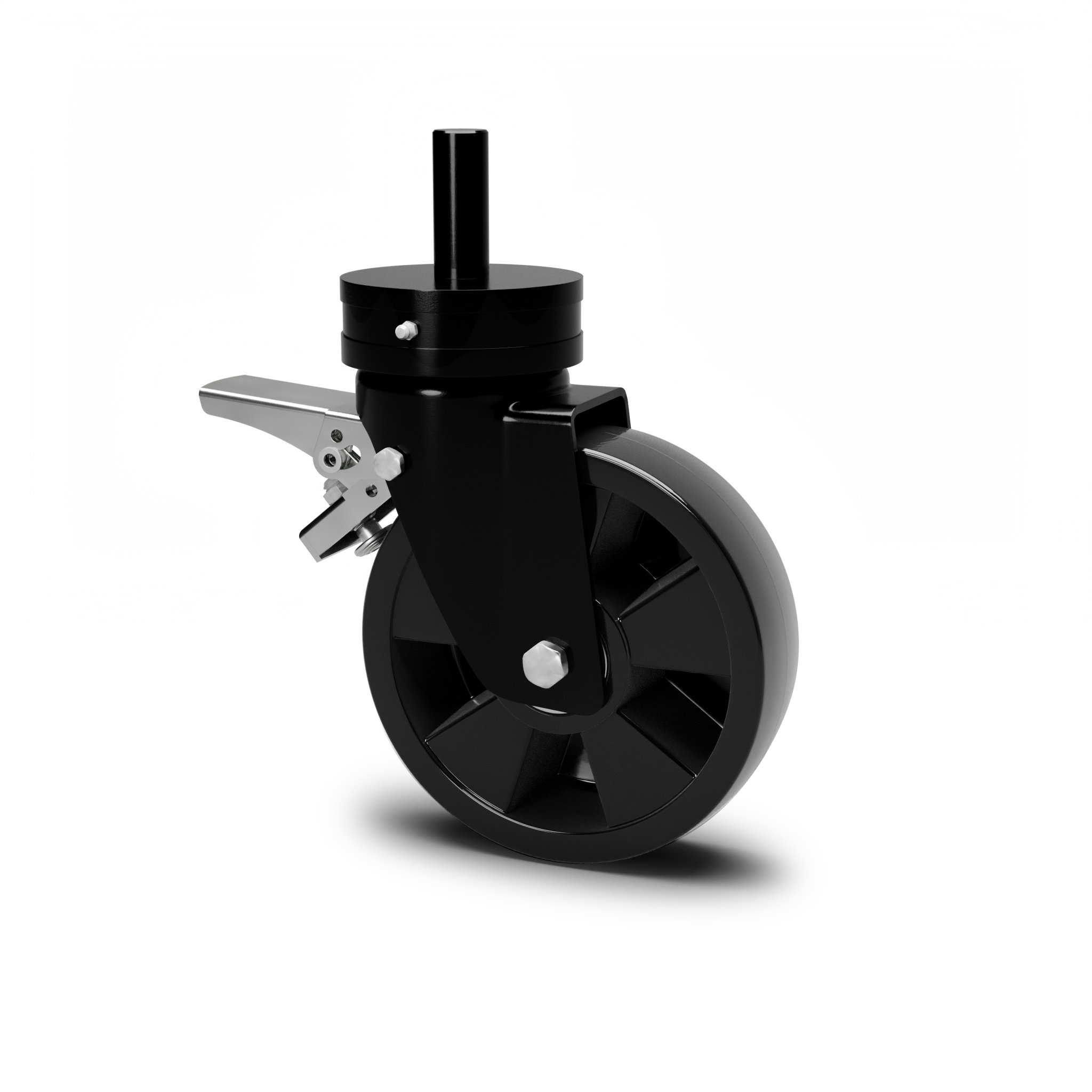

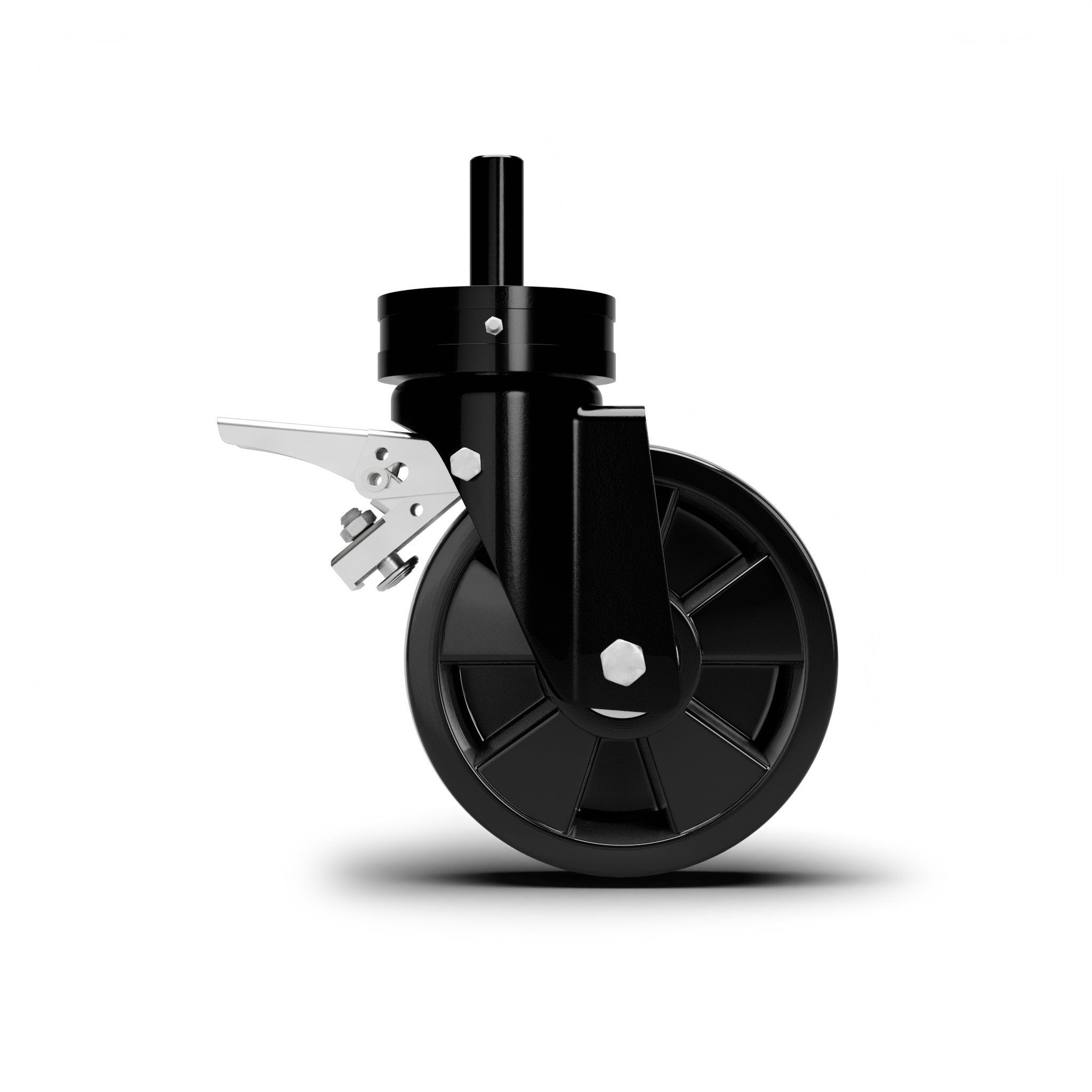

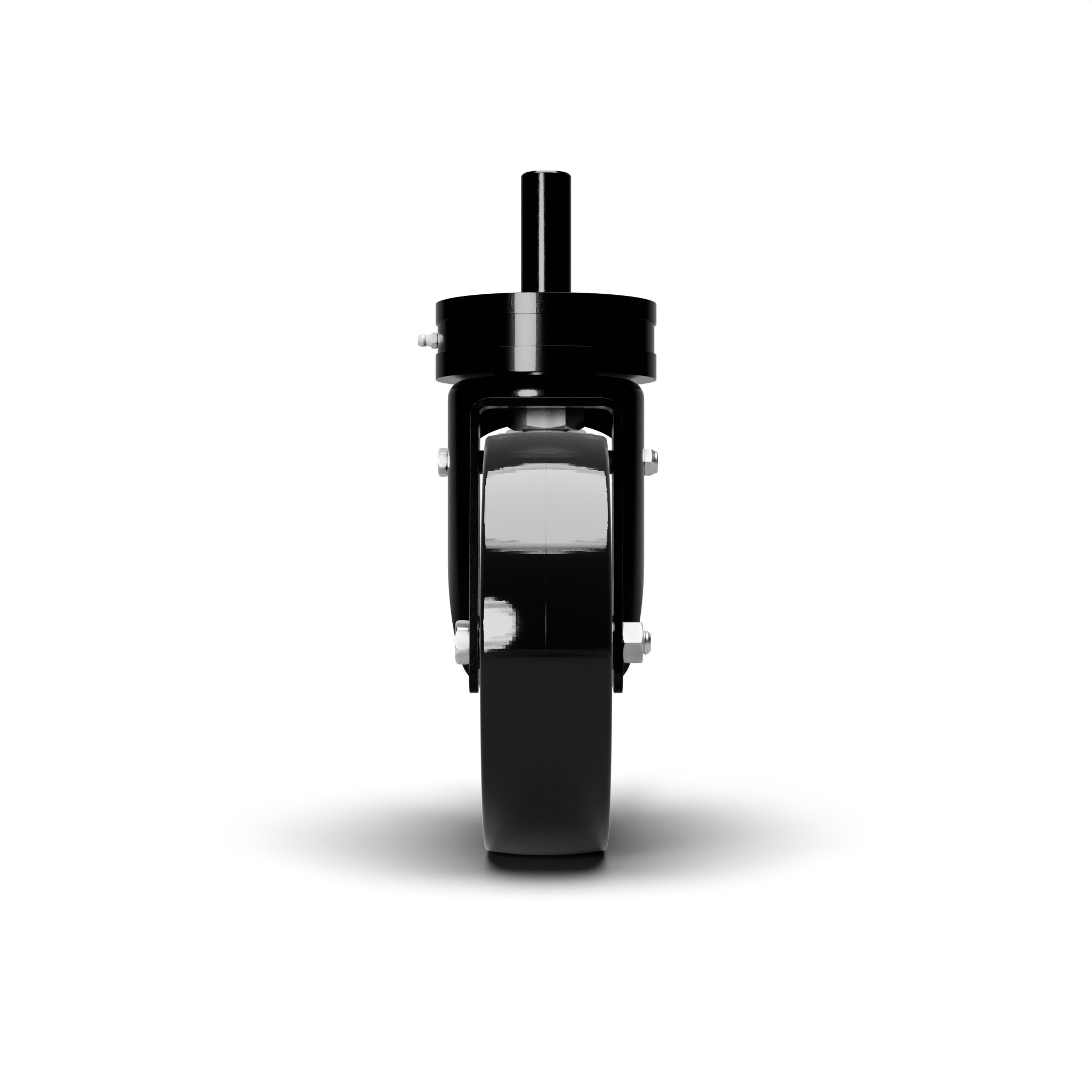

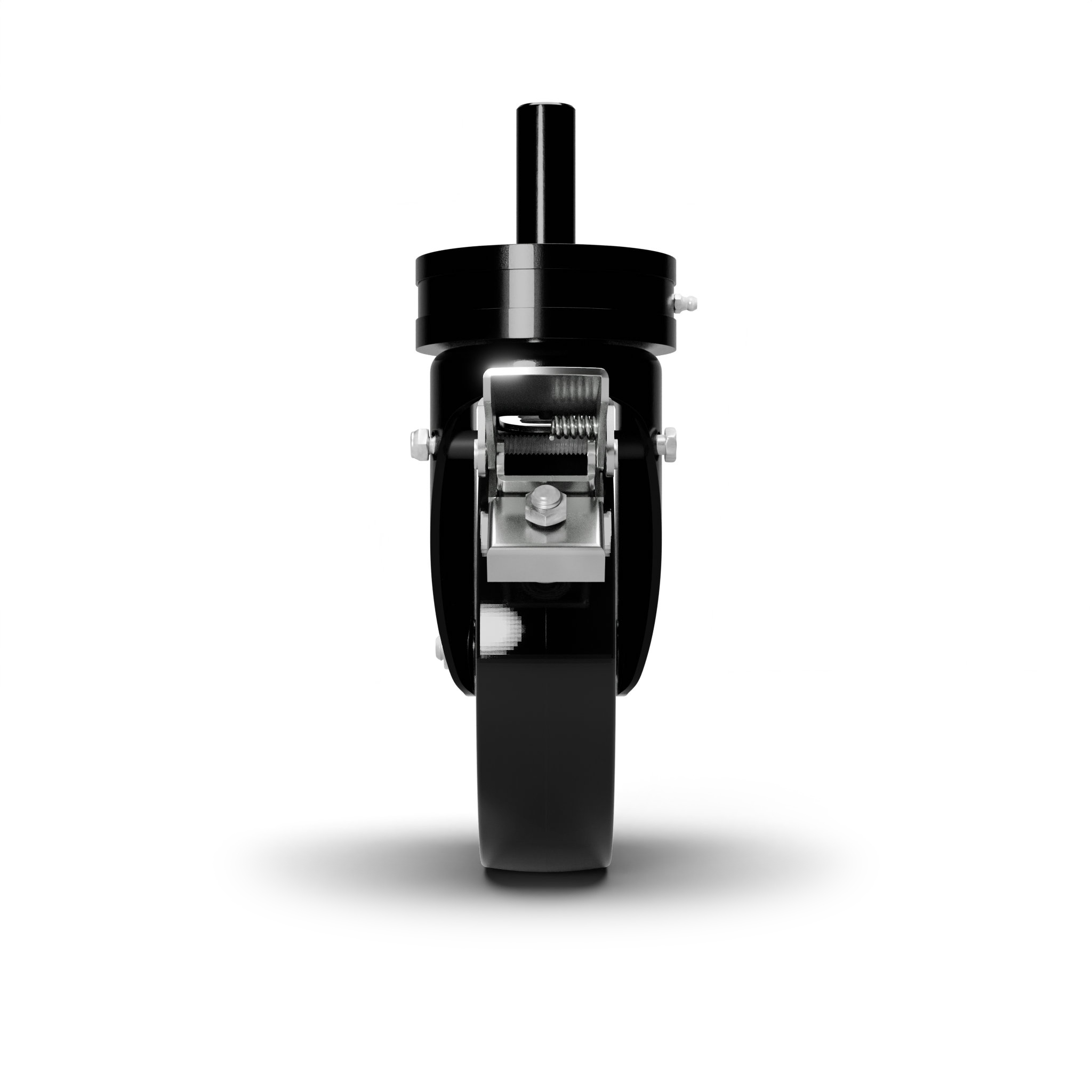

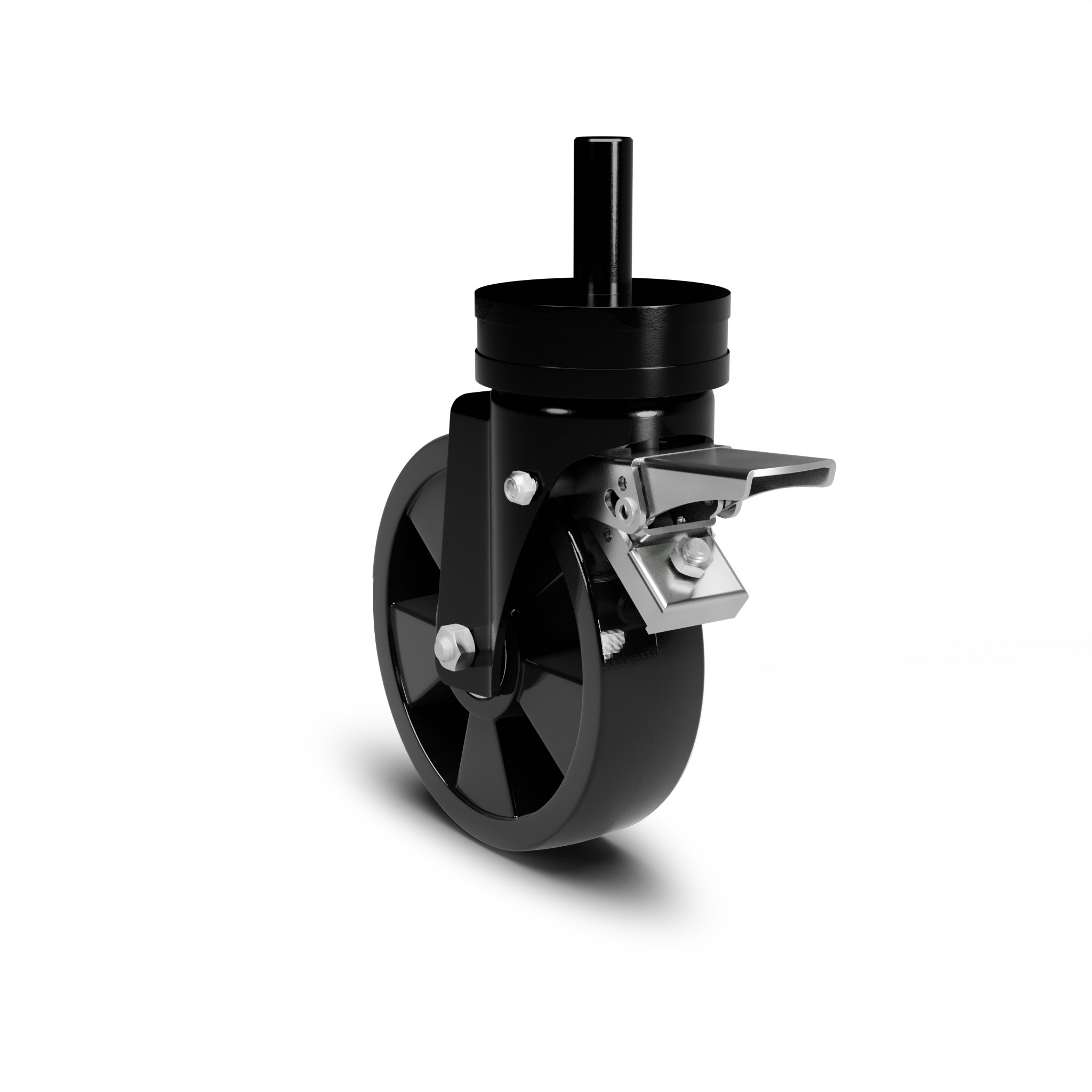

AVO – Wheel made of polyamide 6 with steel castor for industry, diameter 125mm ean 27839

126BISB-N

Material: Polyamide 6

Core: Polyamide 6

Application field: Industry

Request information

Description:

Heavy monolithic Polyamide 6 wheel. Hub on plain bore, roller bearings or shielded ball bearings assembled whit central spacer.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with stem and rear brake. Black epoxy paint.

Product line: Polyamide

EAN13: 8018793278393

EAN5: 27839

Article code: 05126NBF125CN

Features

-25 | 85

400

Ball bearing

Shore D

Floor types

Concrete

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

125

Band width (mm)

Hub width (mm)

Hub version

Ball bearing

Wheel hole (mm)

Bearing seat (mm)

42X12

Dynamic load capacity (DaN)

400

Colour

Black

Material

Polyamide 6

Box pieces

Hardness scale

Shore D

Hardness

Bracket data

Plate size (mm)

Interaxis plate hole (mm)

Plate bore size (mm)

Offset (mm)

Height from ground (mm)

175

Castor hole (mm)

Static load capacity (DaN)

500

Structure

Swivel

Version

Axle with brake

Brake

Rear

Pivot

22X50

Pivot type

Stem(on request threaded stem)

Finishing

Black painted
