Serie 116N-P

AVO – Wheel made of polyamide 6 with steel castor for industry, diameter 150mm ean 27849

137BIS-N

Material: Polyamide 6

Core: Polyamide 6

Application field: Industry

Request information

Description:

Heavy monolithic Polyamide 6 wheel. Hub on plain bore, roller bearings or shielded ball bearings assembled whit central spacer.

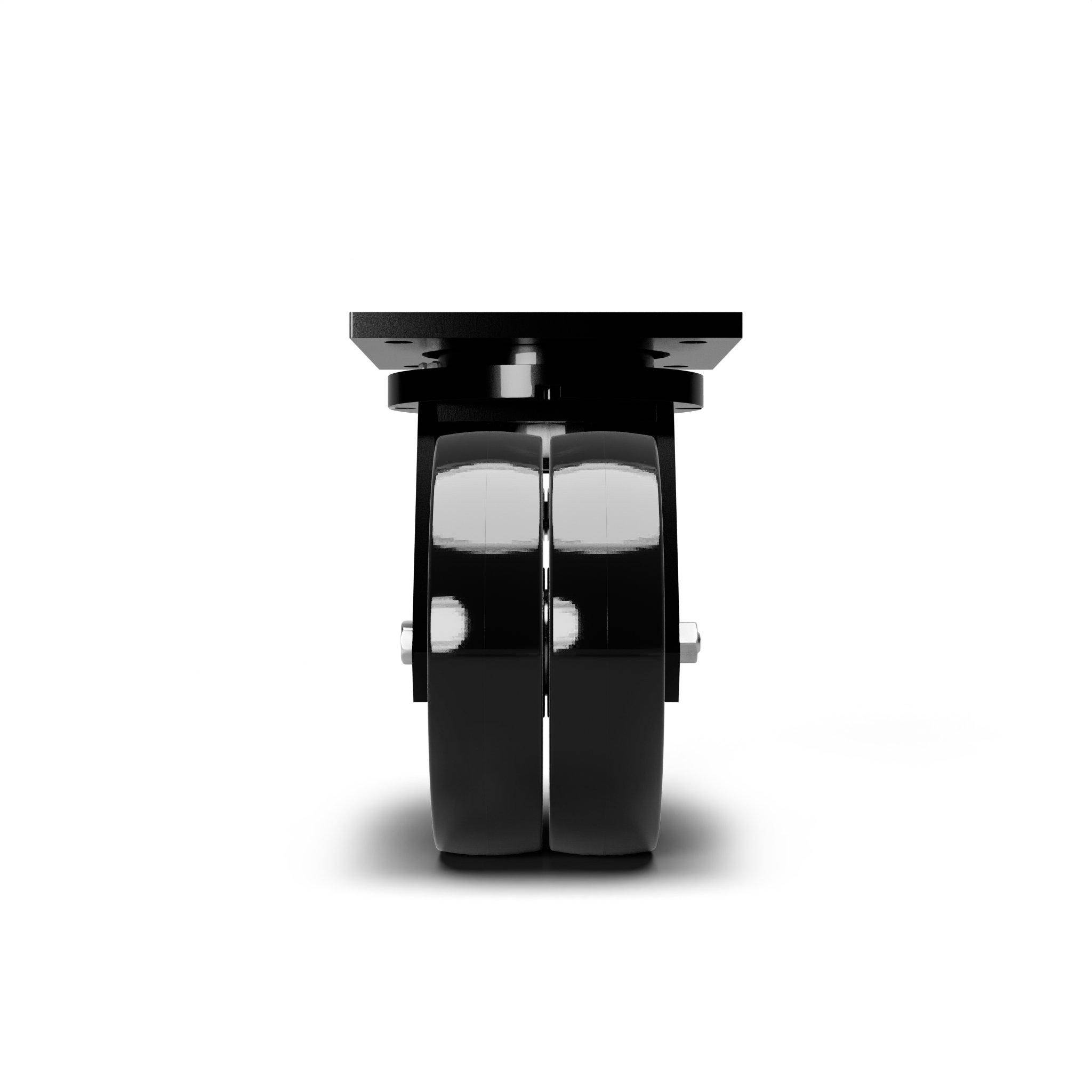

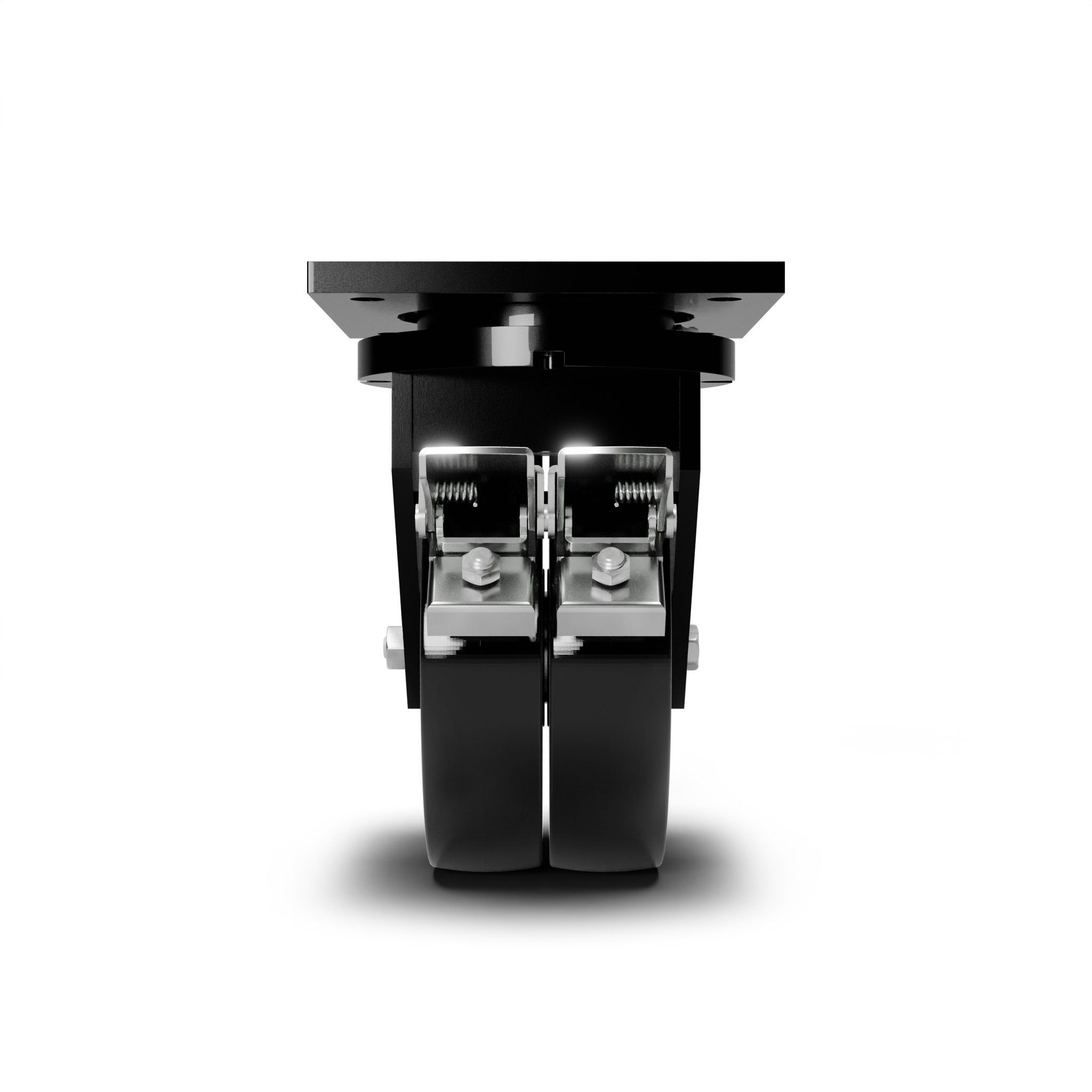

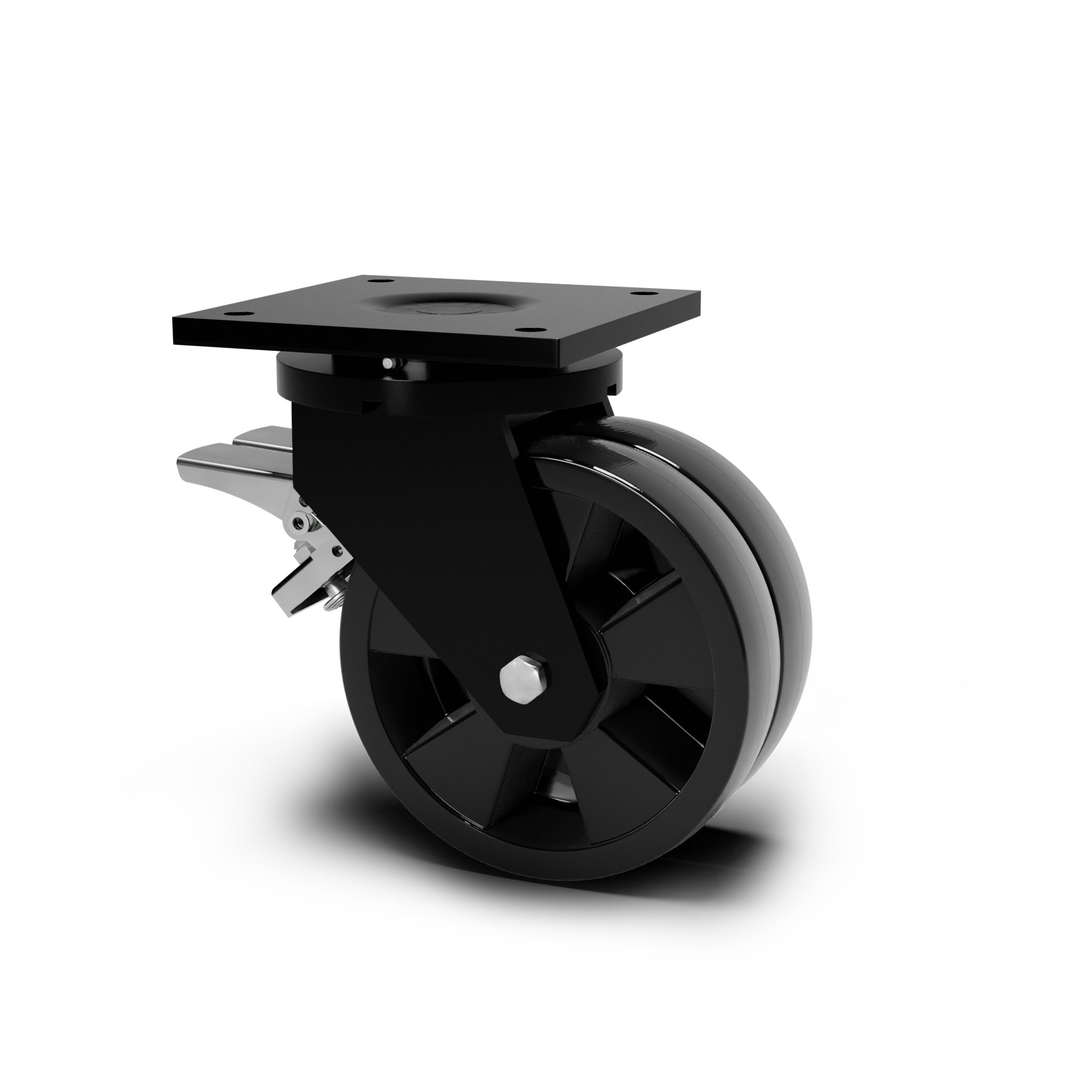

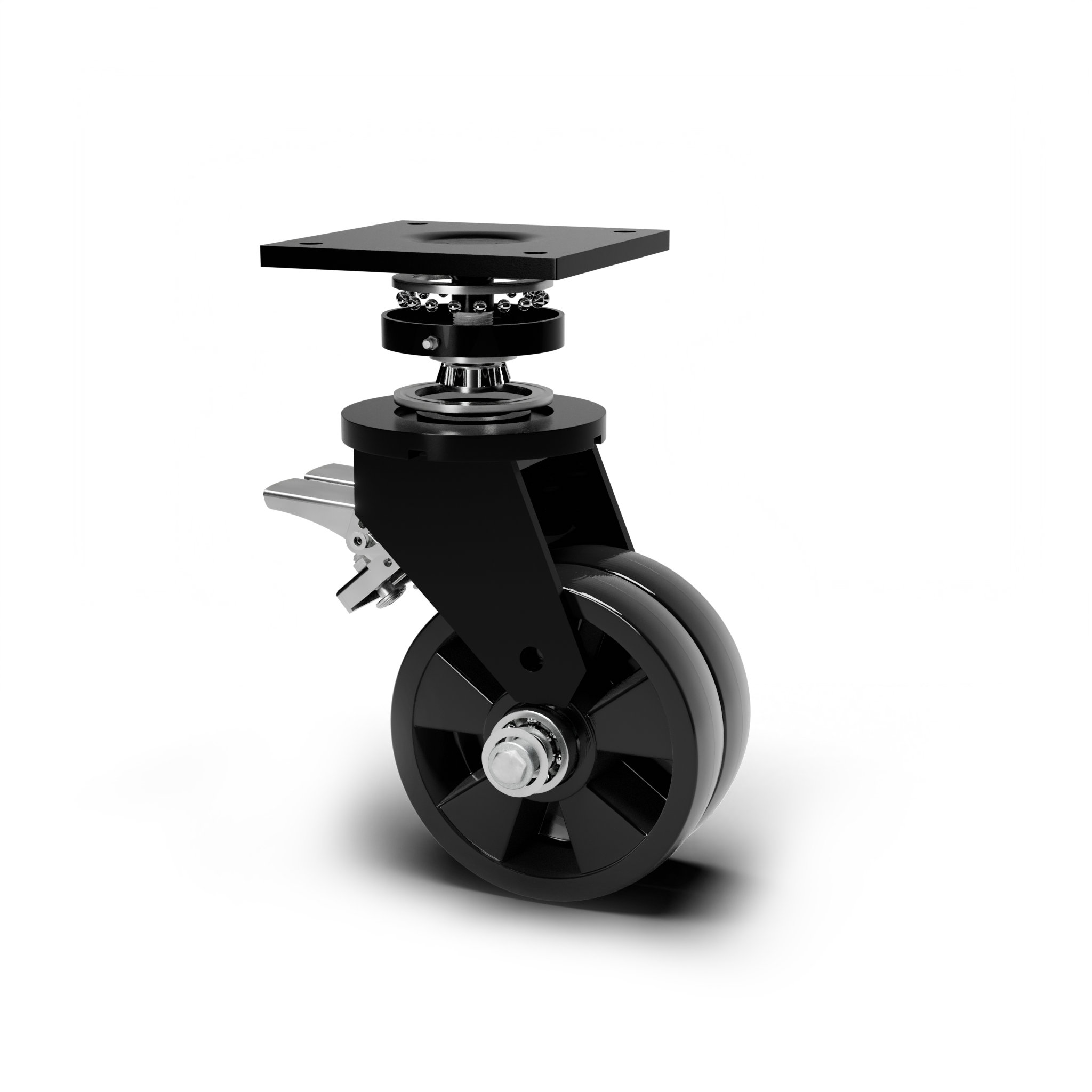

Twin Wheel Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.

Product line: Polyamide

EAN13: 8018793278492

EAN5: 27849

Article code: 05137N0F150CN

Features

-25 | 85

1000

Ball bearing

Shore D

Floor types

Concrete

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

150

Band width (mm)

Hub width (mm)

Hub version

Ball bearing

Wheel hole (mm)

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

1000

Colour

Black

Material

Polyamide 6

Box pieces

Hardness scale

Shore D

Hardness

Bracket data

Plate size (mm)

200X200

Interaxis plate hole (mm)

160X160

Plate bore size (mm)

Offset (mm)

Height from ground (mm)

210

Castor hole (mm)

Static load capacity (DaN)

1250

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

Pivot type

Finishing

Black painted
