Serie 116N-P

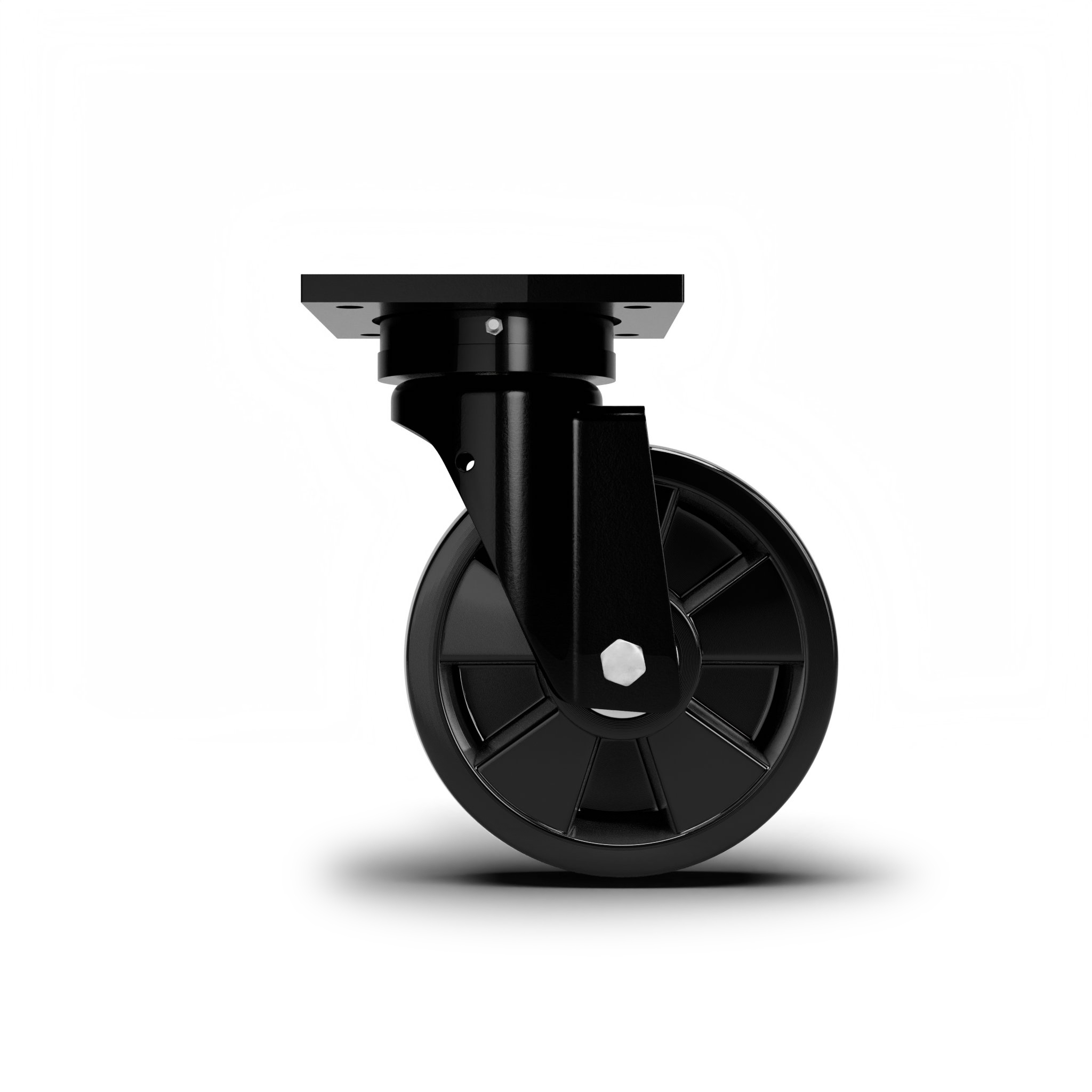

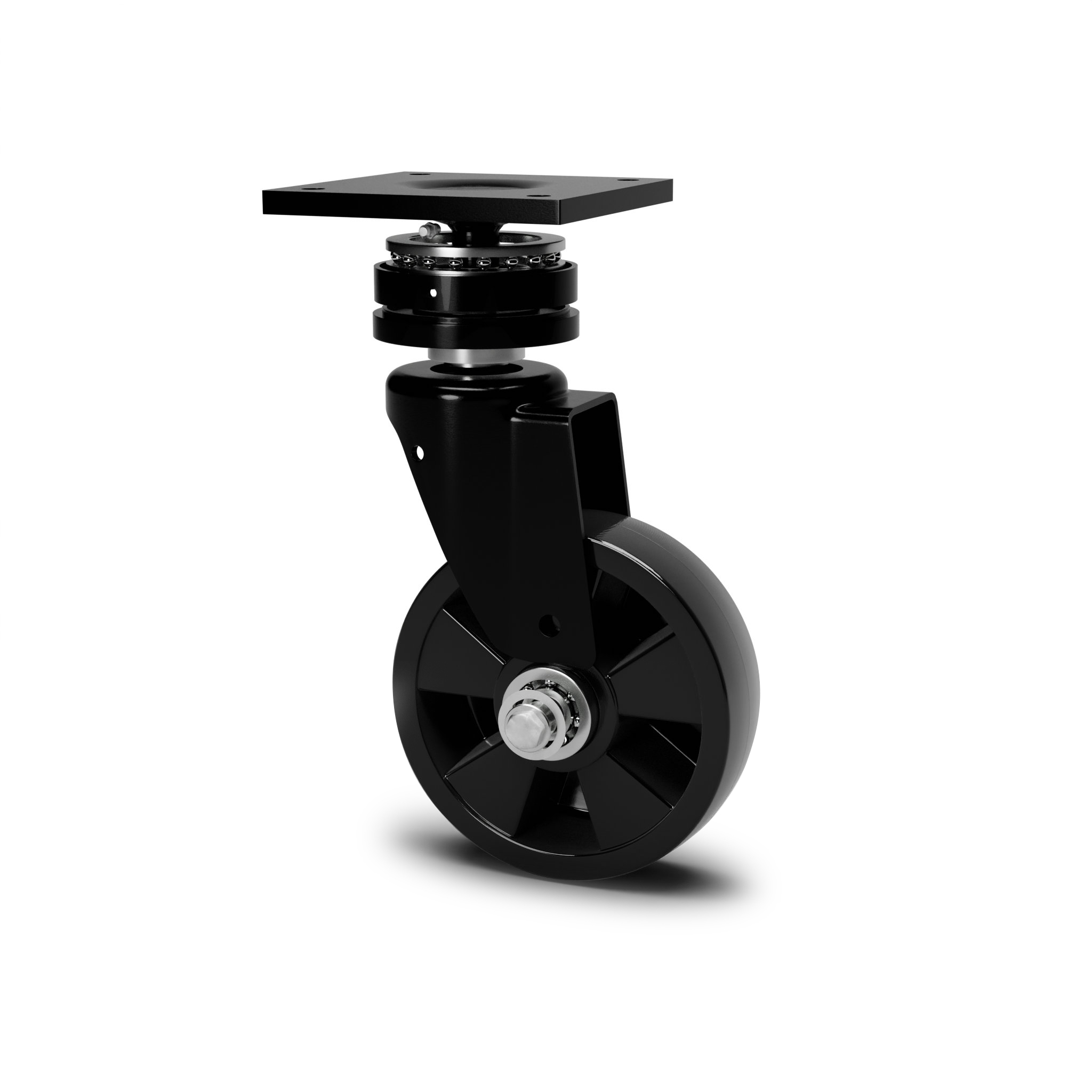

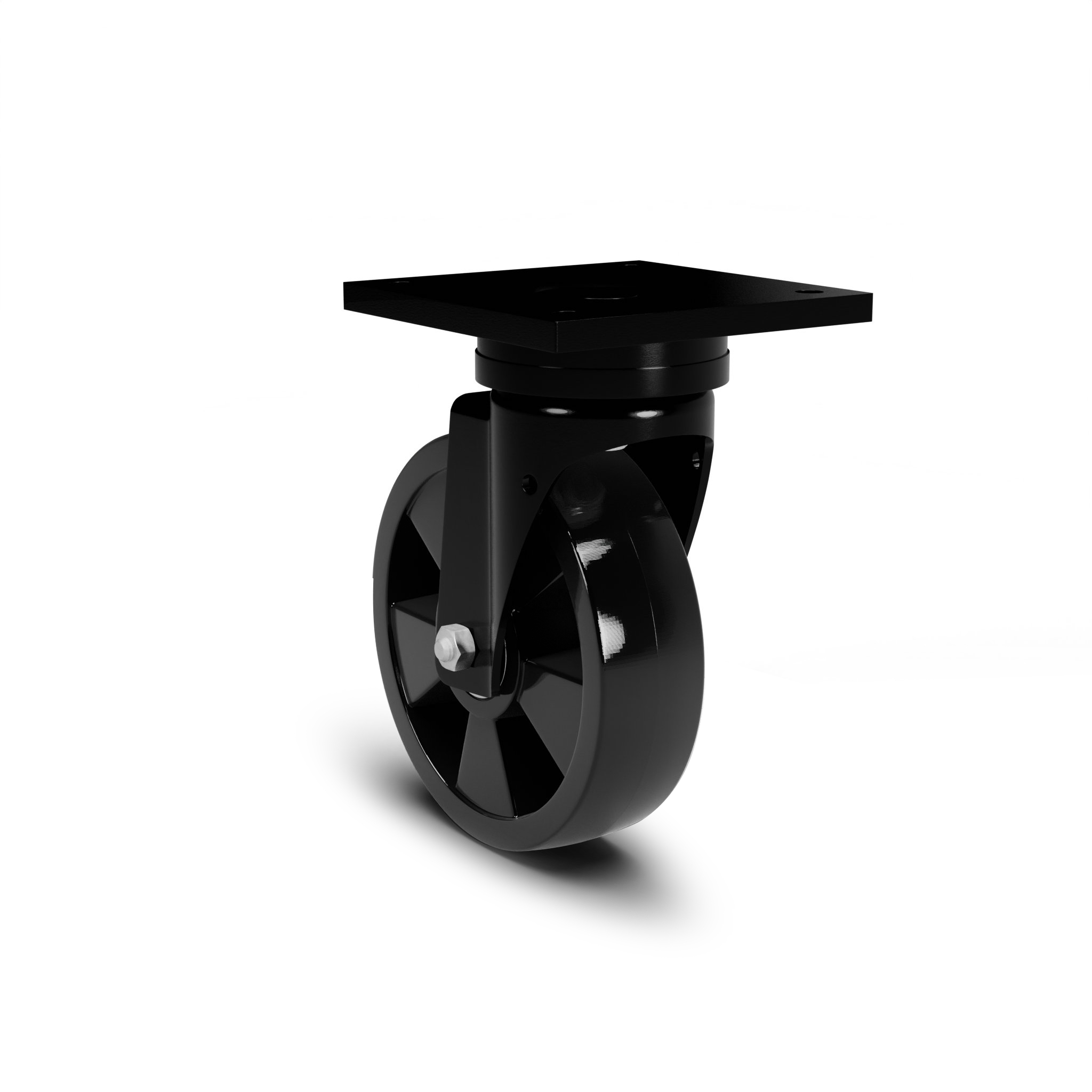

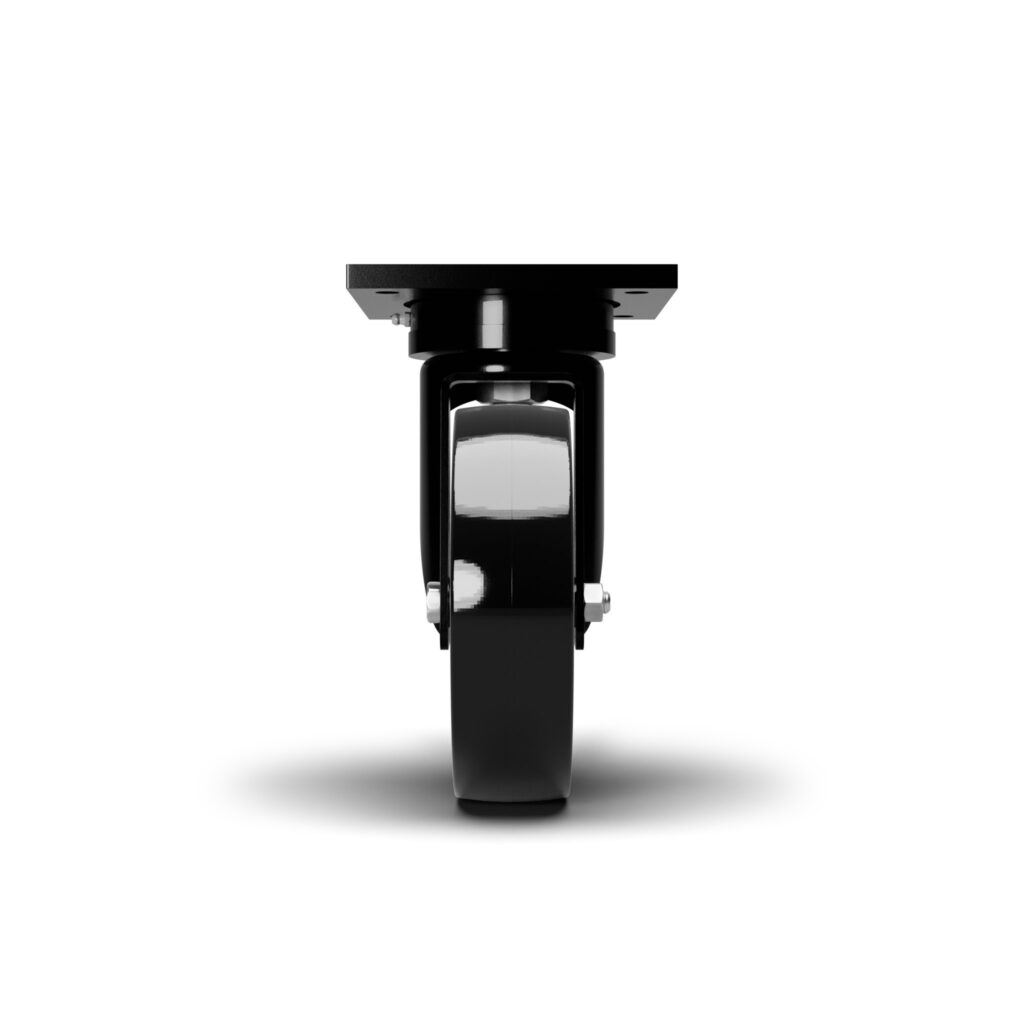

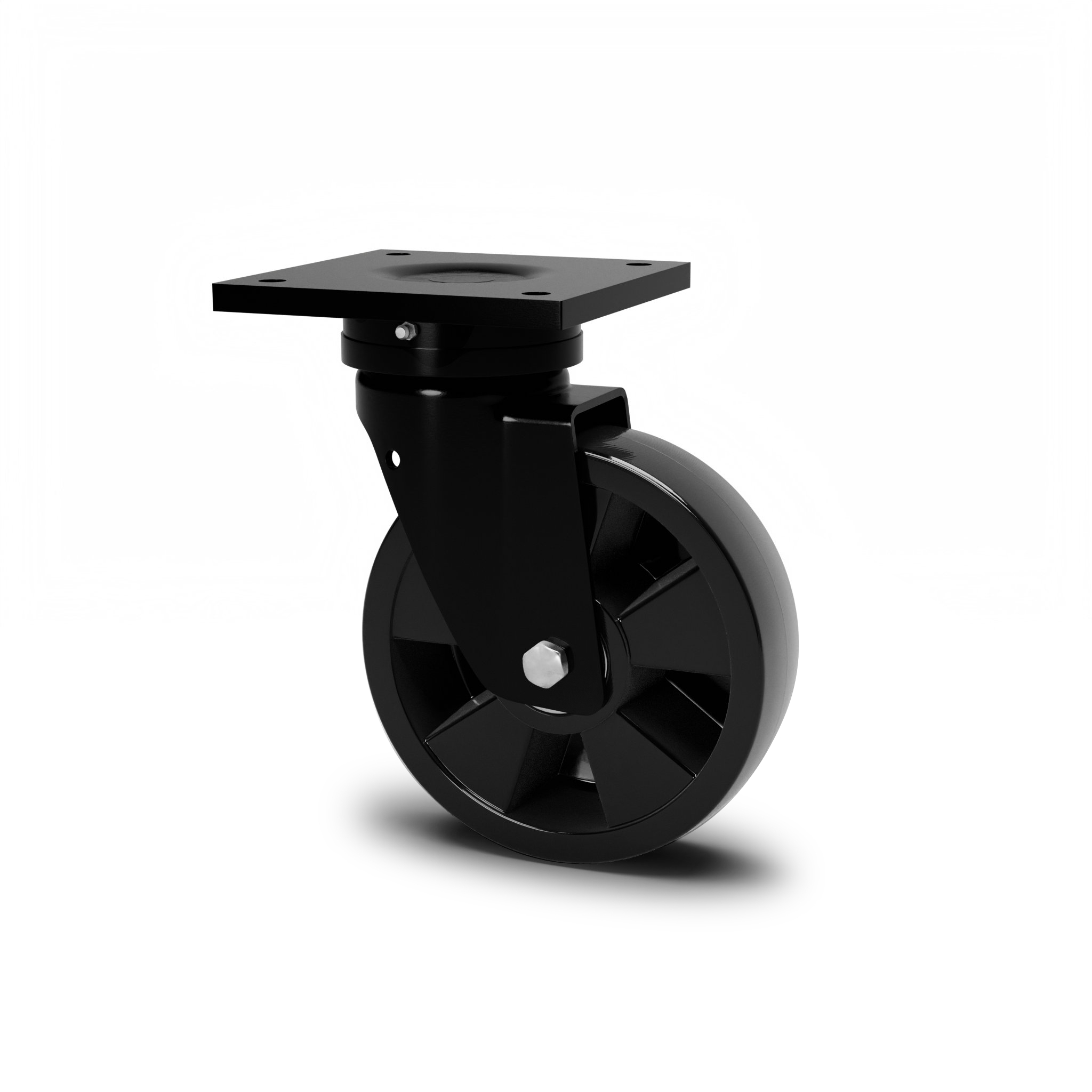

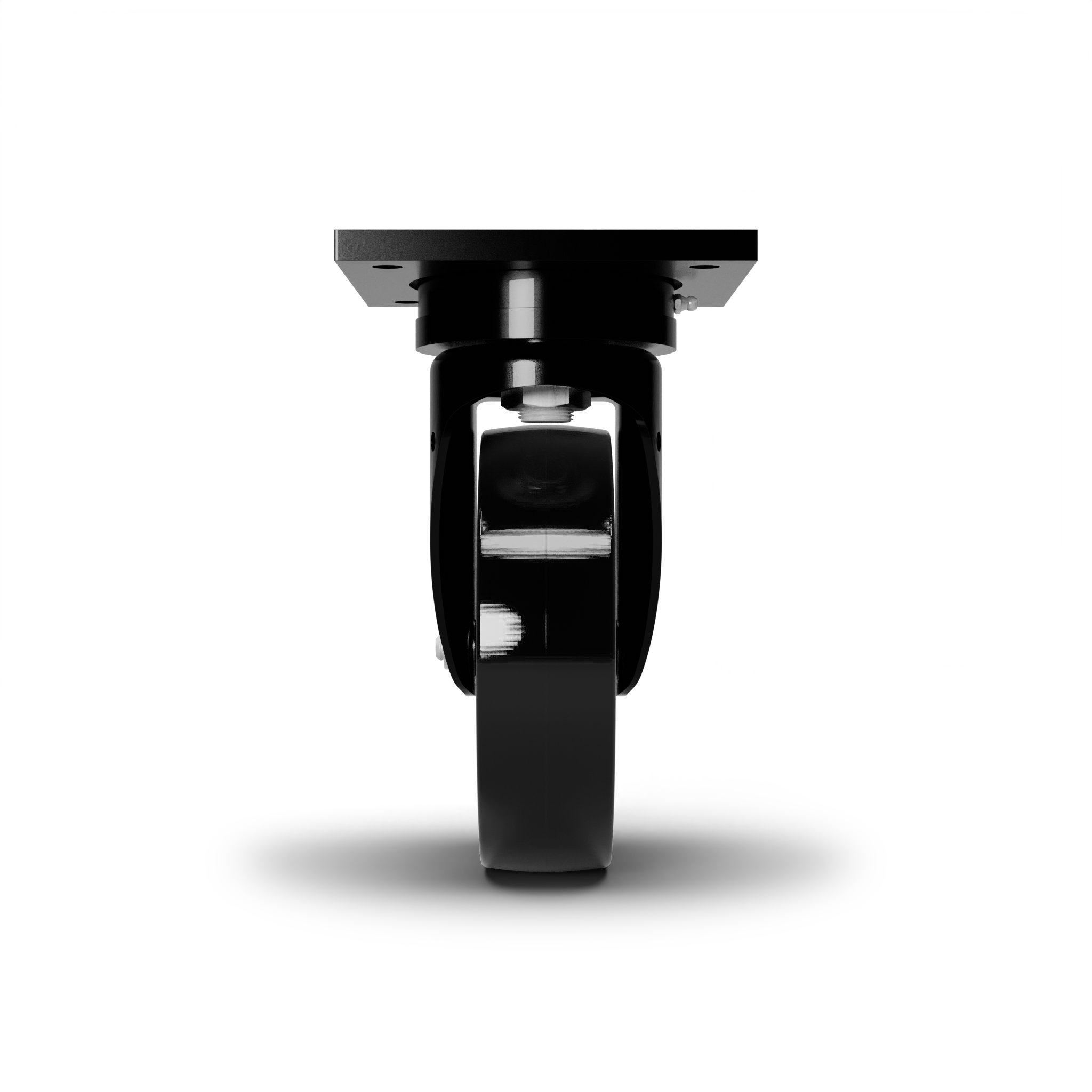

AVO – Wheel with polyamide 6 and steel castor for industry, diameter 160mm ean 27821

126-N

Material: Polyamide 6

Core: Polyamide 6

Application field: Industry

Request information

Description:

Heavy monolithic Polyamide 6 wheel. Hub on plain bore, roller bearings or shielded ball bearings assembled whit central spacer.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint.

Product line: Polyamide

Linea di prodotto: Polyamide

EAN13: 8018793278218

EAN5: 27821

Article code: 05126N00160CN

Features

-25 | 85

500

Ball bearing

Shore D

Floor types

Concrete

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

160

Band width (mm)

Hub width (mm)

Hub version

Ball bearing

Wheel hole (mm)

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

500

Colour

Black

Material

Polyamide 6

Box pieces

Hardness scale

Shore D

Hardness

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

Offset (mm)

Height from ground (mm)

240

Castor hole (mm)

Static load capacity (DaN)

630

Structure

Swivel

Version

Plate

Brake

Pivot

Pivot type

Finishing

Black painted
