Serie 116N-P

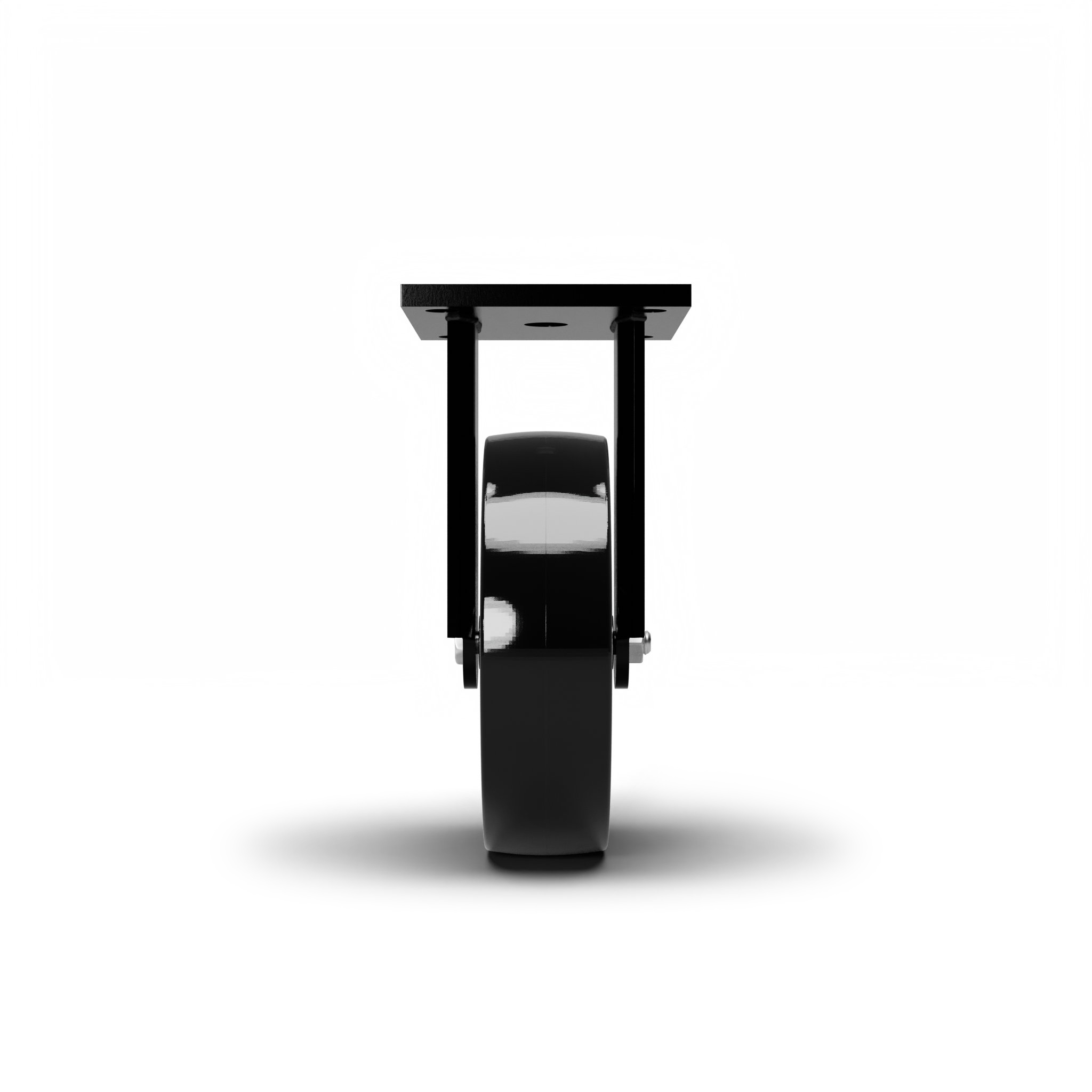

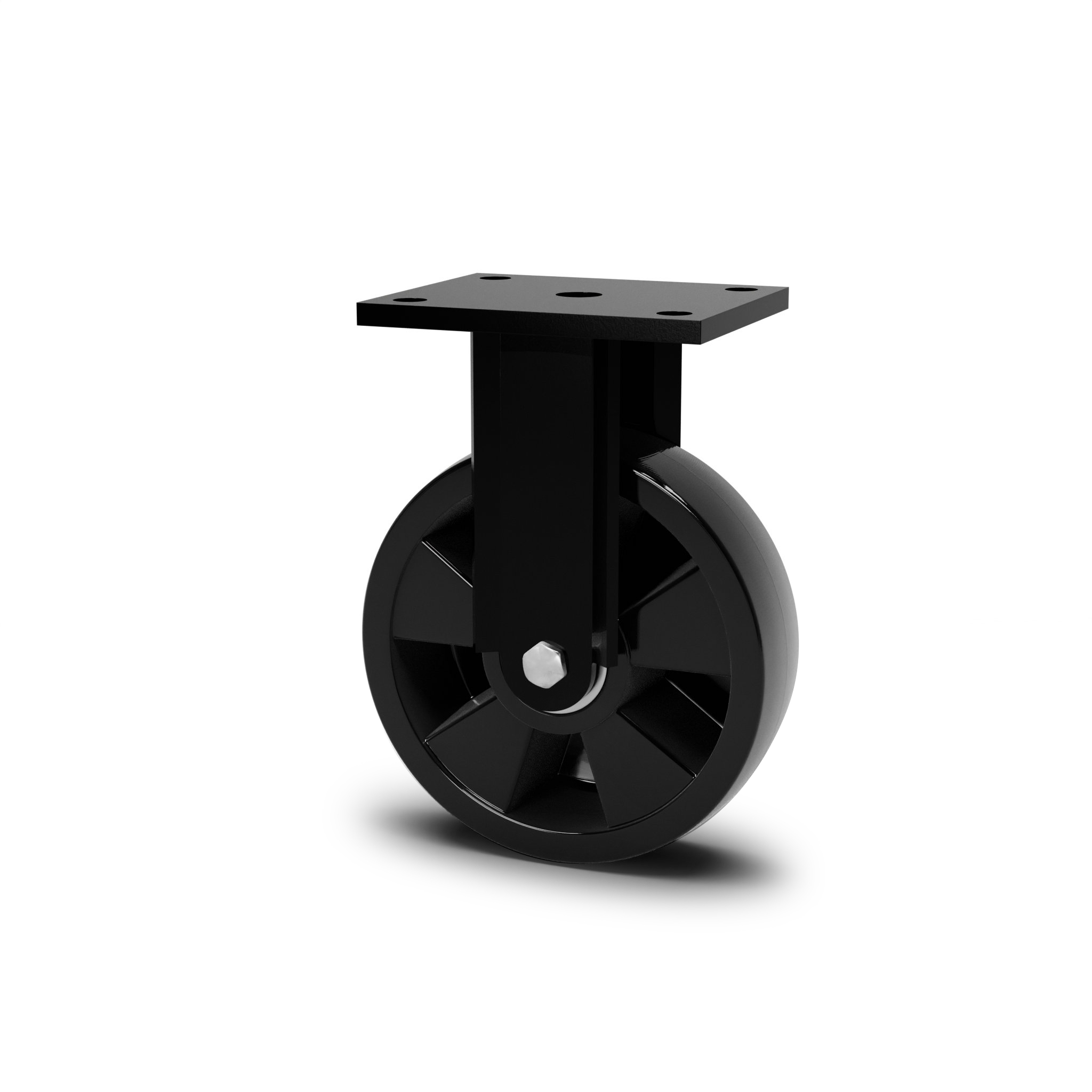

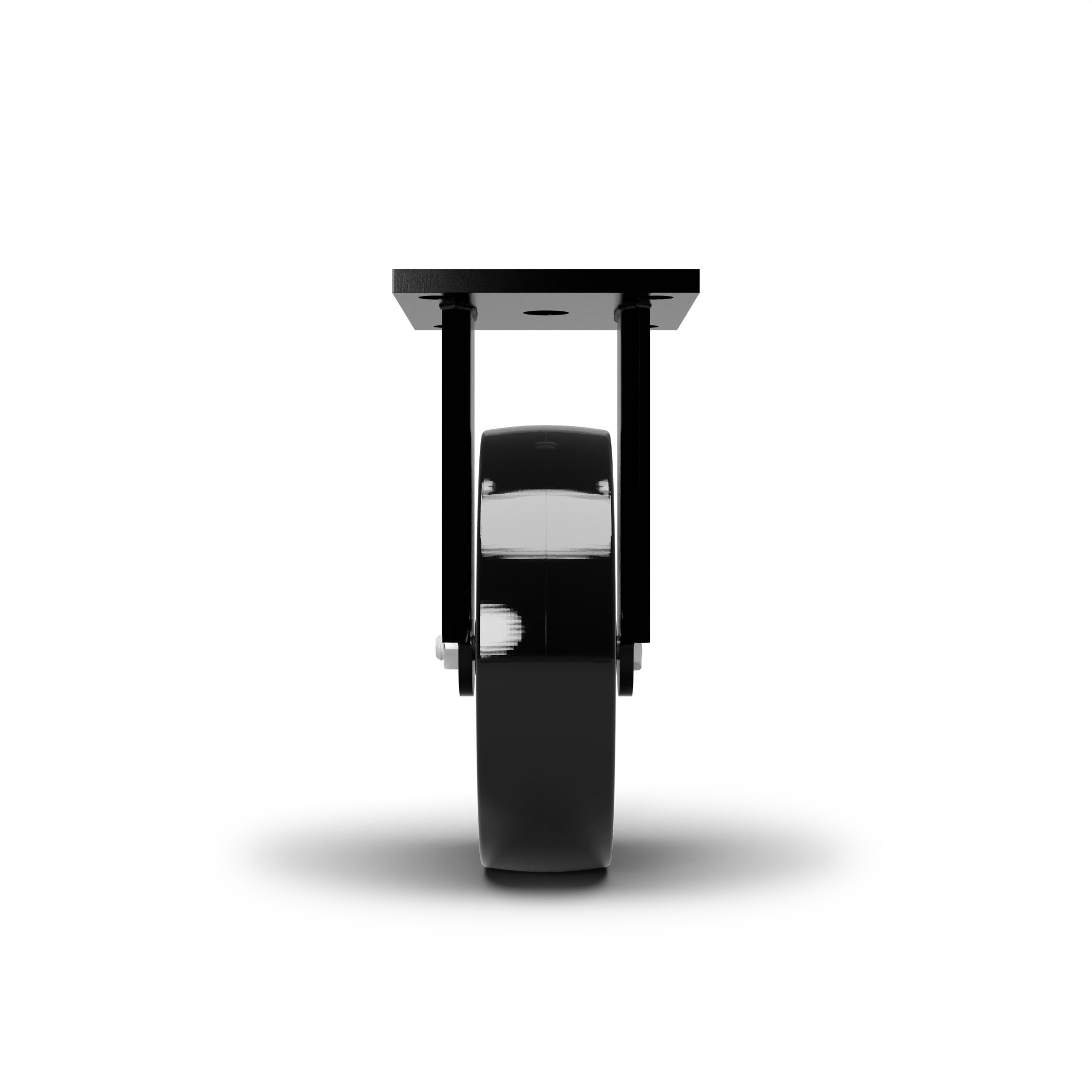

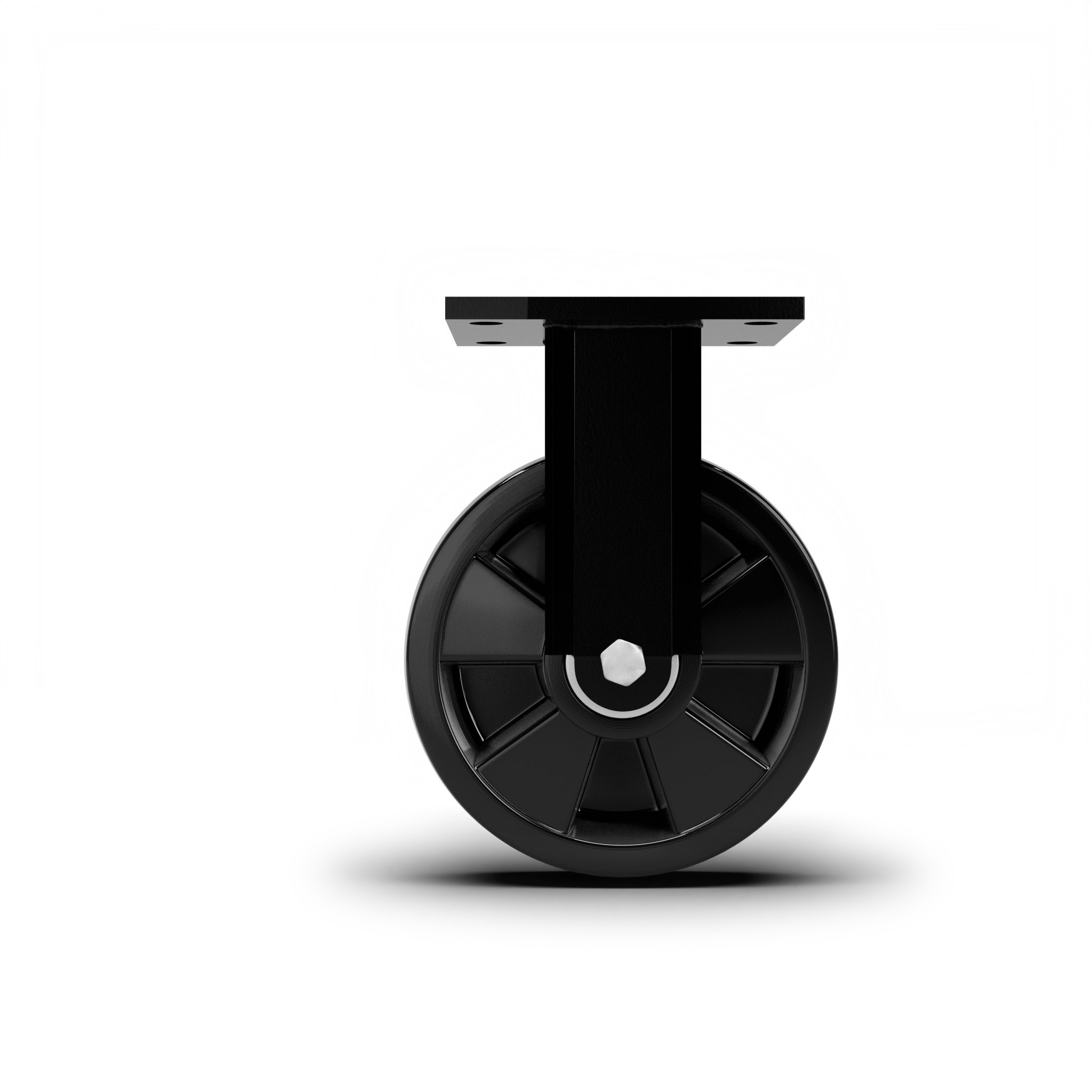

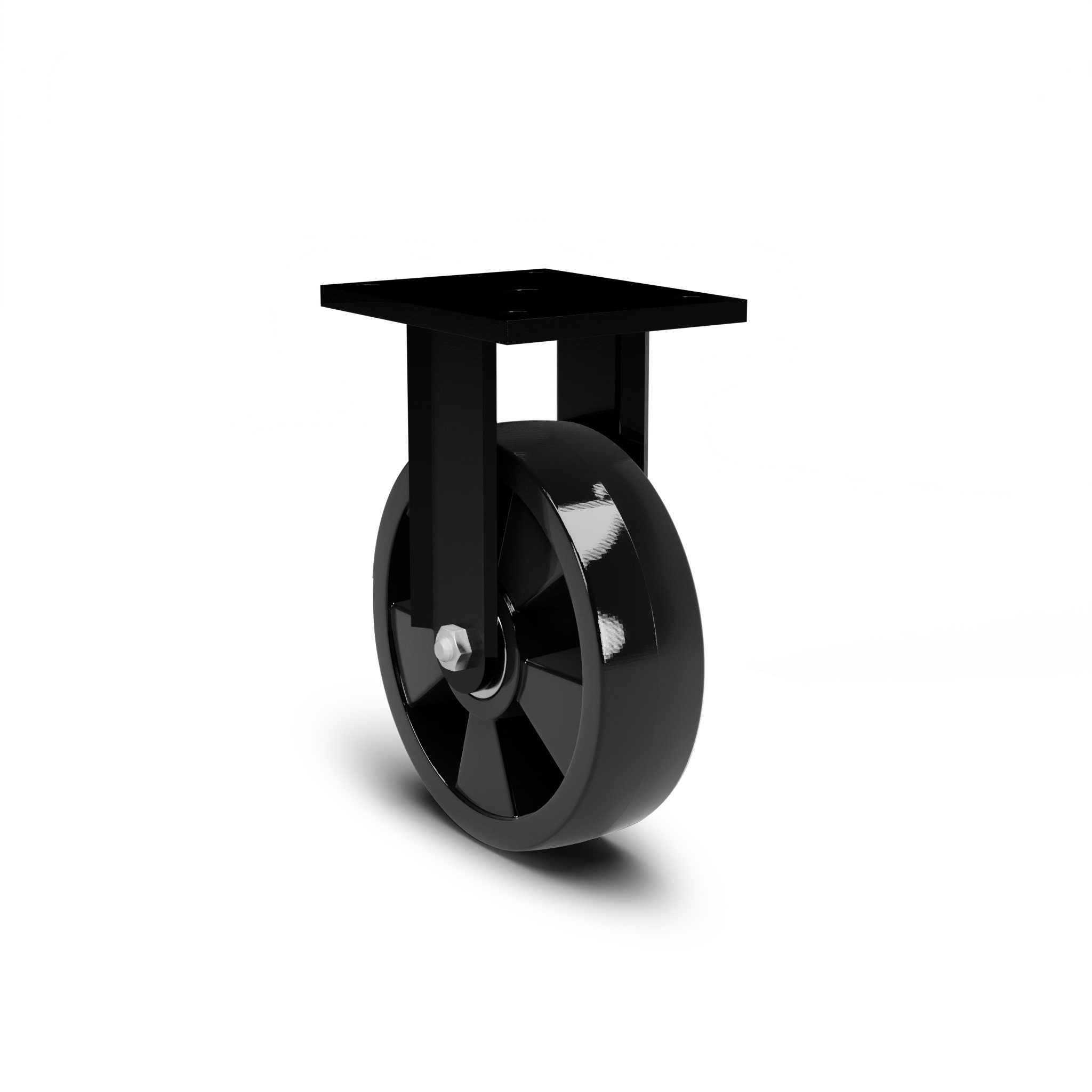

AVO – Wheel made of polyamide 6 with steel castor for industry, diameter 200mm ean 27827

126A-N

Material: Polyamide 6

Core: Polyamide 6

Application field: Industry

Request information

Description:

Heavy monolithic Polyamide 6 wheel. Hub on plain bore, roller bearings or shielded ball bearings assembled whit central spacer.

Extra Heavy-Duty Castors

Made of in pressed and welded high thickness steel, fixed. Black epoxy paint.

Product line: Polyamide

EAN13: 8018793278270

EAN5: 27827

Article code: 05126NA0200CN

Features

-25 | 85

800

Ball bearing

Shore D

Floor types

Concrete

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

200

Band width (mm)

Hub width (mm)

Hub version

Ball bearing

Wheel hole (mm)

Bearing seat (mm)

52X15

Dynamic load capacity (DaN)

800

Colour

Black

Material

Polyamide 6

Box pieces

Hardness scale

Shore D

Hardness

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

Offset (mm)

Height from ground (mm)

260

Castor hole (mm)

Static load capacity (DaN)

1000

Structure

Fixed

Version

Brake

Pivot

Pivot type

Finishing

Black painted
