Serie 14AS

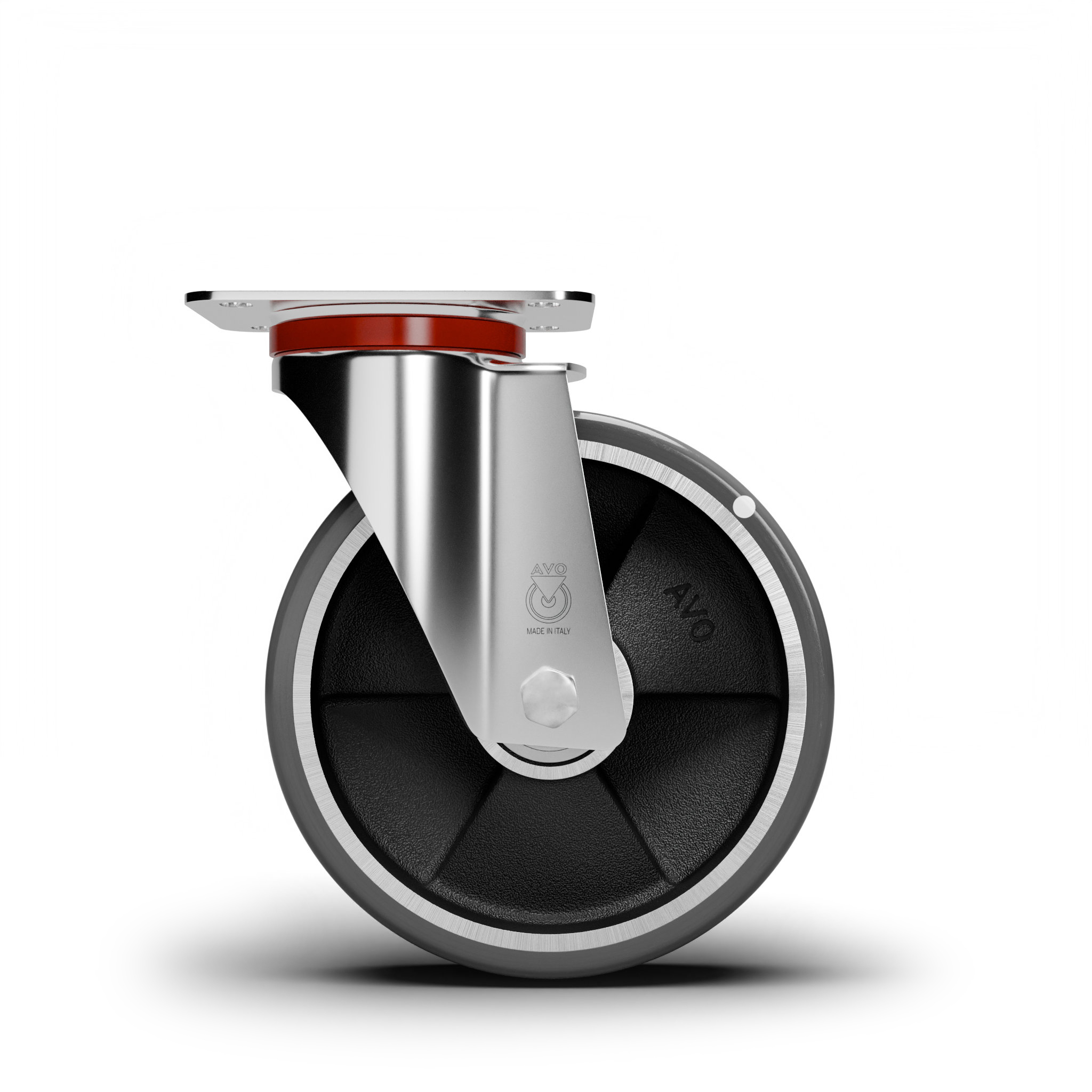

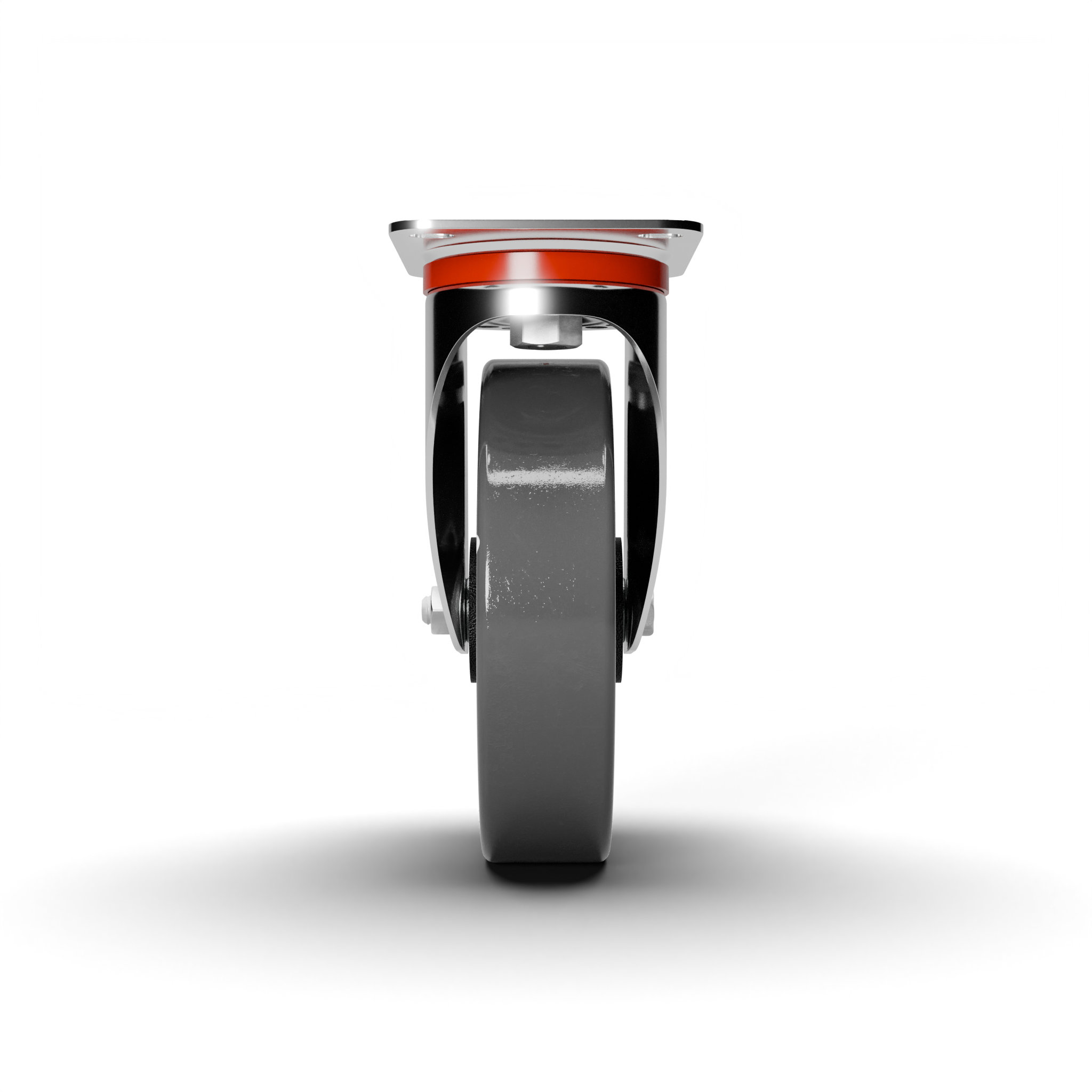

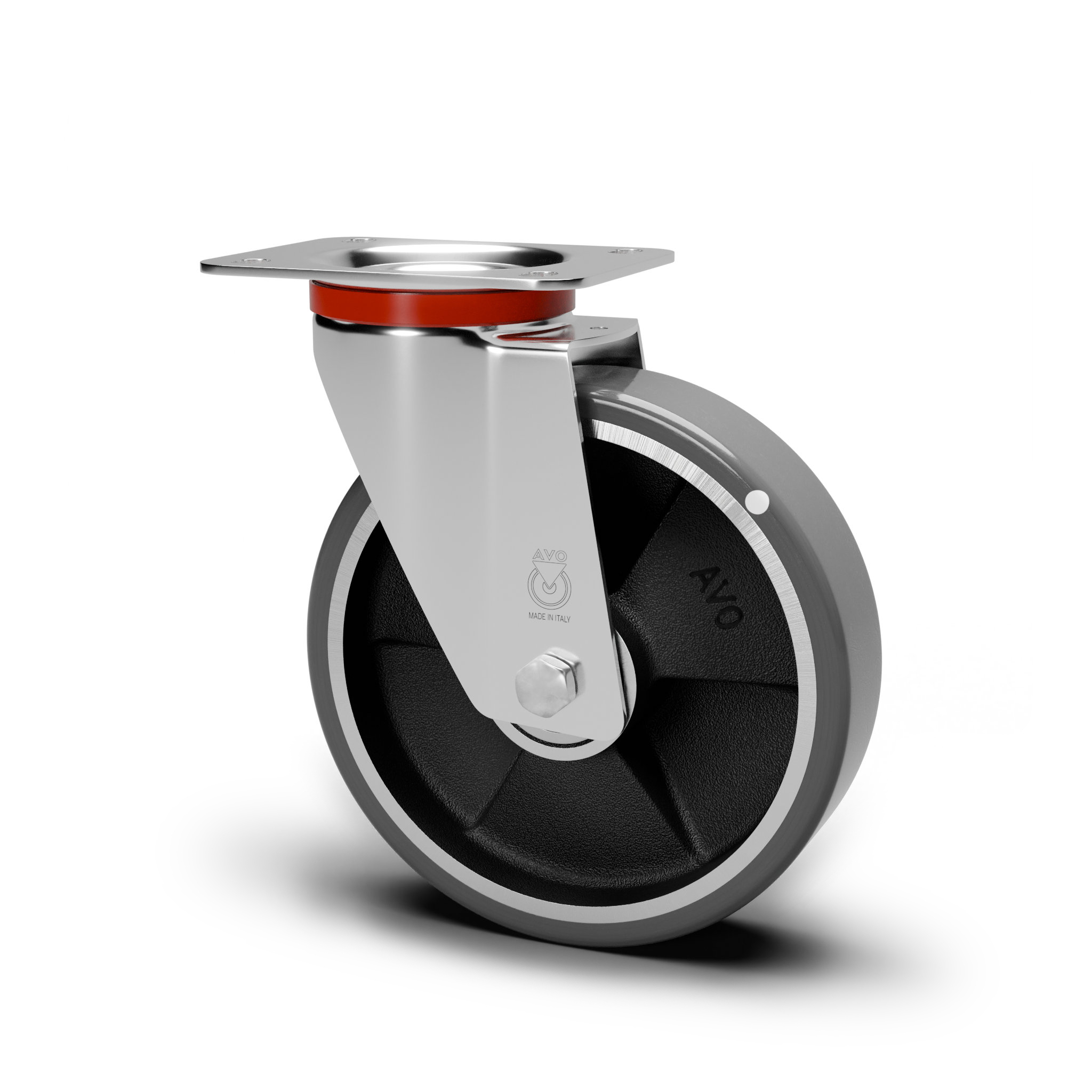

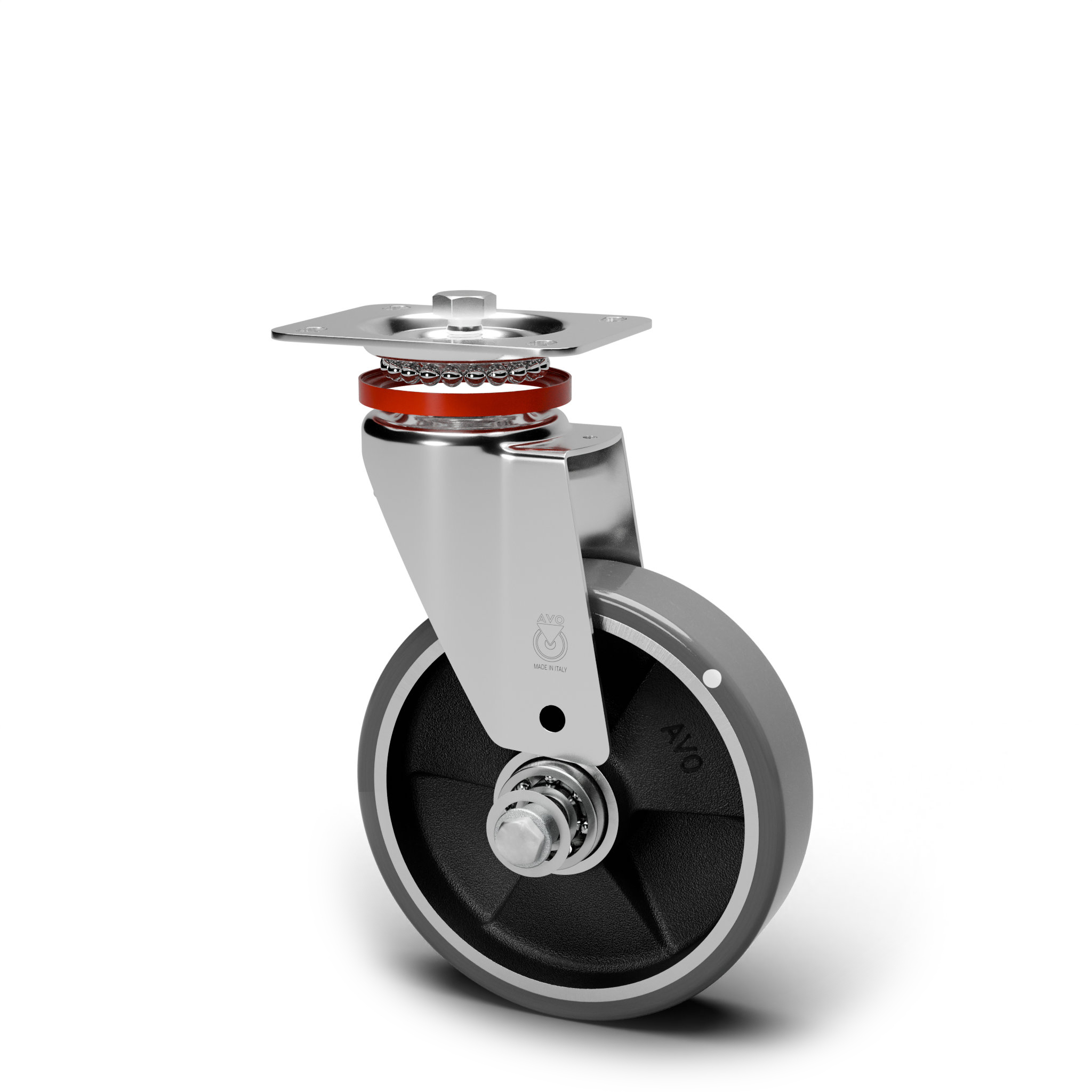

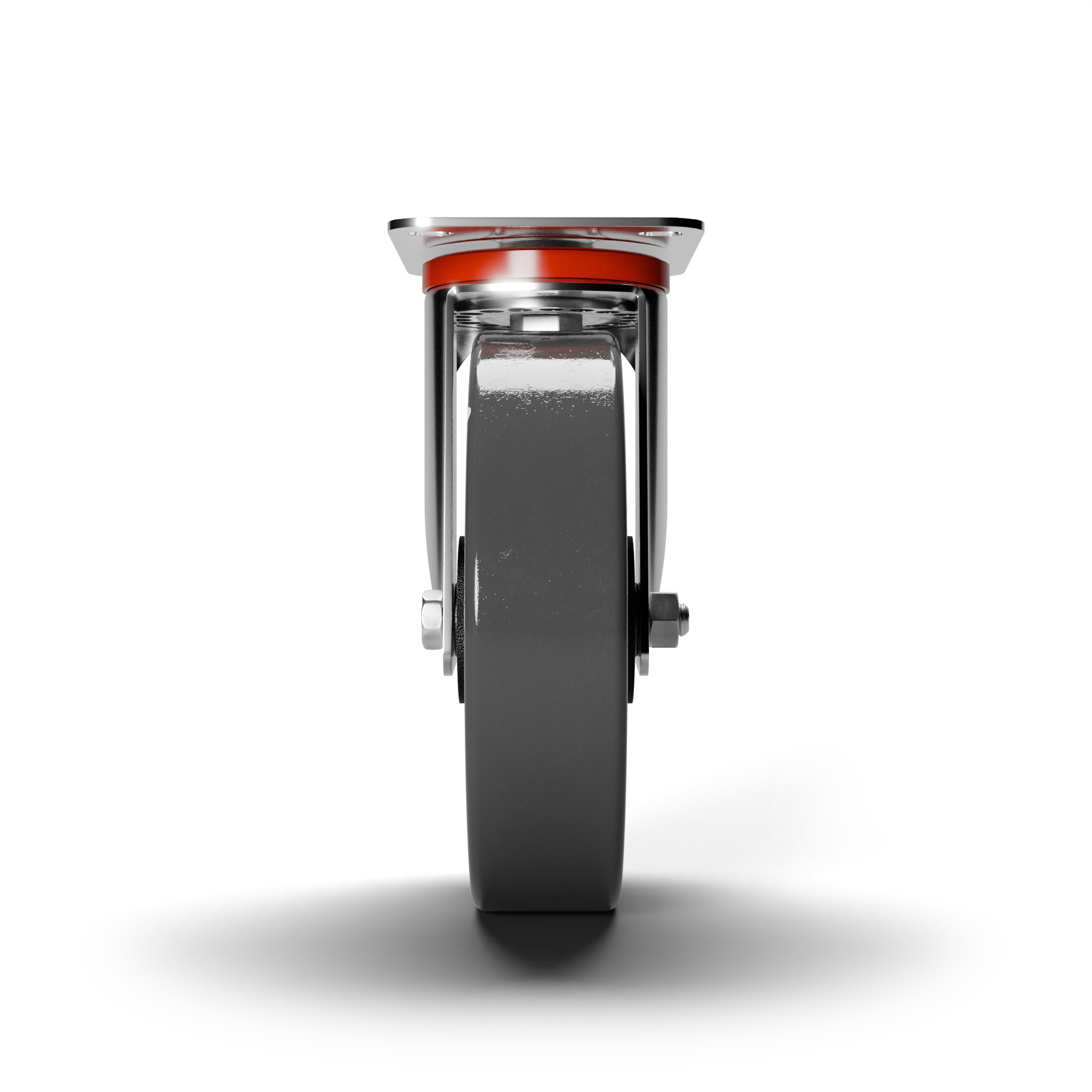

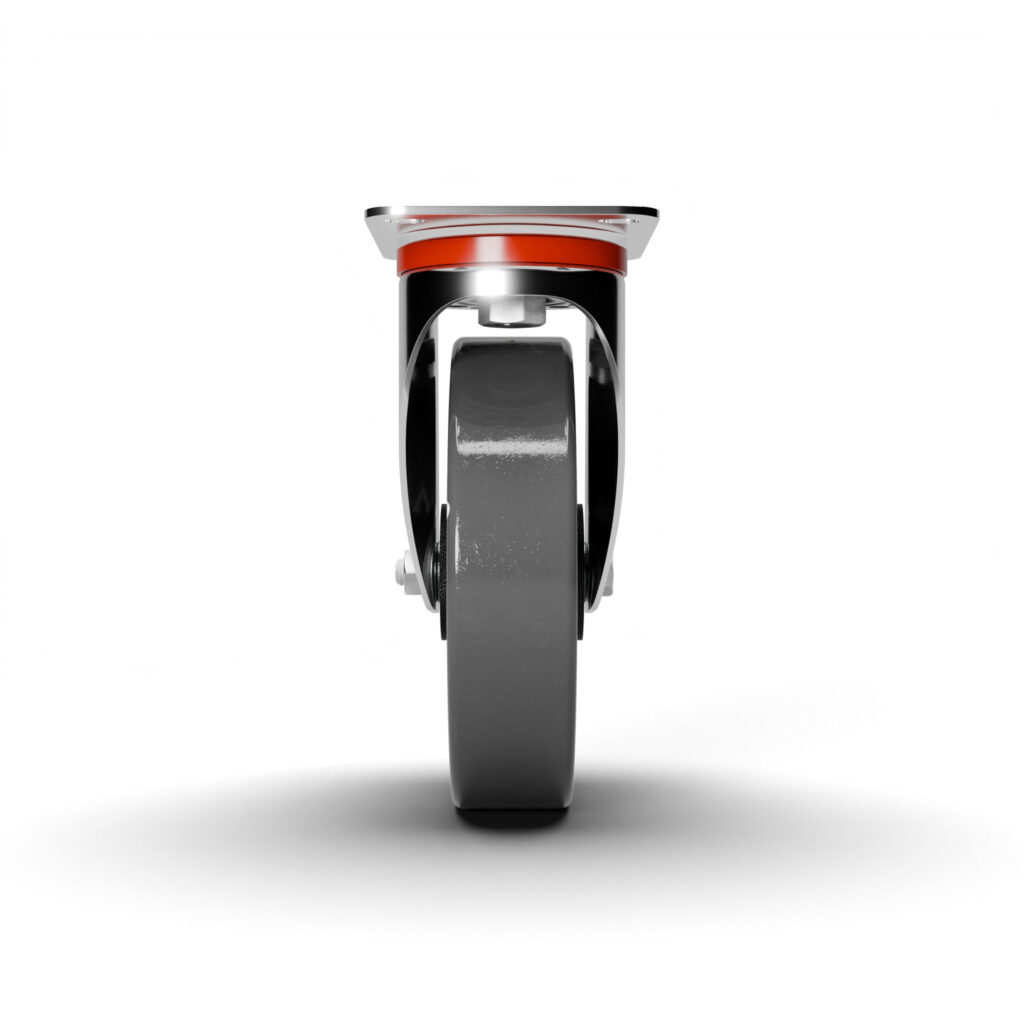

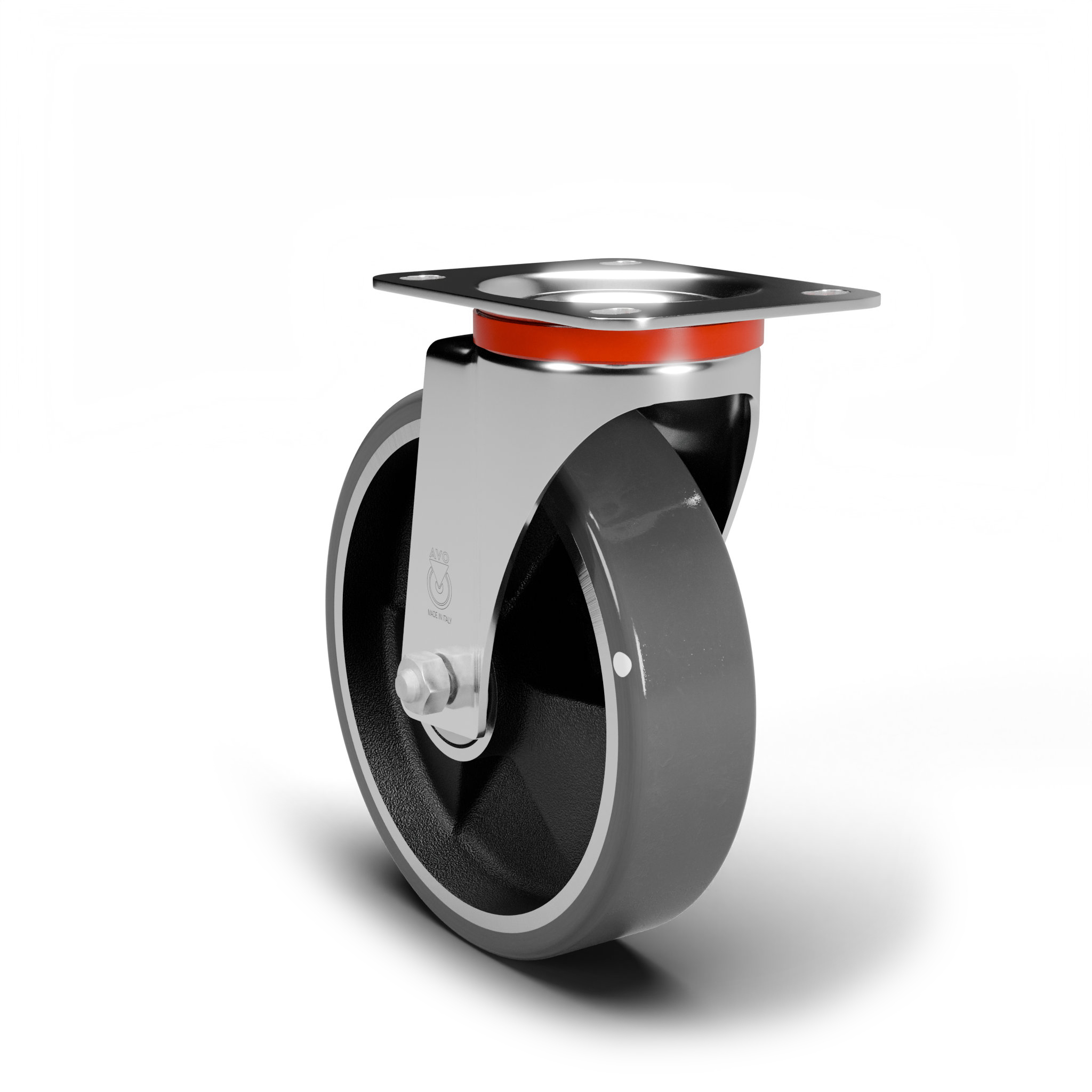

AVO – Wheel made of avoantistatic polyurethane with steel castor for industry, diameter 125mm ean 22710

22-AS

Material: Avoantistatic Polyurethane

Core: Cast Iron

Scope: Industry

Request information

Description:

Wheel coated with antistatic cast polyurethane tread AVOANTISTATIC 91 Shore A and mechanical cast iron centre. Hub on shielded ball bearing assembled with central spacer.

Medium duty castors

Made of zinc-chromium plated pressed steel, turning on double rim of balls, with plate. Assembled with self-locking nut and dust cover ring on the balls.

Product line: Antistatic/Conductive

EAN13: 8018793227100

EAN5: 22710

Article code: 0902200125SCG

Features

-20 | 80

170

Ball bearing

Shore A

91

Flooring

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

125

Band width (mm)

25

Hub width (mm)

25

Hub version

Ball bearing

Wheel hole (mm)

15

Bearing seat (mm)

/

Dynamic load capacity (DaN)

170

Colour

Grey

Material

Avoantistatic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Castor data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

8,5X12

Offset (mm)

42

Height from ground (mm)

155

Castor hole (mm)

/

Static load capacity (DaN)

220

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Galvanized

Related products

22A-AS

AVO – Wheel made of avoantistatic polyurethane with steel castor for industry, diameter 175mm ean 24666

In Avoantistatic Polyurethane

For Industry

-20 | 80

300

175

40

40

140X110

20

208,00

33YA-AS

AVO – Wheel made of avoantistatic polyurethane with steel castor for industry, diameter 150mm ean 17203

In Avoantistatic Polyurethane

For Industry

-20 | 80

800

150

30

30

170X170

17

210,00

24B-AS

AVO – Wheel made of avoantistatic polyurethane with steel castor for industry, diameter 150mm ean 22106

In Avoantistatic Polyurethane

For Industry

-20 | 80

200

150

30

30

17

150,00

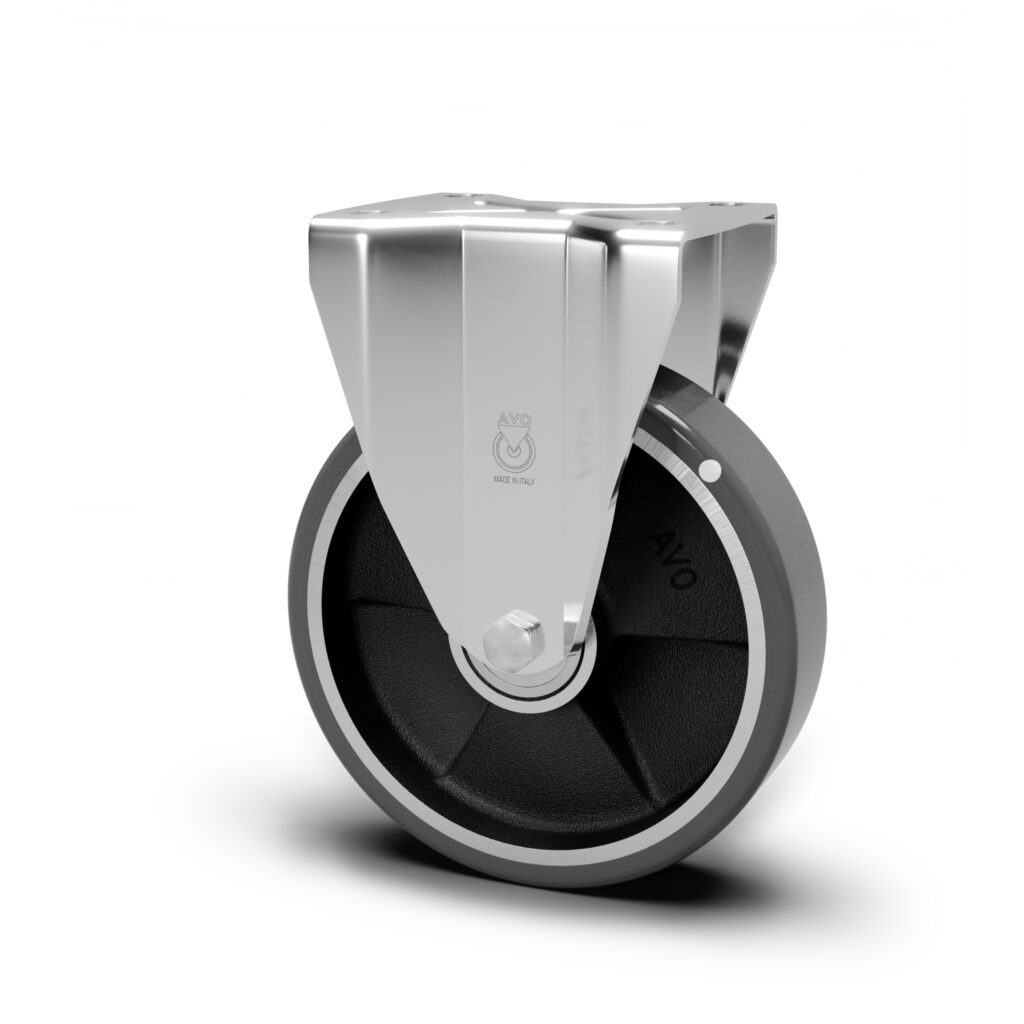

27A-AS
