Serie 14AS

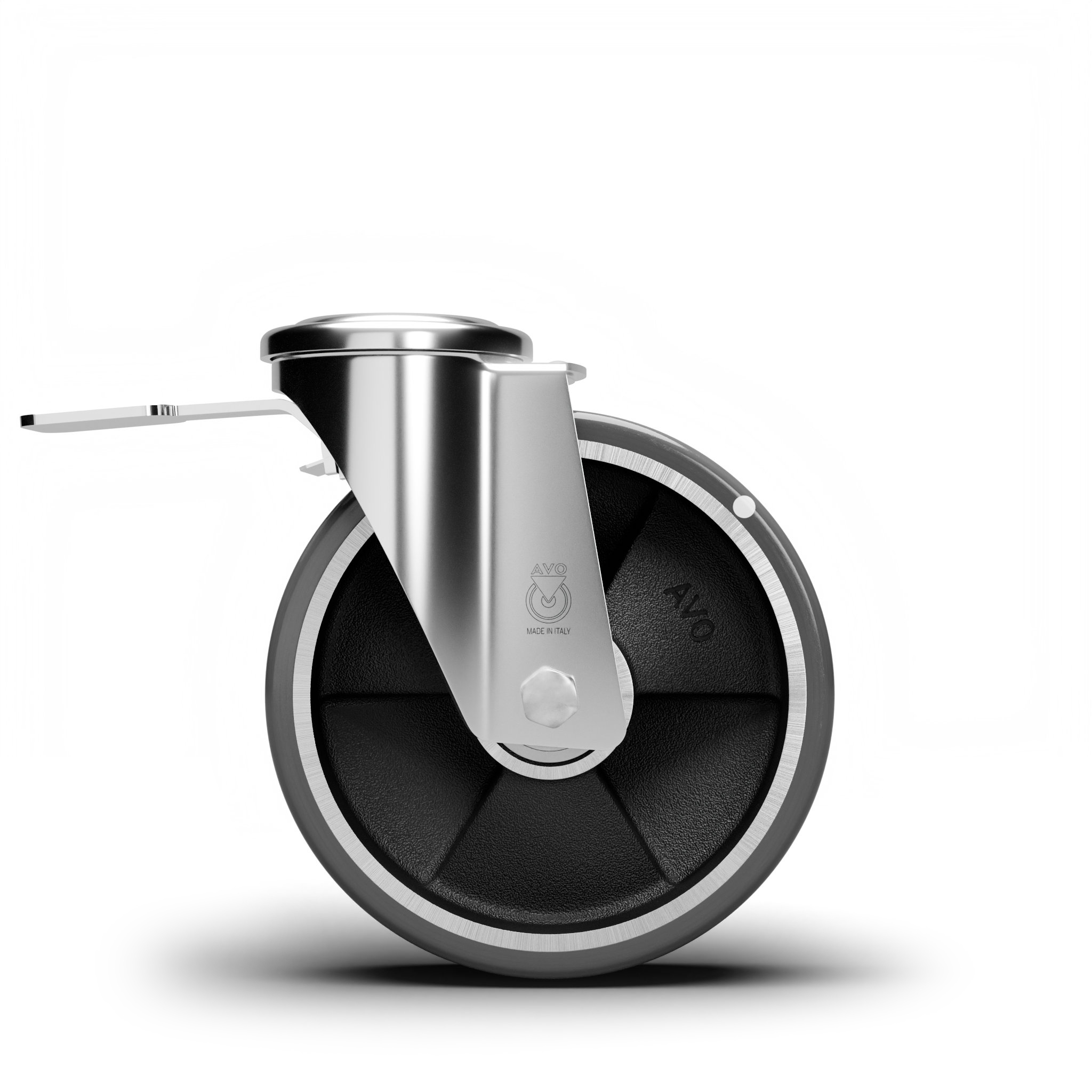

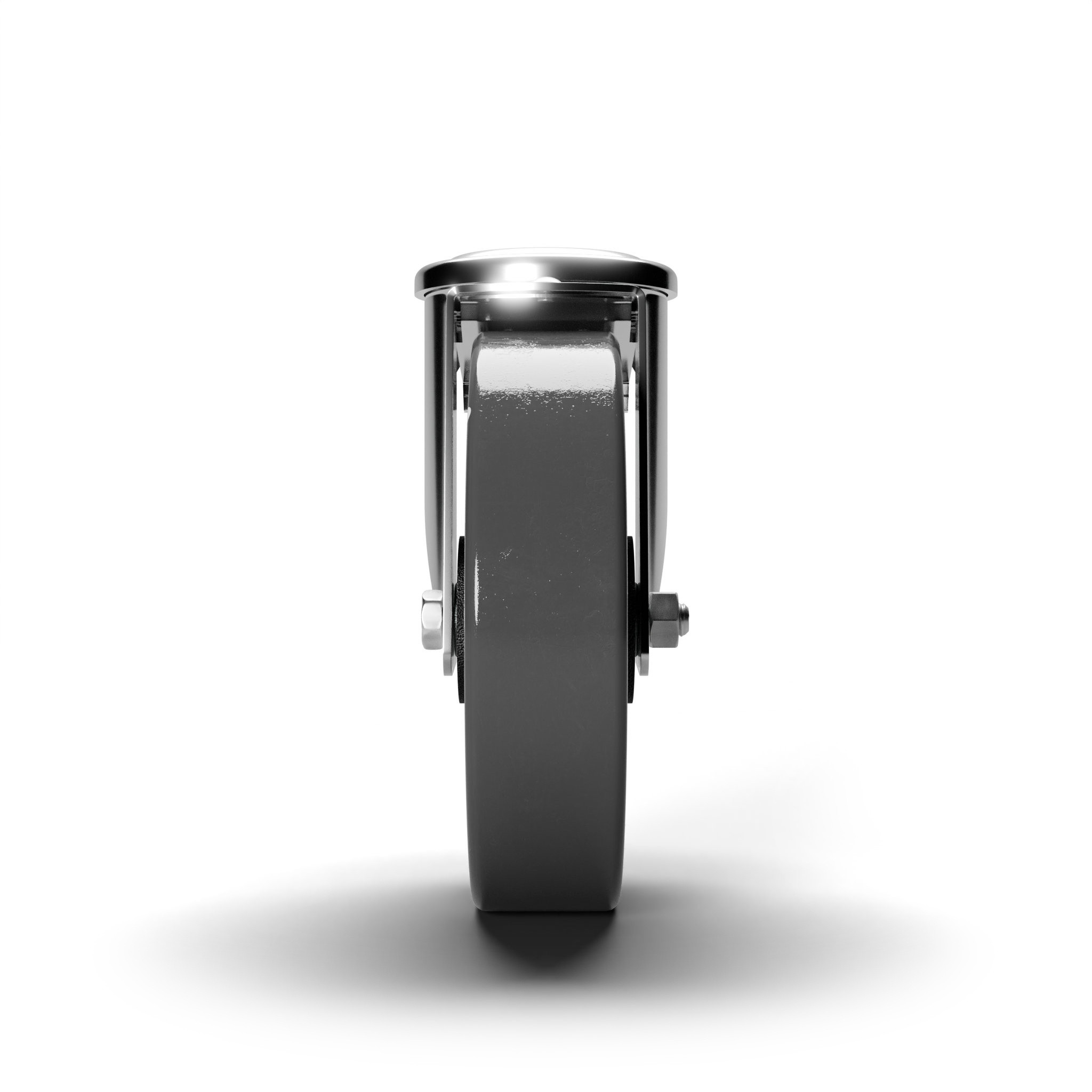

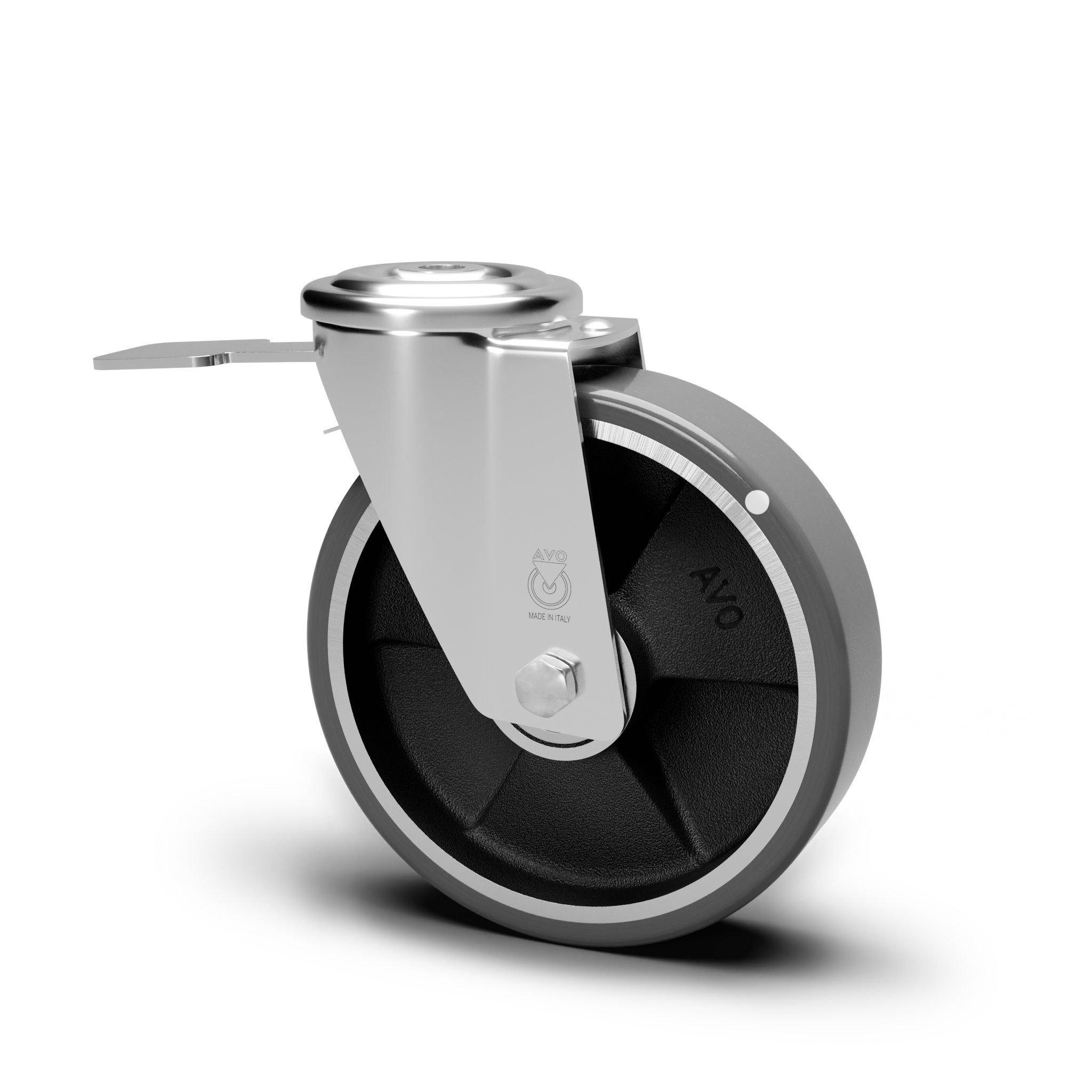

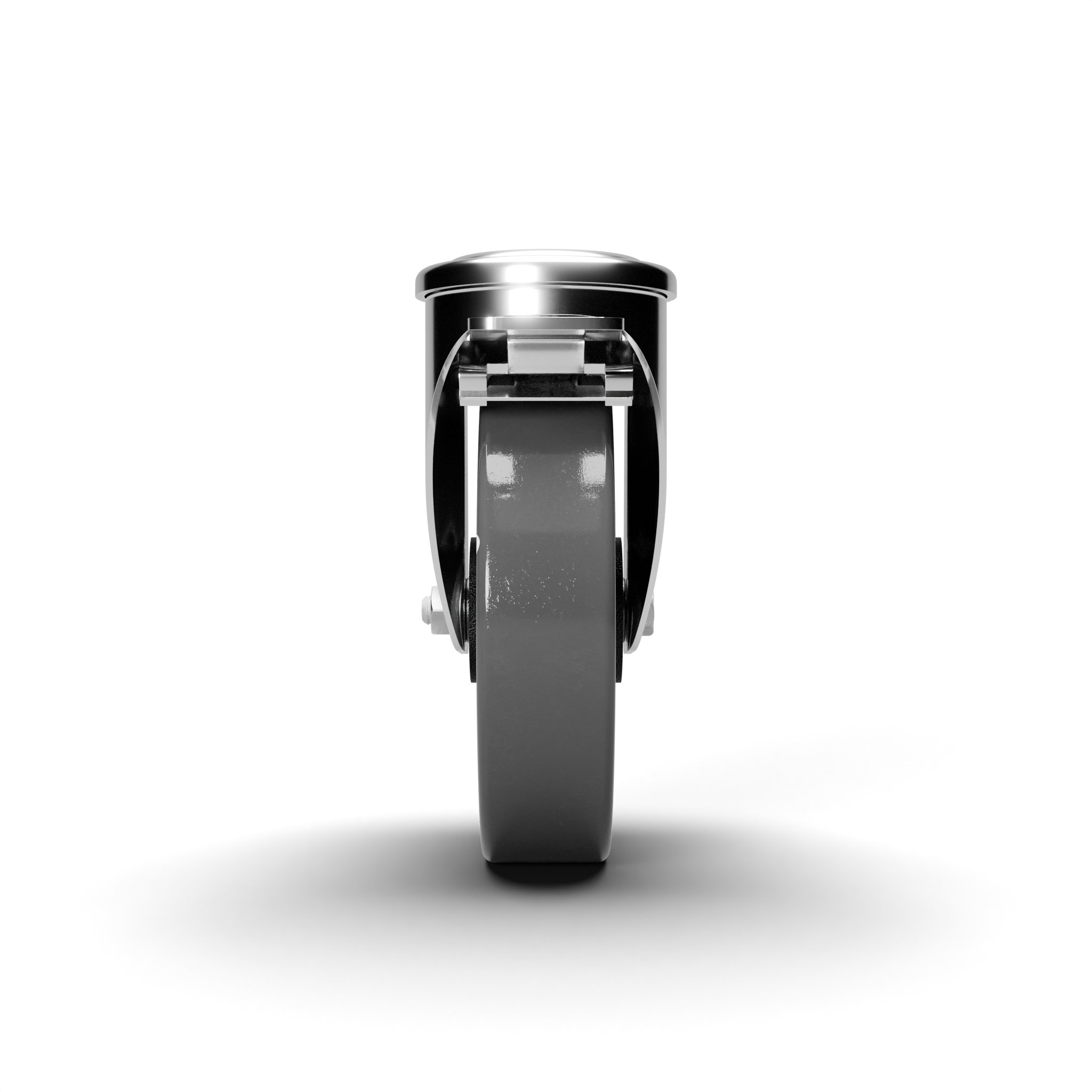

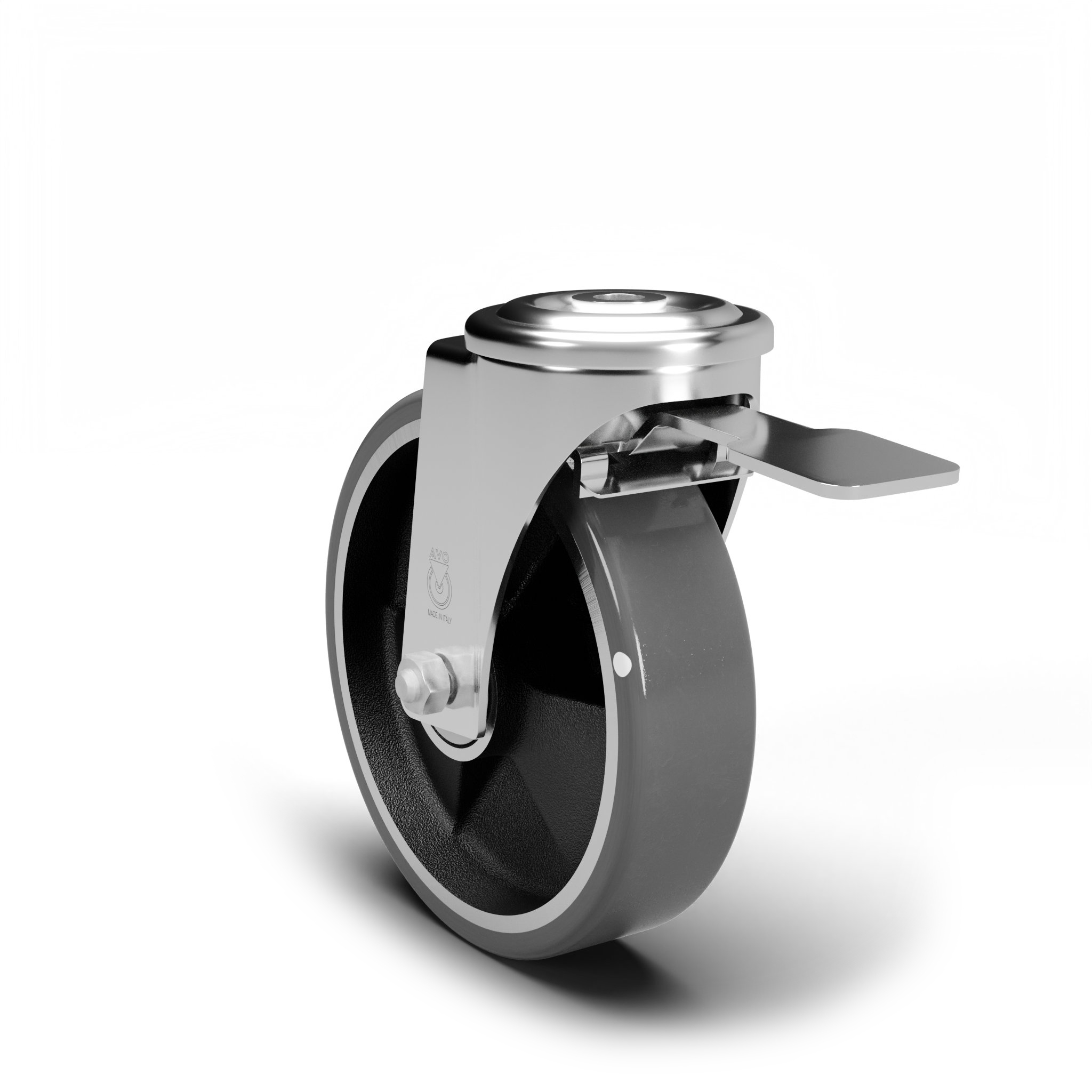

AVO – Wheel with avoantistatic polyurethane and steel castor for industry, diameter 150mm ean 22106

24B-AS

Material: Avoantistatic Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with antistatic cast polyurethane tread AVOANTISTATIC 91 Shore A and mechanical cast iron centre. Hub on shielded ball bearing assembled with central spacer.

Medium duty castors

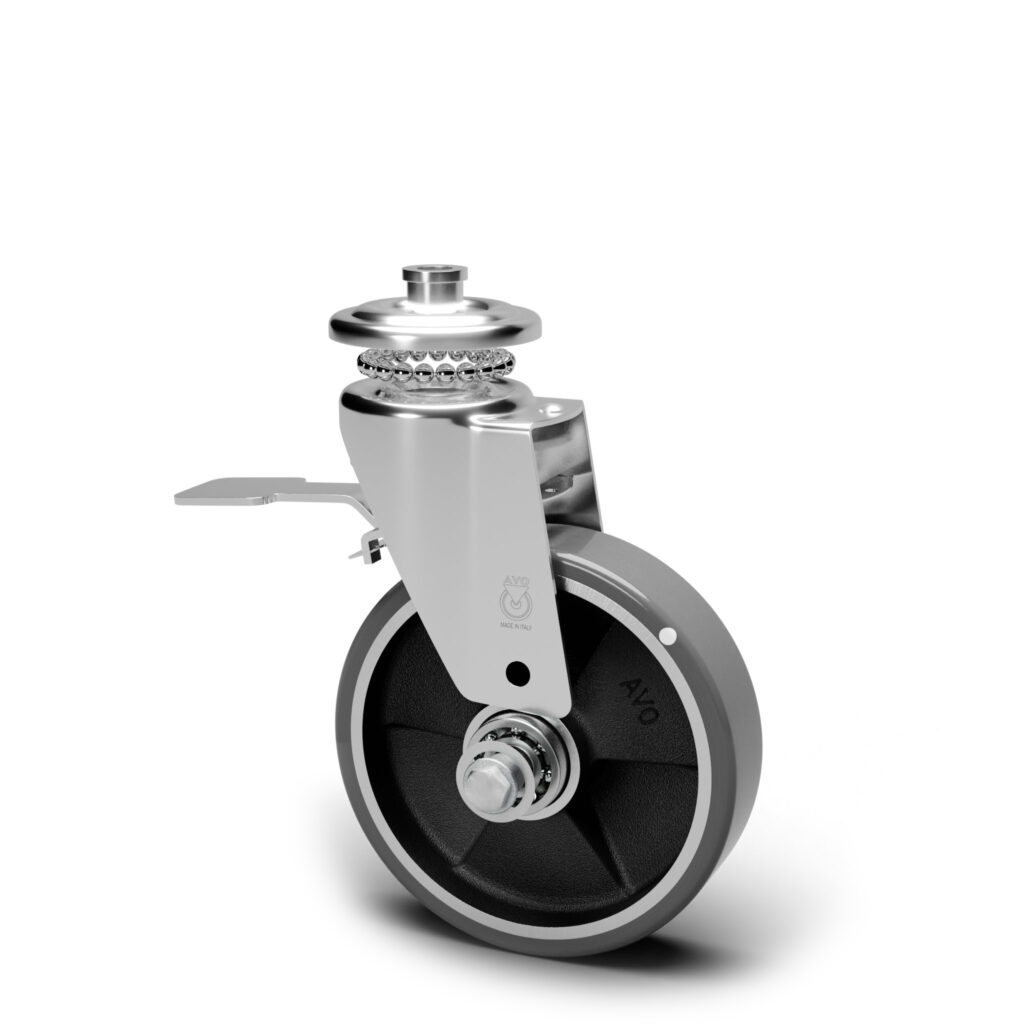

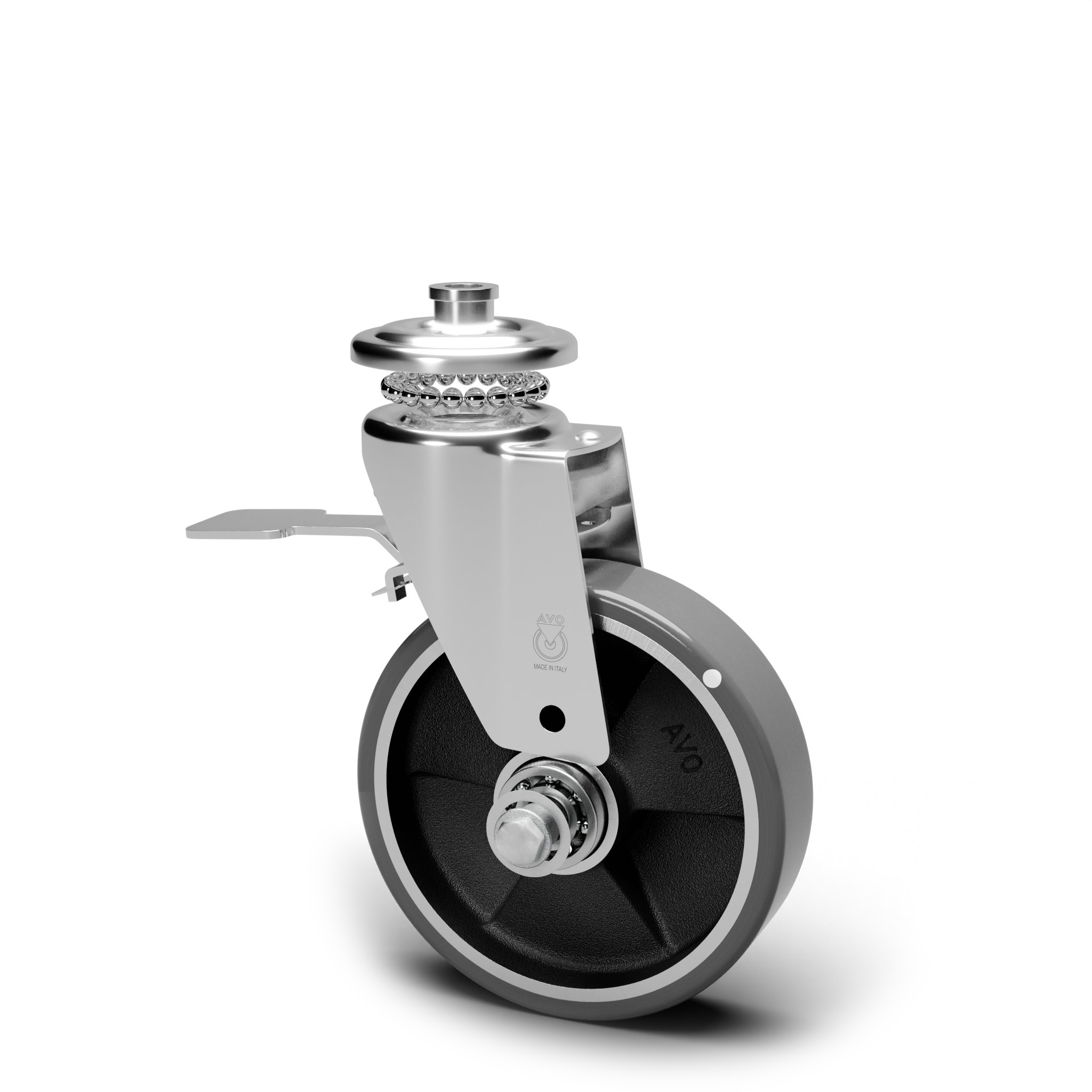

Made of zinc-chromium plated pressed steel, turning on double rim of balls, with stem and rear brake. Assembled with self-locking nut.

Product line: Antistatic/Conductive

Linea di prodotto: Antistatic/Conductive

EAN13: 8018793221061

EAN5: 22106

Article code: 09024B0150SCG

Features

-20 | 80

200

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

150

Band width (mm)

30

Hub width (mm)

30

Hub version

Ball bearing

Wheel hole (mm)

17

Bearing seat (mm)

40X12

Dynamic load capacity (DaN)

200

Colour

Grey

Material

Avoantistatic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

45

Height from ground (mm)

150

Castor hole (mm)

/

Static load capacity (DaN)

220

Structure

Swivel

Version

Axle with brake

Brake

Rear

Pivot

22X50

Pivot type

Stem(on request threaded stem), Plain axle

Finishing

Galvanized
