Serie 18AS

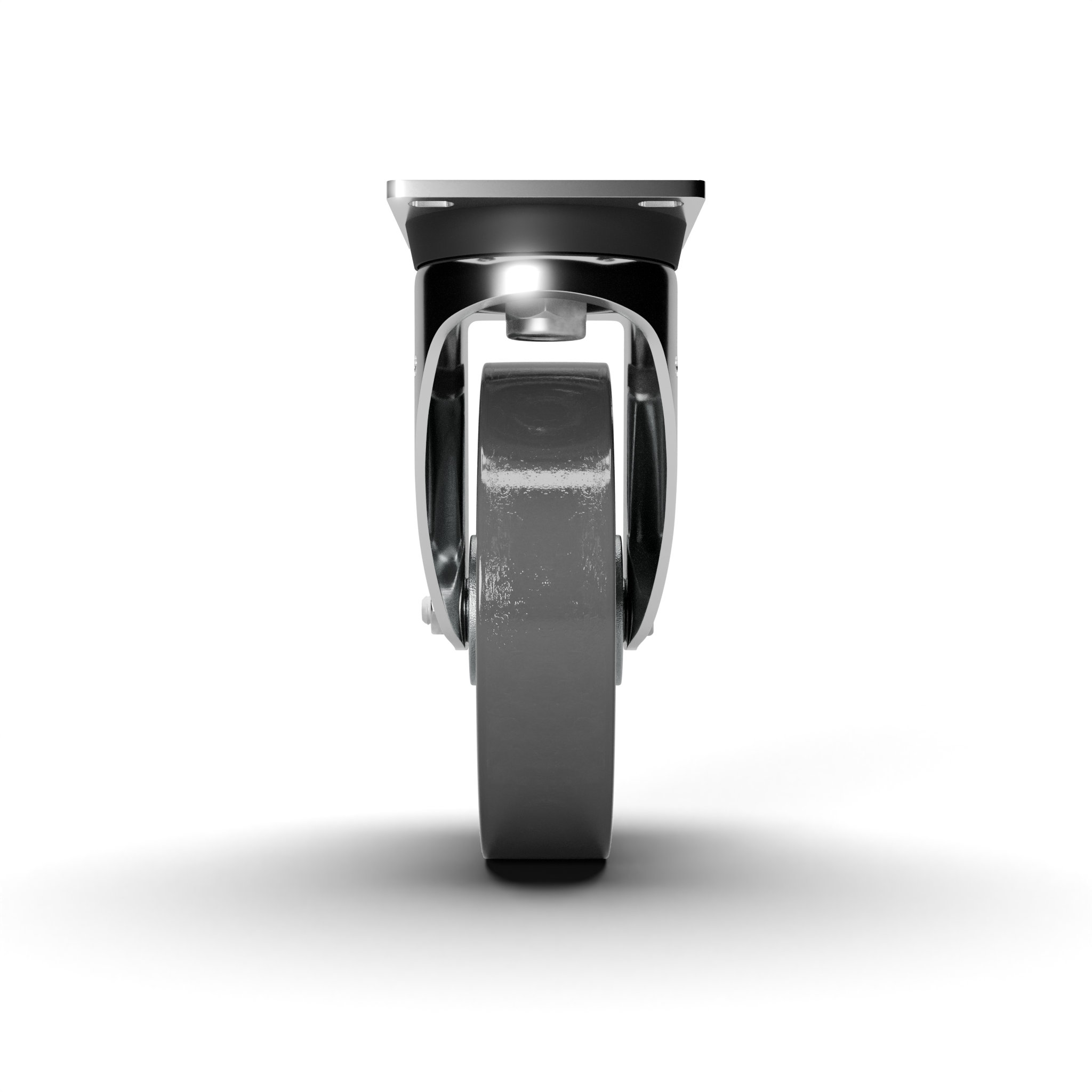

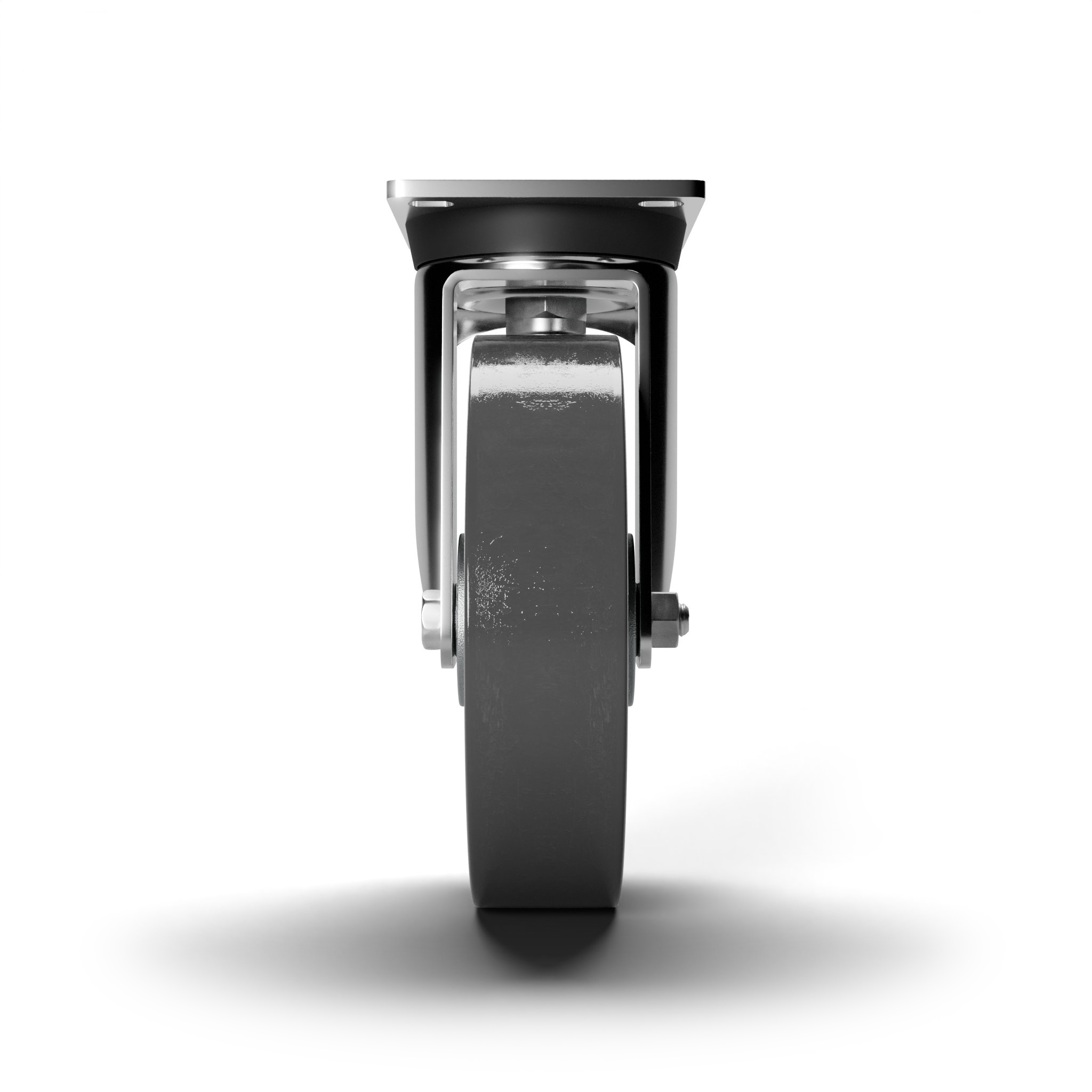

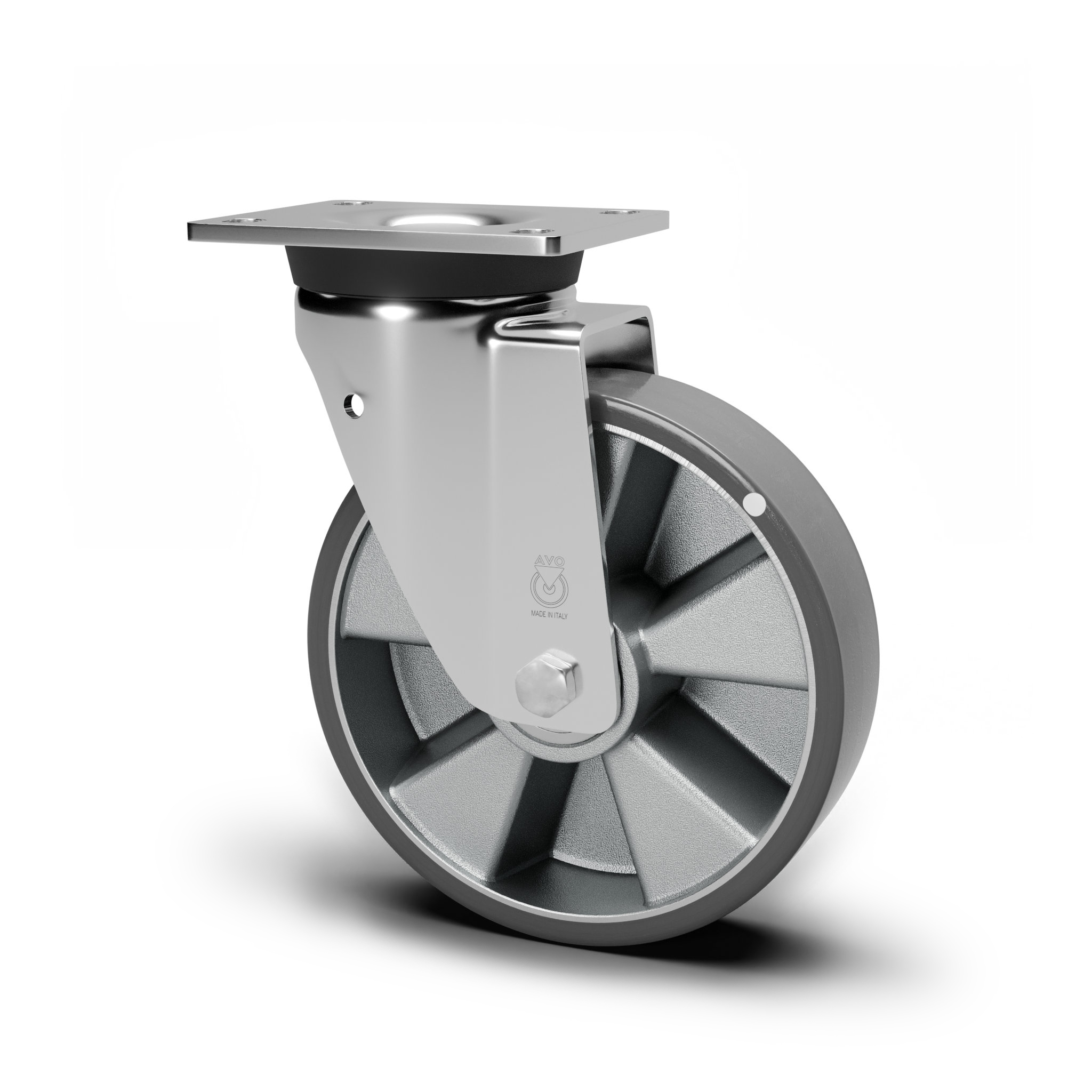

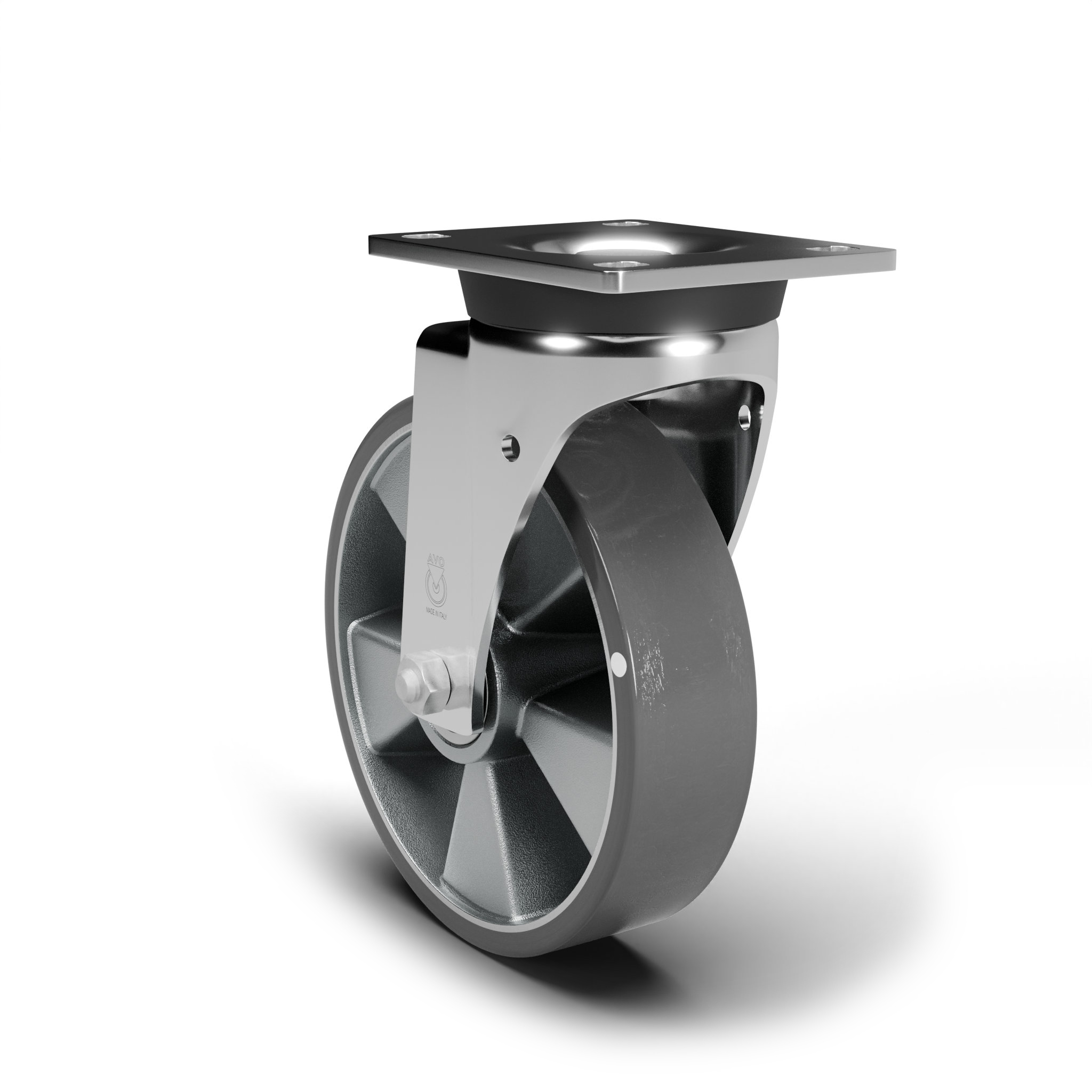

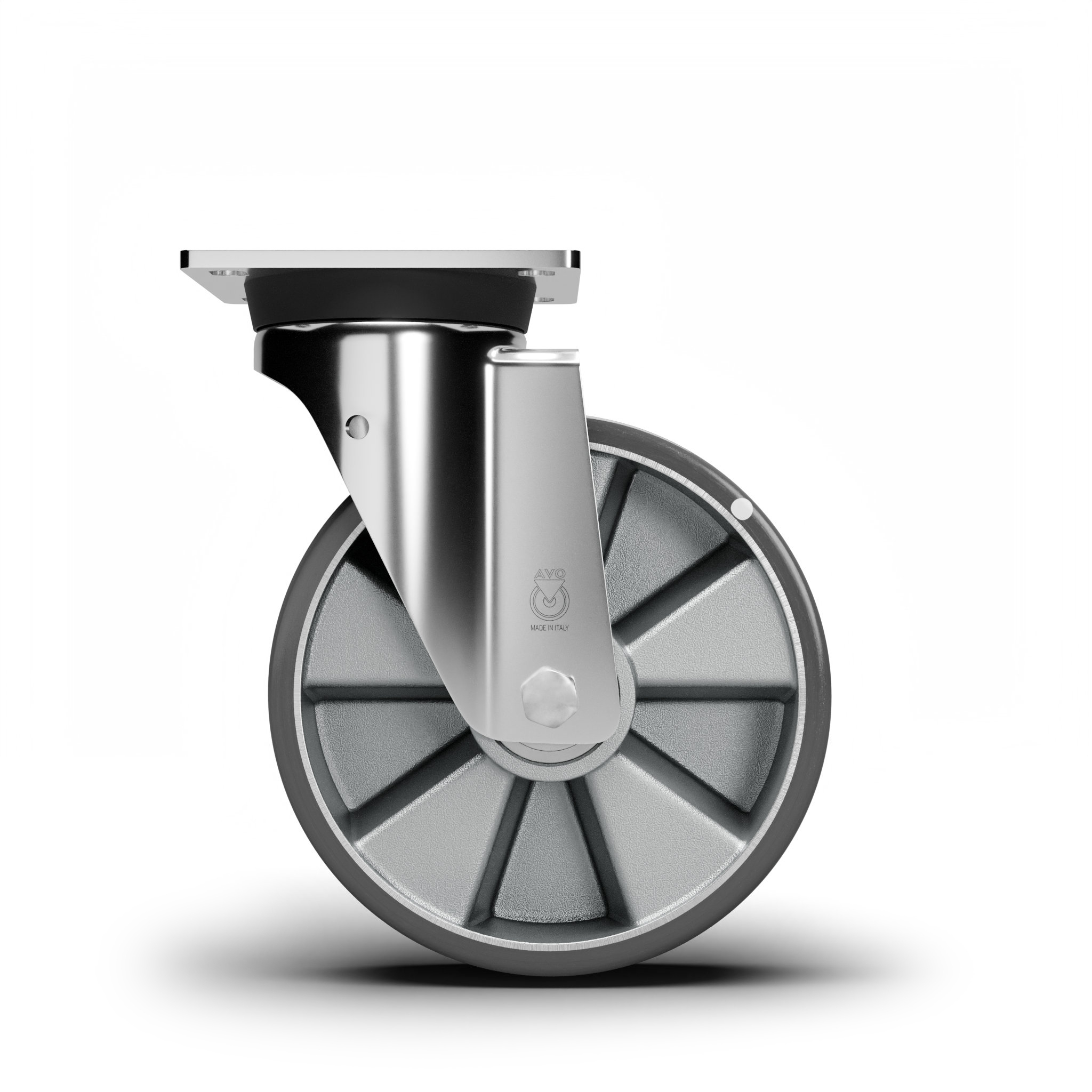

AVO – Wheel made of avoantistatic polyurethane with steel castor for industry, diameter 150mm ean 22802

38-AS

Material: Avoantistatic Polyurethane

Core: Aluminum

Scope: Industry

Request information

Description:

Wheel coated with antistatic Polyurethane thread AVOANTISTATIC 91 Shore A and aluminium centre. Hub on shielded ball bearings assembled with central spacer.

Heavy-Duty Castors

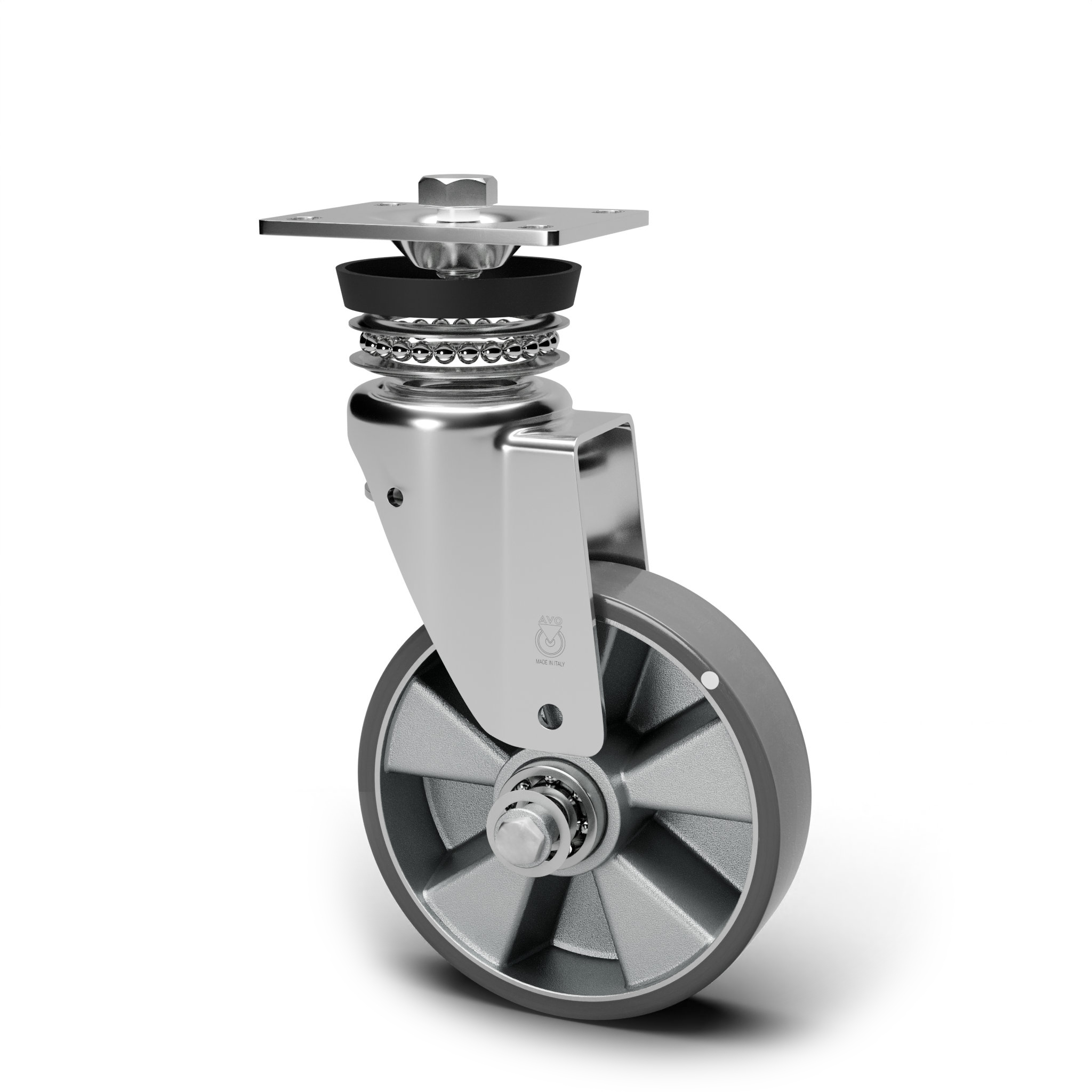

Made of zinc-chromium plated pressed steel, high thickness, turning on double rim of balls fitted in hardening steel thrust-bearings, with plate. Assembled with self-locking nut.

Product line: Antistatic/Conductive

EAN13: 8018793228022

EAN5: 22802

Article code: 1103800150ACG

Features

-20 | 80

400

Ball bearing

Shore A

91

Flooring

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

150

Band width (mm)

40

Hub width (mm)

40

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

400

Colour

Grey

Material

Avoantistatic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Castor data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13X16

Offset (mm)

50

Height from ground (mm)

189

Castor hole (mm)

/

Static load capacity (DaN)

500

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Galvanized
