Serie 14AS

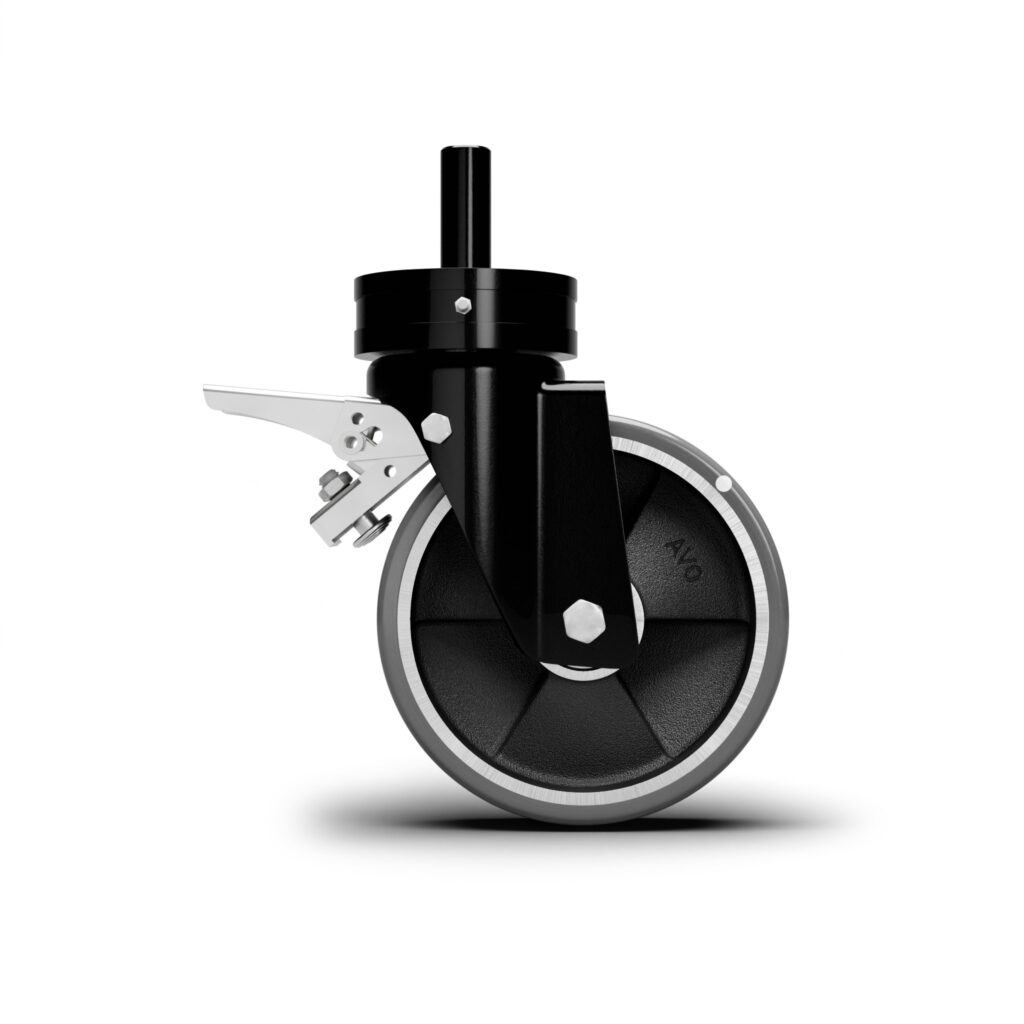

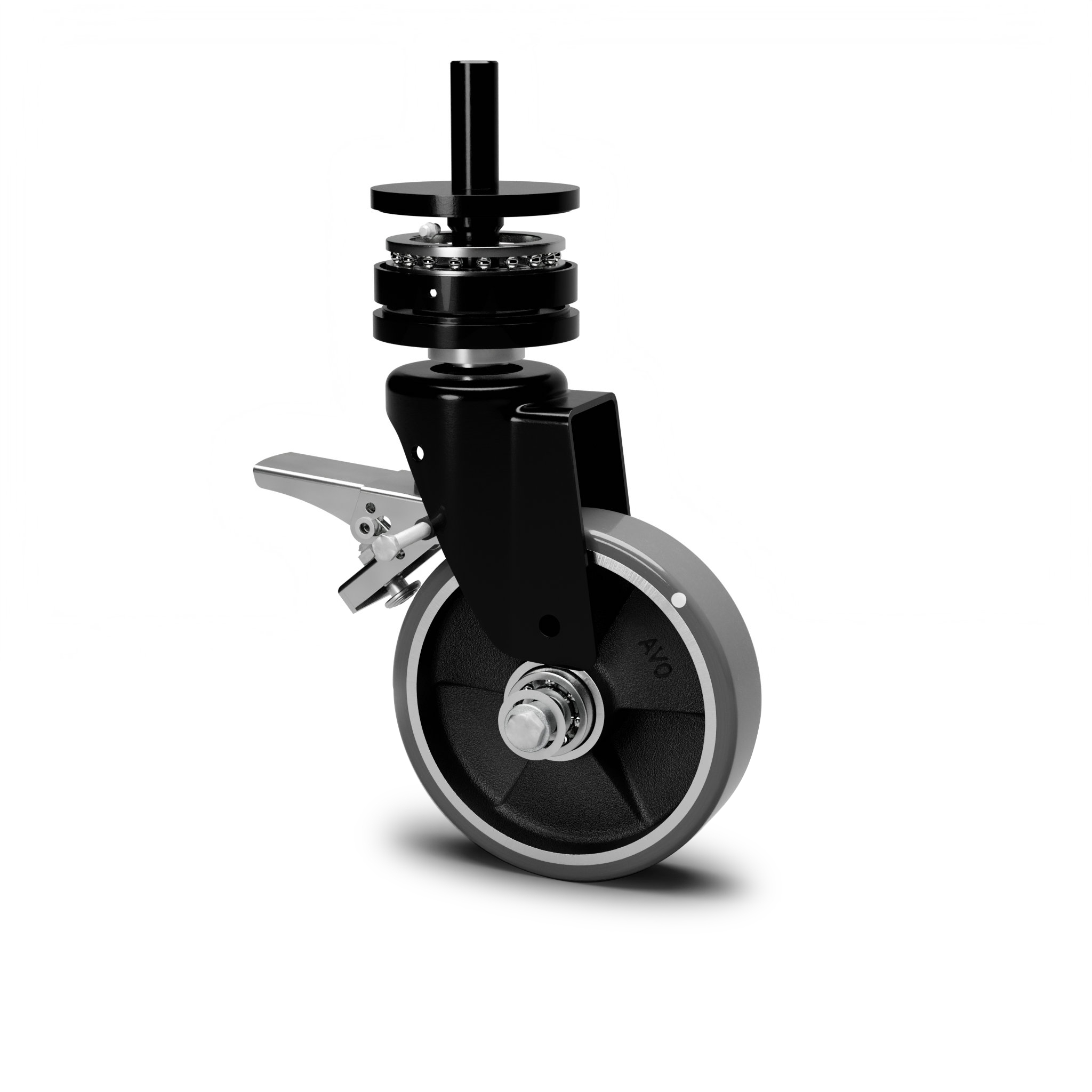

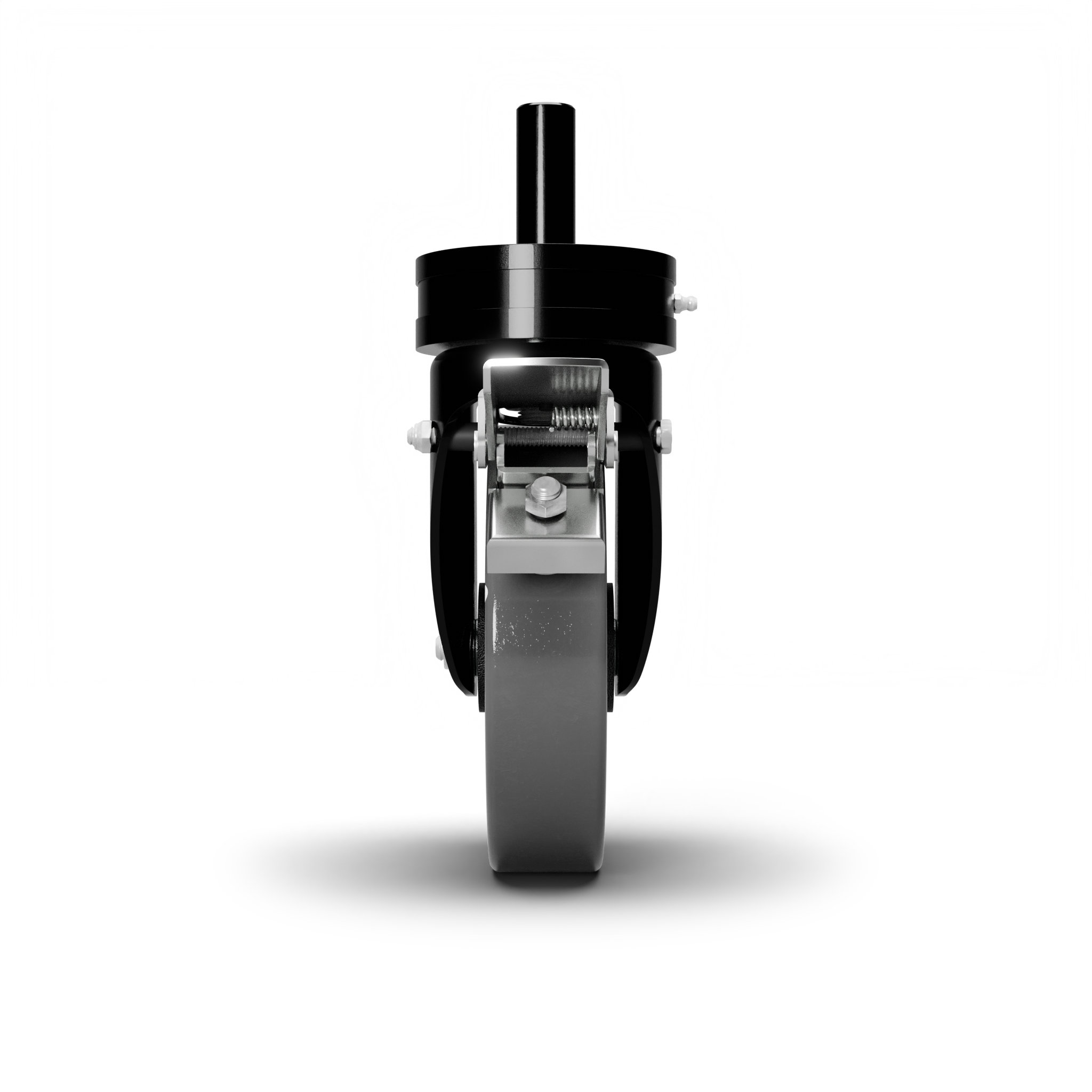

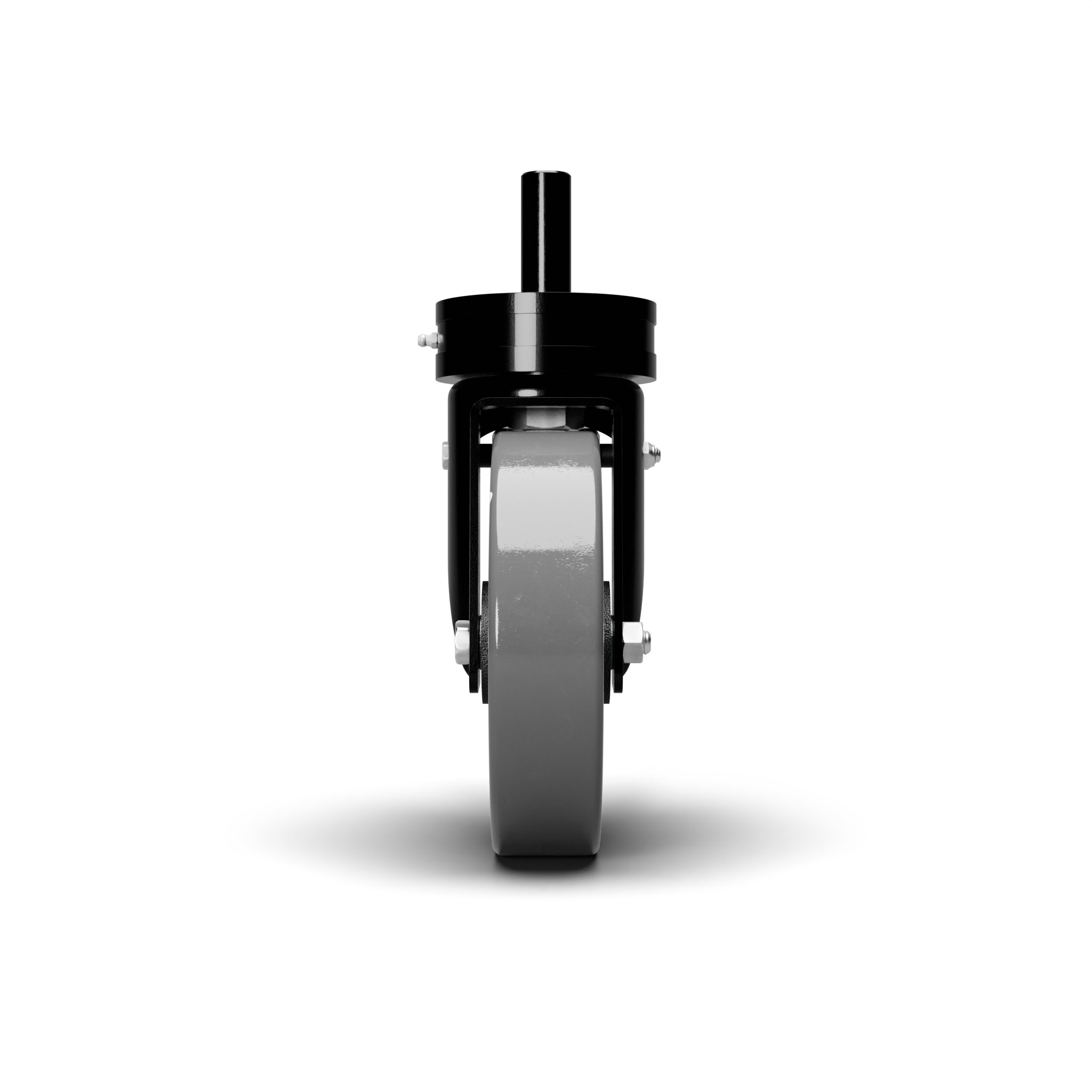

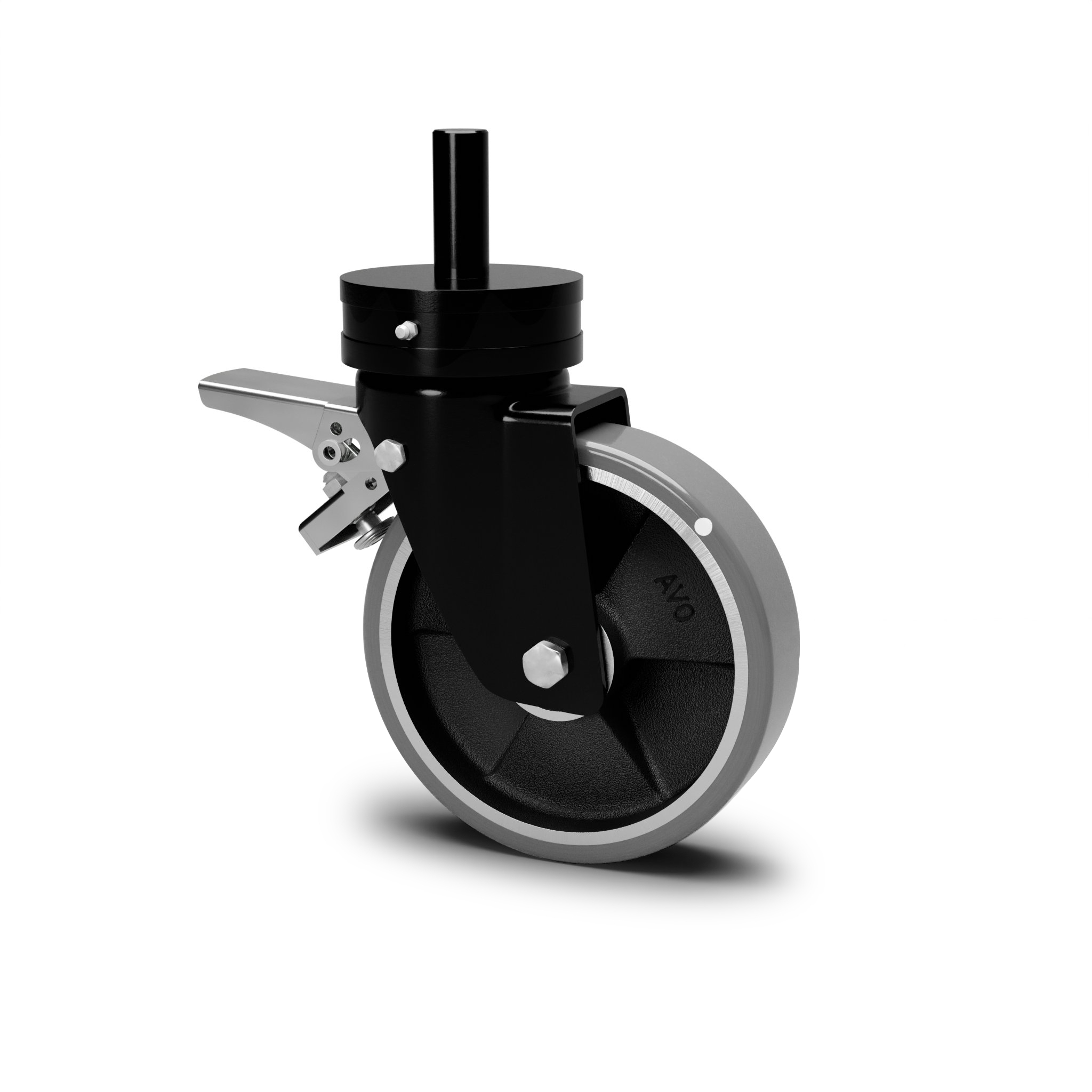

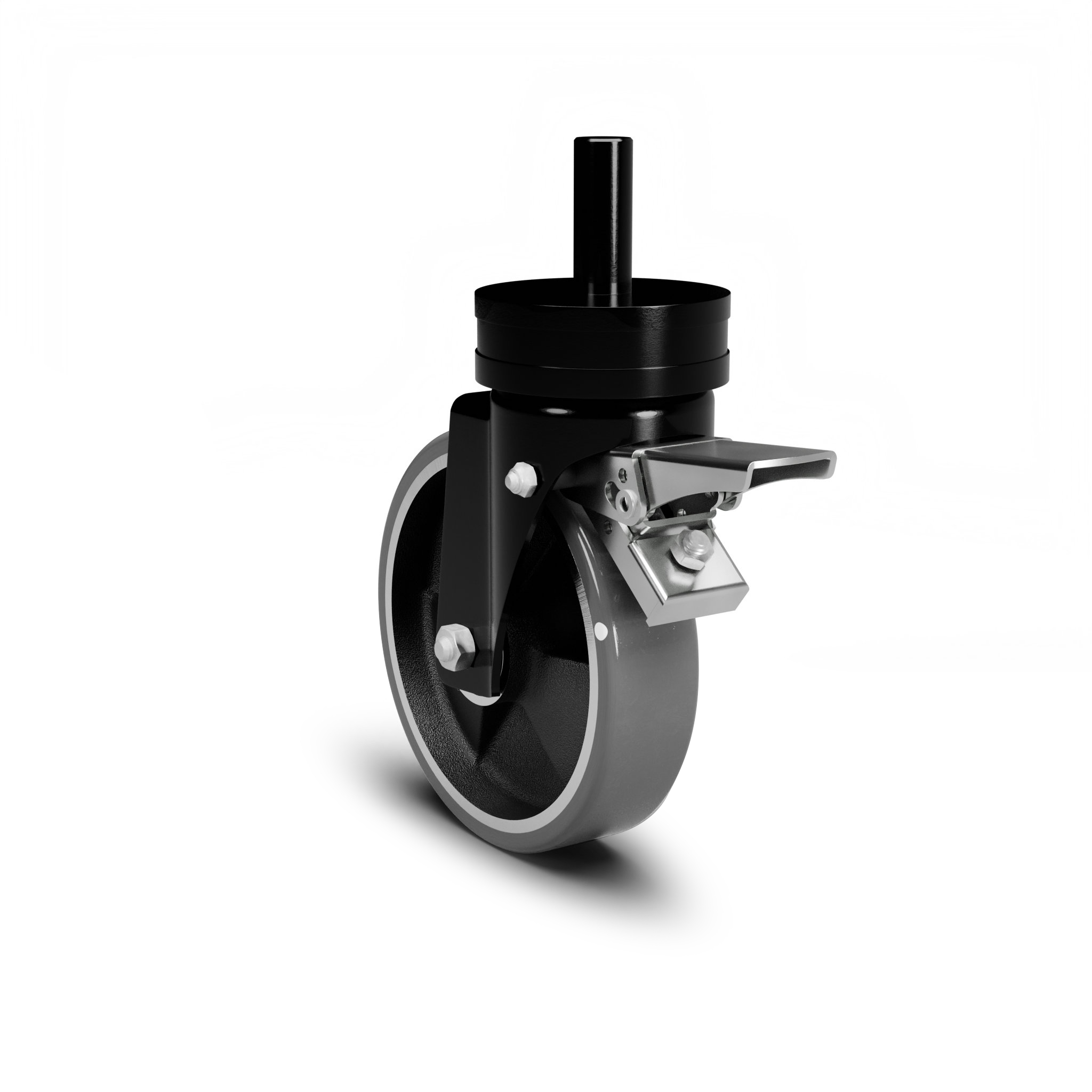

AVO – Wheel made of avoantistatic polyurethane with steel castor for industry, diameter 150mm ean 23205

30YBISB-AS

Material: Avoantistatic Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with antistatic cast polyurethane tread AVOANTISTATIC 91 Shore A and mechanical cast iron centre. Hub on shielded ball bearing assembled with central spacer.

Extra Heavy-Duty Castors

Product line: Antistatic/Conductive

EAN13: 8018793232050

EAN5: 23205

Article code: 21030BF150SCG

Features

-20 | 80

400

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

150

Band width (mm)

30

Hub width (mm)

30

Hub version

Ball bearing

Wheel hole (mm)

17

Bearing seat (mm)

40X12

Dynamic load capacity (DaN)

400

Colour

Grey

Material

Avoantistatic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

50

Height from ground (mm)

205

Castor hole (mm)

/

Static load capacity (DaN)

500

Structure

Swivel

Version

Axle with brake

Brake

Rear

Pivot

22X50

Pivot type

Stem(on request threaded stem)

Finishing

Black painted
