Serie 14

AVO – Wheel with avolan polyurethane and steel castor for industry, diameter 150mm ean 17499

33YBIS

Material: Avolan Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOLAN 91 Shore A and mechanical black painted cast iron centre. Hub on shielded ball bearings assembled with central spacer.

Twin Wheel Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.

Product line: Polyurethane

Product line: Polyurethane

EAN13: 8018793174992

EAN5: 17499

Article code: 210330F150GCU

Features

-20 | 80

1000

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Download the drawing

Download the STP file

Wheel data

Diameter (mm)

150

Band width (mm)

40

Hub width (mm)

40

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

1000

Colour

Yellow

Material

Avolan Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

170X170

Interaxis plate hole (mm)

130X130

Plate bore size (mm)

13

Offset (mm)

60

Height from ground (mm)

210

Castor hole (mm)

/

Static load capacity (DaN)

1250

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

/

Pivot type

/

Finishing

Black painted

Related products

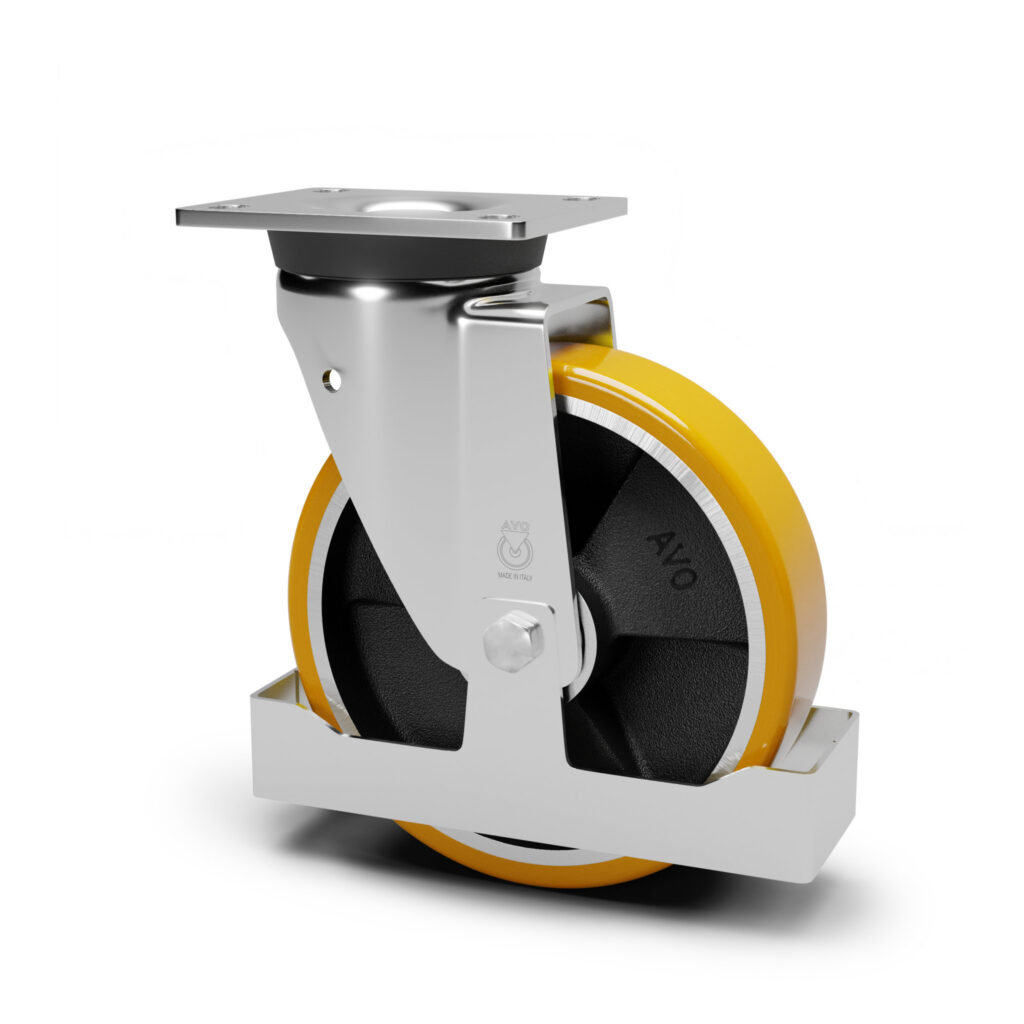

27-PR
