Serie 14

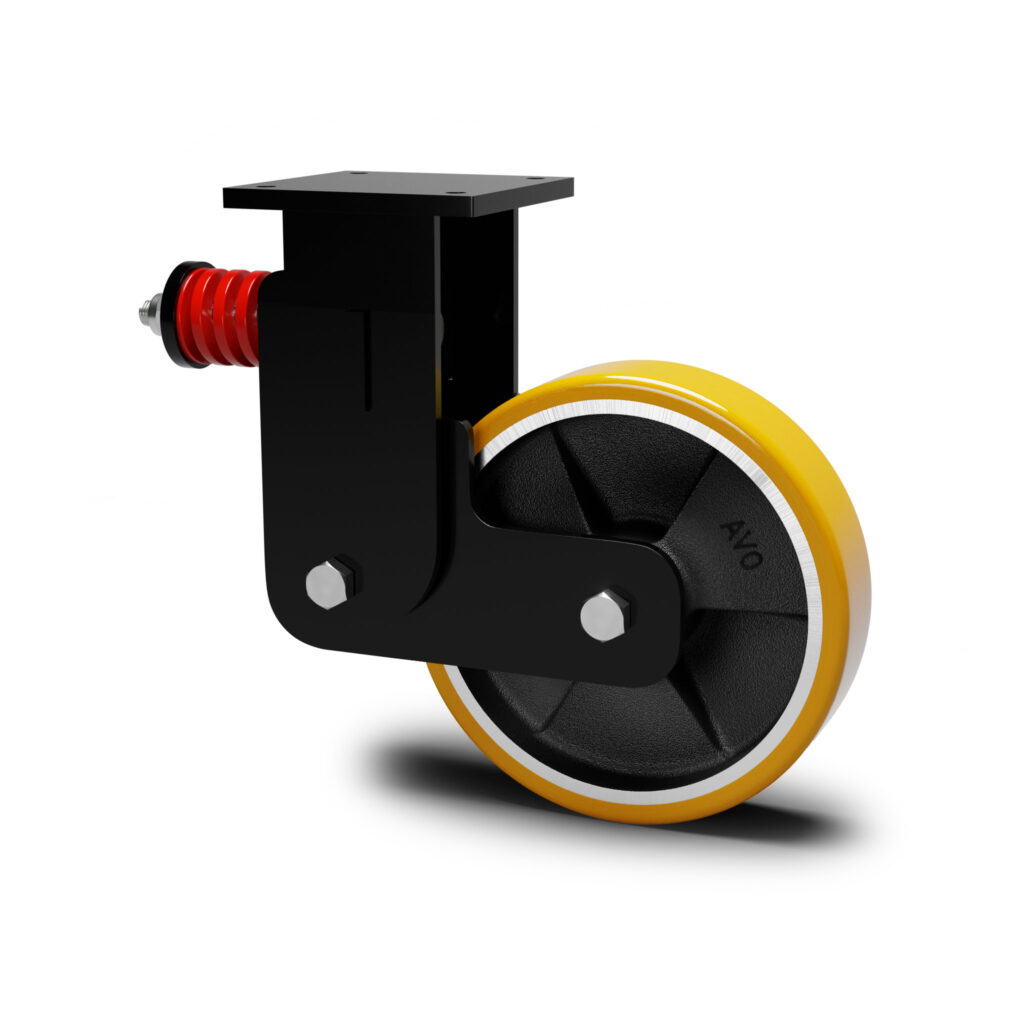

AVO – Wheel with avolan polyurethane and steel castor for industry, diameter 200mm ean 11480

30Y

Material: Avolan Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOLAN 91 Shore A and mechanical black painted cast iron centre. Hub on shielded ball bearings assembled with central spacer.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate. Black epoxy paint.

Product line: Polyurethane

Linea di prodotto: Polyurethane

EAN13: 8018793114806

EAN5: 11480

Article code: 2103000200SCU

Features

-20 | 80

800

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

200

Band width (mm)

40

Hub width (mm)

40

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

800

Colour

Yellow

Material

Avolan Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13

Offset (mm)

57

Height from ground (mm)

260

Castor hole (mm)

/

Static load capacity (DaN)

1000

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Black painted
