Serie 14

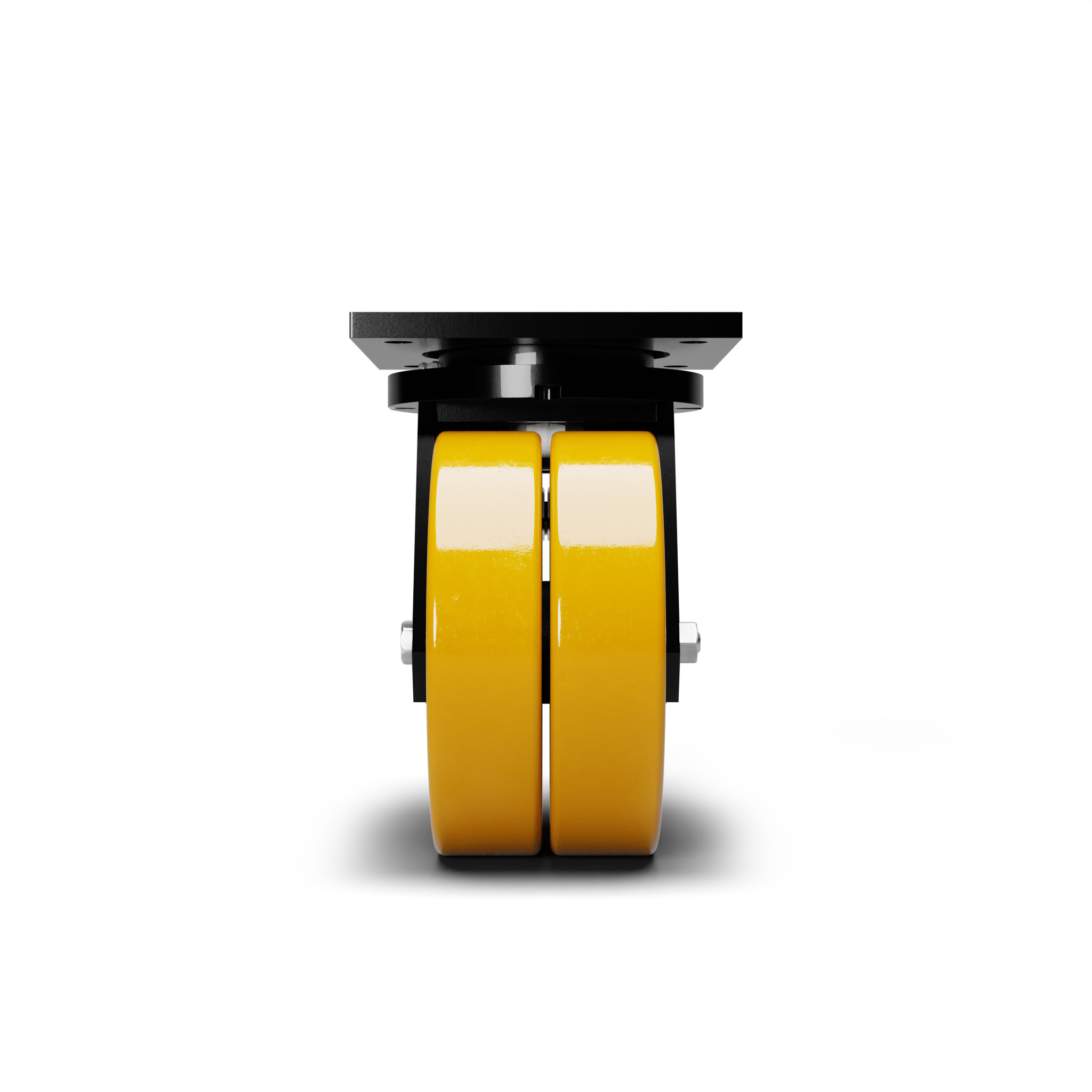

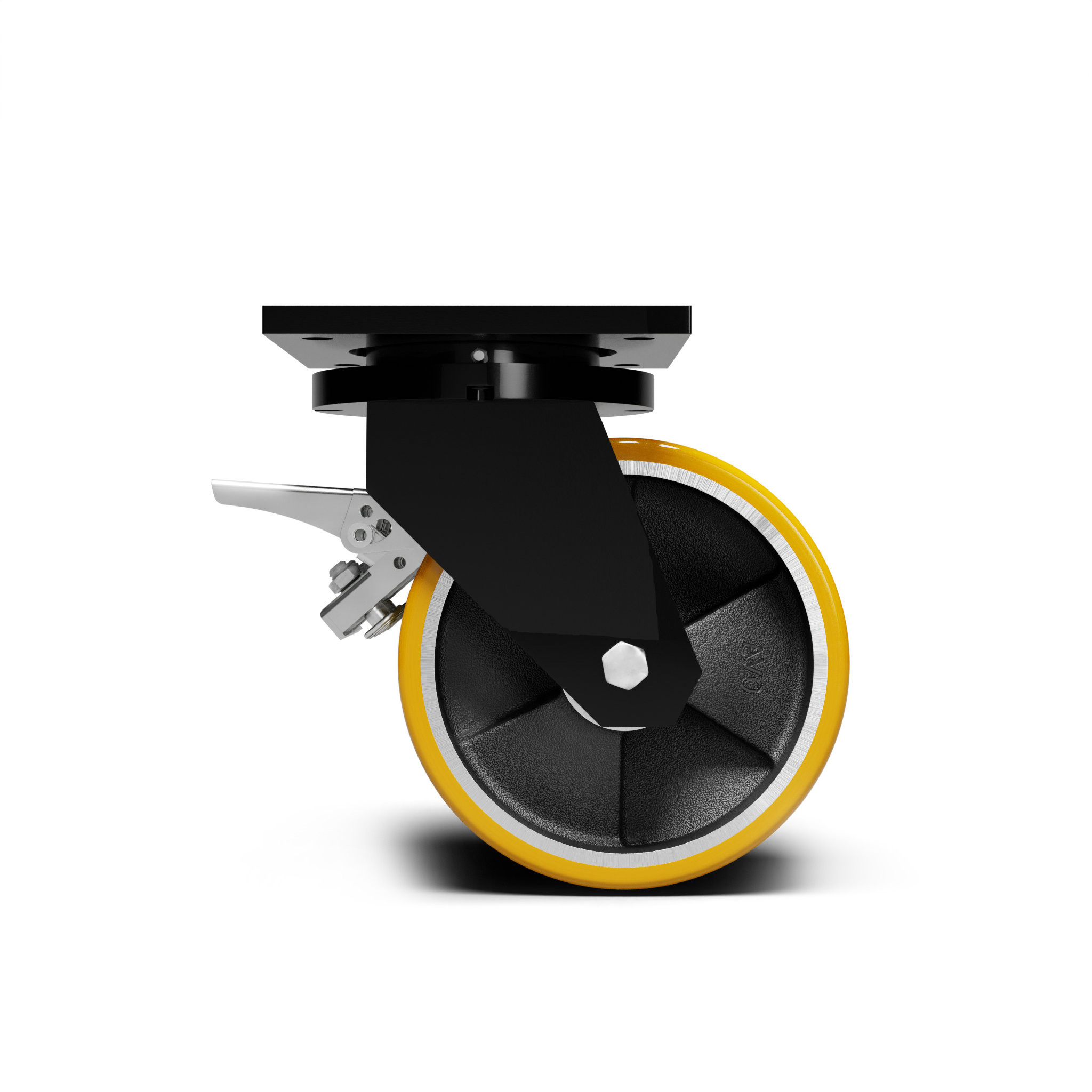

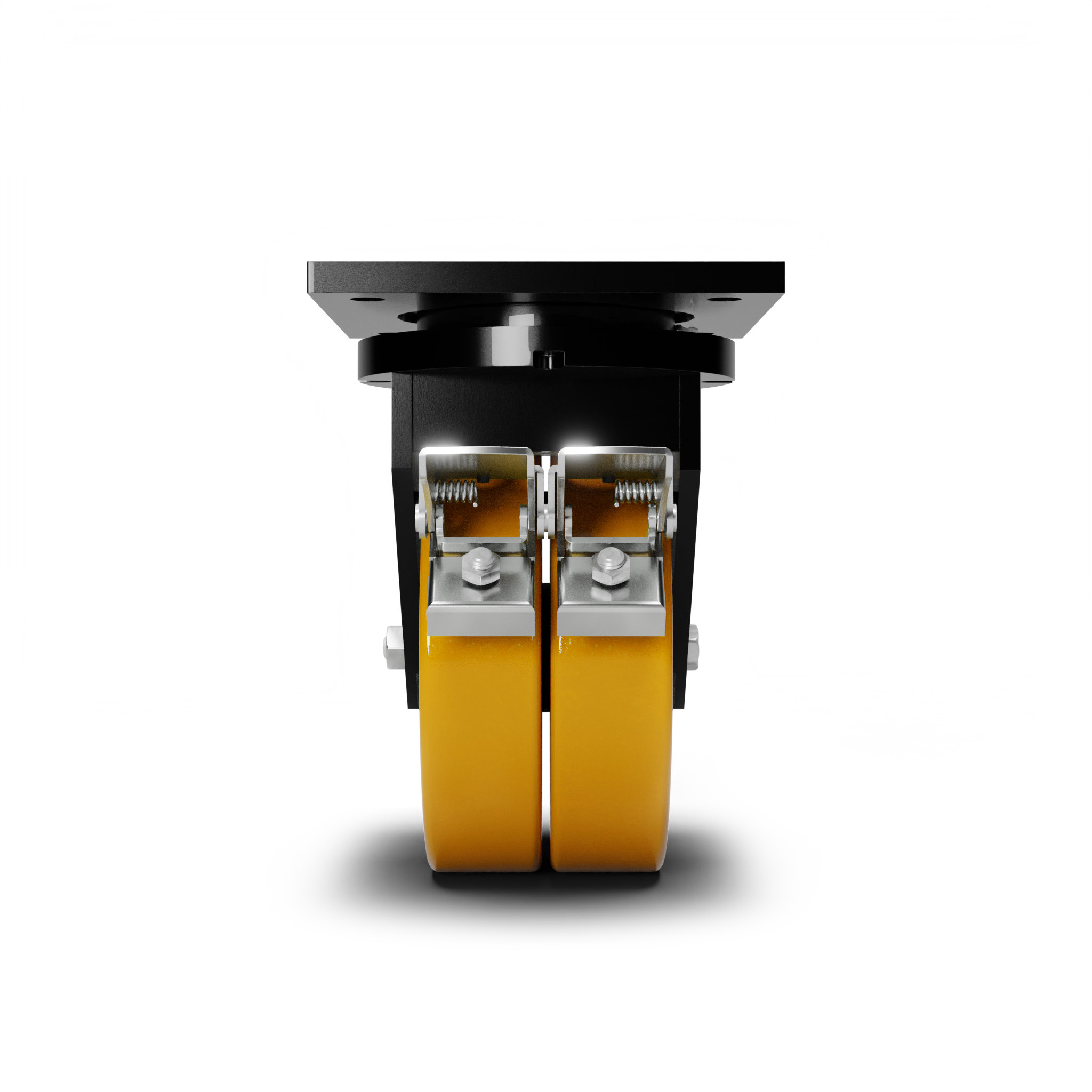

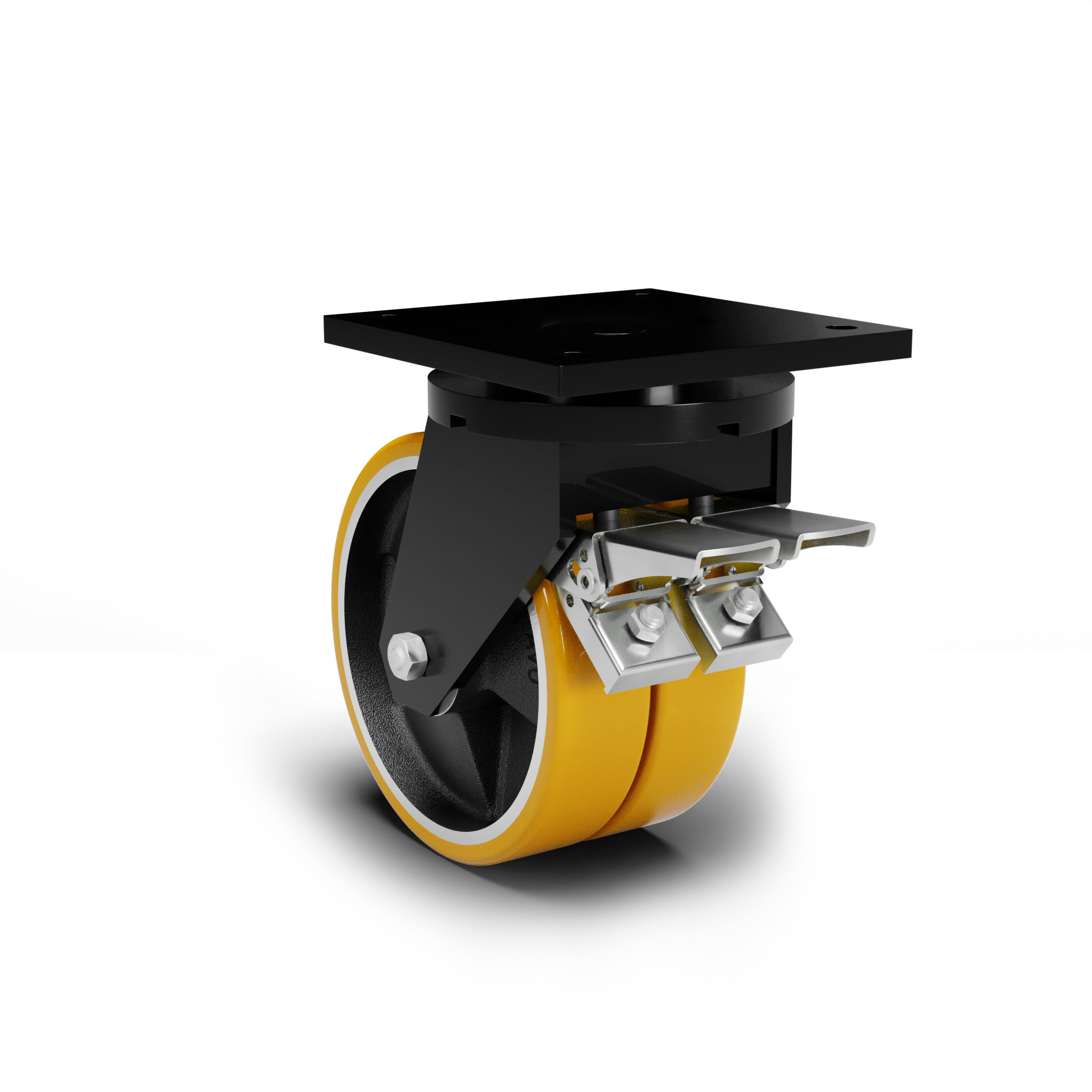

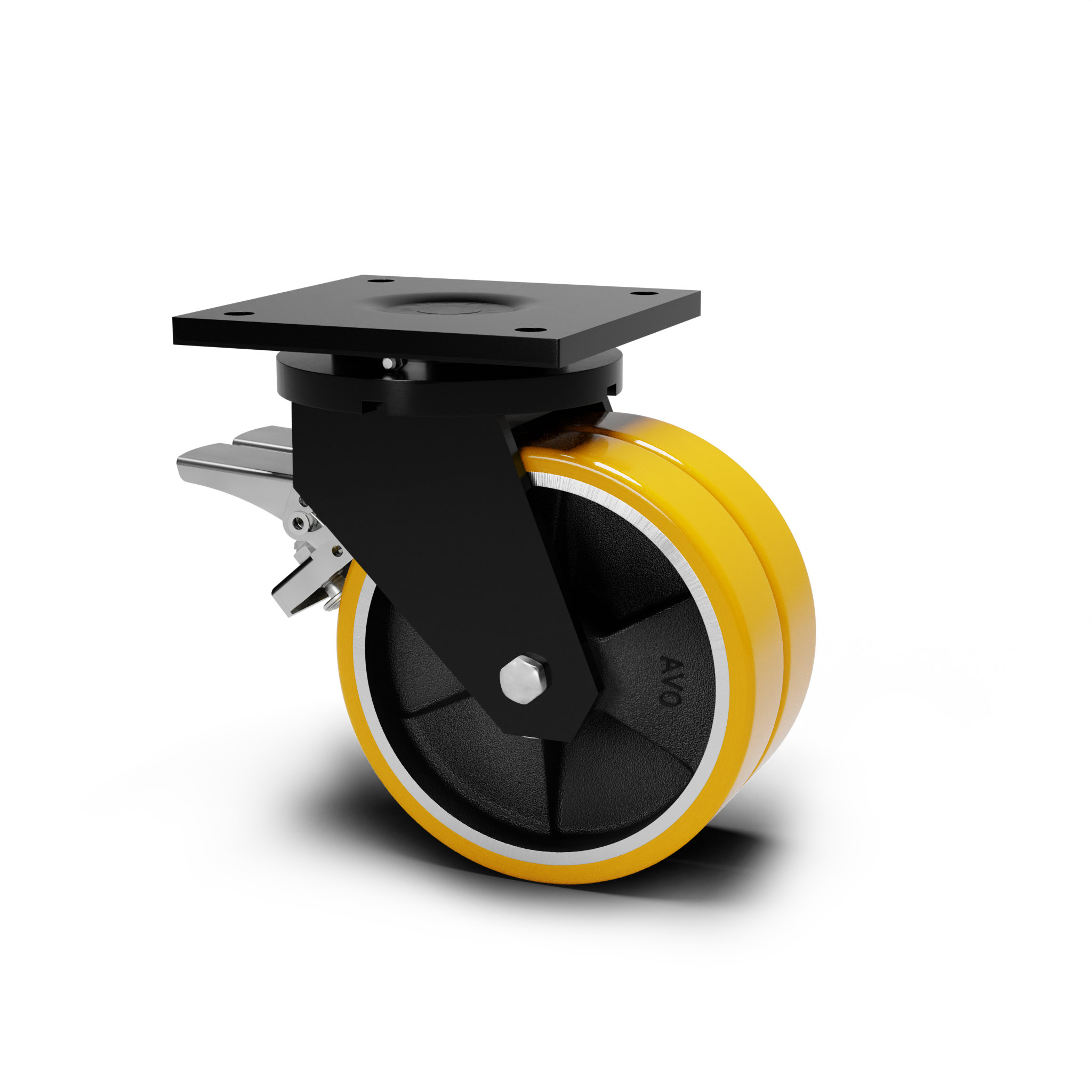

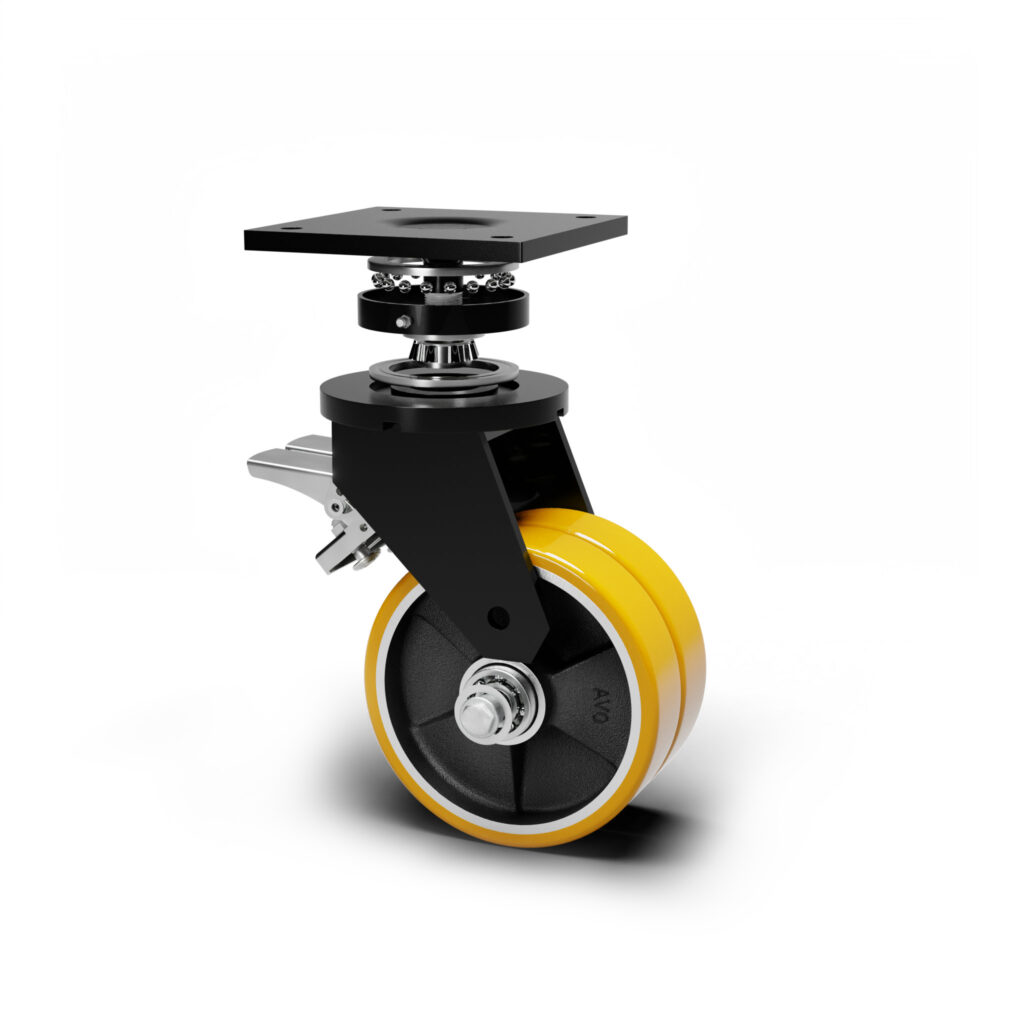

AVO – Wheel with avolan polyurethane and steel castor for industry, diameter 250mm ean 20064

33YBIS

Material: Avolan Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOLAN 91 Shore A and mechanical black painted cast iron centre. Hub on shielded ball bearings assembled with central spacer.

Twin Wheel Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.

Product line: Polyurethane

Linea di prodotto: Polyurethane

EAN13: 8018793200646

EAN5: 20064

Article code: 210330F250GCU

Features

-20 | 80

2800

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Download the drawing

Download the STP file

Wheel data

Diameter (mm)

250

Band width (mm)

60

Hub width (mm)

60

Hub version

Ball bearing

Wheel hole (mm)

25

Bearing seat (mm)

52X15

Dynamic load capacity (DaN)

2800

Colour

Yellow

Material

Avolan Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

230X230

Interaxis plate hole (mm)

190X190

Plate bore size (mm)

19

Offset (mm)

80

Height from ground (mm)

320

Castor hole (mm)

/

Static load capacity (DaN)

3500

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

/

Pivot type

/

Finishing

Black painted
