Serie 18A

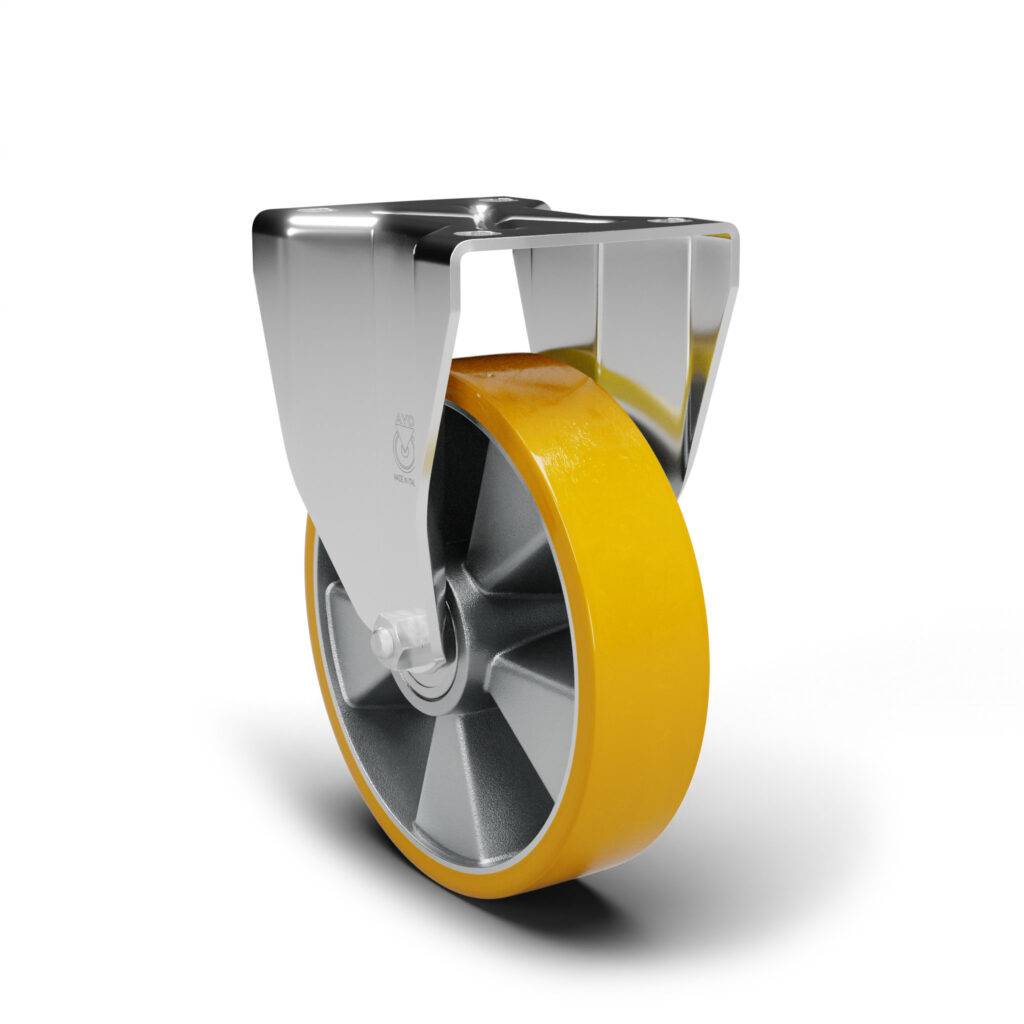

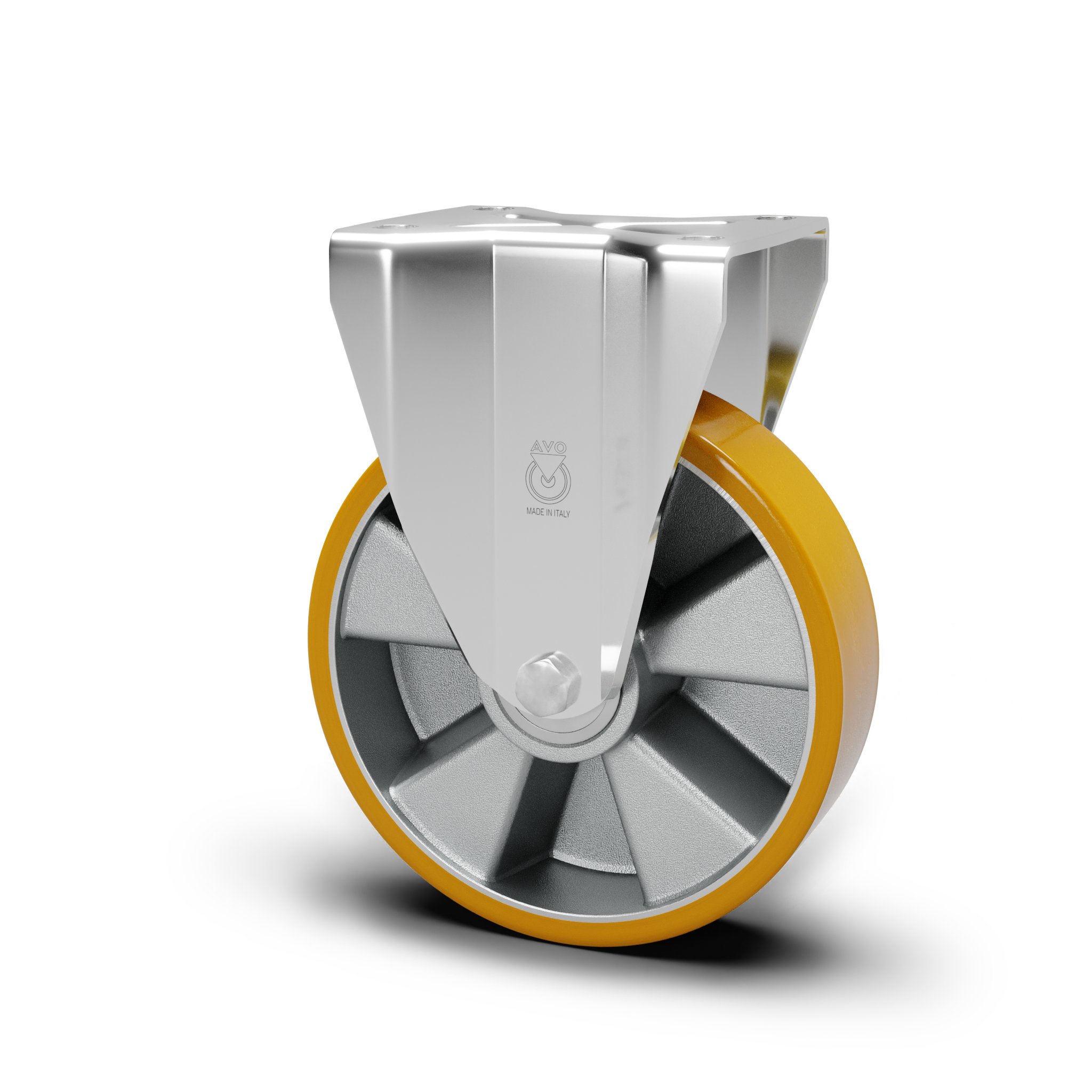

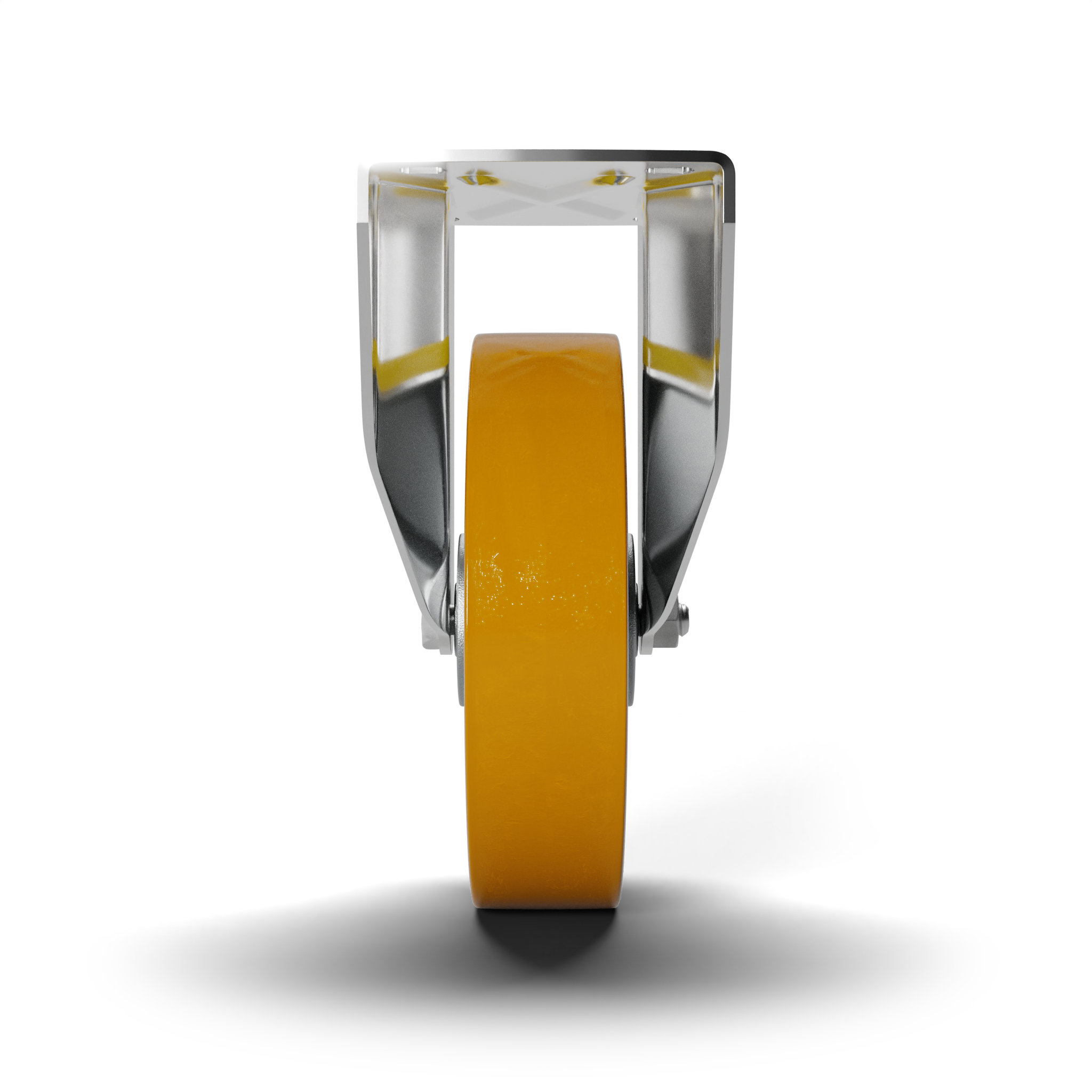

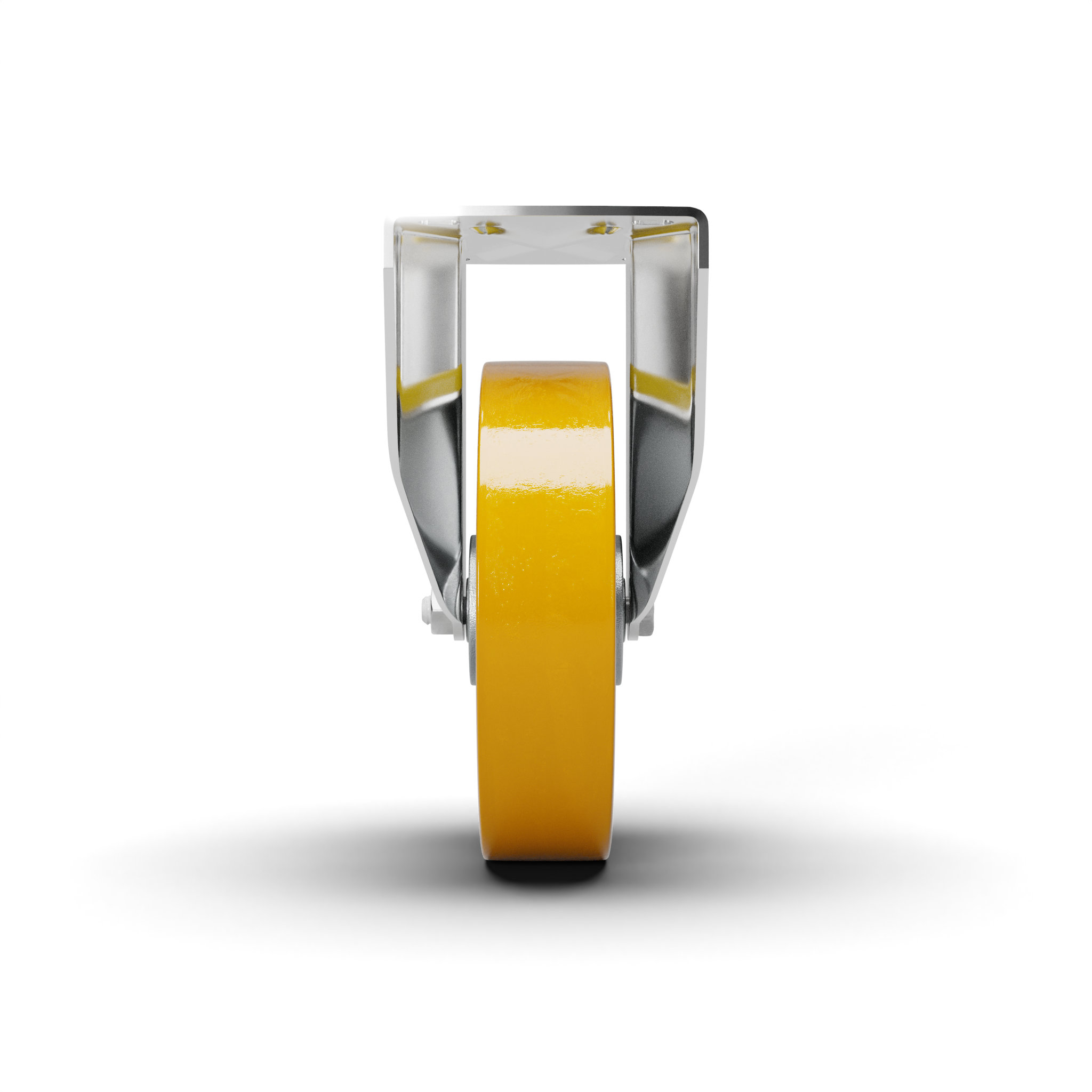

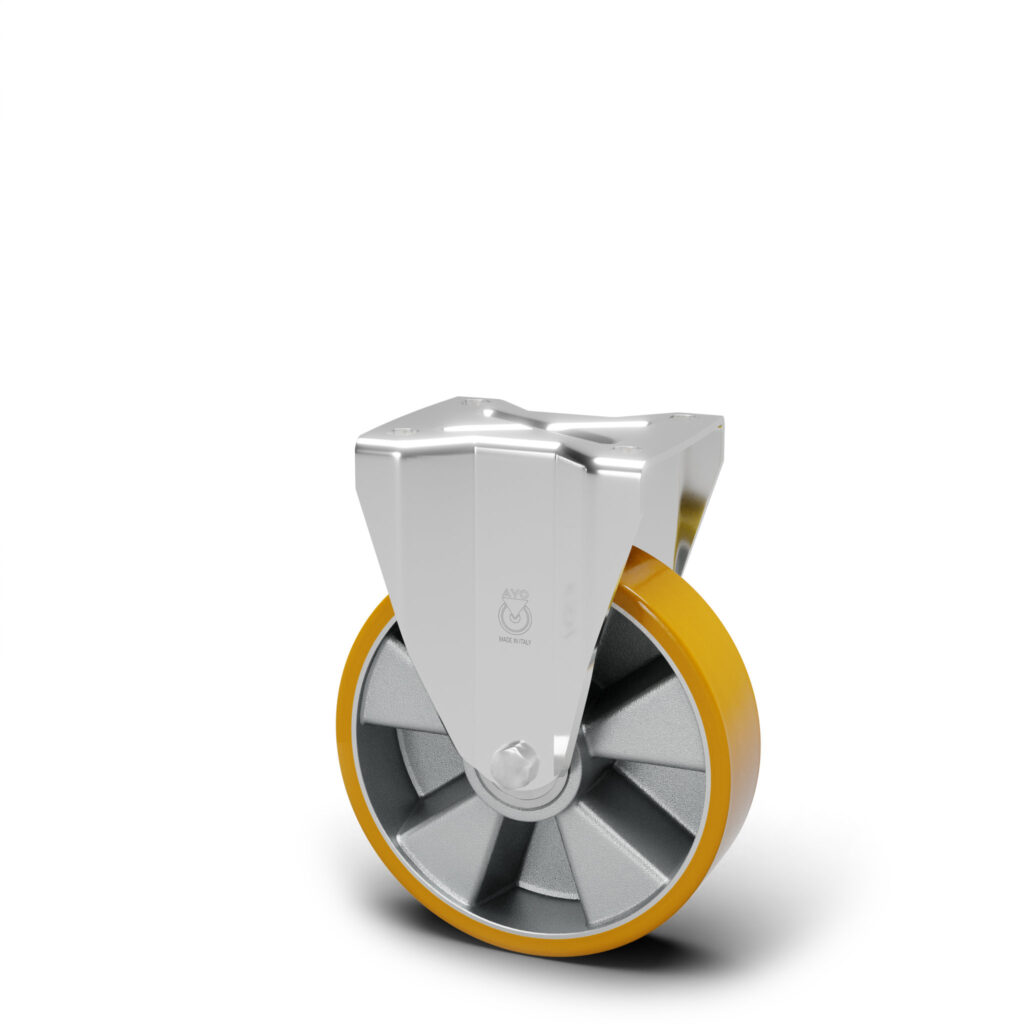

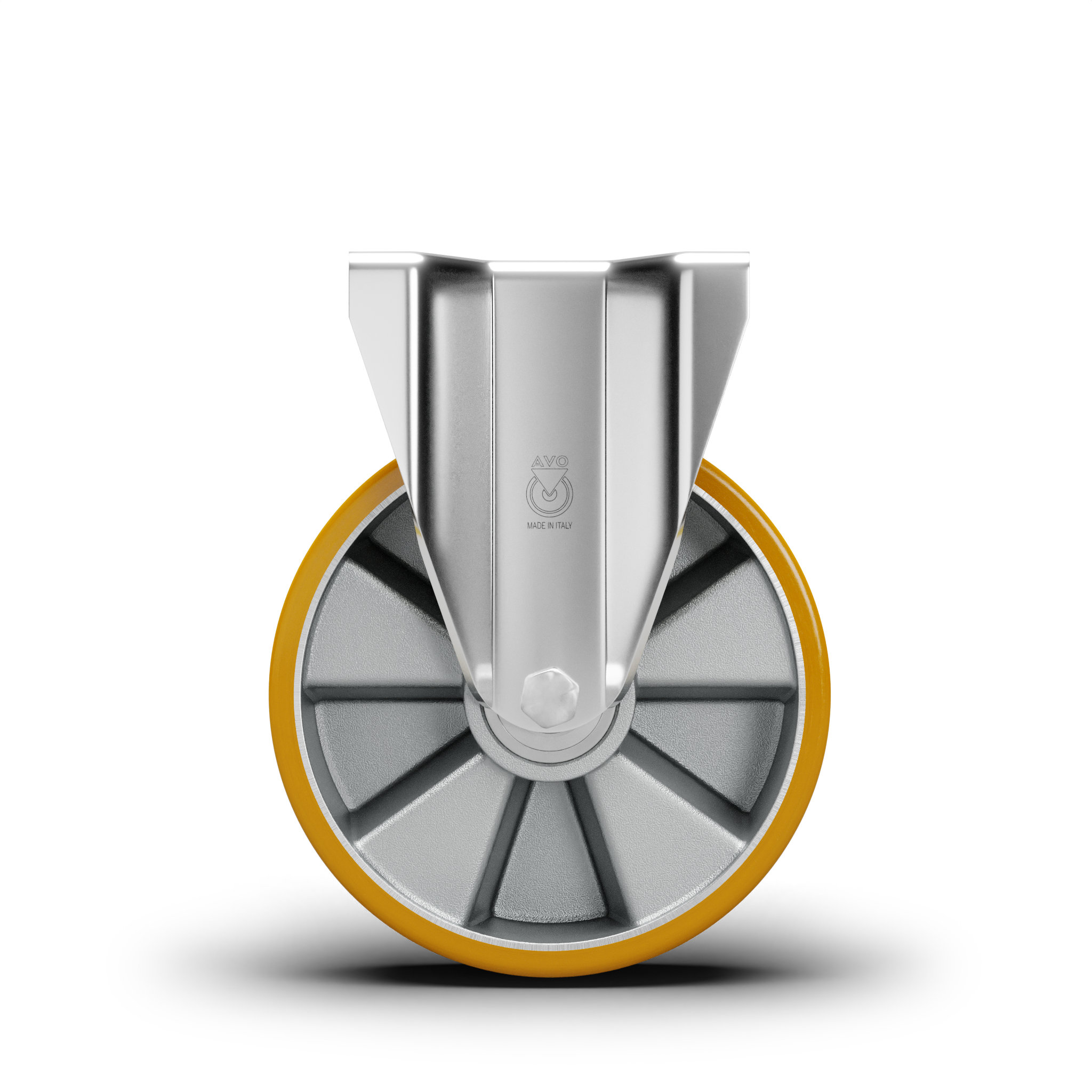

AVO – Wheel made of avolan polyurethane with steel castor for industry, diameter 80mm ean 06381

38A

Material: Avolan Polyurethane

Core: Aluminum

Scope: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOLAN 91 Shore A and aluminium centre. Hub on shielded ball bearings assembled with central spacer.

Heavy-Duty Castors

Made of zinc-chromium plated pressed steel, fixed. Assembled with self-locking nut.

Product line: Polyurethane

EAN13: 8018793063814

EAN5: 06381

Article code: 11038A0080ACU

Features

-20 | 80

150

Ball bearing

Shore A

Flooring

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Wheel data

Diameter (mm)

Band width (mm)

Hub width (mm)

Hub version

Ball bearing

Wheel hole (mm)

Bearing seat (mm)

32X10

Dynamic load capacity (DaN)

150

Colour

Yellow

Material

Avolan Polyurethane

Box pieces

Hardness scale

Shore A

Hardness

Castor data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

9X12

Offset (mm)

Height from ground (mm)

118

Castor hole (mm)

Static load capacity (DaN)

190

Structure

Fixed

Version

Brake

Pivot

Pivot type

Finishing

Galvanized
