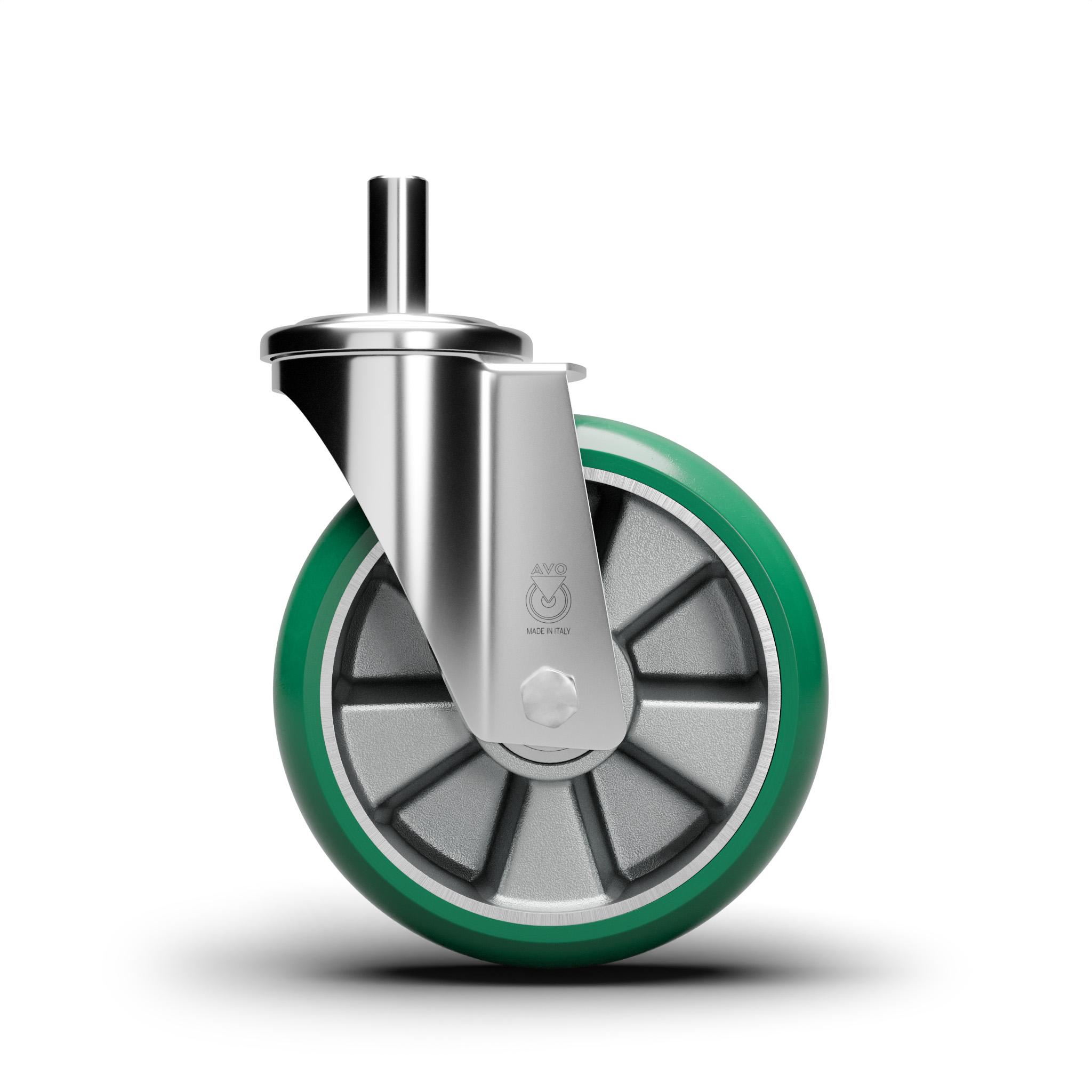

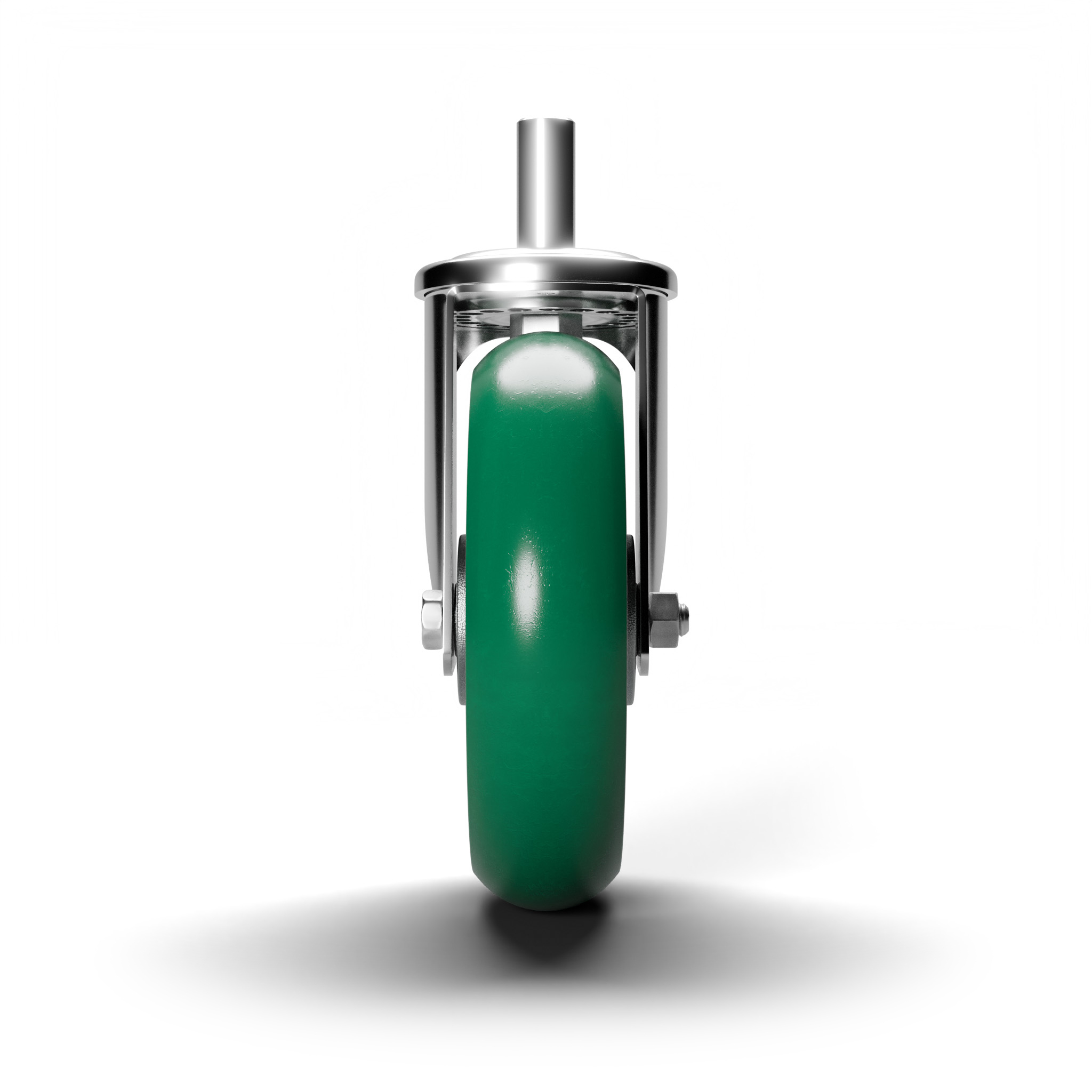

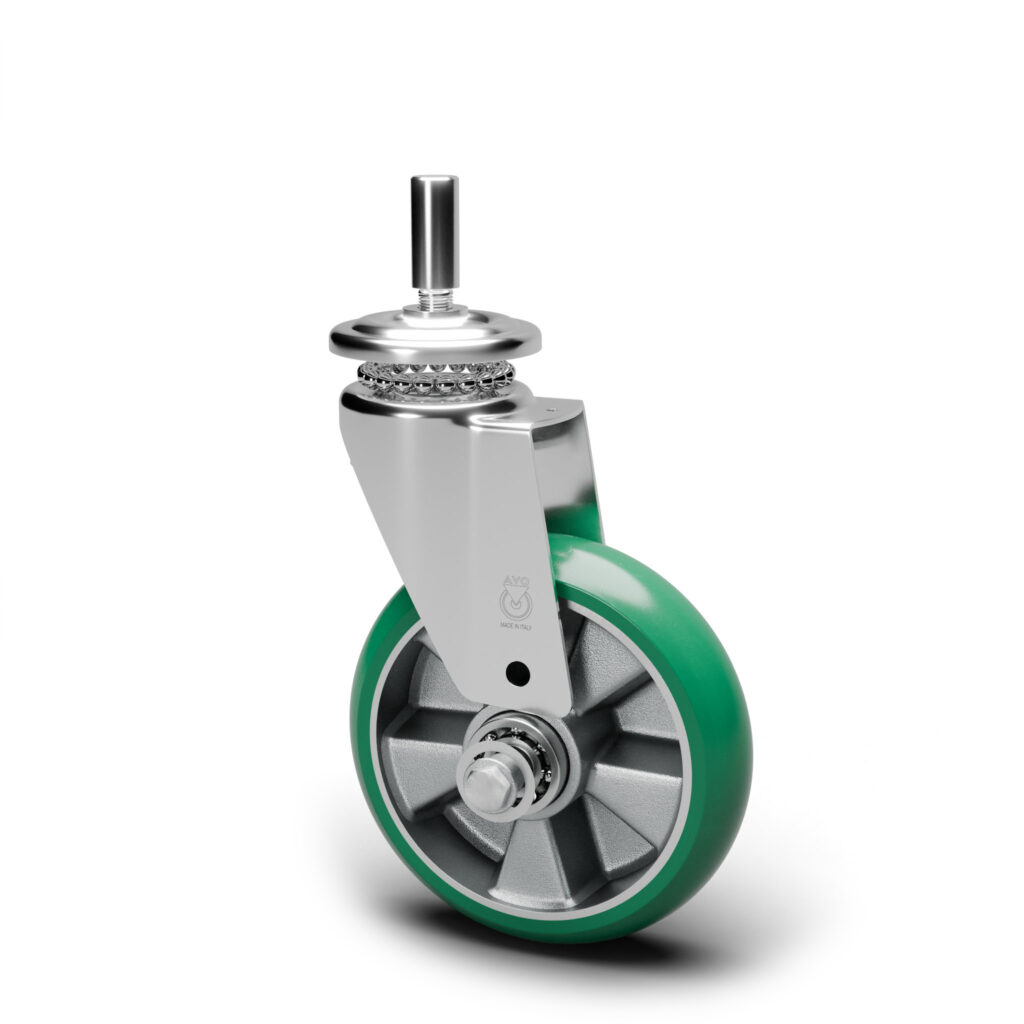

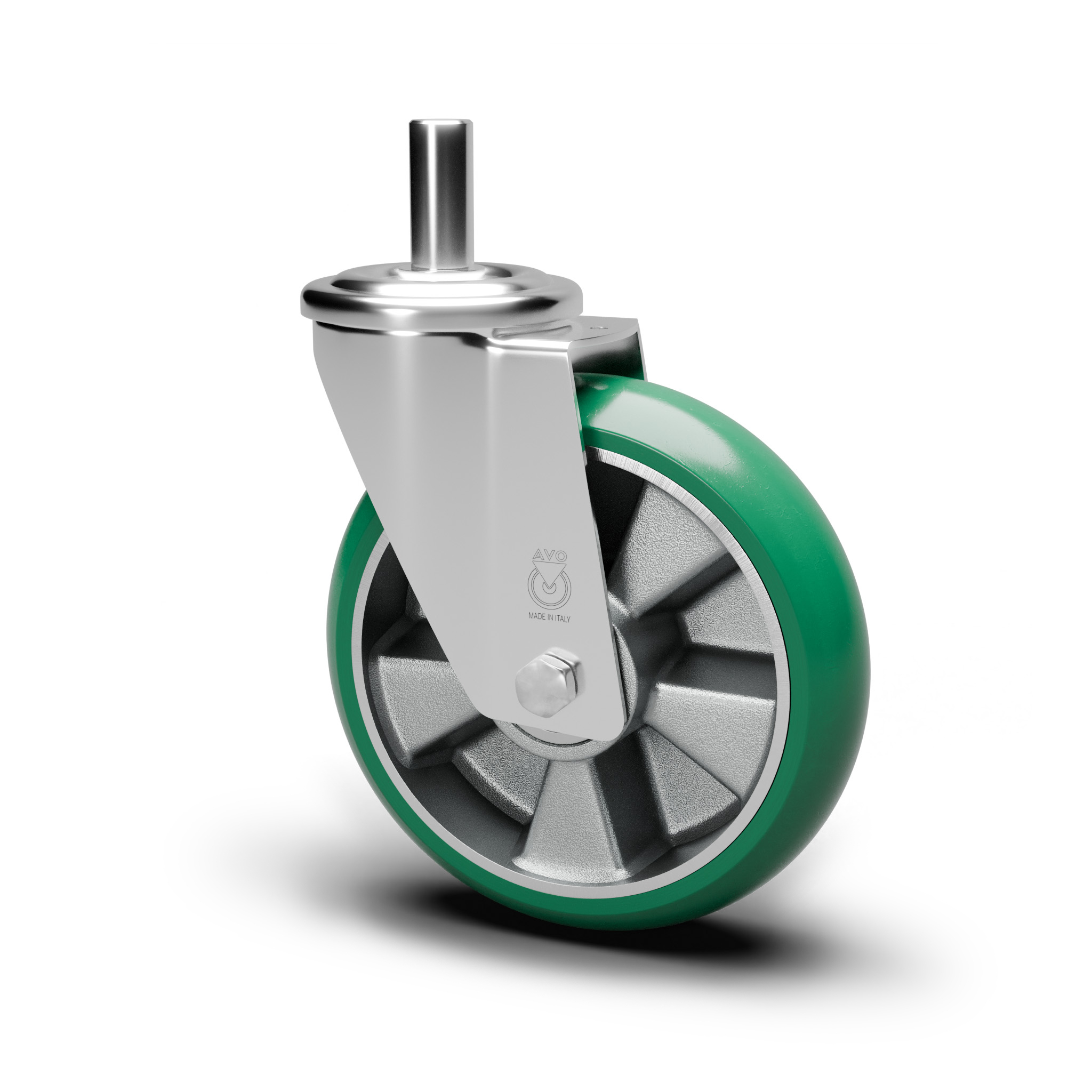

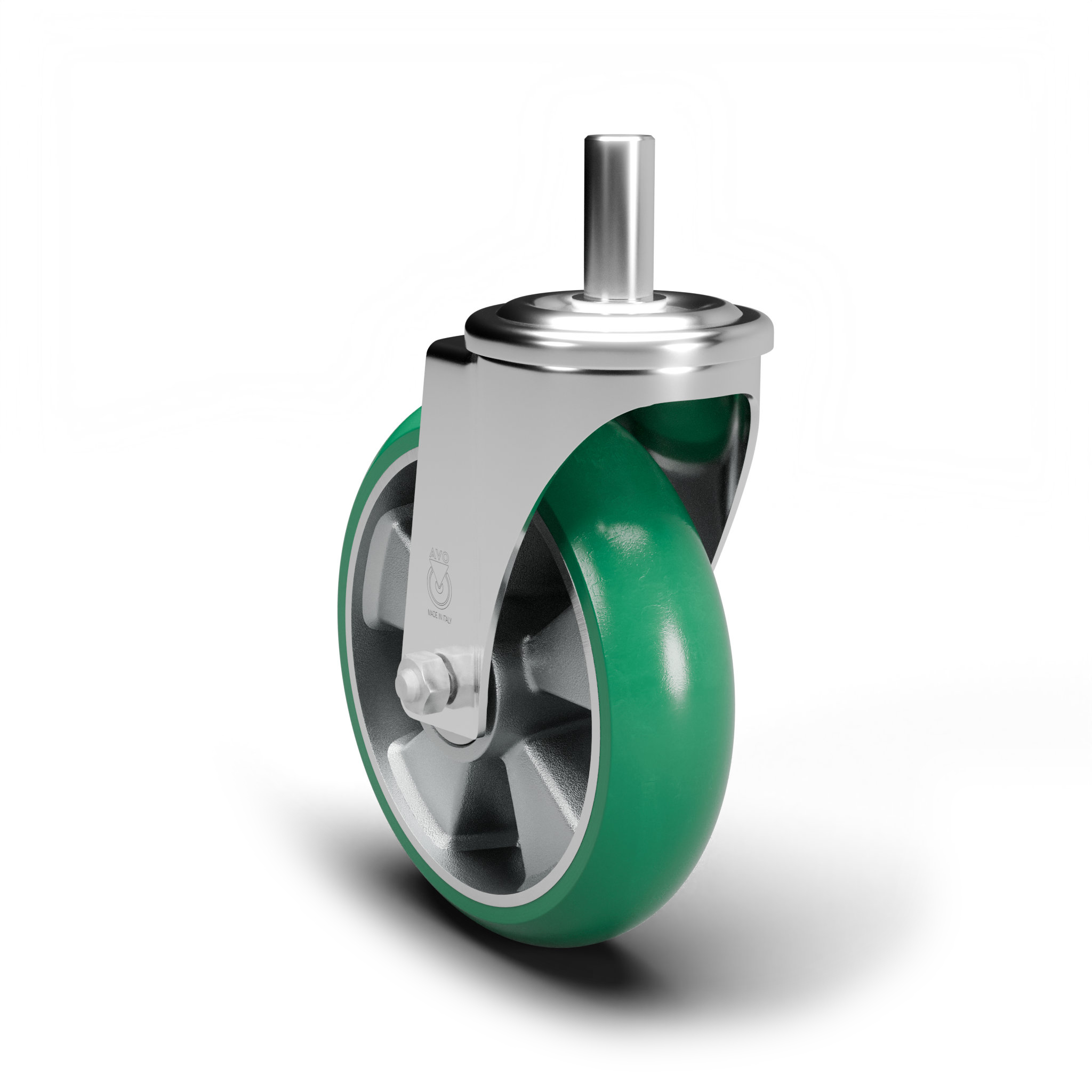

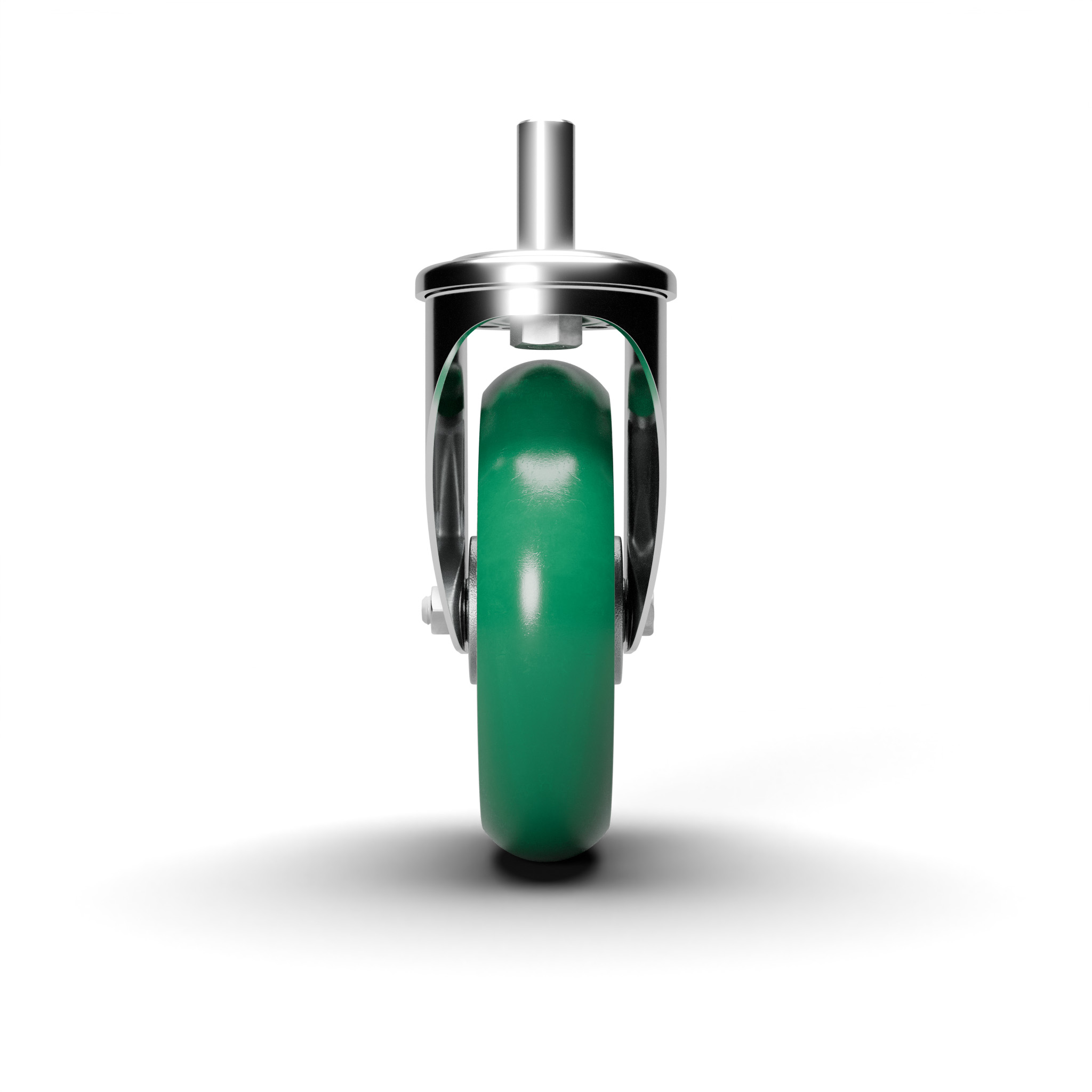

AVO – Wheel with avoplus polyurethane and steel castor for industry, diameter 100mm ean 26796

69BV-B30

Material: Avoplus Polyurethane
Core: Aluminum
Application field: Industry
Request information

Description:

Wheel with soft AVOPLUS polyurethane 78 Shore A, round tread R30 and aluminium centre. Hub on shielded ball bearings assembled with central spacer.

Medium duty castors
Made of zinc-chromium plated pressed steel, turning on double rim of balls, with stem. Assembled with self-locking nut.
Product line: Polyurethane
Linea di prodotto: Polyurethane
EAN13: 8018793267960
EAN5: 26796
Article code: 09369B010BACV

Features

-20 | 80

120

Ball bearing
Shore A
78

Floor types

Asphalt
Concrete
Grid
Stoneware
Download pdf product sheet
69BV B30
69BV-B30
69BV-B30-3
69BV-B30-4
69BV-B30-5
69BV-B30-7
69BV-B30-8
download images

Wheel data

Diameter (mm)

100

Band width (mm)

30

Hub width (mm)

40

Hub version

Ball bearing

Wheel hole (mm)

12

Bearing seat (mm)

32X10

Dynamic load capacity (DaN)

120

Colour

Green

Material

Avoplus Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

78

Bracket data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

37

Height from ground (mm)

128

Castor hole (mm)

/

Static load capacity (DaN)

150

Structure

Swivel

Version

Axle

Brake

/

Pivot

20X50

Pivot type

Stem(on request threaded stem), Plain axle

Finishing

Galvanized
