Serie 15

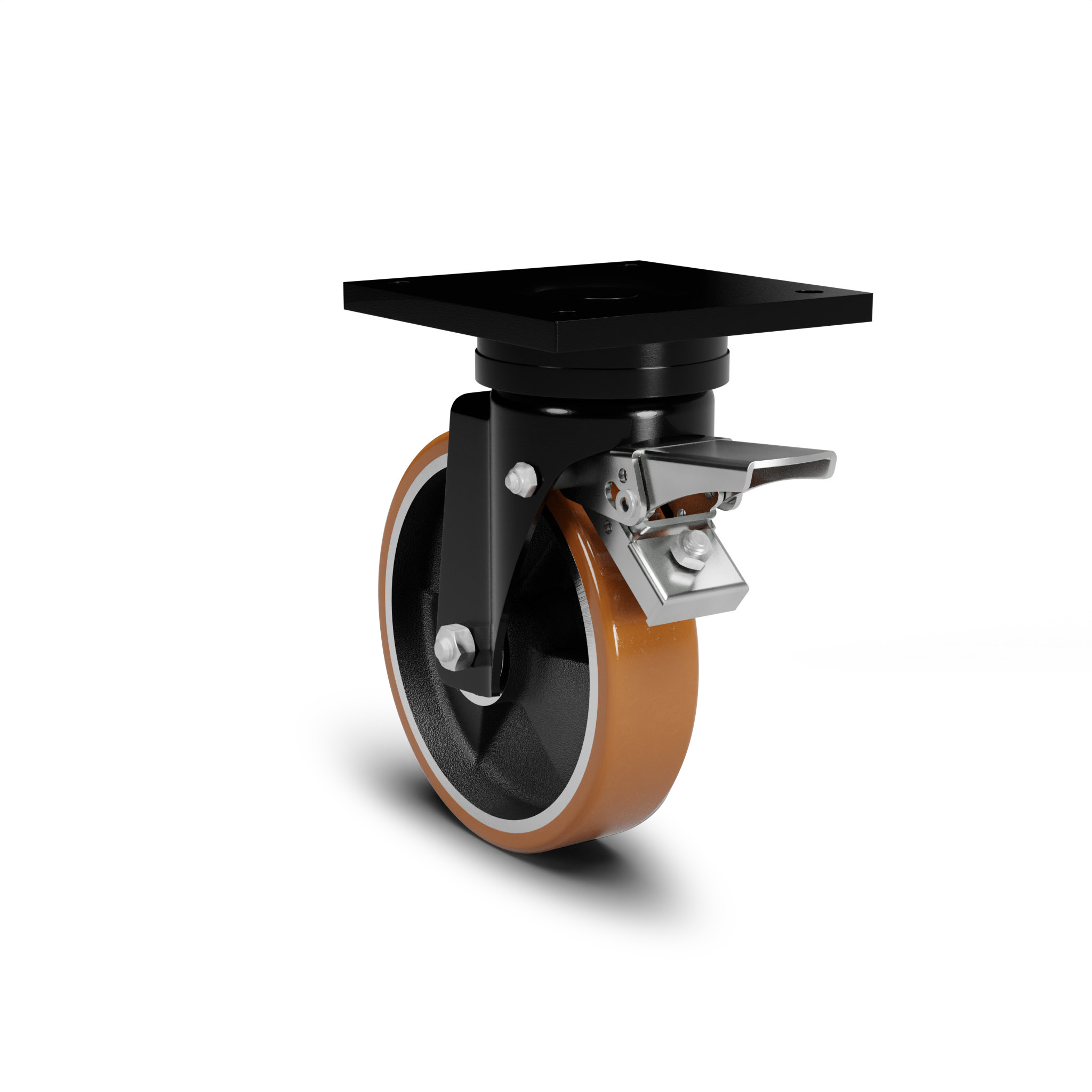

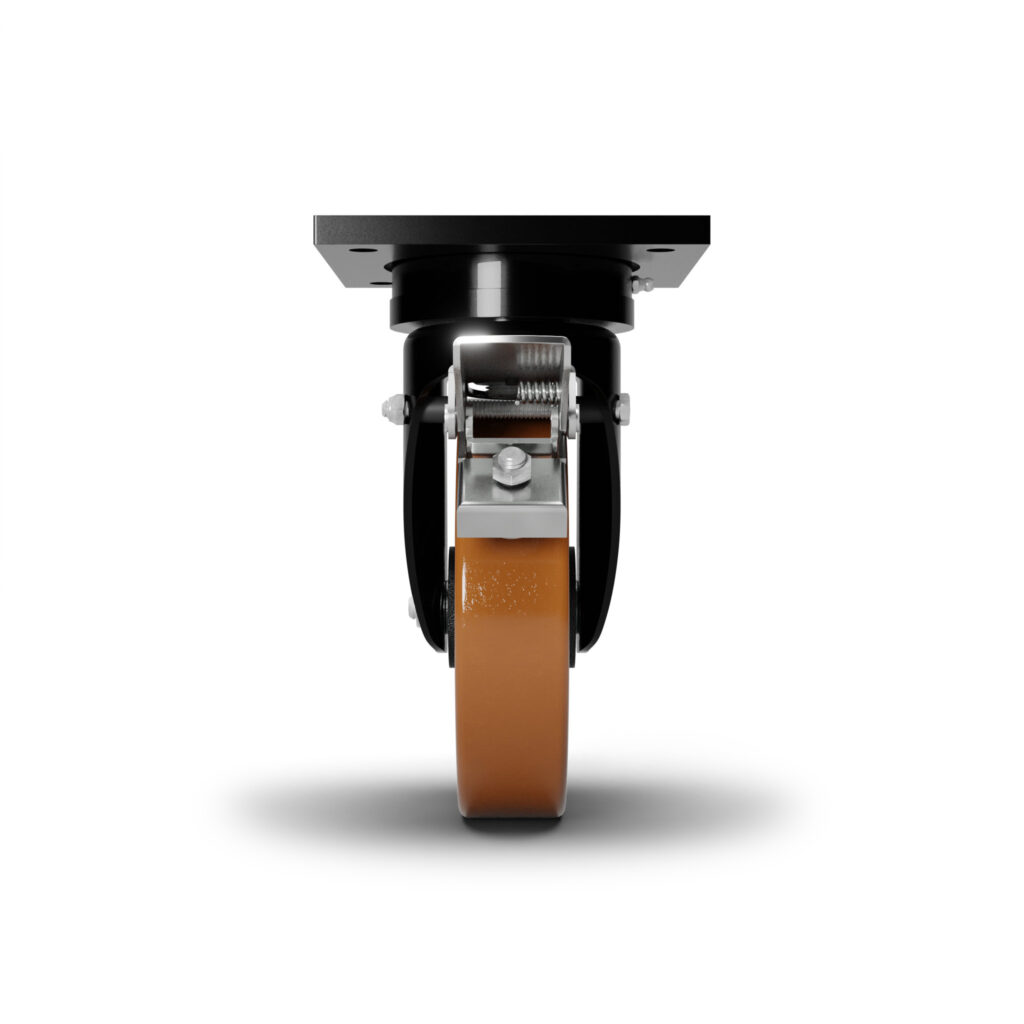

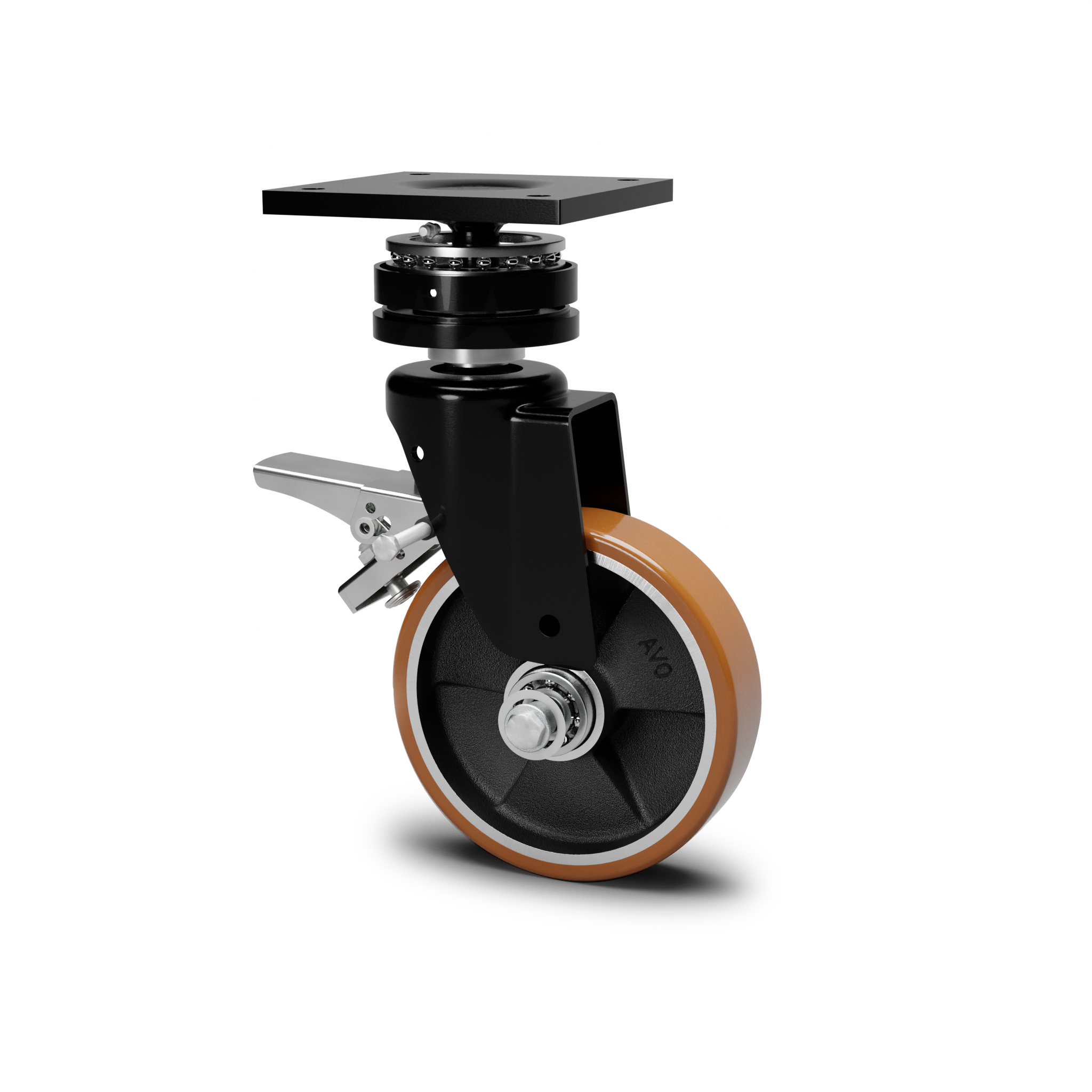

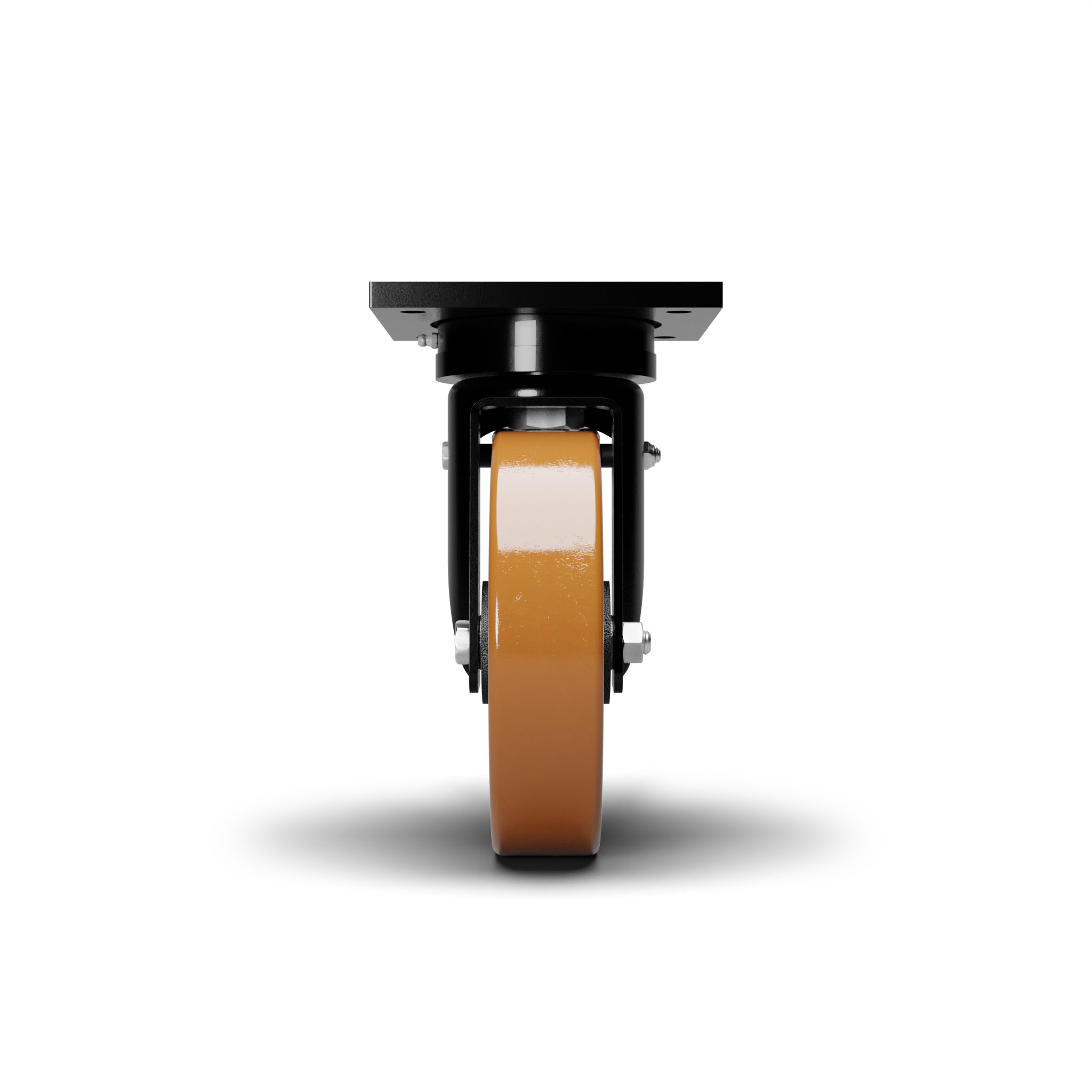

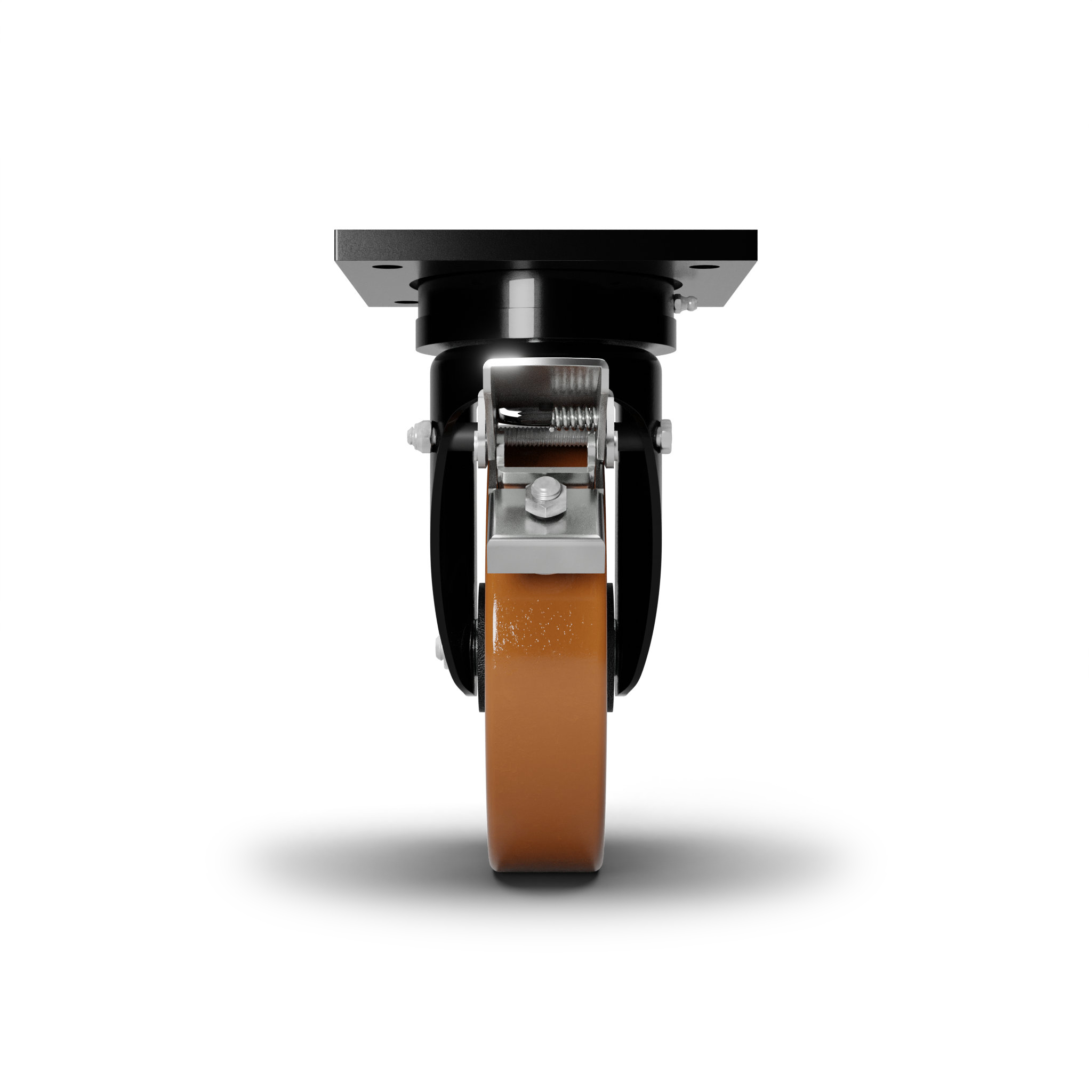

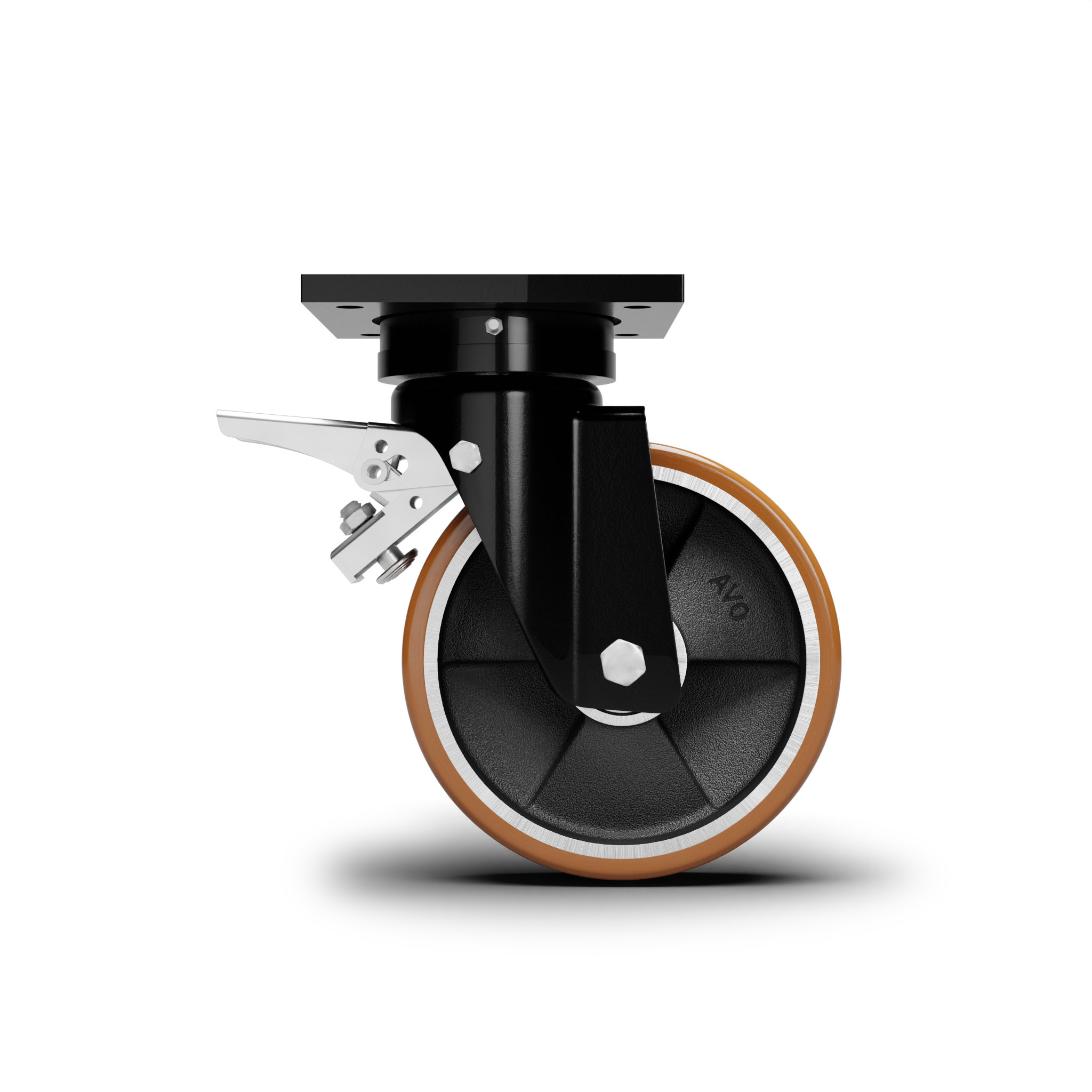

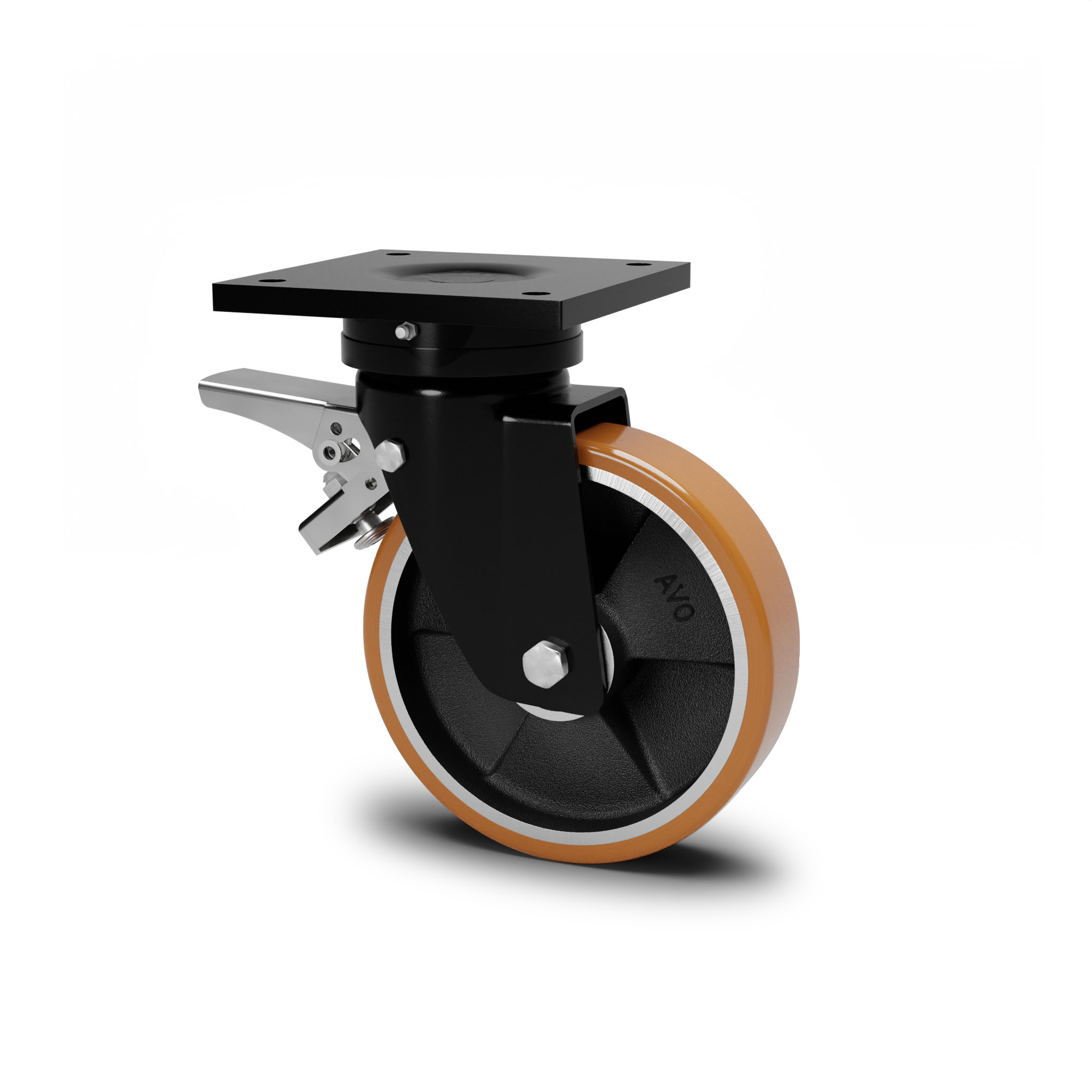

AVO – Wheel with avoprene polyurethane and steel castor for industry, diameter 100mm ean 10774

30BIS

Material: Avoprene Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with cast Polyurethane tread AVOPRENE 91 Shore A and mechanical black painted cast iron centre. Hub on shielded ball bearings assembled with central spacer.

Extra Heavy-Duty Castors

Made of pressed and welded high thickness steel, turning on thrust and tapered roller bearings, with plate and rear brake. Black epoxy paint.

Product line: Polyurethane

Linea di prodotto: Polyurethane

EAN13: 8018793107747

EAN5: 10774

Article code: 130300F100XCA

Features

-20 | 80

300

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

100

Band width (mm)

40

Hub width (mm)

40

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

300

Colour

Brown

Material

Avoprene Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

11

Offset (mm)

36

Height from ground (mm)

150

Castor hole (mm)

/

Static load capacity (DaN)

380

Structure

Swivel

Version

Plate with brake

Brake

Rear

Pivot

/

Pivot type

/

Finishing

Black painted
