Serie 17G-S

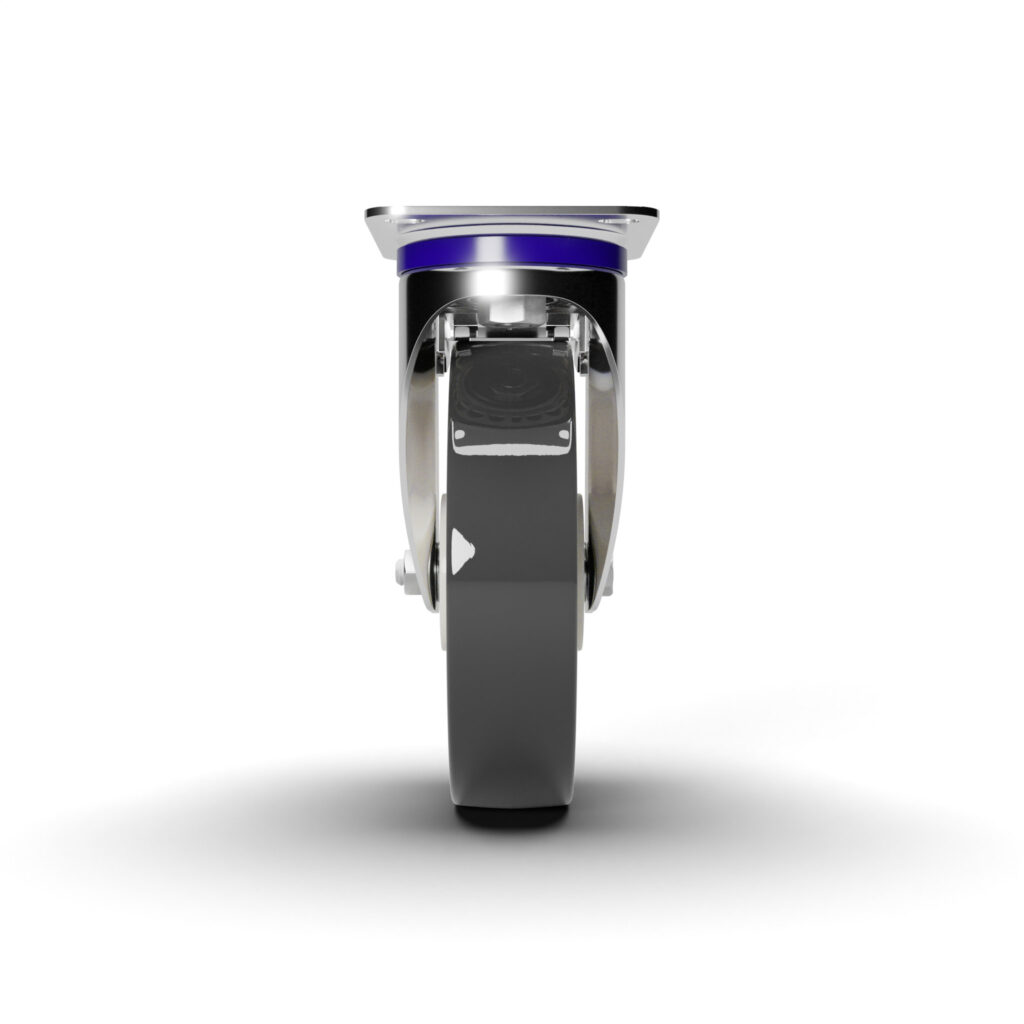

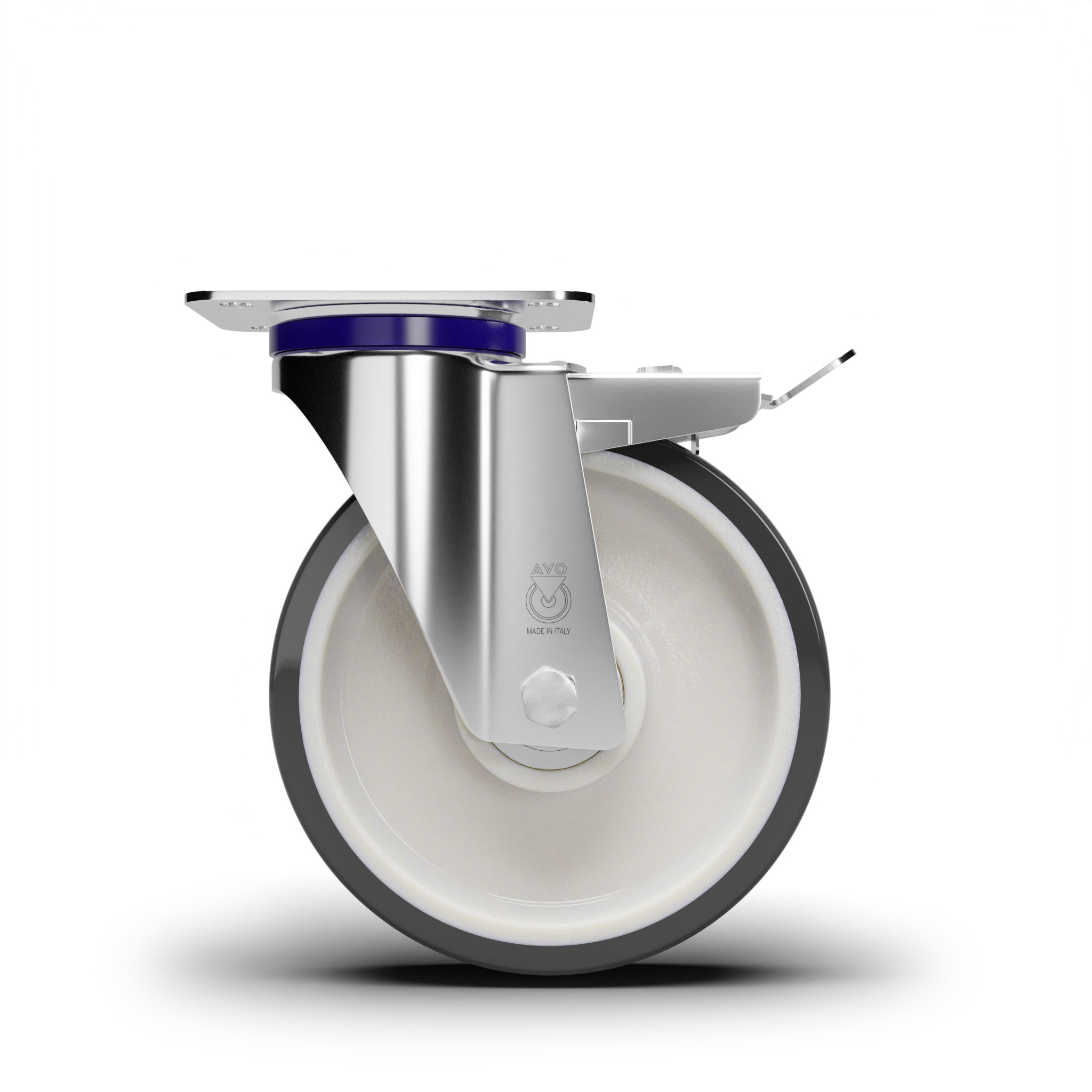

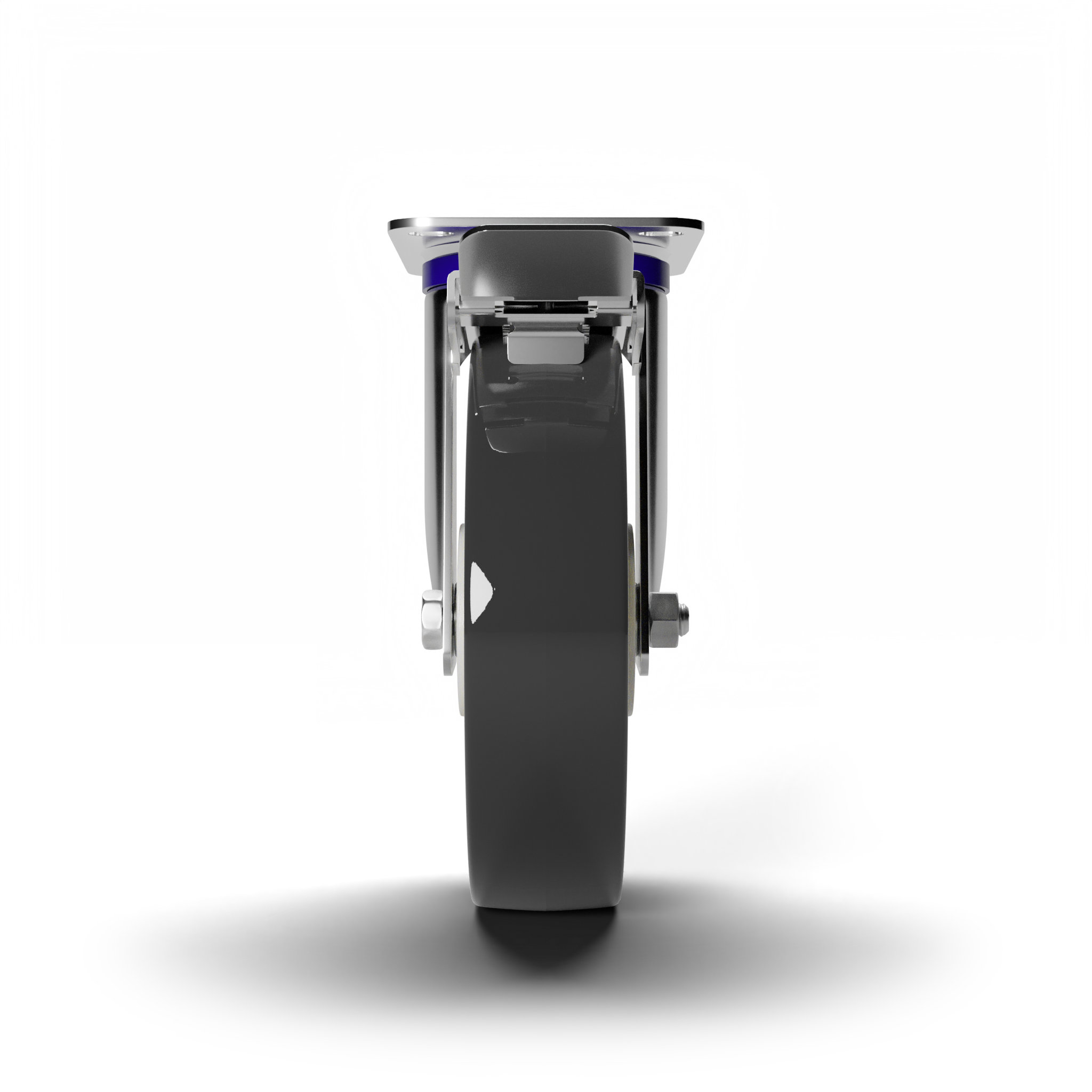

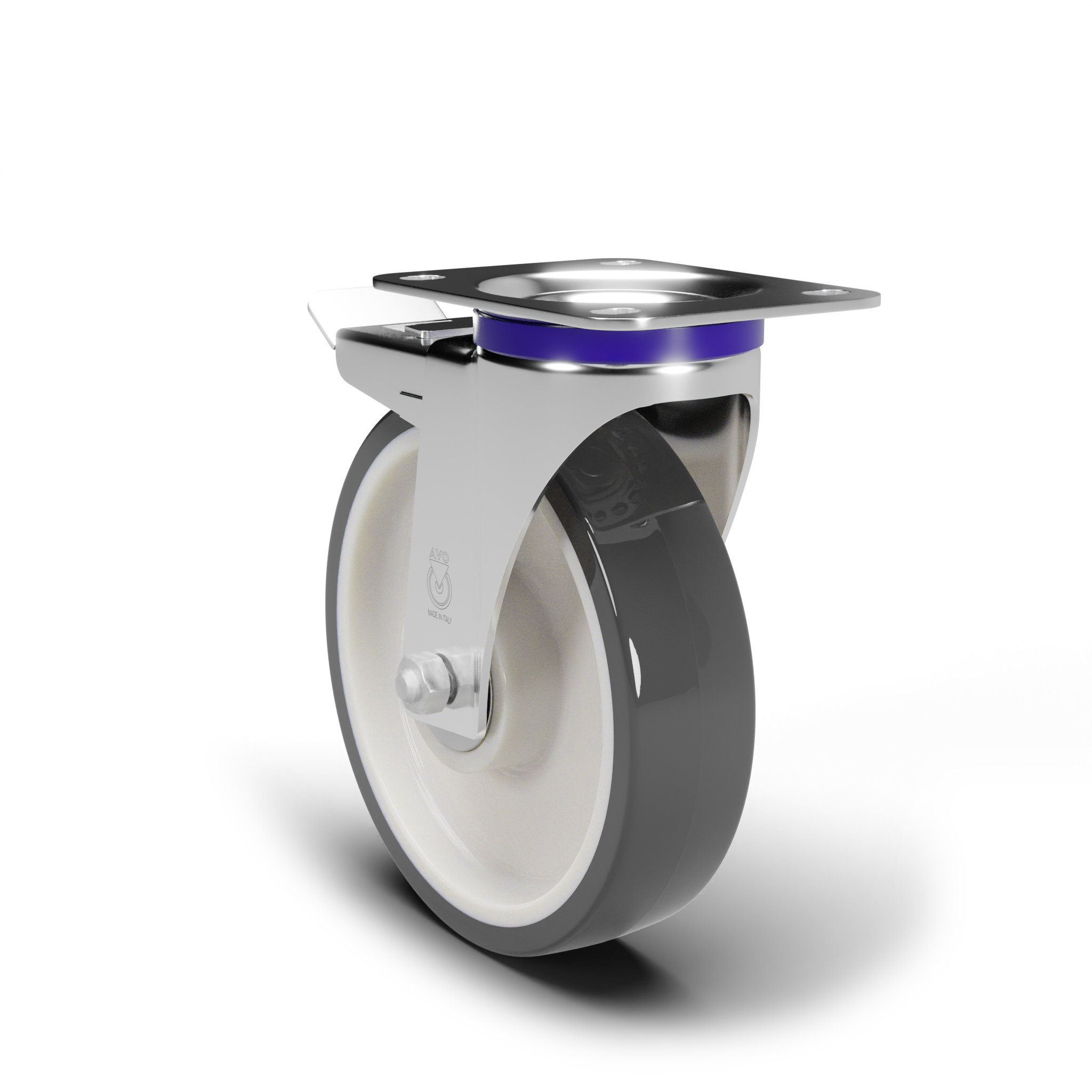

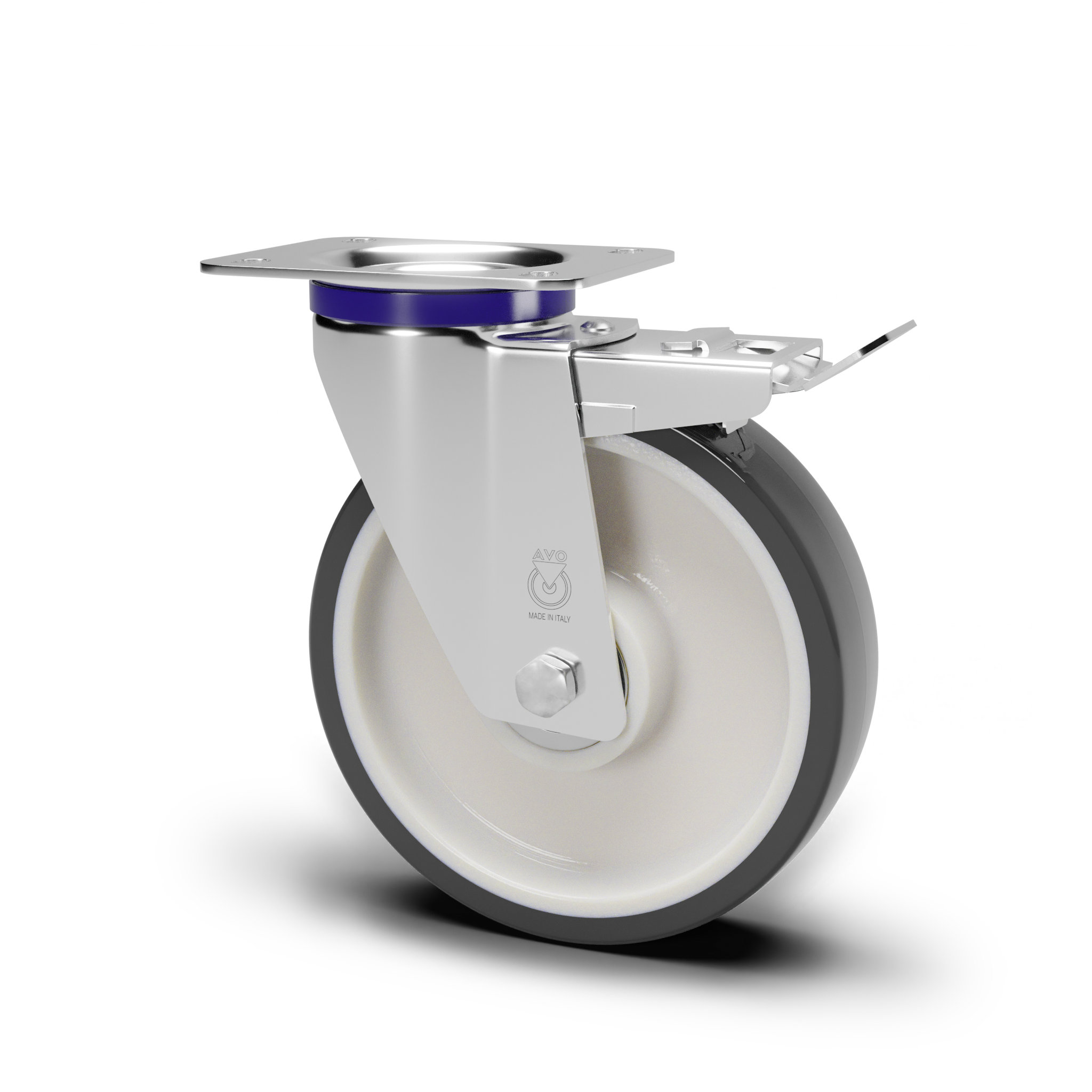

AVO – Wheel made of thermoplastic polyurethane with aisi 304 stainless steel castor for industry, diameter 125mm ean 19080

31XANTG-S

Material: Thermoplastic Polyurethane

Core: Polyamide 6

Scope: Industry

Request information

Description:

Wheel coated with injection-moulded soft Polyurethane tread, 80 Shore A and Polyamide 6 centre. Hub on plain bore, roller bearing or shielded ball bearings assembled with central spacer.

Medium duty castors

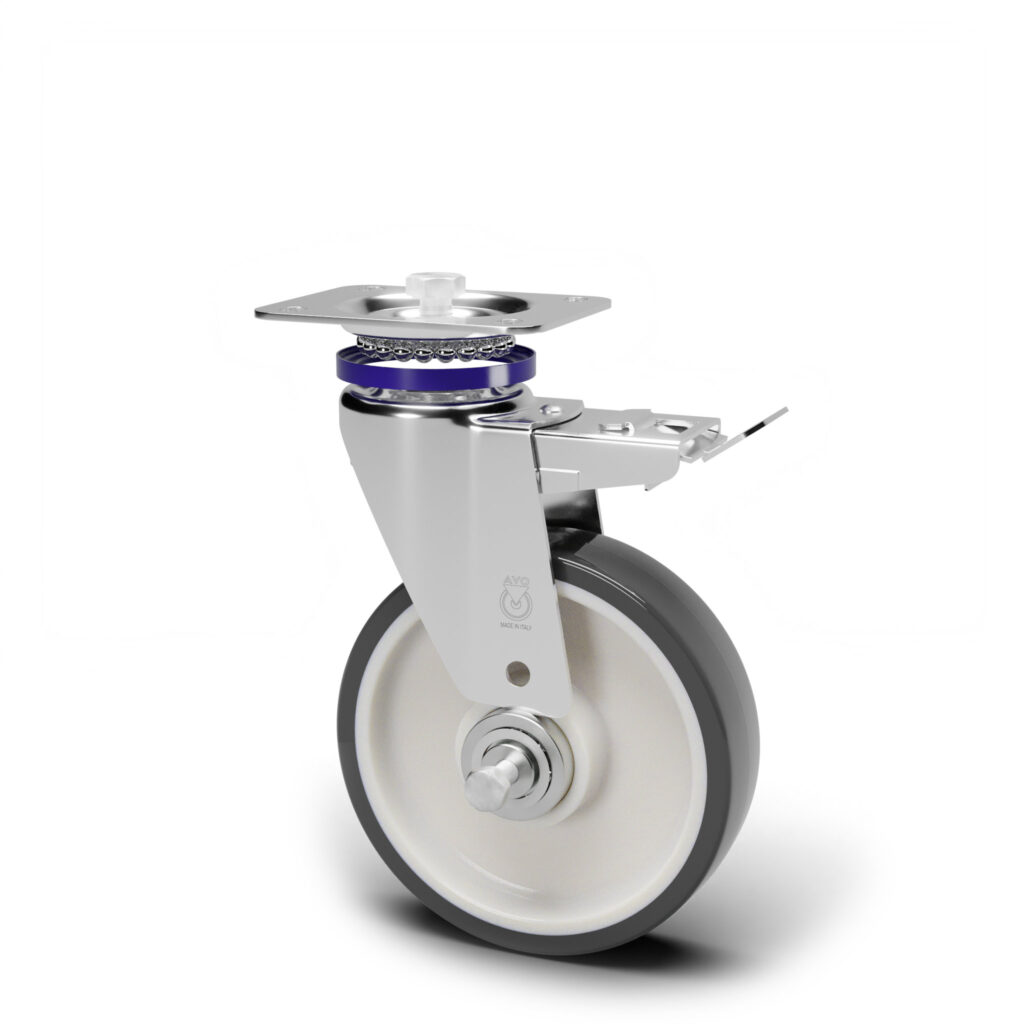

Made of pressed steel AISI 304, turning on double rim of stainless-steel balls AISI 420, with plate and front brake. Dust cover ring on the balls.

Product line: Polyurethane, Stainless steel

EAN13: 8018793190800

EAN5: 19080

Article code: 06831XF125NBG

Features

-20 | 80

200

Plain bore

Shore A

80

Flooring

Concrete

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

125

Band width (mm)

35

Hub width (mm)

50

Hub version

Plain bore

Wheel hole (mm)

15

Bearing seat (mm)

/

Dynamic load capacity (DaN)

200

Colour

Grey

Material

Thermoplastic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

80

Castor data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

8,5X12

Offset (mm)

42

Height from ground (mm)

155

Castor hole (mm)

/

Static load capacity (DaN)

250

Structure

Swivel

Version

Plate with brake

Brake

Front

Pivot

/

Pivot type

/

Finishing

AISI 304 stainless steel
