Serie 17G-S

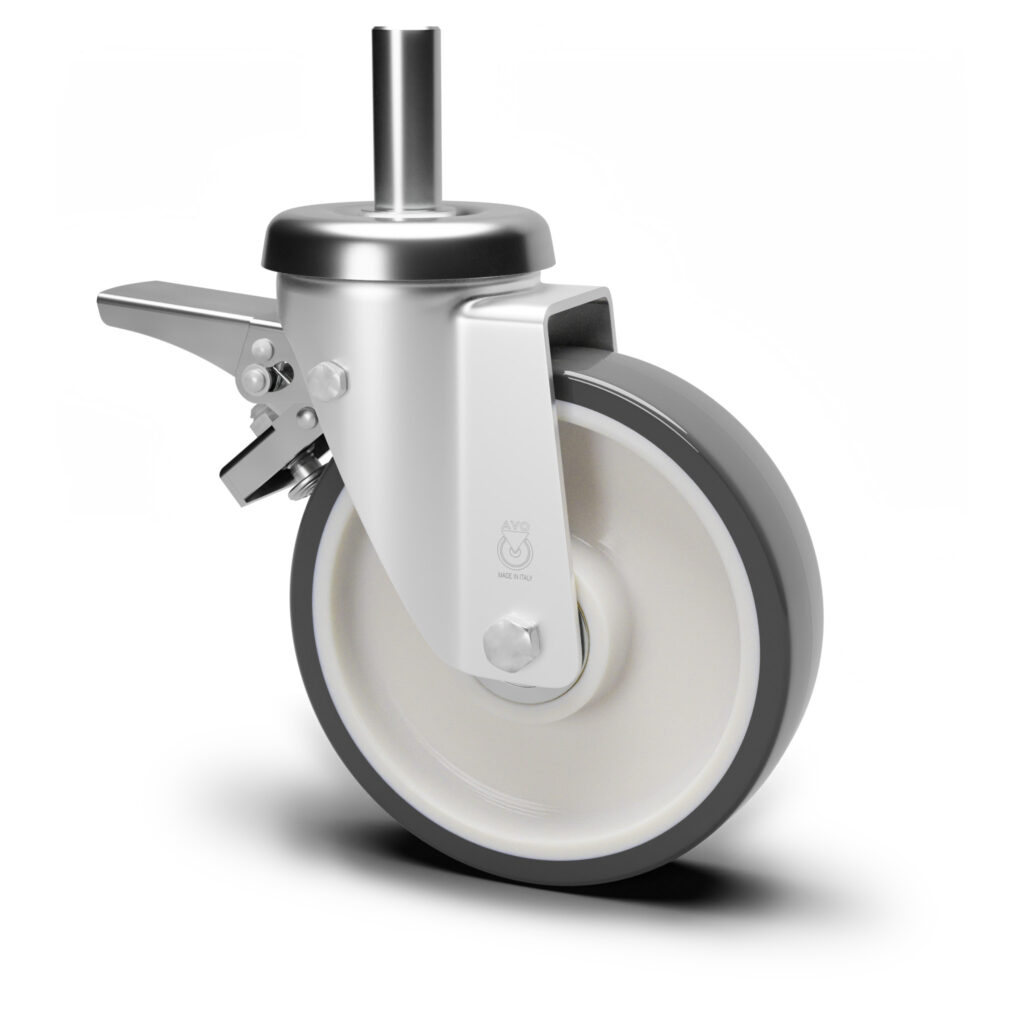

AVO – Wheel with thermoplastic polyurethane and aisi 304 stainless steel castor for industry, diameter 150mm ean 27613

31XFG-S

Material: Thermoplastic Polyurethane

Core: Polyamide 6

Application field: Industry

Request information

Description:

Wheel coated with injection-moulded soft Polyurethane tread, 80 Shore A and Polyamide 6 centre. Hub on plain bore, roller bearing or shielded ball bearings assembled with central spacer.

Medium duty castors

Made of pressed stainless steel AISI 304, turning on double rim of balls AISI 420, with bolt hole. Dust cover ring on the balls.

Product line: Polyurethane, Stainless steel

Linea di prodotto: Polyurethane, Stainless steel

EAN13: 8018793276139

EAN5: 27613

Article code: 06831FX150NBG

Features

-20 | 80

200

Plain bore

Shore A

80

Floor types

Concrete

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

150

Band width (mm)

40

Hub width (mm)

50

Hub version

Plain bore

Wheel hole (mm)

15

Bearing seat (mm)

/

Dynamic load capacity (DaN)

200

Colour

Grey

Material

Thermoplastic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

80

Bracket data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

45

Height from ground (mm)

178

Castor hole (mm)

12

Static load capacity (DaN)

250

Structure

Swivel

Version

Bolt hole

Brake

/

Pivot

/

Pivot type

/

Finishing

AISI 304 stainless steel
