Serie

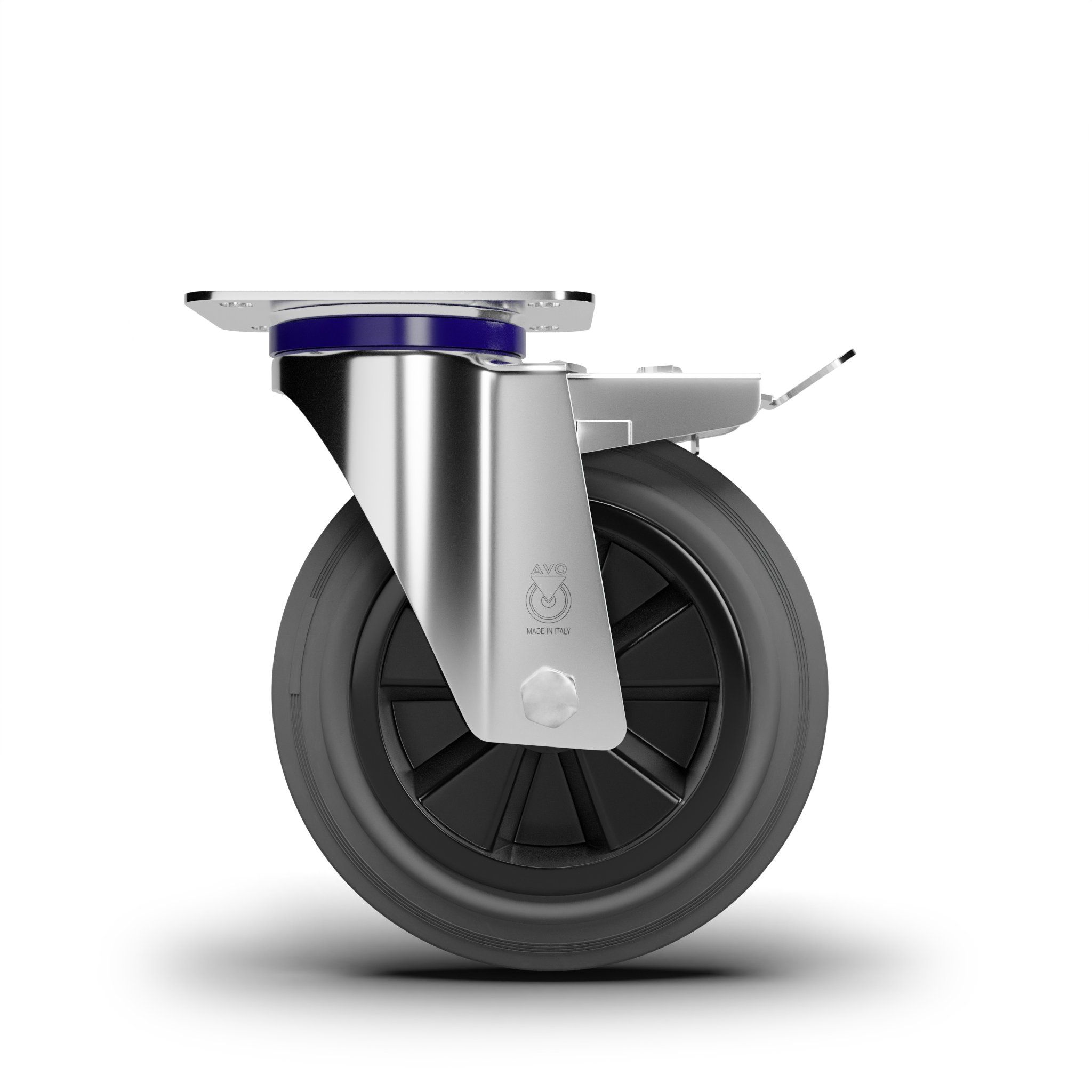

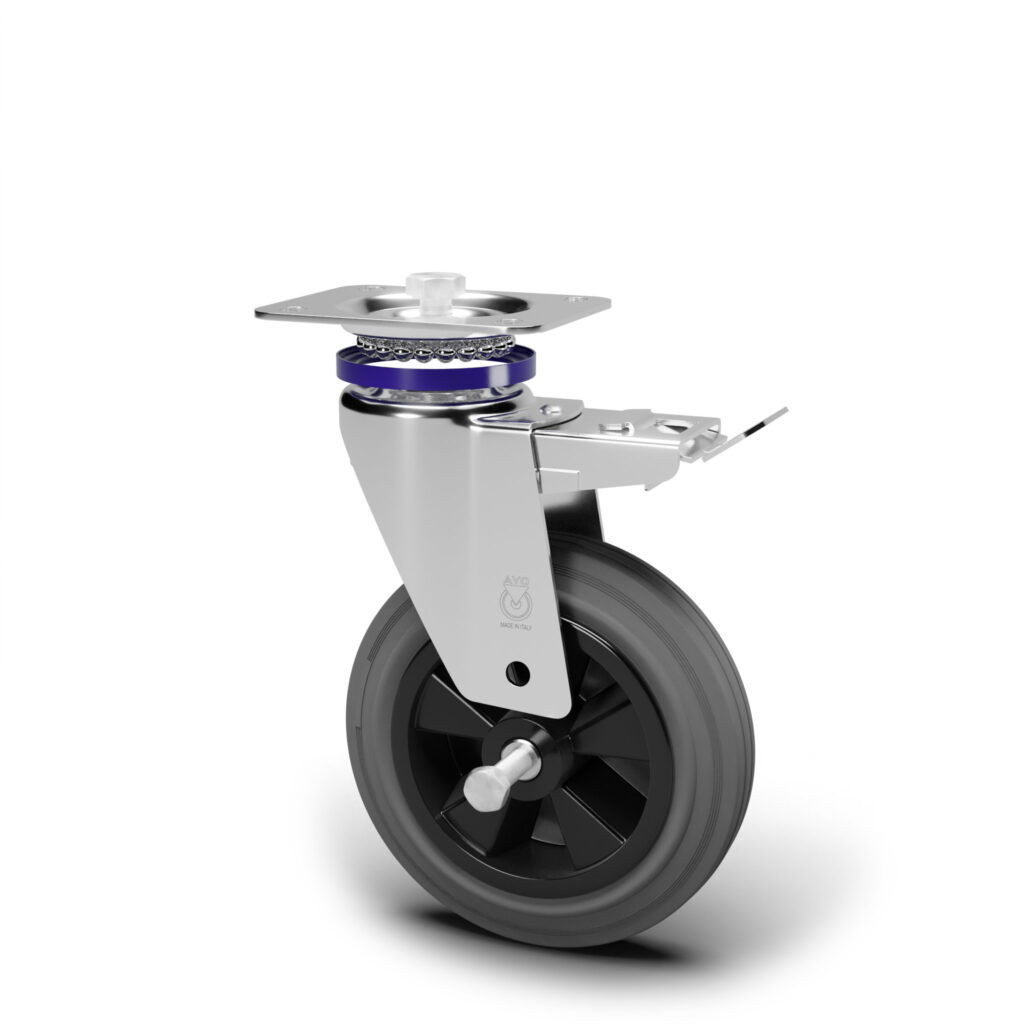

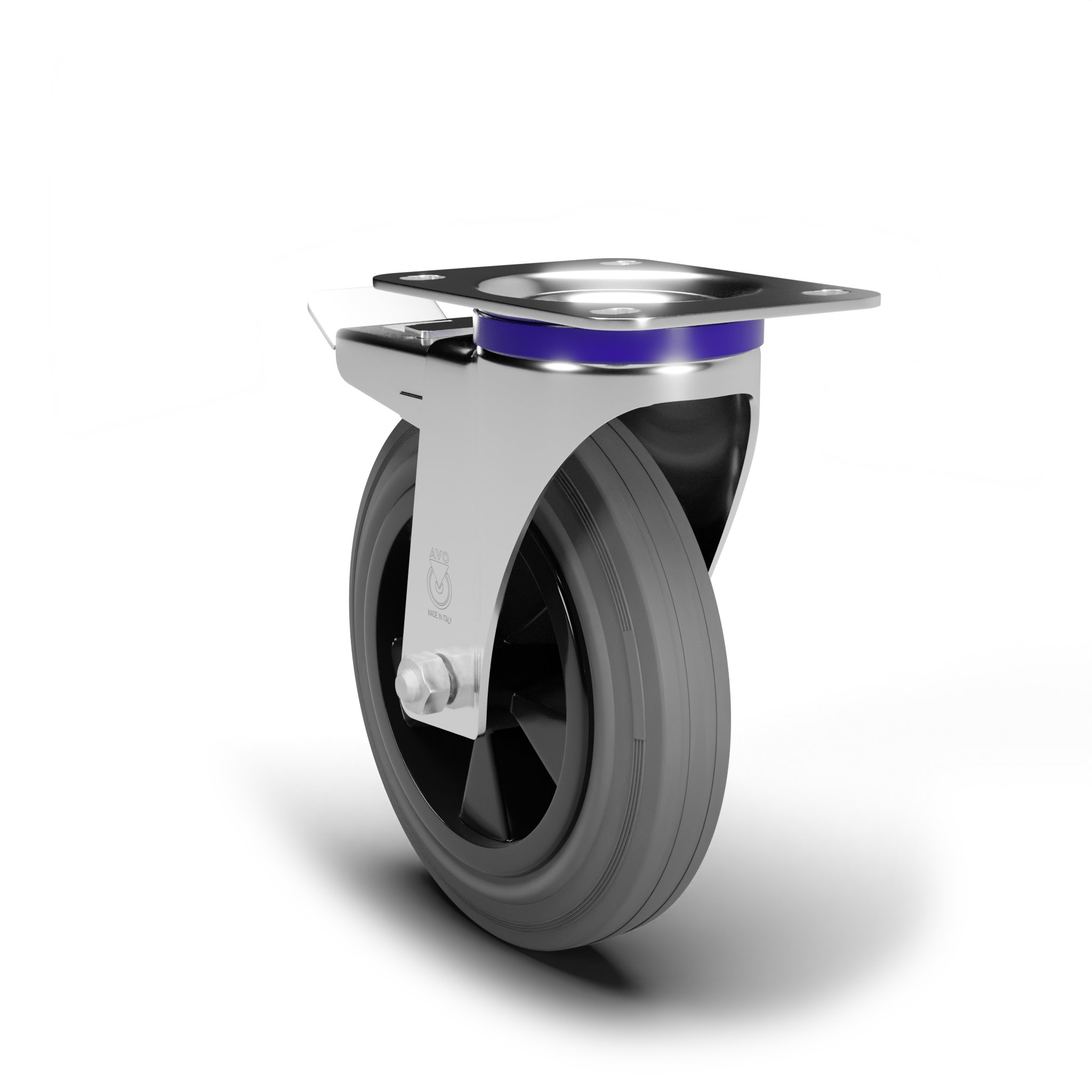

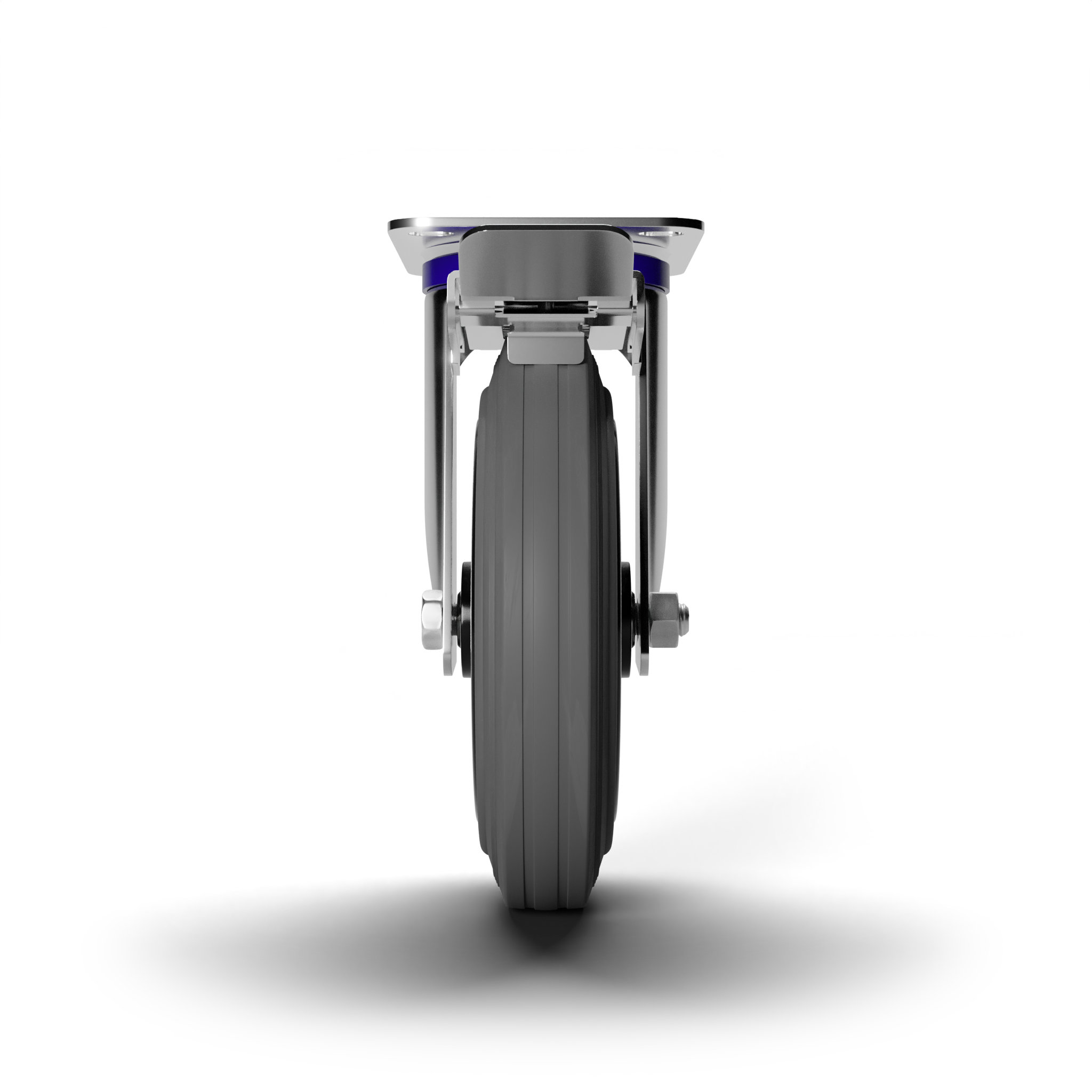

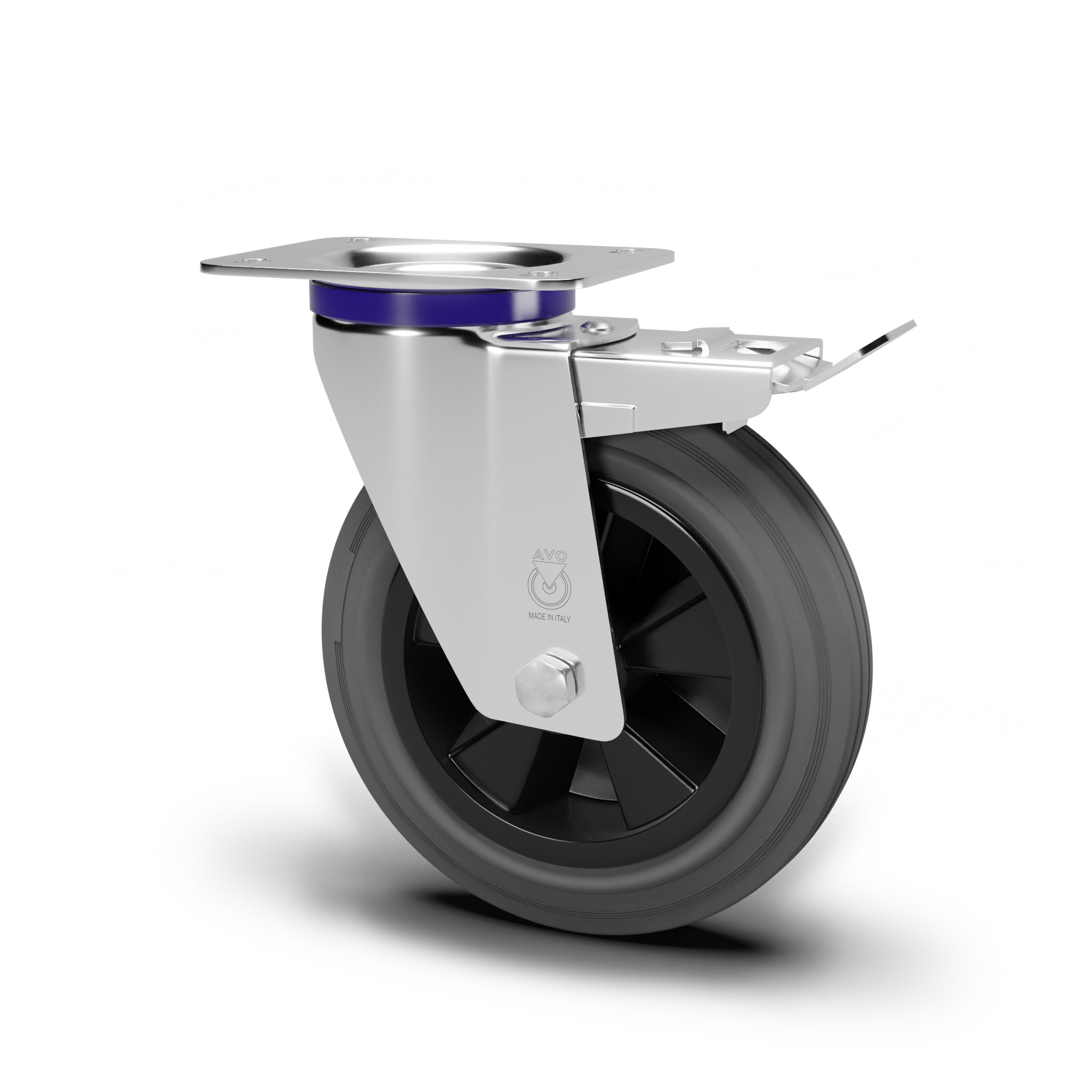

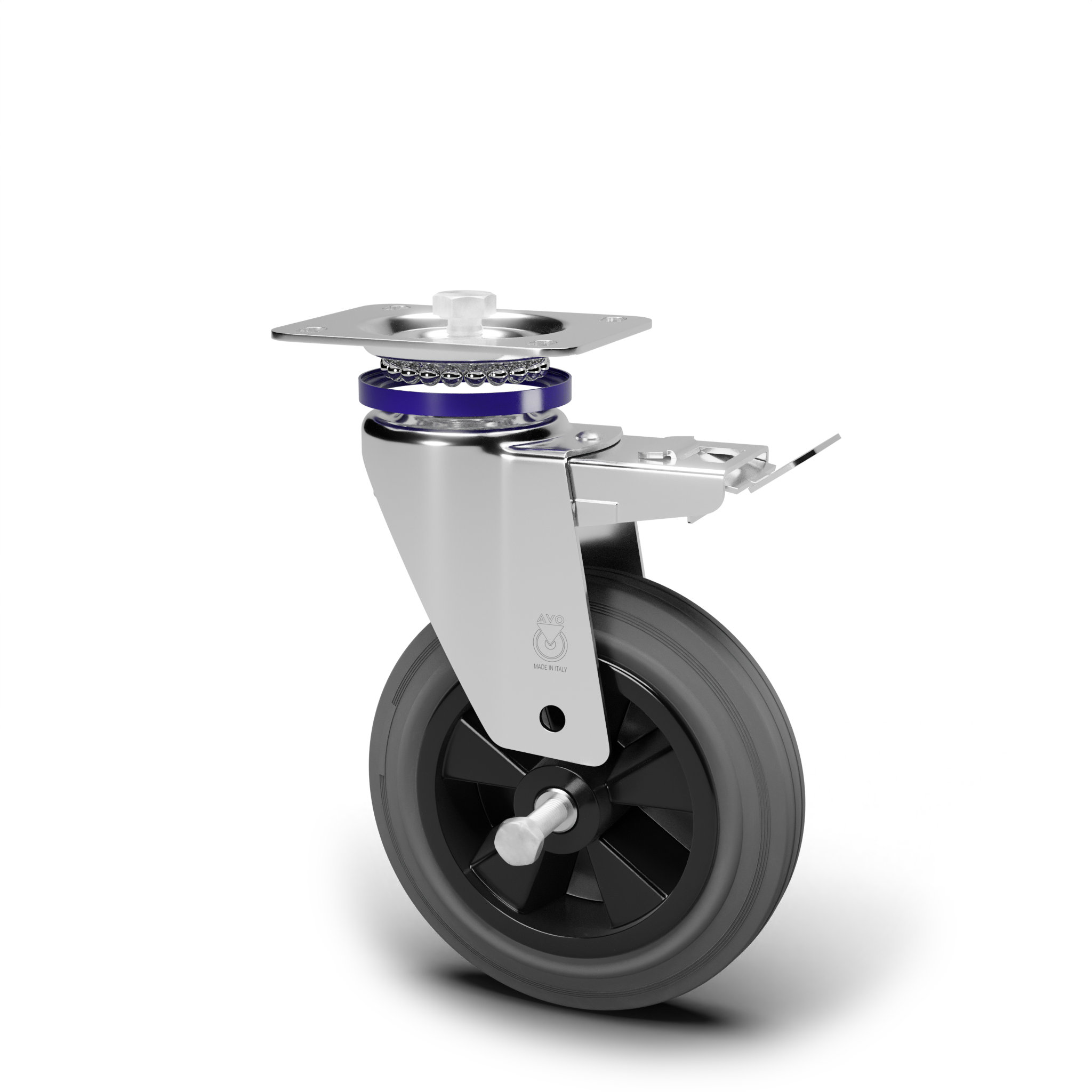

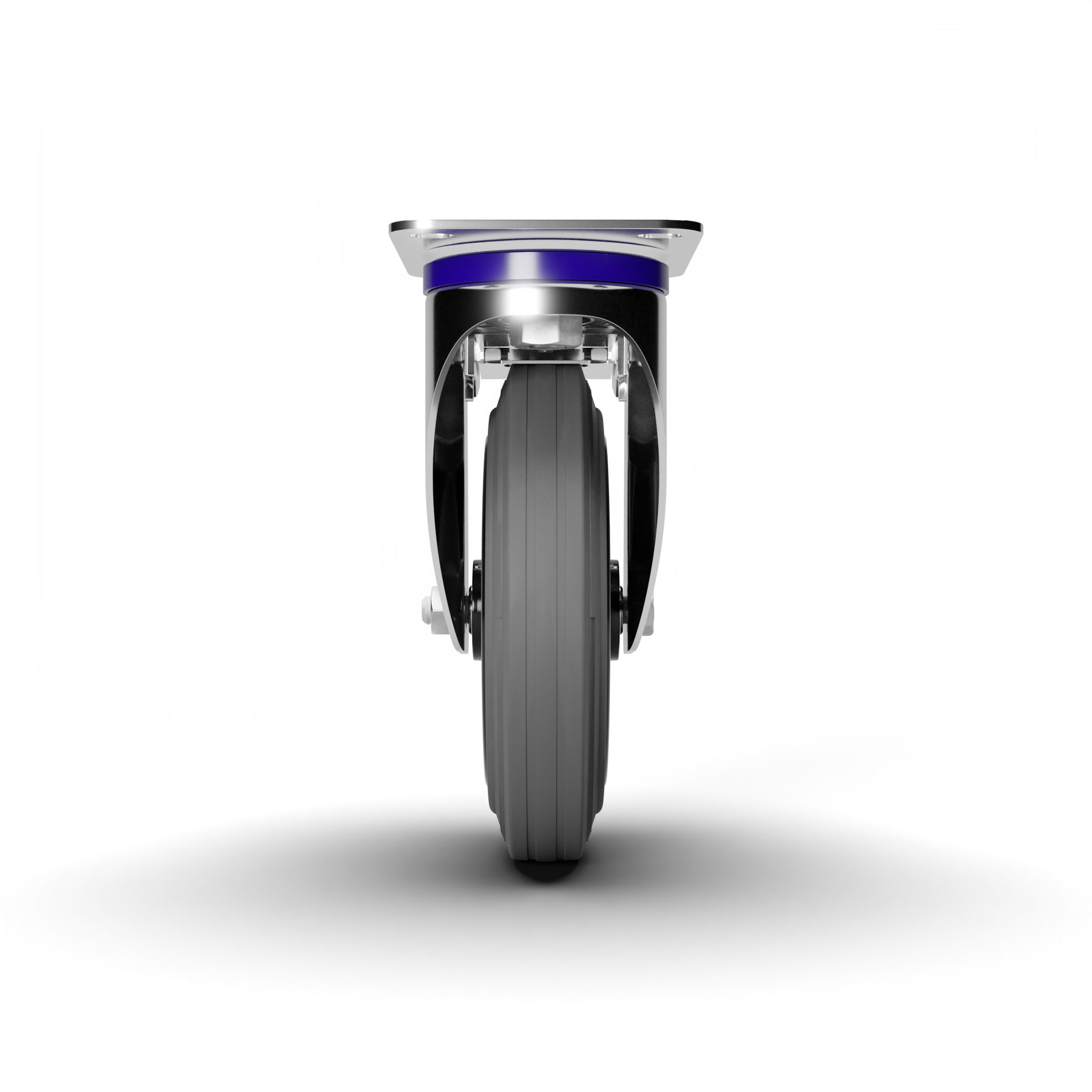

AVO – Wheel with non-marking rubber tyre and aisi 304 stainless steel castor for industry, diameter 80mm ean 16547

90XANT

Material: Non-marking Rubber tyre
Core: Polypropylene
Application field: Industry
Request information

Description:

Wheel with grey no-marking rubber tyre 83 Shore A with high resistance thermoplastic material centre. Hub on roller bearings or plain bore.

Medium duty castors
Made of pressed steel AISI 304, turning on double rim of stainless-steel balls AISI 420, with plate and front brake. Dust cover ring on the balls.
Product line: Rubber tyre, Stainless steel
EAN13: 8018793165471
EAN5: 16547
Article code: 02090X0A080BG

Features

-20 | 80

50

Plain bore
Shore A
83

Floor types

Asphalt
Concrete
Stoneware
Download pdf product sheet
90XANT
90XANT
90XANT-3
90XANT-4
90XANT-5
90XANT-7
90XANT-8
download images

Wheel data

Diameter (mm)

80

Band width (mm)

30

Hub width (mm)

40

Hub version

Plain bore

Wheel hole (mm)

12

Bearing seat (mm)

/

Dynamic load capacity (DaN)

50

Colour

Grey

Material

Non-marking Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

83

Bracket data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

8,5X12

Offset (mm)

37

Height from ground (mm)

107

Castor hole (mm)

/

Static load capacity (DaN)

70

Structure

Swivel

Version

Plate with brake

Brake

Front

Pivot

/

Pivot type

/

Finishing

AISI 304 stainless steel
