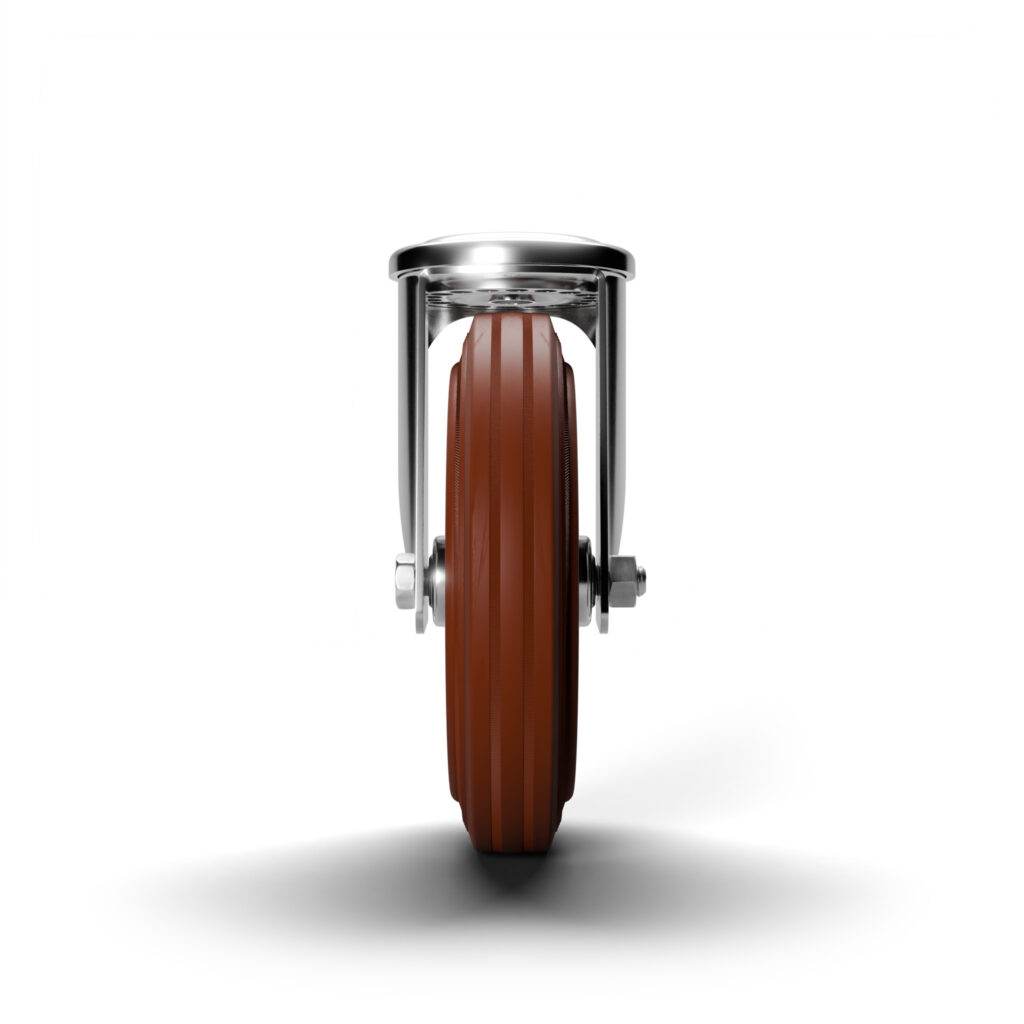

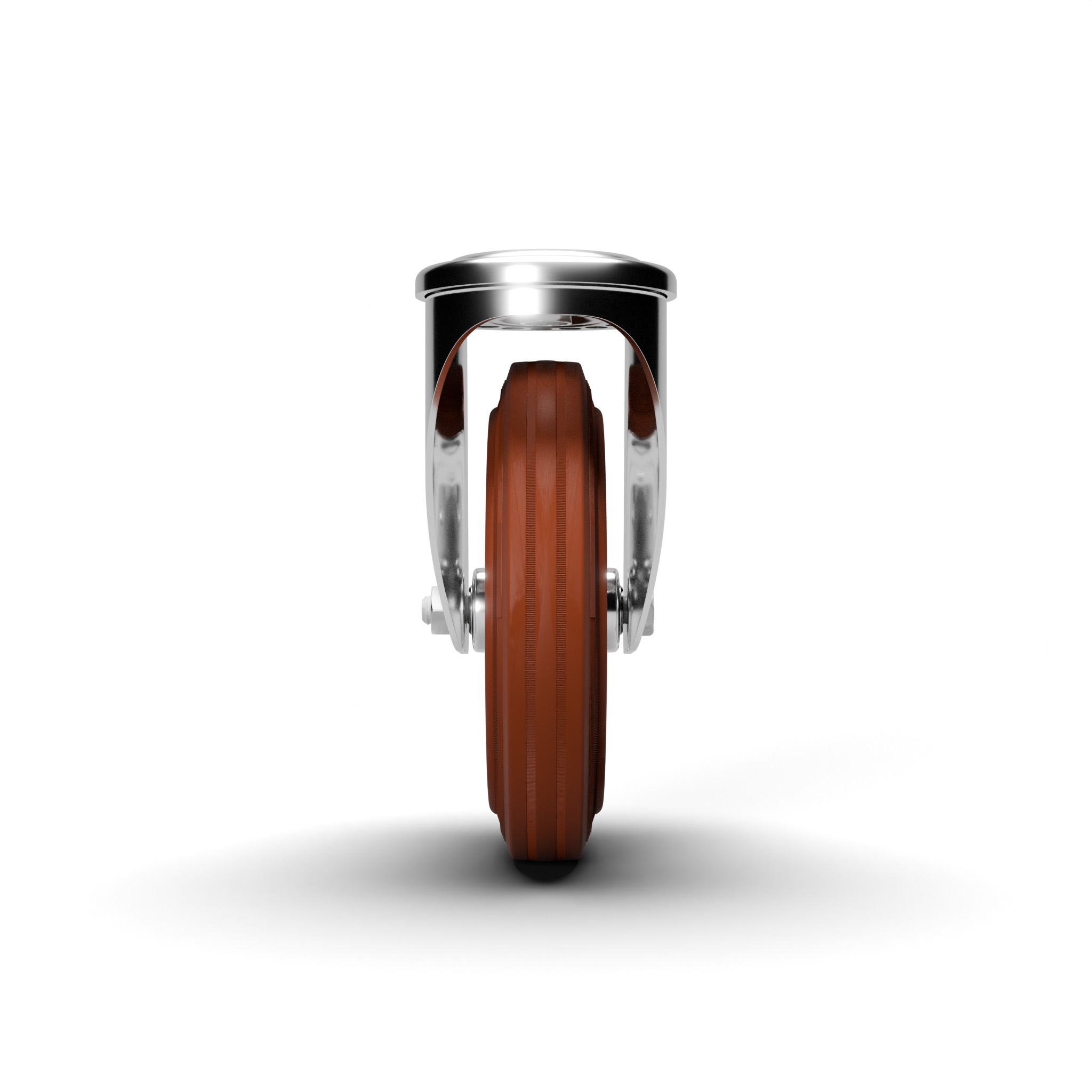

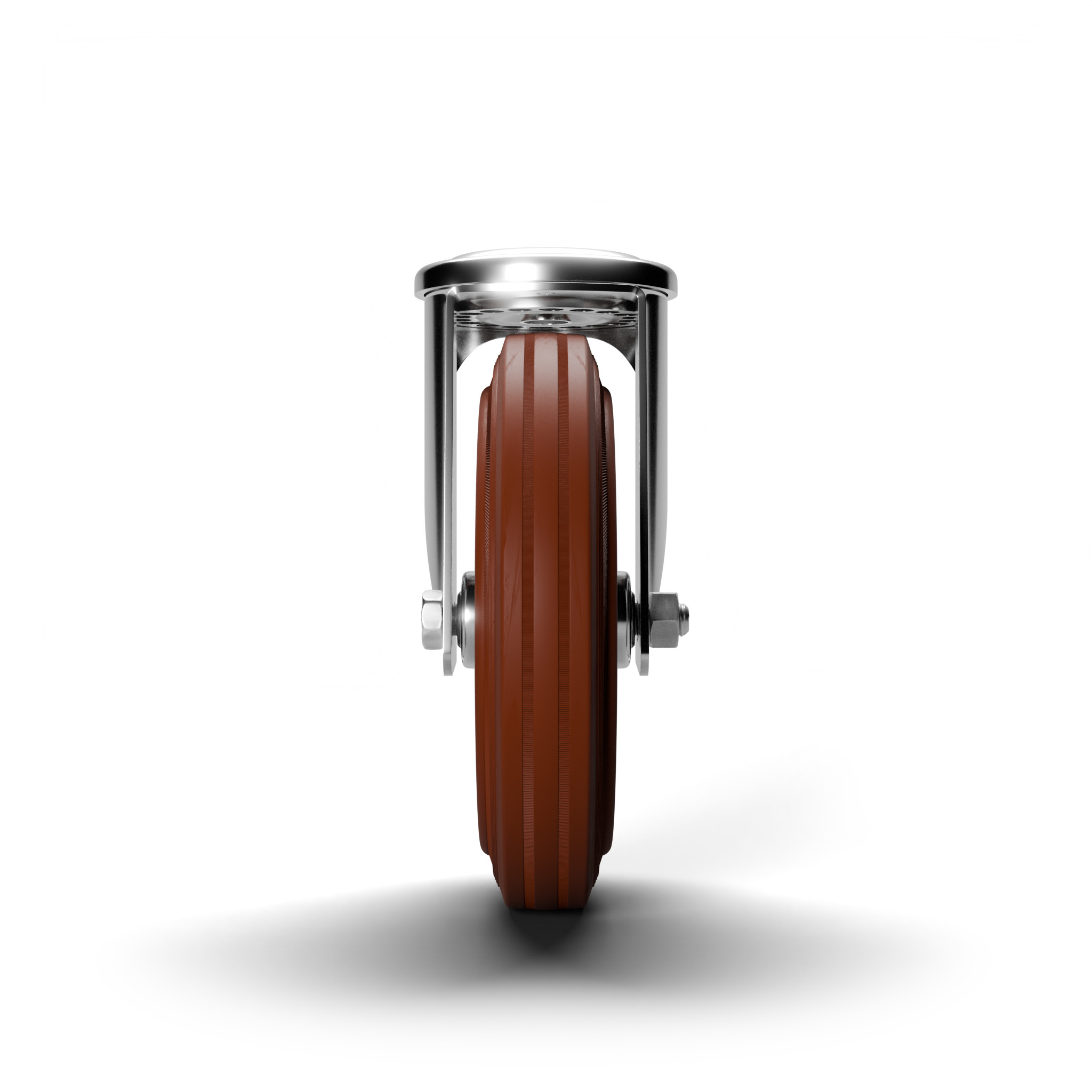

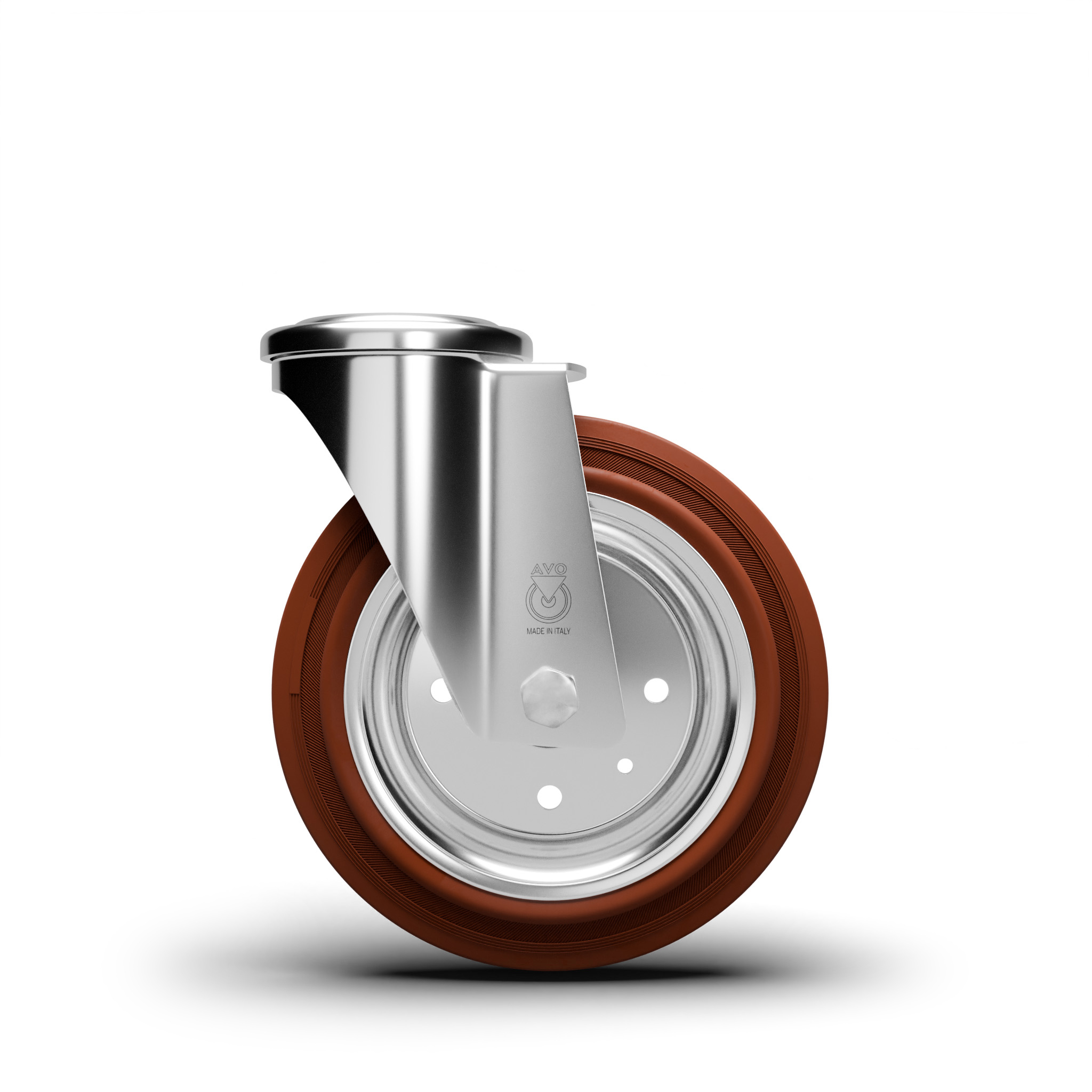

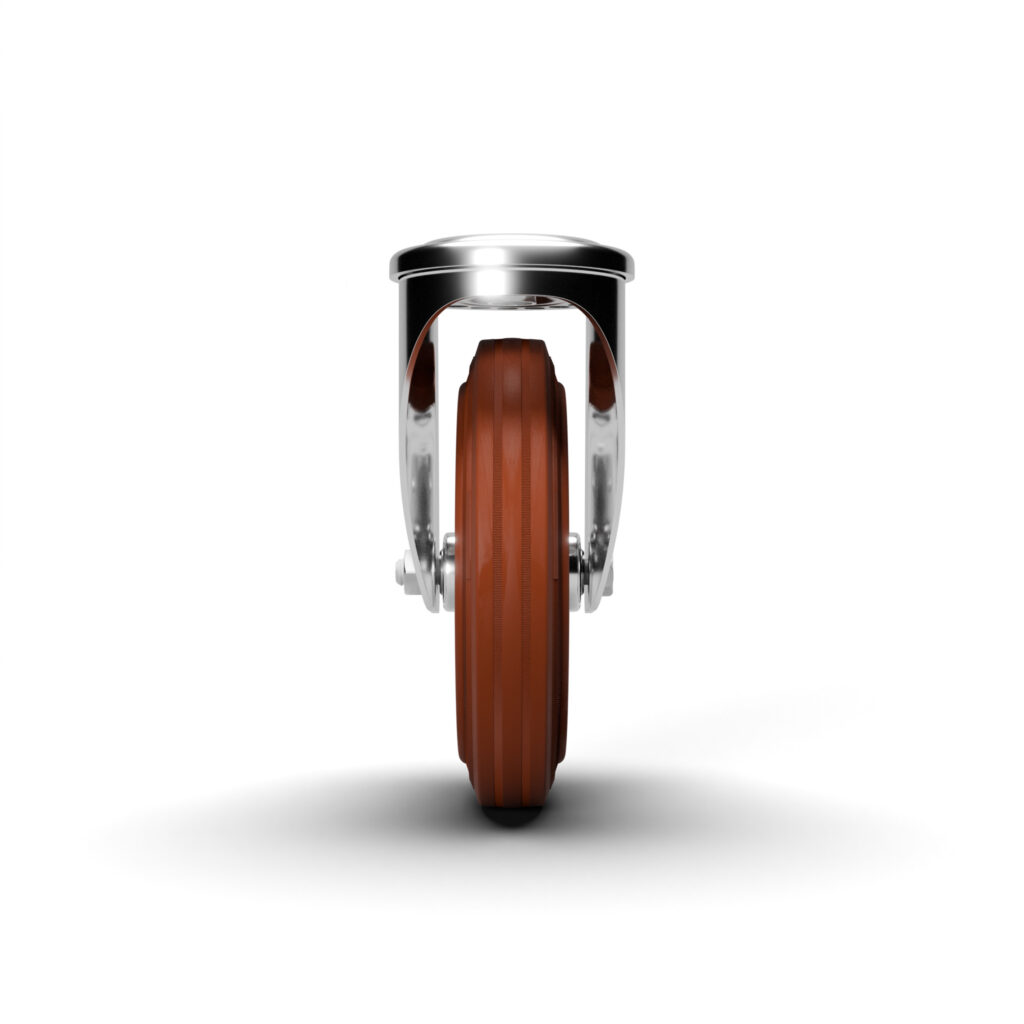

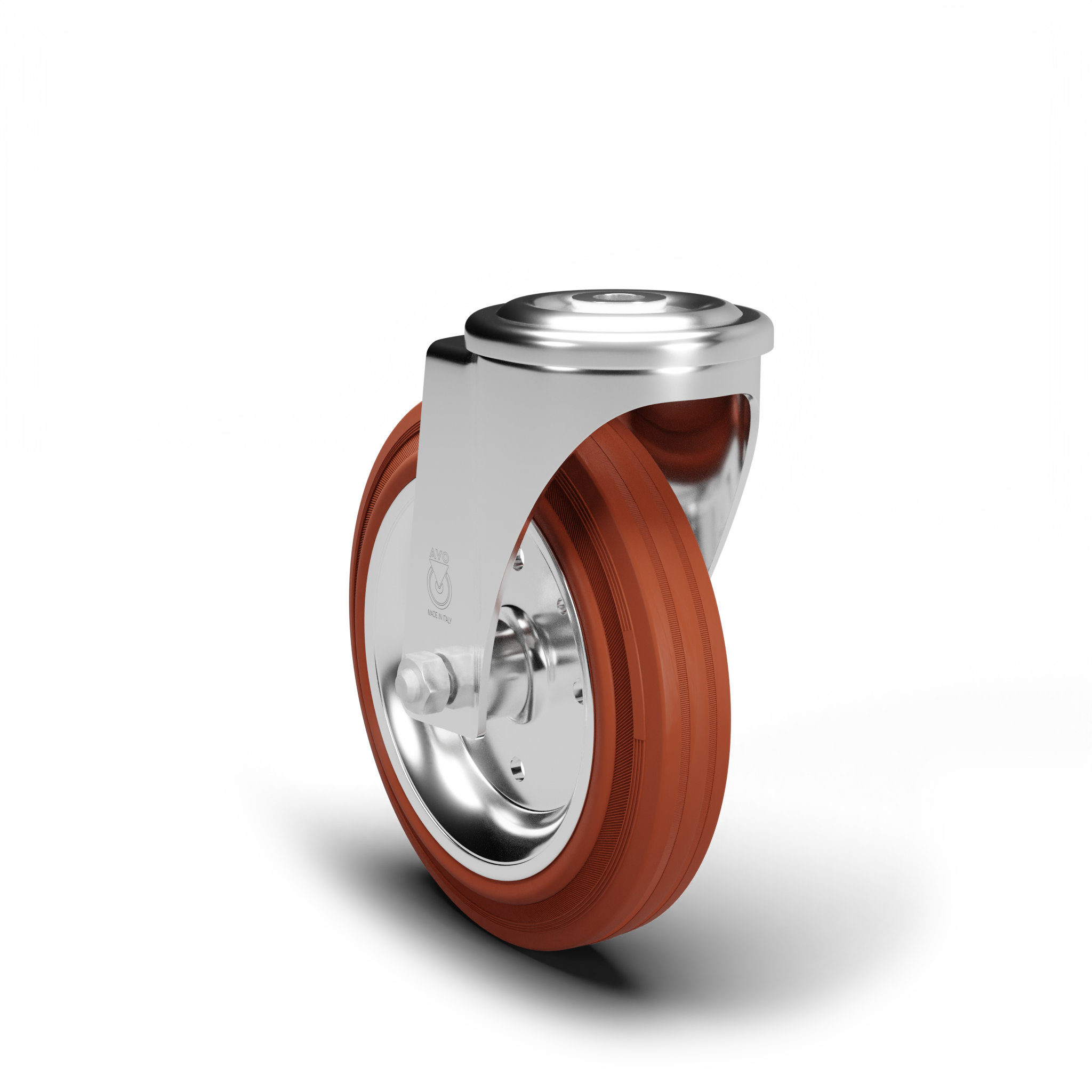

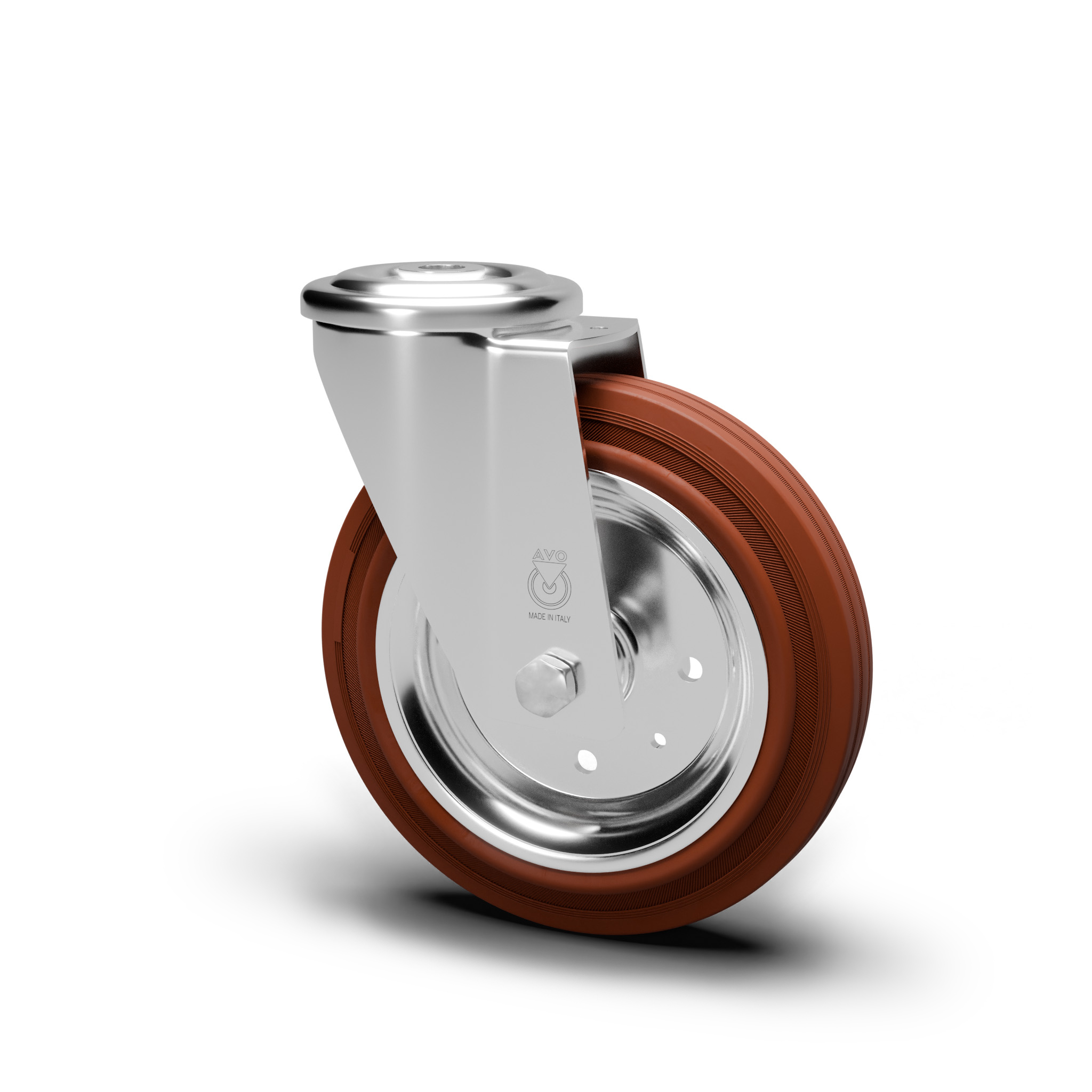

AVO – Wheels with siliconica alta termperatura rubber tyre with castor steel for industry, diameter 100mm

80F-AT

Material: Siliconica alta termperatura Rubber tyre

Core: Steel

Scope: Industry

Request information

Description:

High temperature rubber tyre wheel 80 Shore A with flanges in zinc-chromium plated pressed steel. Hub on shielded ball bearings. Wheel 112A-AT can be assembled with medium duty castors (ø80-250 mmm.)

Medium duty castors

In zinc-chromium plated pressed steel, turning on double rim of balls, with bolt hole. Assembled with self locking nut.

Product line: High temperature

Article code: 010800F100TCR

Features

-20 | 120

70

Ball bearing

Shore A

80

Flooring

Asphalt

Concrete

Stoneware

Download pdf product sheet

Download drawing

download images

Wheel data

Diameter (mm)

100

Band width (mm)

30

Hub width (mm)

34

Hub version

Ball bearing

Wheel hole (mm)

8

Bearing seat (mm)

/

Dynamic load capacity (DaN)

70

Colour

Red

Material

Siliconica alta termperatura Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

80

Castor data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

42

Height from ground (mm)

126

Castor hole (mm)

12

Static load capacity (DaN)

90

Structure

Swivel

Version

Bolt hole

Brake

/

Pivot

/

Pivot type

/

Finishing

Galvanized
