Serie 114A

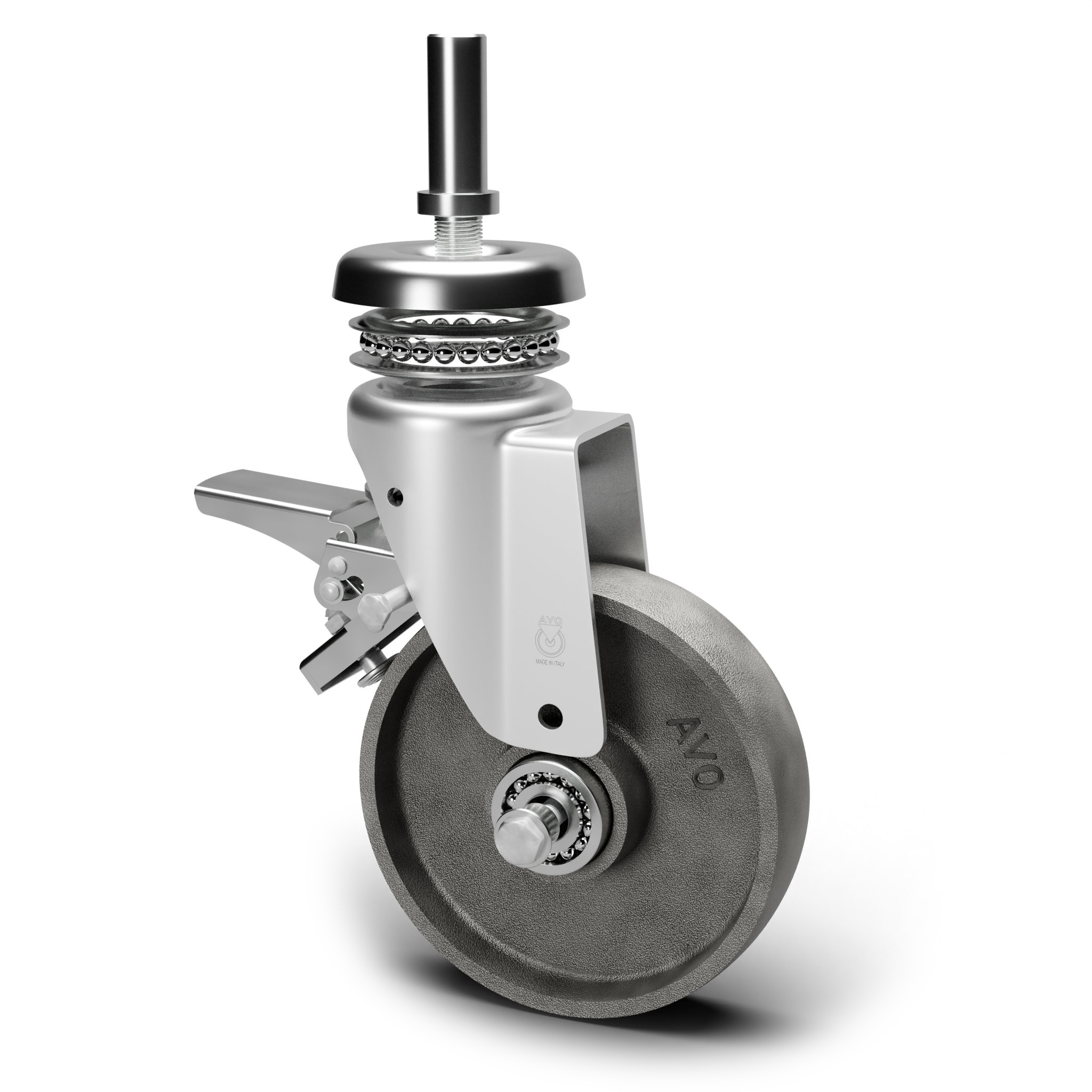

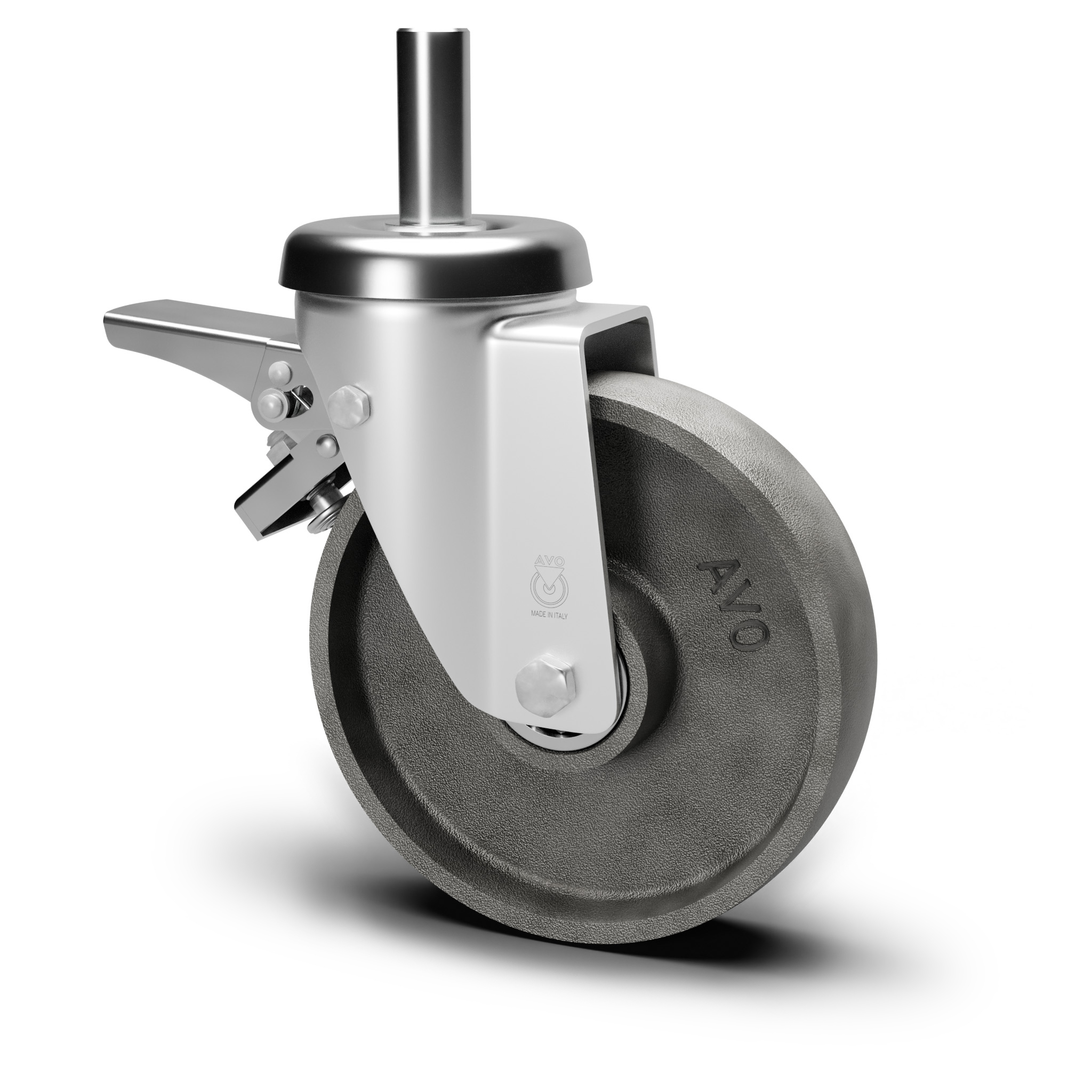

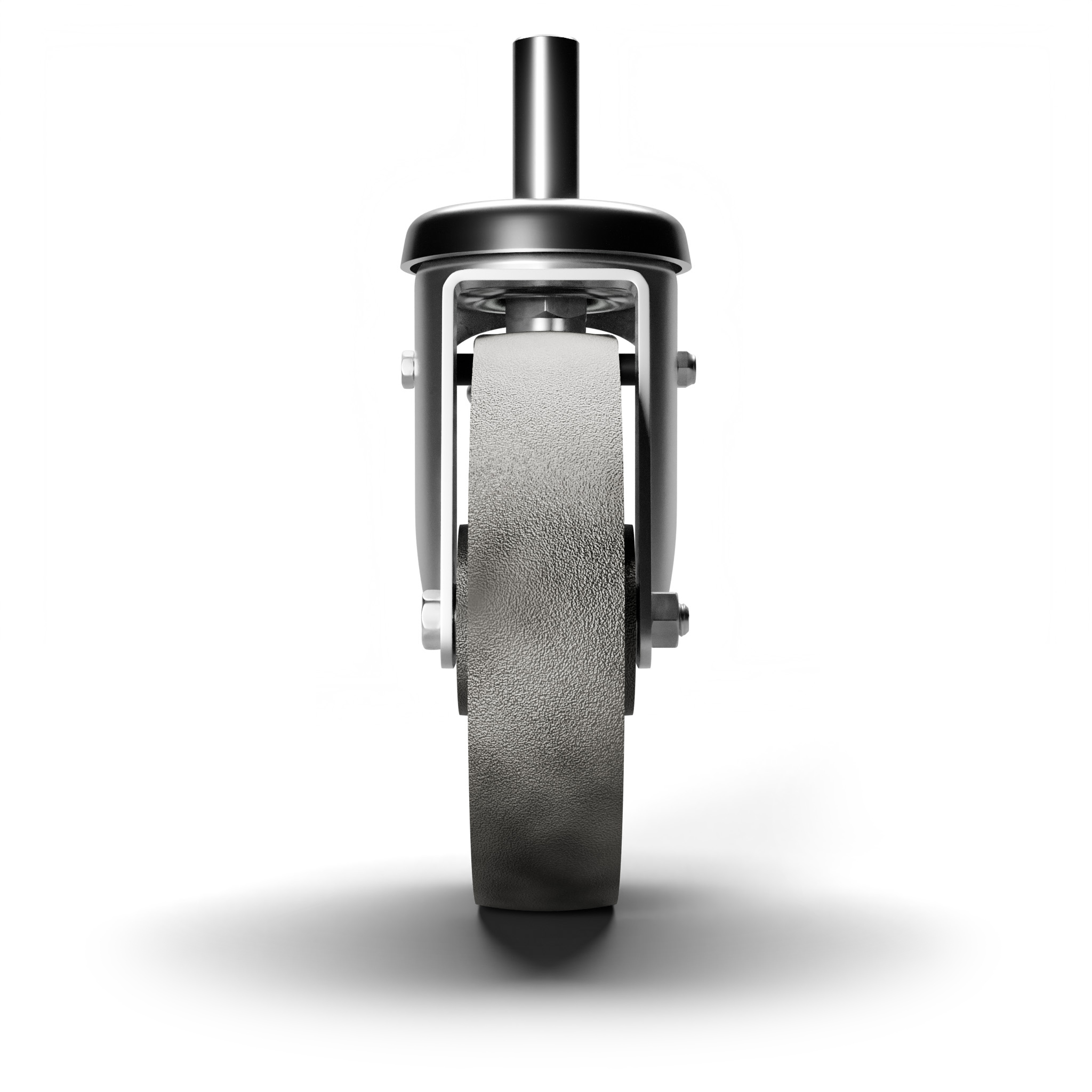

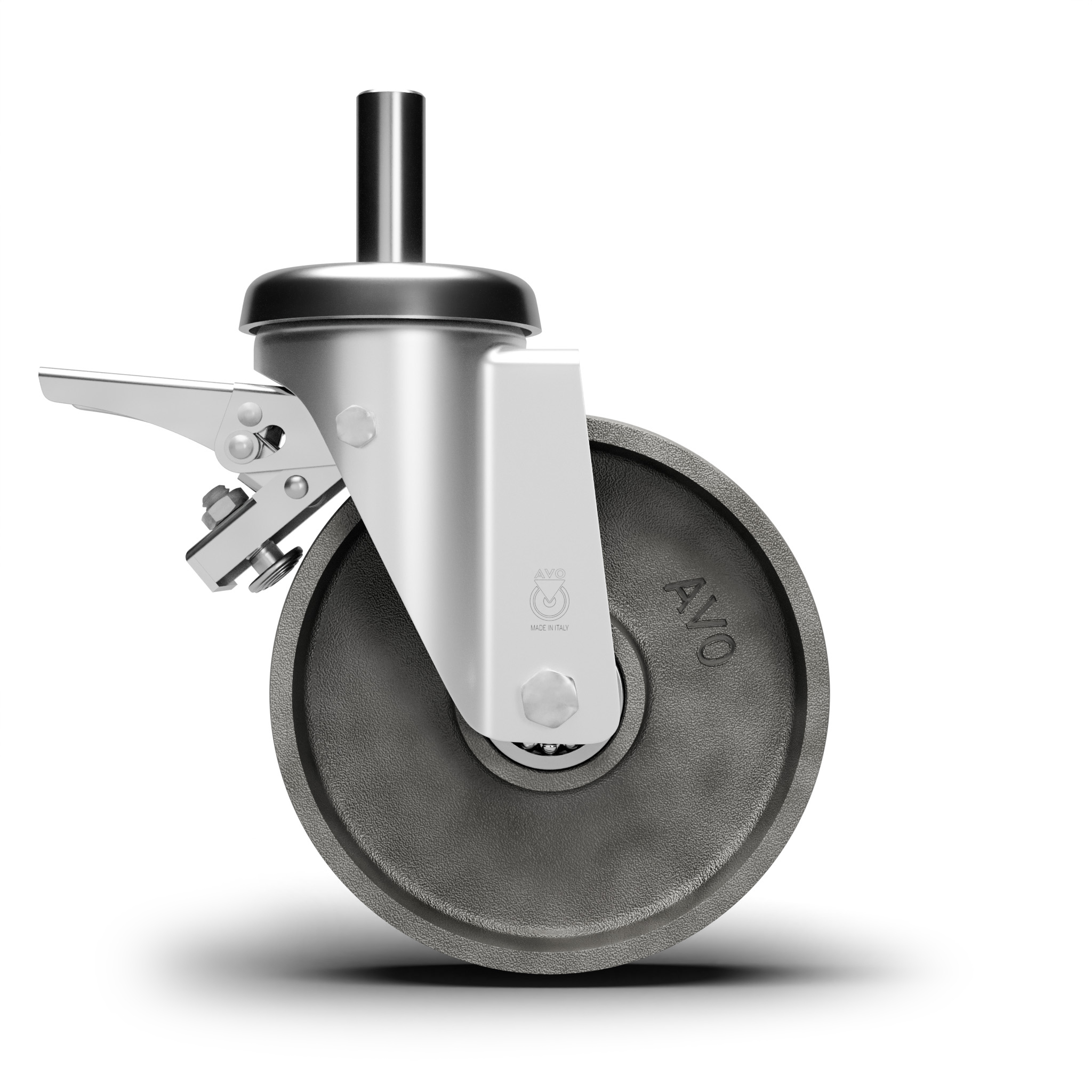

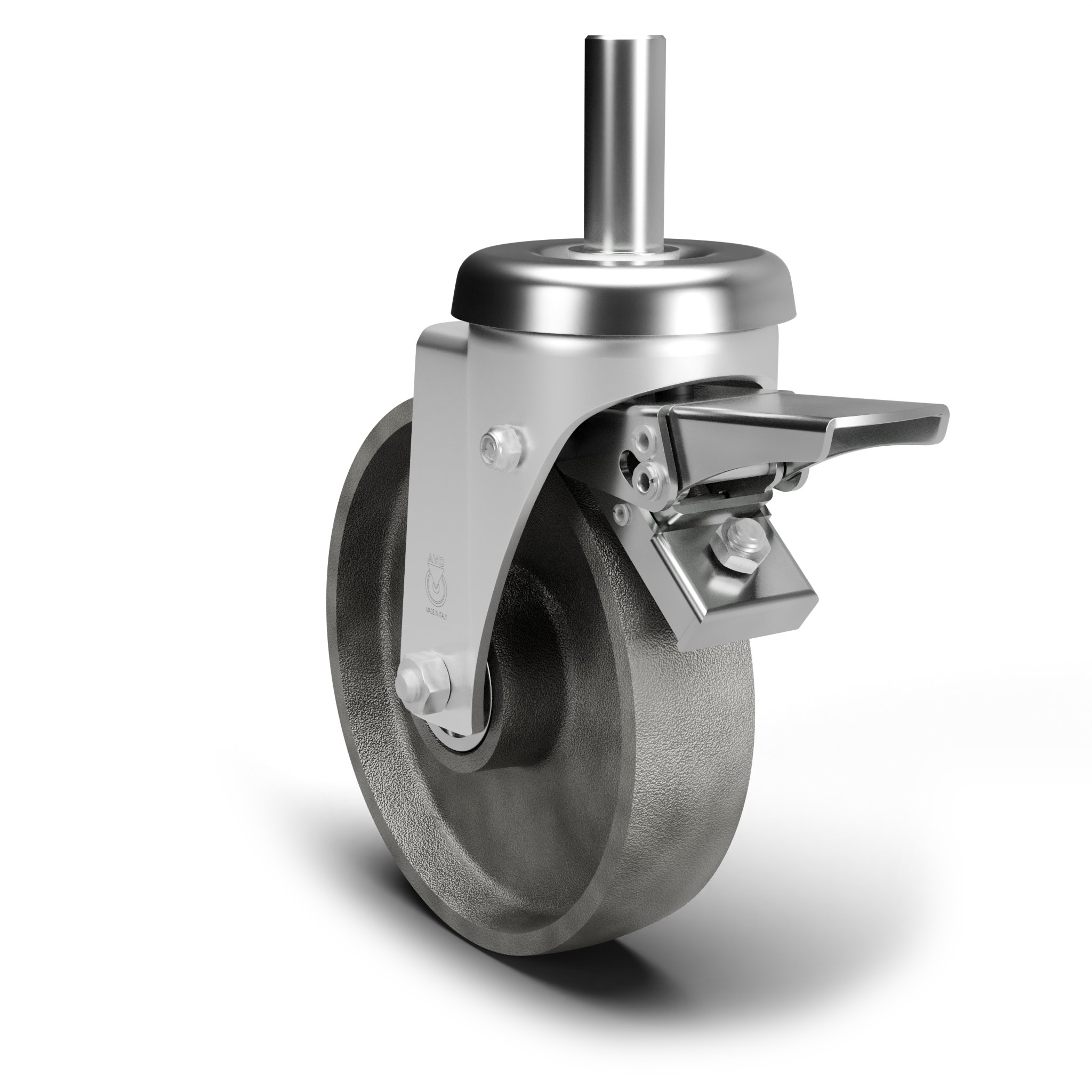

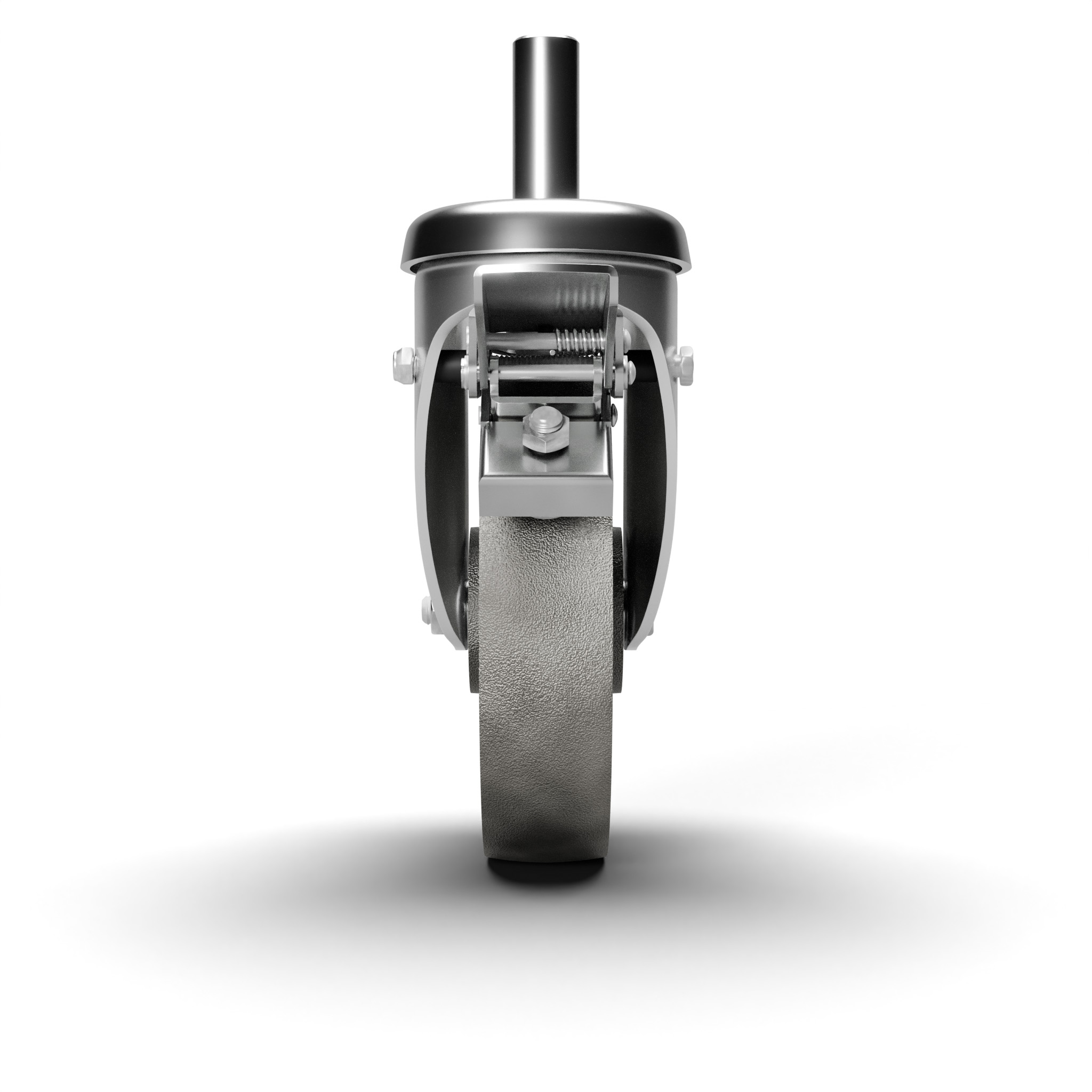

AVO – Wheel with mechanical cast iron and steel castor for industry, diameter 100mm ean 27920

106BISB

Material: Mechanical Cast iron

Core: Cast Iron

Application field: Industry

Request information

Description:

Cast iron wheel, resistant to high temperatures with low rolling resistance. Hub on shielded ball bearings. Special ball bearings for high or low temperatures are available on request.

Heavy-Duty Castors

Made of zinc-chromium plated pressed steel, high thickness, turning on double rim of balls fitted in hardening steel thrust-bearings, with stem and rear brake. Assembled with self-locking nut.

Product line: Cast Iron, High temperature

Product line: Cast Iron, High temperature

EAN13: 8018793279208

EAN5: 27920

Article code: 04106BA1000GP

Features

-20 | 120

250

Ball bearing

HB

200

Floor types

Asphalt

Concrete

Download pdf product sheet

download images

Request the drawing

Request STP file

Wheel data

Diameter (mm)

100

Band width (mm)

30

Hub width (mm)

30

Hub version

Ball bearing

Wheel hole (mm)

15

Bearing seat (mm)

35X11

Dynamic load capacity (DaN)

250

Colour

Grey

Material

Mechanical Cast iron

Box pieces

/

Hardness scale

HB

Hardness

200

Bracket data

Plate size (mm)

/

Interaxis plate hole (mm)

/

Plate bore size (mm)

/

Offset (mm)

36

Height from ground (mm)

131

Castor hole (mm)

/

Static load capacity (DaN)

320

Structure

Swivel

Version

Axle with brake

Brake

Front

Pivot

22X50

Pivot type

Stem(on request threaded stem), Plain axle

Finishing

Galvanized
