Serie 114

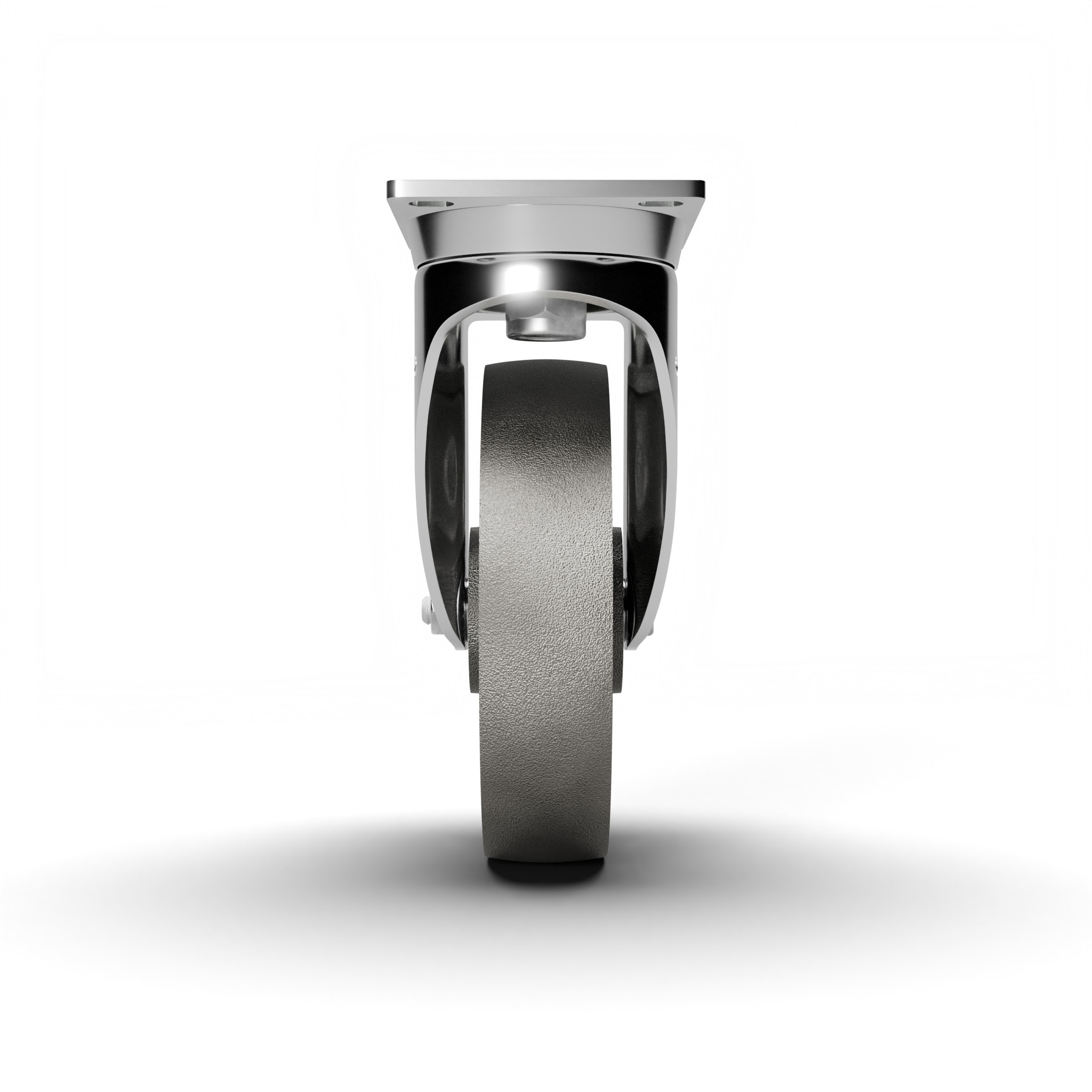

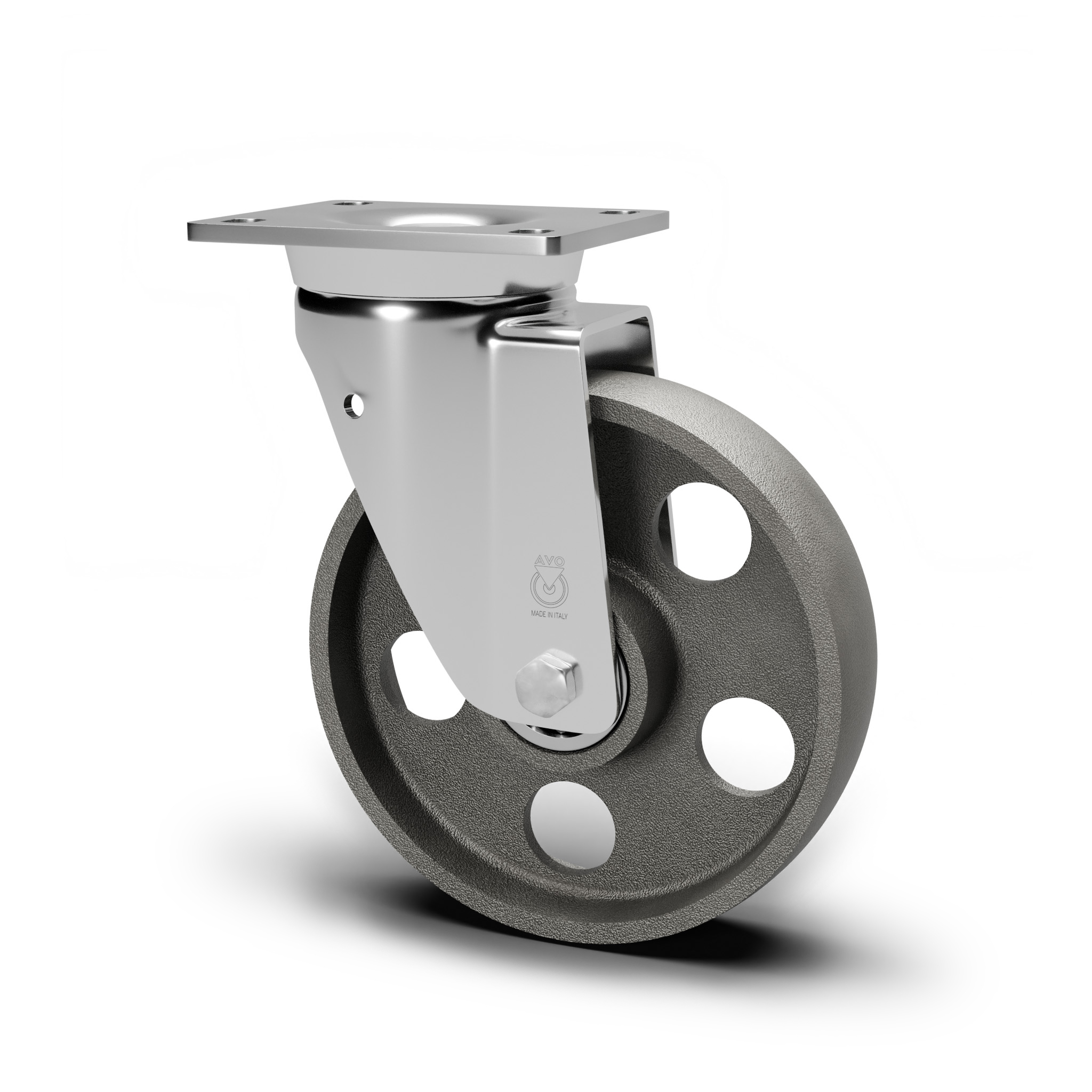

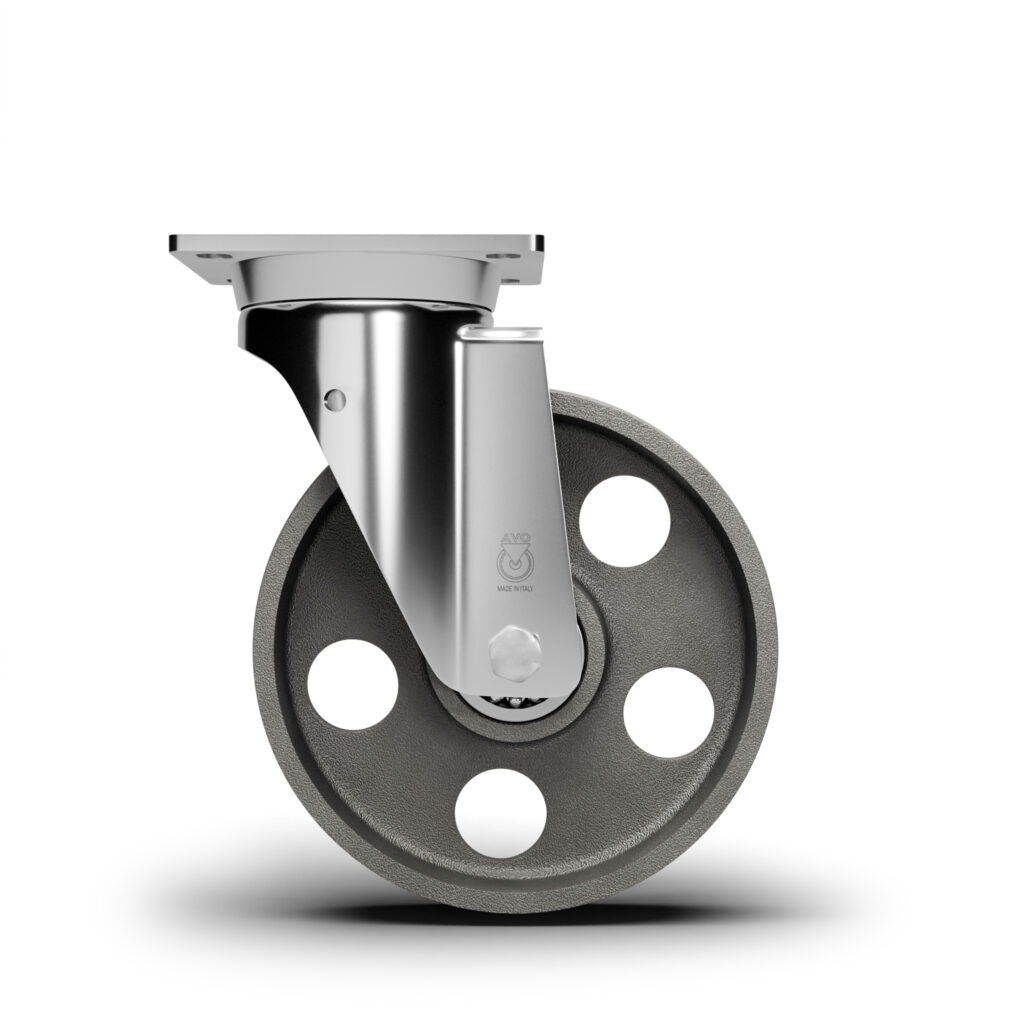

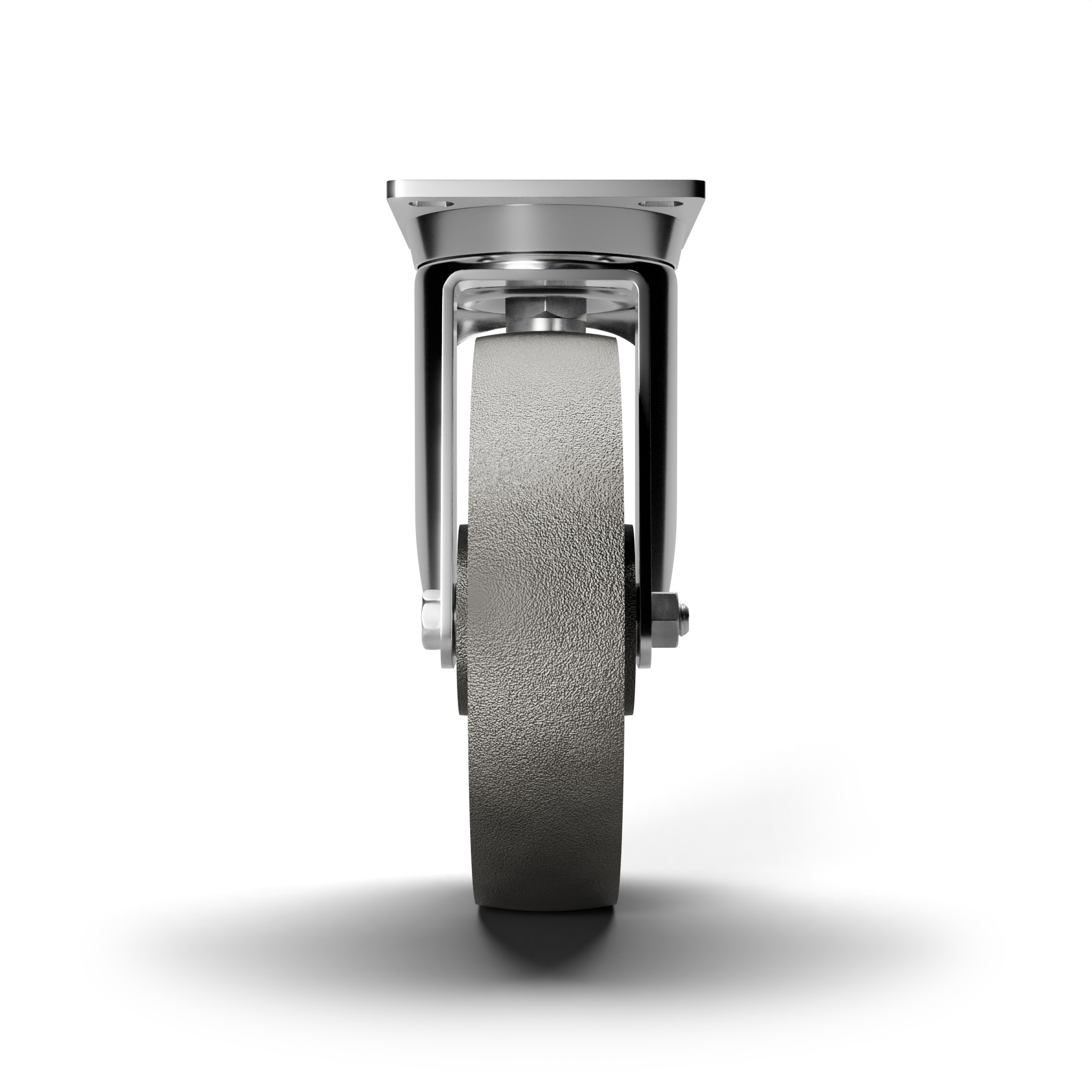

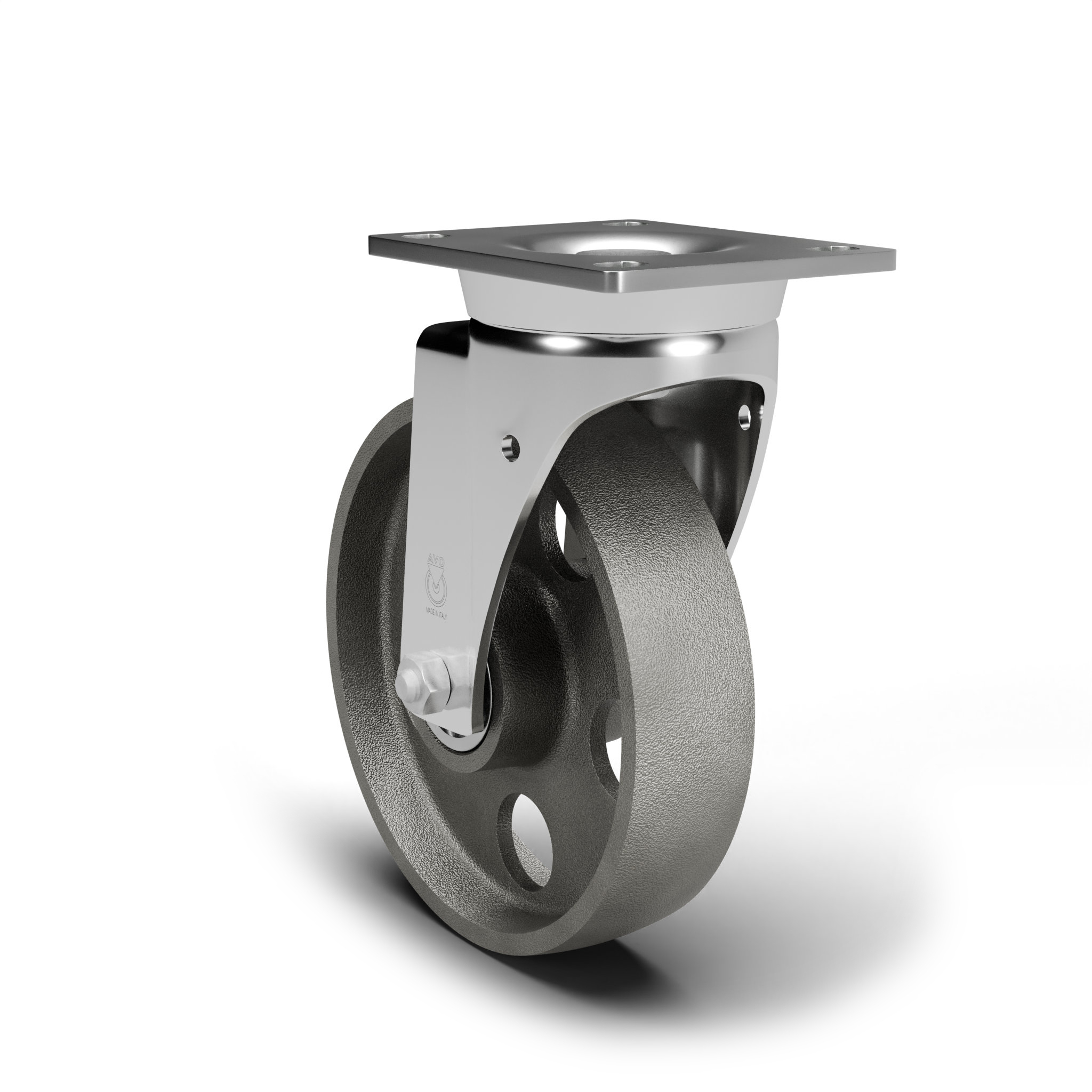

AVO – Wheel with mechanical cast iron and steel castor for industry, diameter 200mm ean 14613

107

Material: Mechanical Cast iron

Core: Cast Iron

Application field: Industry

Request information

Description:

Cast iron wheel, high temperatures resistant with low rolling resistance with pearlitic or laminar structure in accordance with ISO 185. Hub on plain bore.

Heavy-Duty Castors

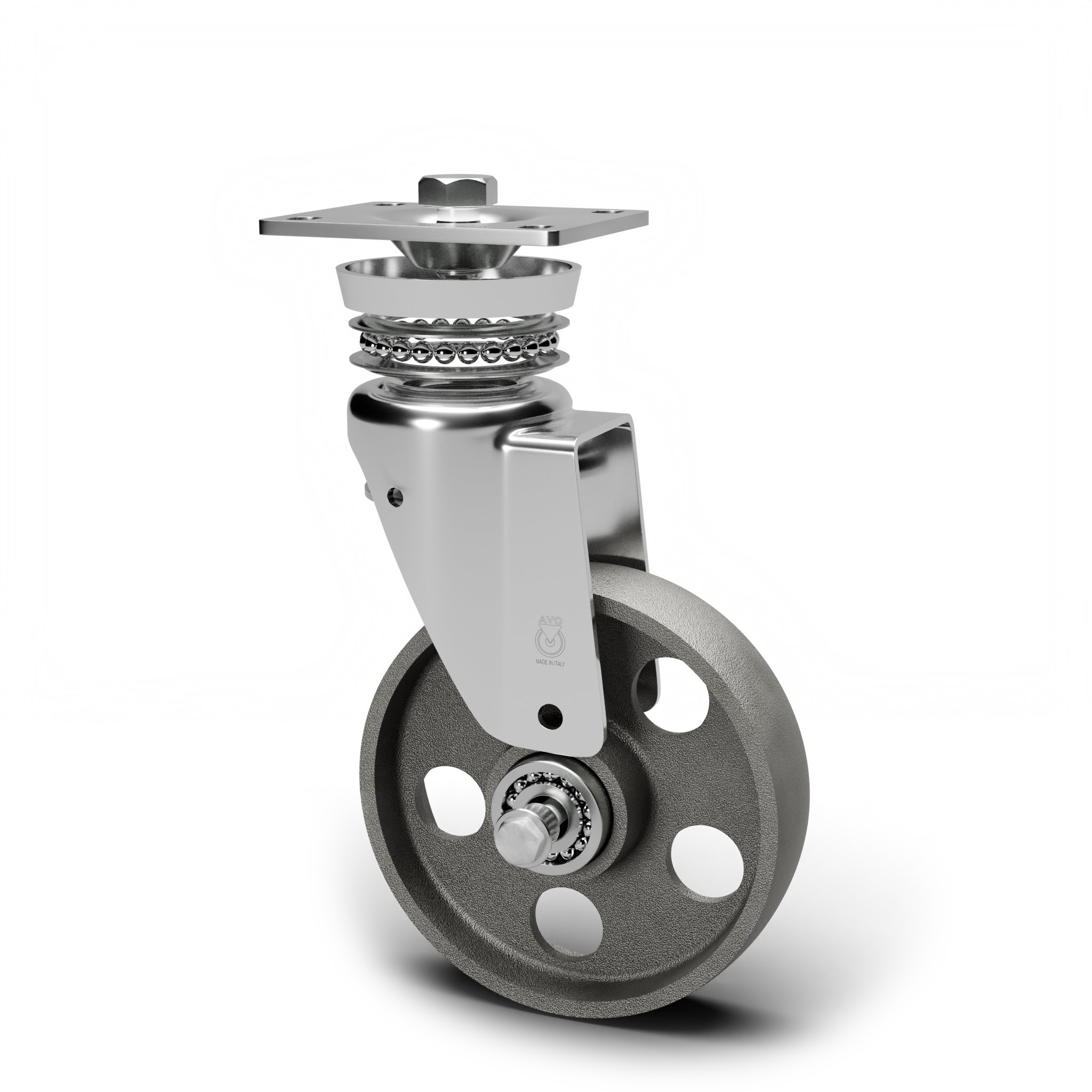

Made of zinc-chromium plated pressed steel, high thickness, turning on double rim of balls fitted in hardening steel thrust-bearings, with plate. Assembled with self-locking nut.

Product line: Cast Iron, High temperature

Product line: Cast Iron, High temperature

EAN13: 8018793146135

EAN5: 14613

Article code: 04107002000GM

Features

-40 | 500

600

Plain bore

HB

200

Floor types

Asphalt

Concrete

Download pdf product sheet

download images

Request the drawing

Request STP file

Wheel data

Diameter (mm)

200

Band width (mm)

50

Hub width (mm)

58

Hub version

Plain bore

Wheel hole (mm)

20

Bearing seat (mm)

/

Dynamic load capacity (DaN)

600

Colour

Grey

Material

Mechanical Cast iron

Box pieces

/

Hardness scale

HB

Hardness

200

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13X16

Offset (mm)

57

Height from ground (mm)

251

Castor hole (mm)

/

Static load capacity (DaN)

750

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Galvanized
