Serie 18AS

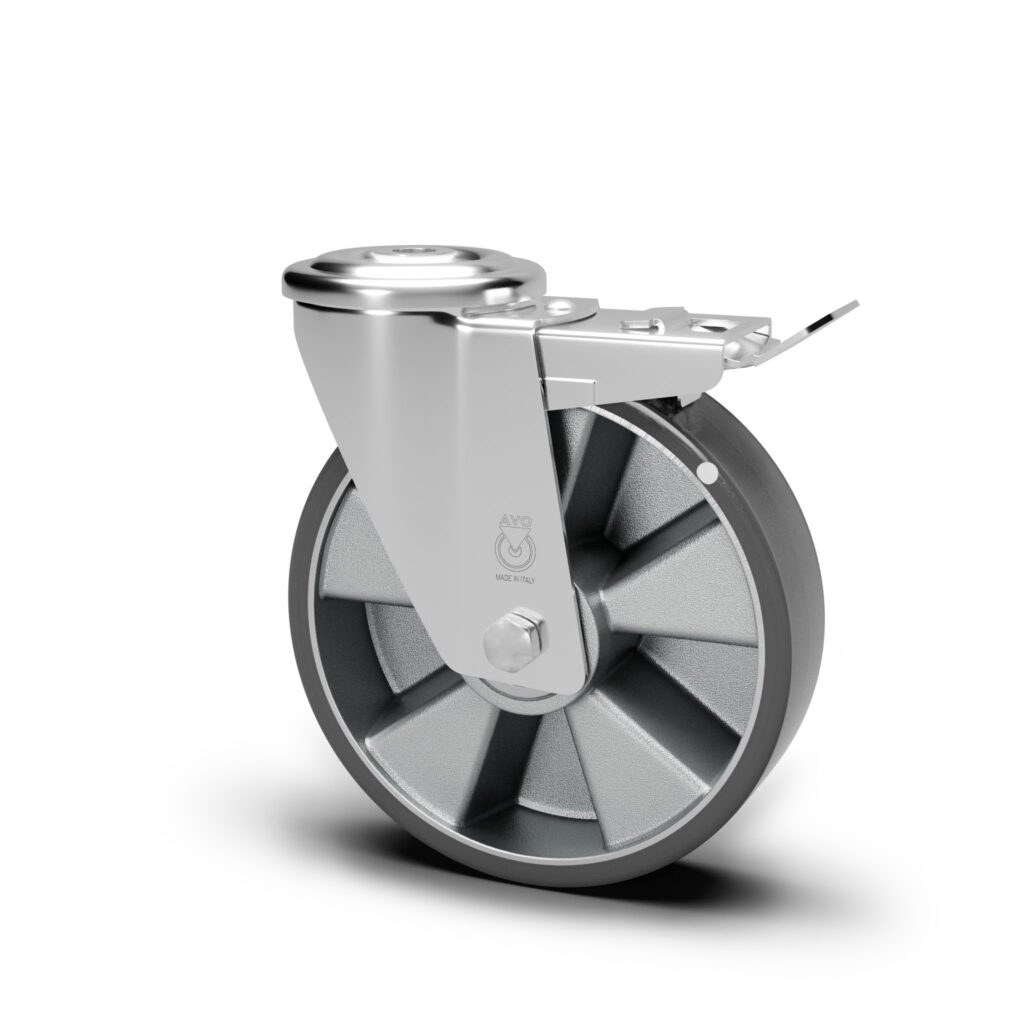

AVO – Wheel with avoantistatic polyurethane and steel castor for industry, diameter 125mm ean 18709

38-AS

Material: Avoantistatic Polyurethane

Core: Aluminum

Application field: Industry

Request information

Description:

Wheel coated with antistatic Polyurethane thread AVOANTISTATIC 91 Shore A and aluminium centre. Hub on shielded ball bearings assembled with central spacer.

Heavy-Duty Castors

Made of zinc-chromium plated pressed steel, high thickness, turning on double rim of balls fitted in hardening steel thrust-bearings, with plate. Assembled with self-locking nut.

Product line: Antistatic/Conductive

Product line: Antistatic/Conductive

EAN13: 8018793187091

EAN5: 18709

Article code: 1103800125LCG

Features

-20 | 80

300

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Download the drawing

Request STP file

Wheel data

Diameter (mm)

125

Band width (mm)

40

Hub width (mm)

50

Hub version

Ball bearing

Wheel hole (mm)

20

Bearing seat (mm)

47X14

Dynamic load capacity (DaN)

300

Colour

Grey

Material

Avoantistatic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

135X110

Interaxis plate hole (mm)

105X080

Plate bore size (mm)

13X16

Offset (mm)

45

Height from ground (mm)

166

Castor hole (mm)

/

Static load capacity (DaN)

380

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

Galvanized
