Serie 14AS

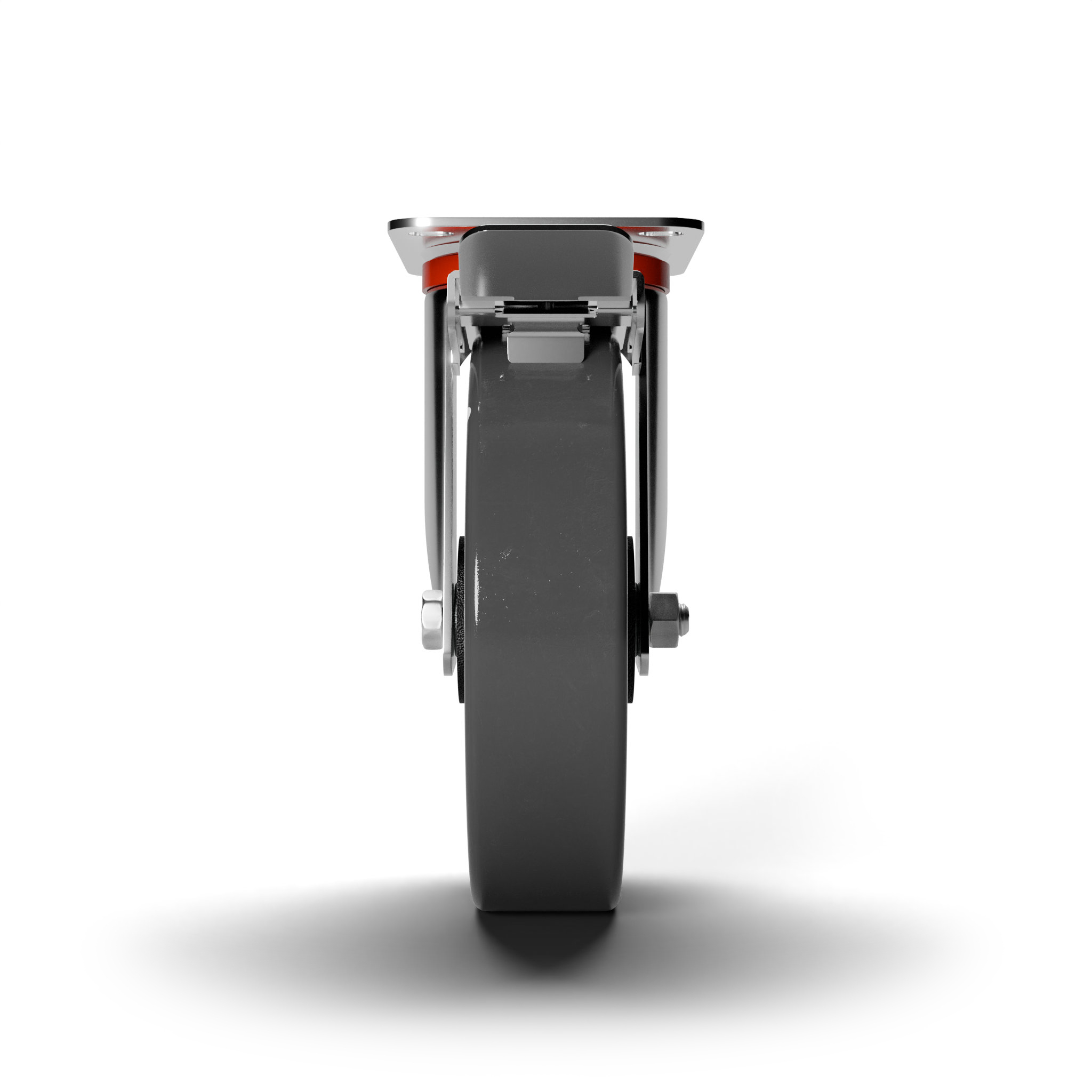

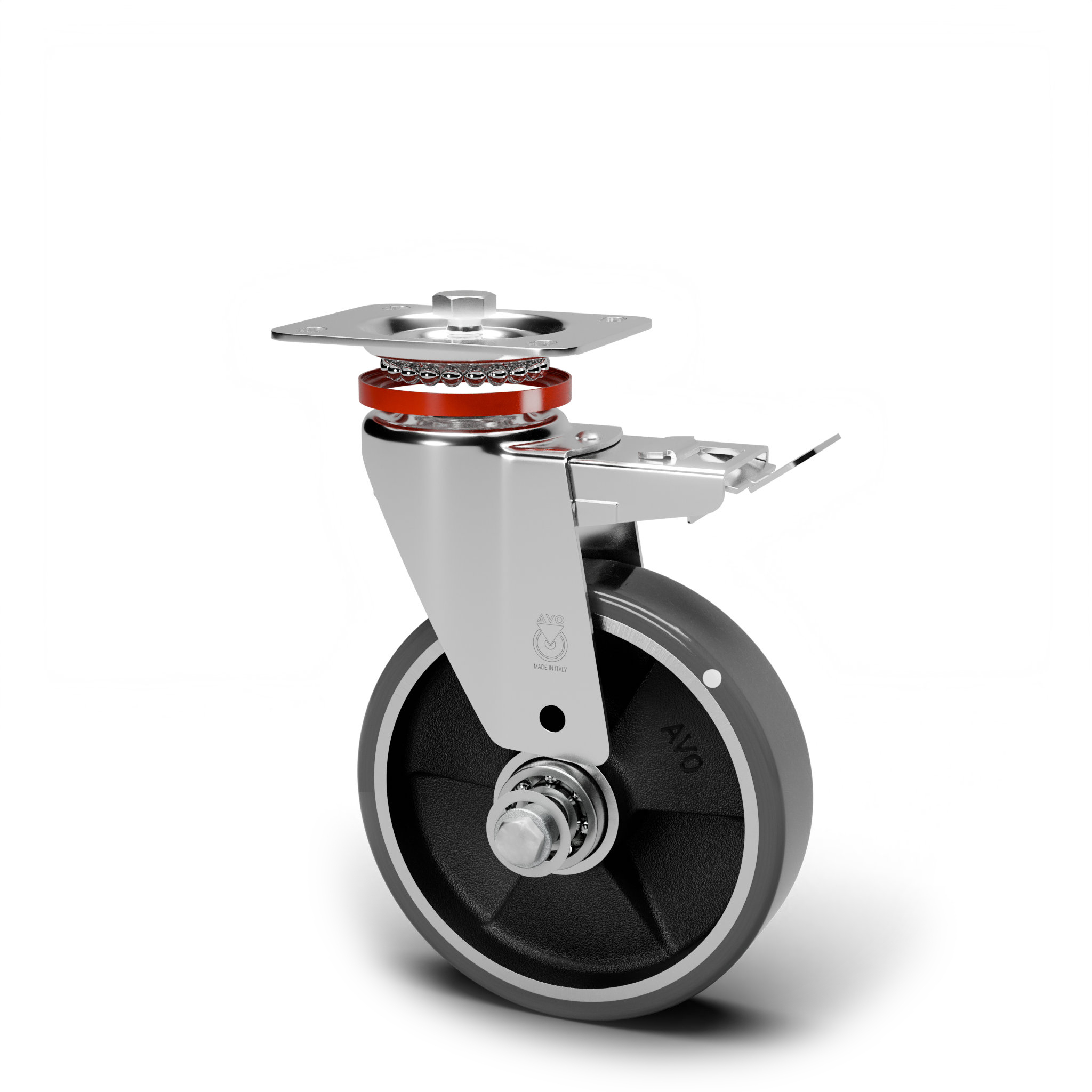

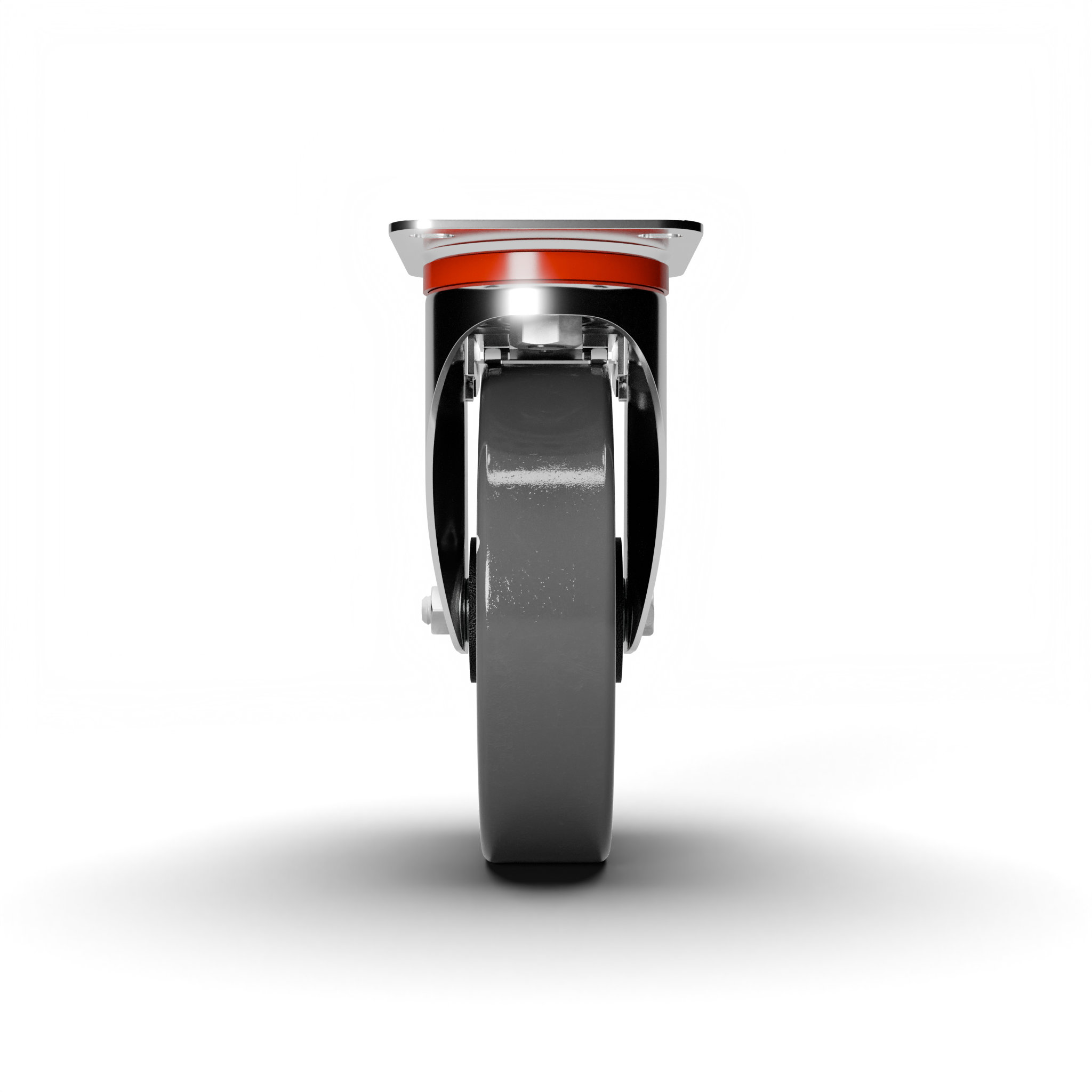

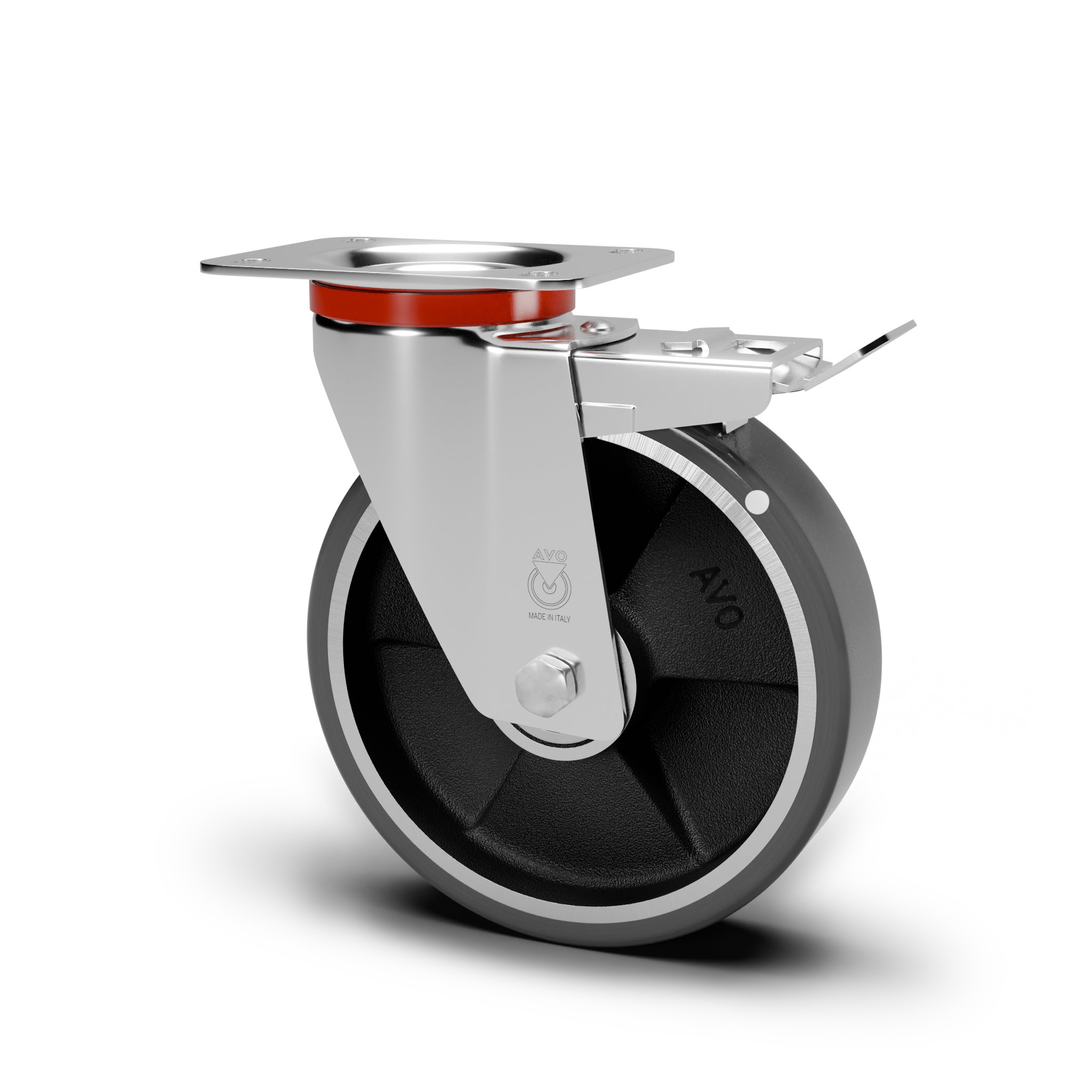

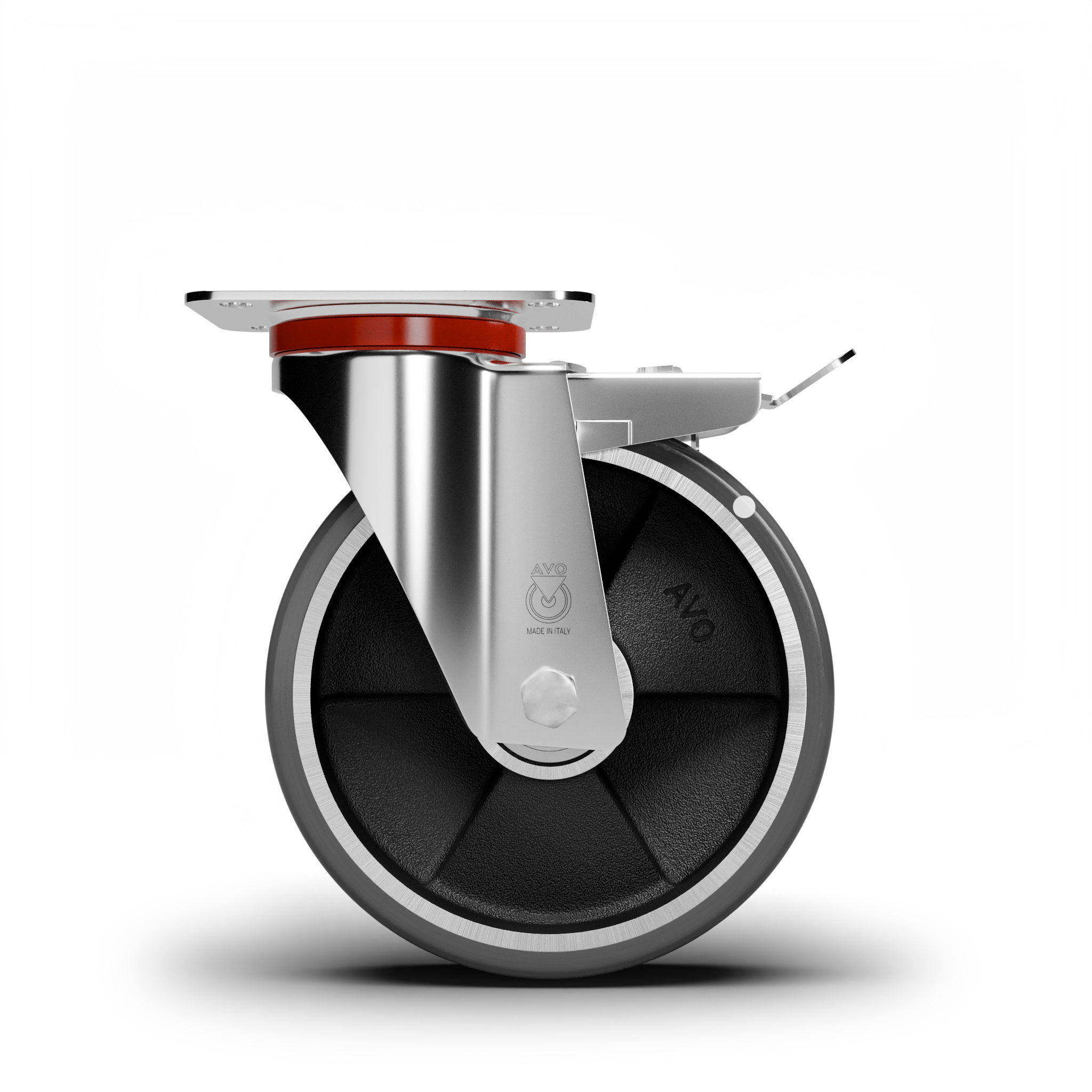

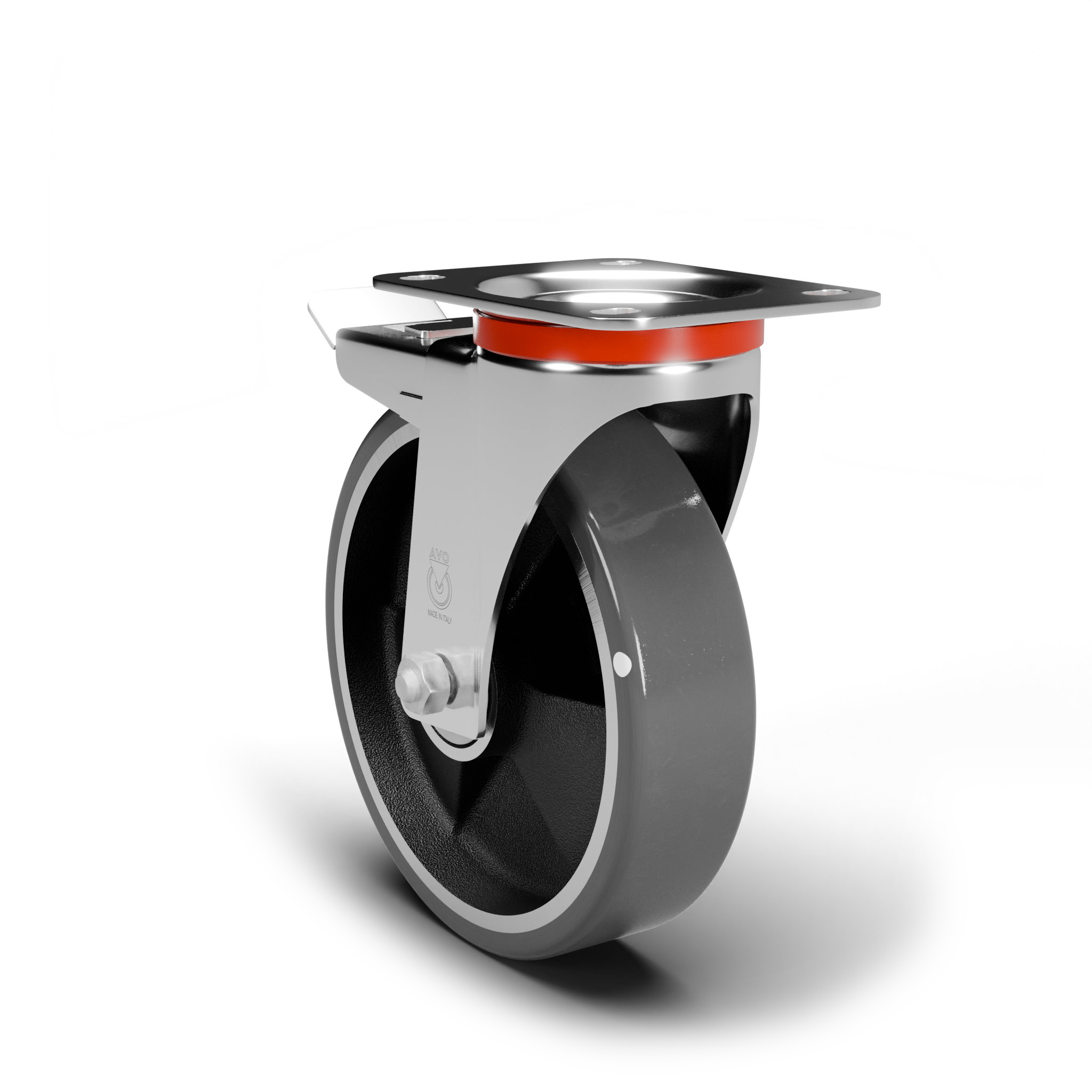

AVO – Wheel with avoantistatic polyurethane and steel castor for industry, diameter 150mm ean 25395

24ANT-AS

Material: Avoantistatic Polyurethane

Core: Cast Iron

Application field: Industry

Request information

Description:

Wheel coated with antistatic cast polyurethane tread AVOANTISTATIC 91 Shore A and mechanical cast iron centre. Hub on shielded ball bearing assembled with central spacer.

Medium duty castors

Made of zinc-chromium plated pressed steel, turning on double rim of balls, with plate and front brake. Assembled with self-locking nut and dust cover ring on the balls.

Product line: Antistatic/Conductive

Product line: Antistatic/Conductive

EAN13: 8018793253956

EAN5: 25395

Article code: 090240F150SCG

Features

-20 | 80

200

Ball bearing

Shore A

91

Floor types

Asphalt

Concrete

Grid

Stoneware

Download pdf product sheet

download images

Download the drawing

Download the STP file

Wheel data

Diameter (mm)

150

Band width (mm)

30

Hub width (mm)

30

Hub version

Ball bearing

Wheel hole (mm)

17

Bearing seat (mm)

40X12

Dynamic load capacity (DaN)

200

Colour

Grey

Material

Avoantistatic Polyurethane

Box pieces

/

Hardness scale

Shore A

Hardness

91

Bracket data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

8,5X12

Offset (mm)

45

Height from ground (mm)

181

Castor hole (mm)

/

Static load capacity (DaN)

250

Structure

Swivel

Version

Plate with brake

Brake

Front

Pivot

/

Pivot type

/

Finishing

Galvanized
