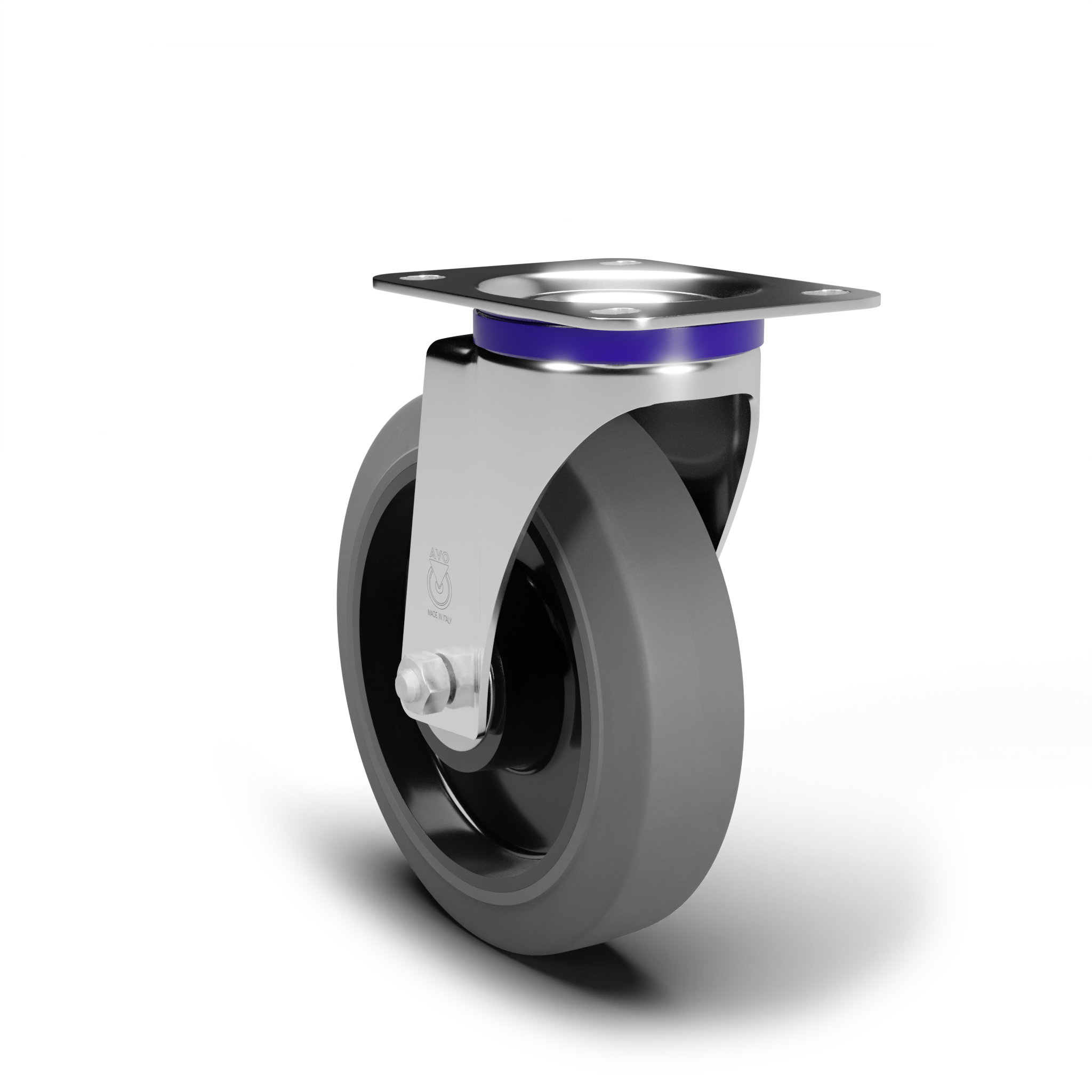

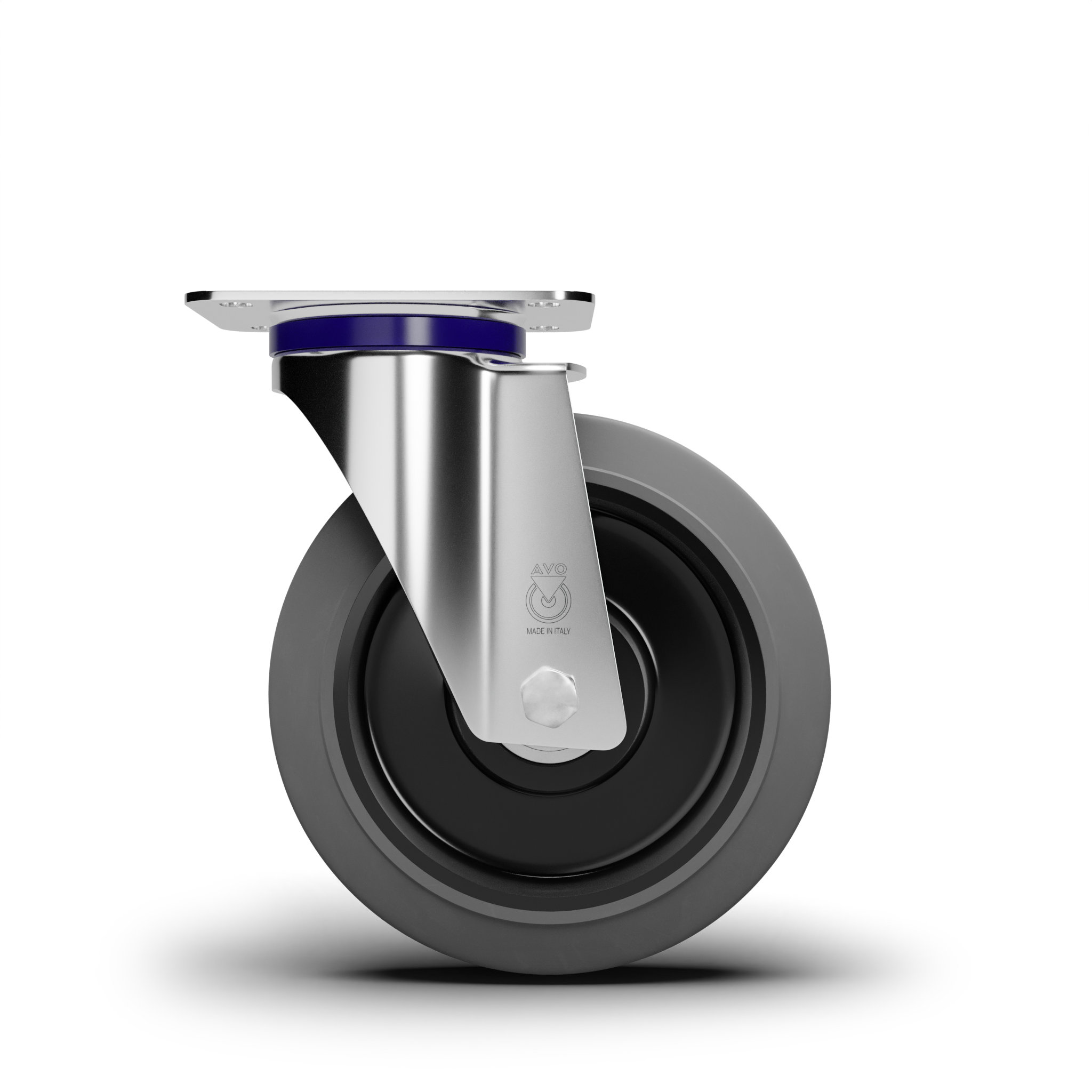

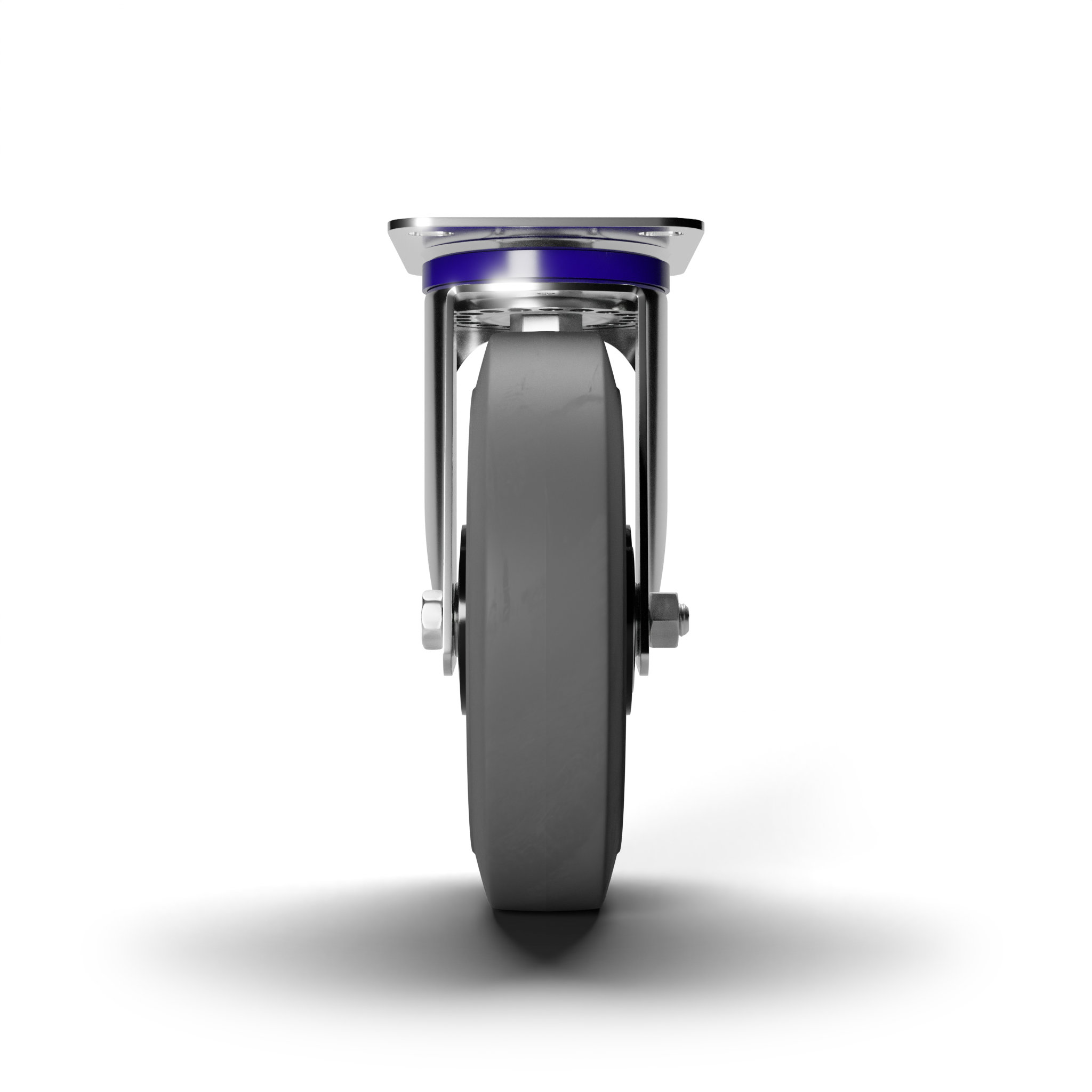

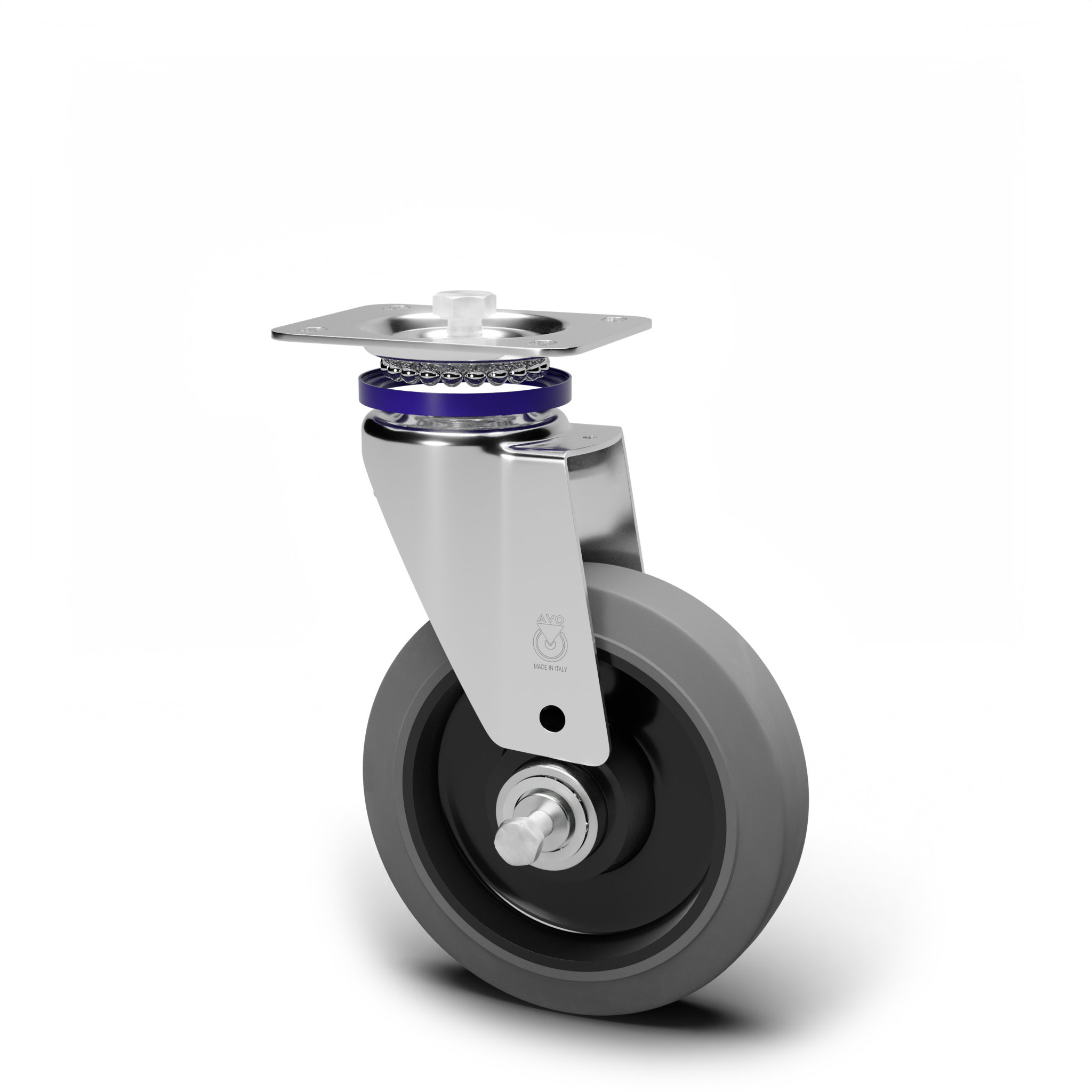

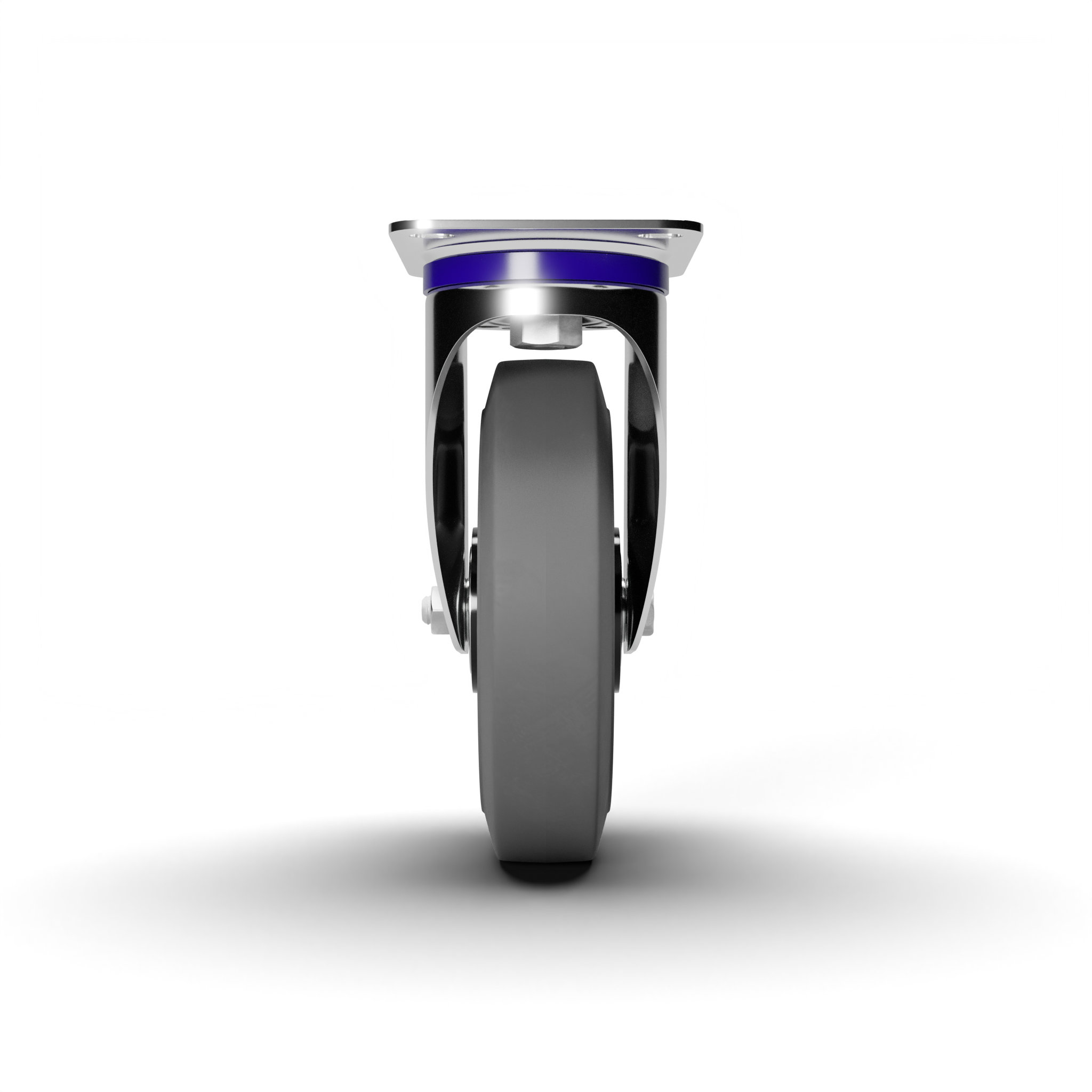

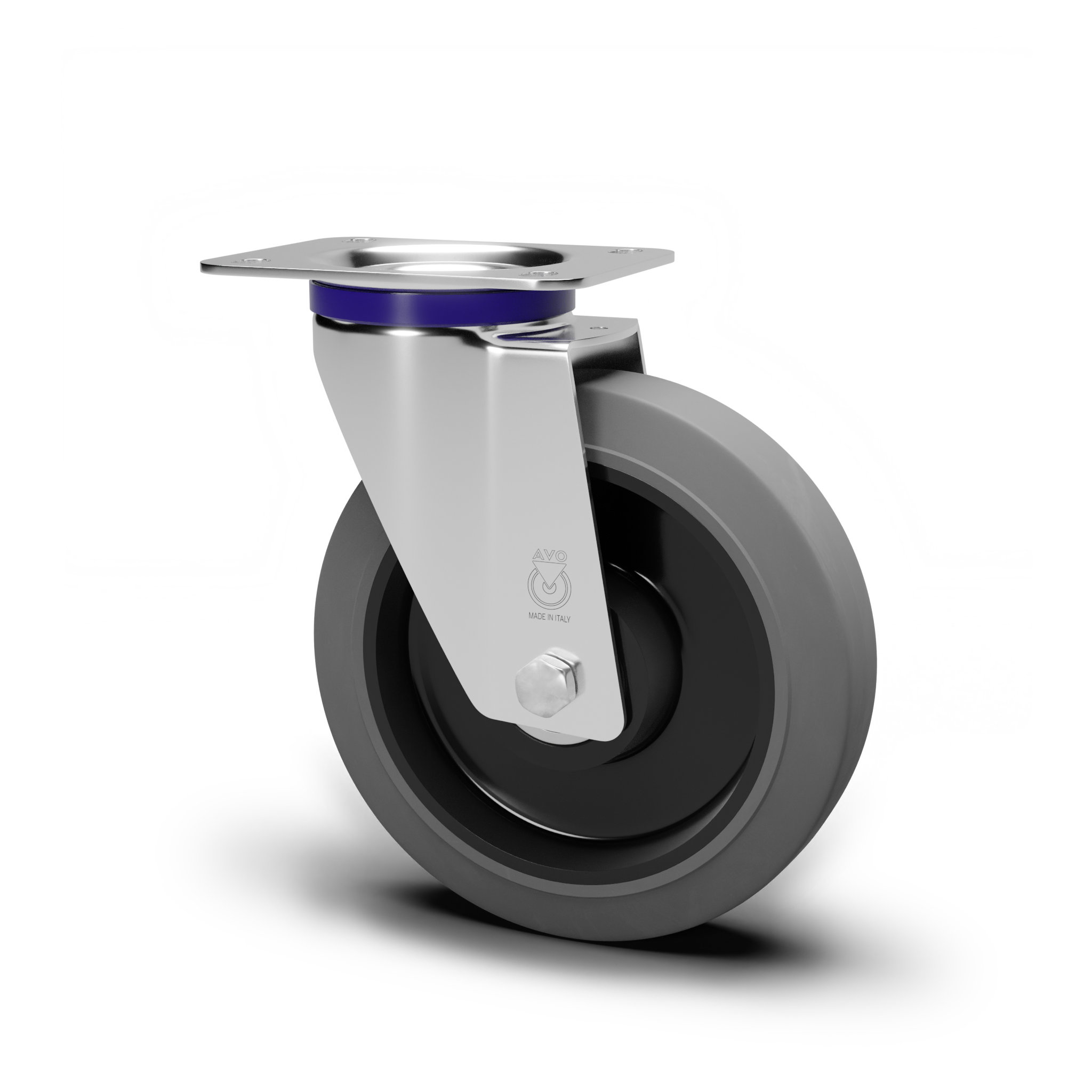

AVO – Wheel with non-marking rubber tyre and aisi 304 stainless steel castor for industry, diameter 125mm ean 25121

66X-AM

Material: Non-marking Rubber tyre

Core: Polyamide 6

Application field: Industry

Request information

Description:

Wheel with elastic grey non-marking rubber tyre 68 Shore A and Polyamide 6 centre. Hub on stainless steel roller bearing, shielded stainless steel ball bearings assembled with central spacer.

Medium duty castors

Made of pressed stainless steel AISI 304, turning on double rim of stainless-steel balls AISI 420, with plate. Dust cover ring on the balls.

Product line: Stainless steel

Product line: Stainless steel

EAN13: 8018793251211

EAN5: 25121

Article code: 00X66S0126NRG

Features

-20 | 70

170

Stainless steel roller bearing

Shore A

68

Floor types

Stoneware

Wood

Download pdf product sheet

download images

Request STP file

Wheel data

Diameter (mm)

125

Band width (mm)

36

Hub width (mm)

50

Hub version

Stainless steel roller bearing

Wheel hole (mm)

15

Bearing seat (mm)

/

Dynamic load capacity (DaN)

170

Colour

Grey

Material

Non-marking Rubber tyre

Box pieces

/

Hardness scale

Shore A

Hardness

68

Bracket data

Plate size (mm)

100X085

Interaxis plate hole (mm)

080X060

Plate bore size (mm)

8,5X12

Offset (mm)

42

Height from ground (mm)

155

Castor hole (mm)

/

Static load capacity (DaN)

220

Structure

Swivel

Version

Plate

Brake

/

Pivot

/

Pivot type

/

Finishing

AISI 304 stainless steel
